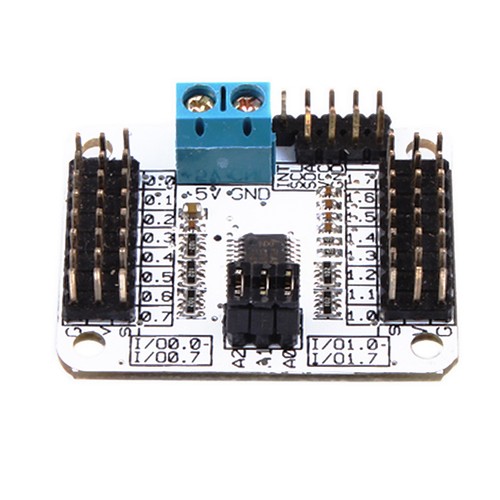

IIC GPIO Module CT8314 Convert 16 Digital IO Ports Read-Write 8 Simultaneous Parallel Modules For Arduino

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

  • Data acquisition,controlling digital equipments,LED,relays,sensors,keypad and so on
  • 6 Digital IO port comes with internal pull-up
  • Can be set to eight addresses (address range of 0x20-0x27)
  • 8 modules simultaneously in parallel (IIC bus need to pull together)

Specification

General
Model  IIC GPI
Color White
Quantity 1 Piece
Material CCL+ PCB board
Specification
Application Data acquisition,controlling digital equipments,LED,relays,sensors,keypad and so on
Chipset CT8314
IO Port 6
Input Voltage 5V
IO Operating Voltage 5V
Dimensions & Weight (Main Product)
Dimension 1.61x1.3x0.51 in (4.1x3.3x1.3 cm)
Weight 0.85 oz(24g)
Package Contents
1xIIC GPIO module
When usIing Arduino to make robots or perform interactive media, have you found digital IO ports are not efficient? Arduino UNO and Leonardo often face this problem. How can we make use of existing resources to expand sufficient Arduino ports? Actually, we are able to solve this problem through the Arduino I2C IC GPIO Module which can achieve communication through Arduino two IIC data lines (SDA / SCL), thus converting the readable and writable 16 channel digital I / O port.
In addition, 8 modules can be in parallel simultaneously , and each module can be set to different IIC address, through which you could parallel multiple modules for data acquisition and control according to the demand of project digital ports. A total of 128 digital ports are spared, double of MEGA2560. If you cant use I2C,SPI or other protocols, it is necessary to equip with an expanded version of IO.

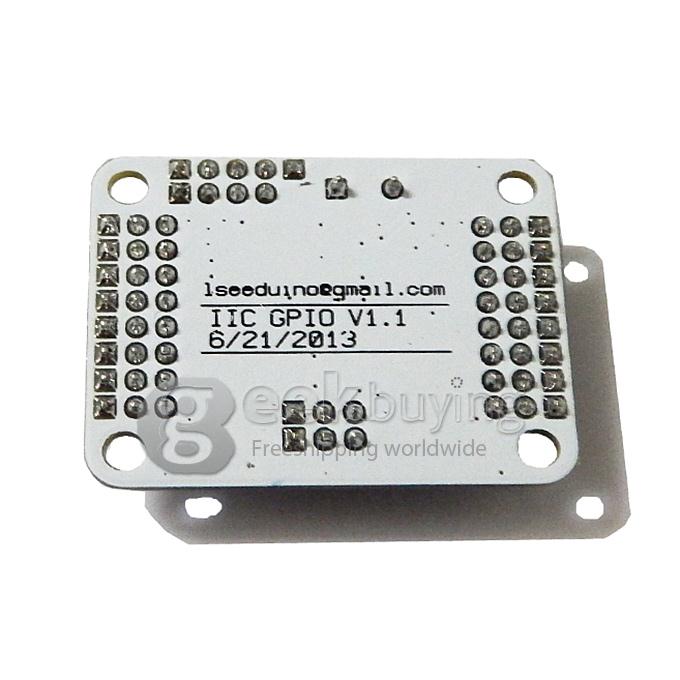

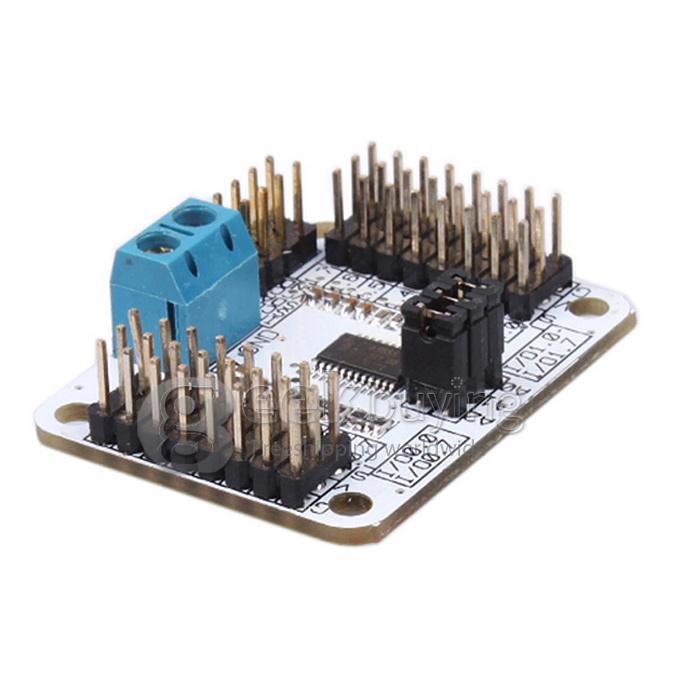

IIC GPIO Module CT8314 Convert 16 Digital IO Ports Read-Write 8 Simultaneous Parallel Modules For ArduinoIIC GPIO Module CT8314 Convert 16 Digital IO Ports Read-Write 8 Simultaneous Parallel Modules For ArduinoIIC GPIO Module CT8314 Convert 16 Digital IO Ports Read-Write 8 Simultaneous Parallel Modules For Arduino
