Highlights

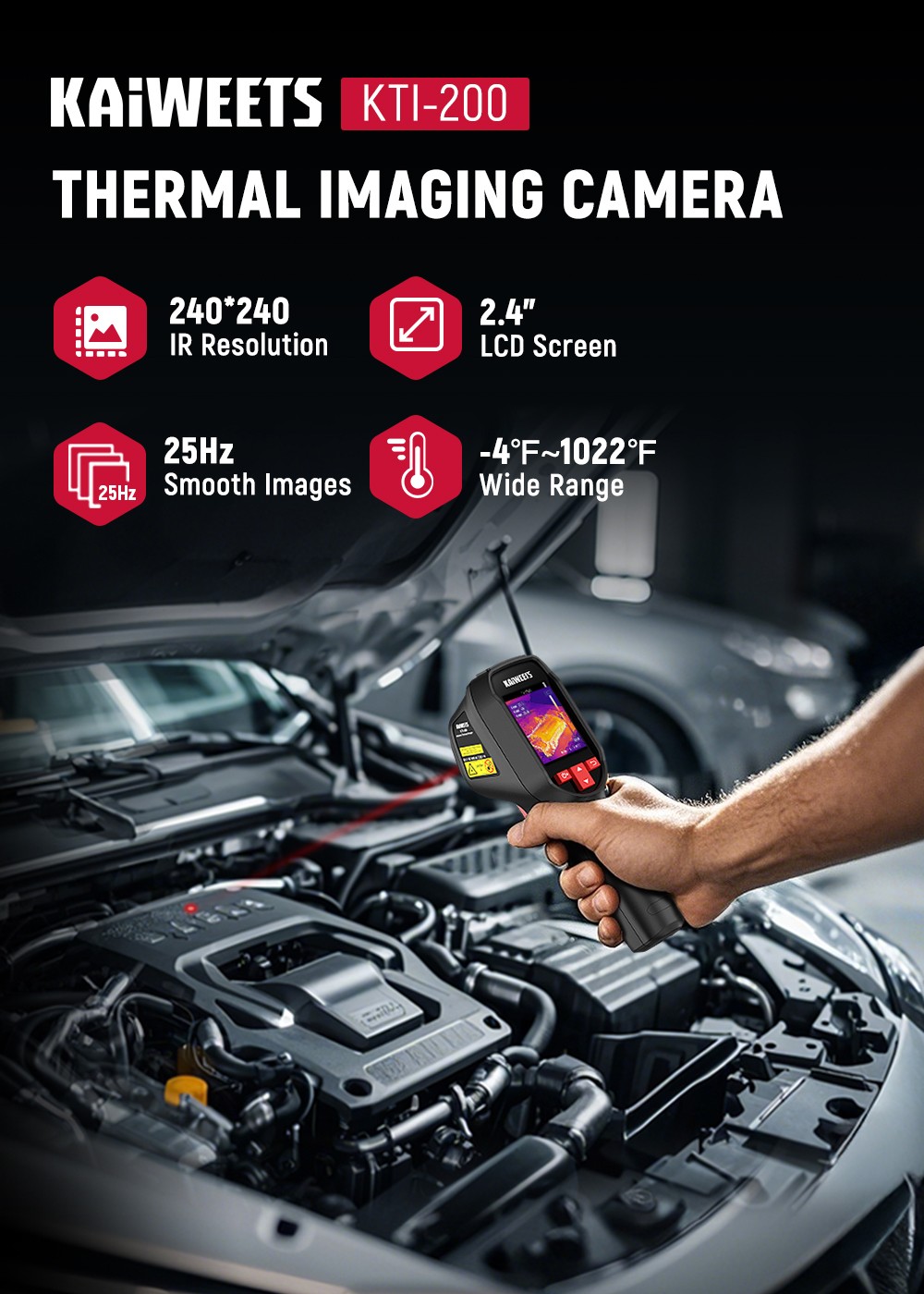

Capture Crisp Thermal Imagery
The KTI-200 thermal camera features 240x240 high IR resolution and a 25Hz refresh rate for ultra-smooth thermal imaging, delivering crisp and detailed heat maps on the 2.4" LCD screen, ensuring no detail is missed.
Laser-Assisted Targeting for Precision
The KTI-200 infrared camera measures a wide temperature range from -4°F to 1022°F with a built-in laser pointer for precise object alignment in low-light or cramped spaces. Features a 50° field of view for capturing large areas in detail, and offers ±2% accuracy for precise temperature measurements.

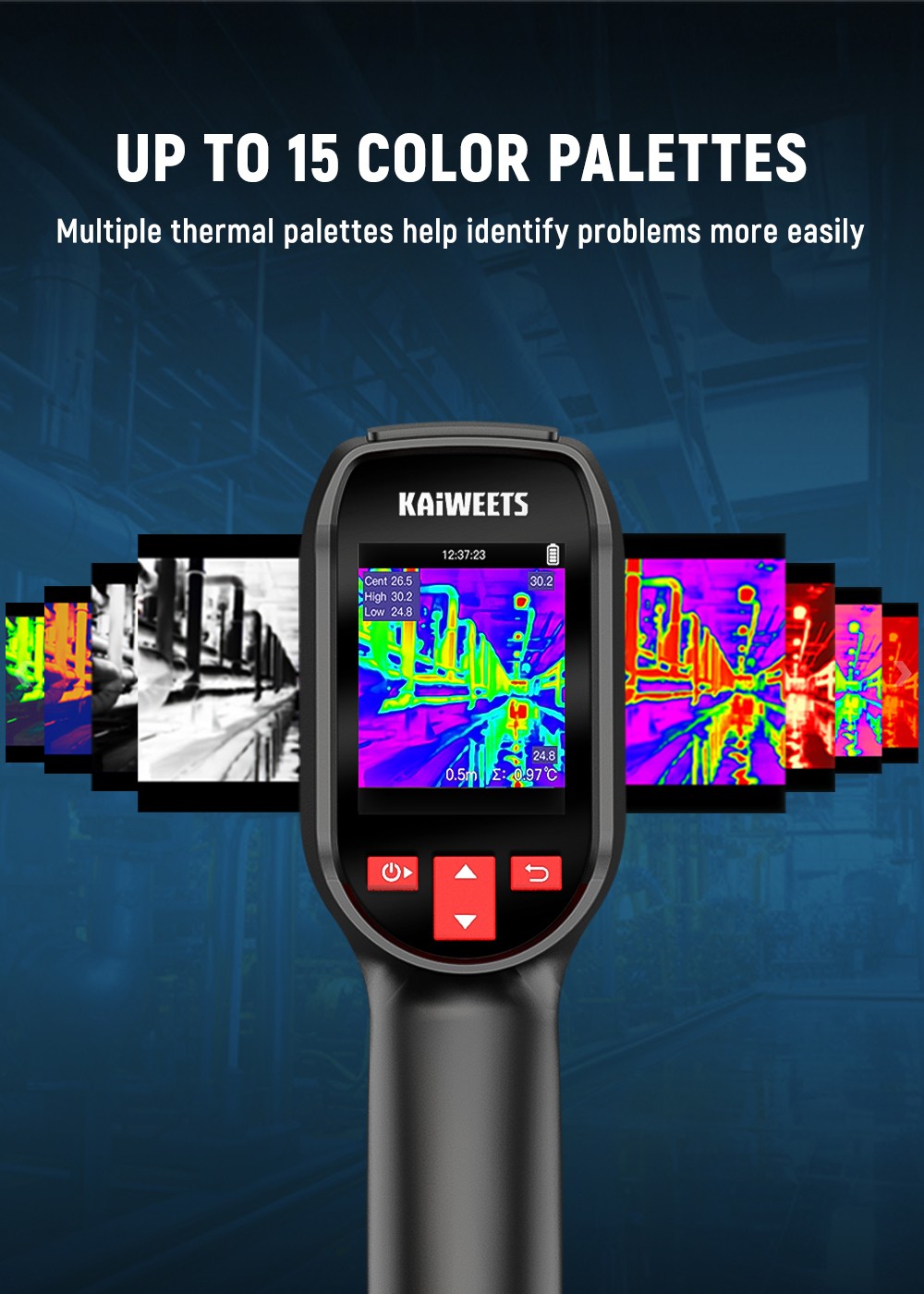

15 Thermal Palettes for Enhanced Analysis
Outperform rivals with triple the color palette options (vs. 5-7 standard). The KTI-200 IR camera offers 15 thermal palettes (e.g., White Hot, Rainbow, Iron Red) to optimize visibility and identify problems more easily.
Massive Storage Capacity
Store up to 30,000 thermal images and transfer files effortlessly via USB-C to your computer for detailed analysis. This makes it ideal for long-term projects and extensive inspections.
Smart Features
Includes auto temperature tracking with center, hot, and cold spot detection, plus high/low temperature alarms for real-time anomaly detection. Enjoy 8-hour continuous operation with automatic power-off options to maximize efficiency during extended inspections.
Specification
| General | Brand: KAIWEETS Type: Thermal Imager Model: KTI-200 Color: Black |

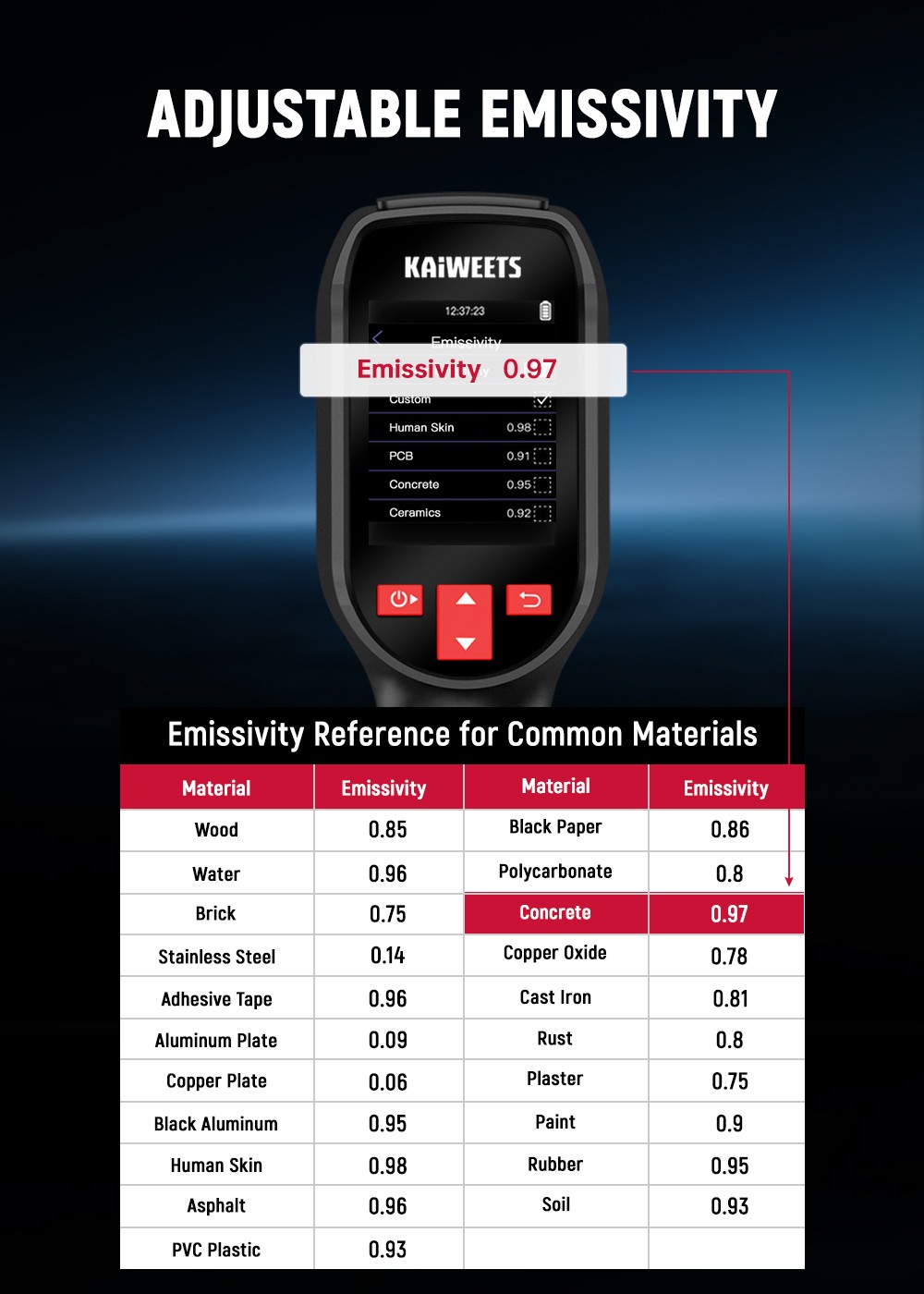

| Specification | Sensor type: Vanadium oxide (VOx) microcalorimeter Response band: 8–14μm Thermal image resolution: 240x240 Pixels Noise equivalent temperature difference(NETD): ≤60 mK(@25℃,F#1.0) Field of view(FOV): 50.0°(H)×50°(V)/72.1°(D) Instantaneous field of view(IFOV): 8.89 mrad Frame rate: 25Hz The focal length of the imaging lens: 1.35mm Temperature measuring focal length: 0.3m–3m Adjustable Temperature range: –20℃ to +550℃ Accuracy of temperature measurement: ±2℃ or ±2% of the reading (take the larger value of the reading) Unit of temperature measurement: Celsius, Fahrenheit, Kelvin Temperature resolution: 0.1℃ Emissivity: 0.01-1.00 Adjustable Temperature measurement shows: Center point temperature measurement, high and low temperature tracking Swatches: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Deep Brown, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Deep Blue Display screen: 2.4 inches TFT LCD Display resolution: 320x240 Button: Power button, Up button, Down button, Return button, Trigger button Laser pointer: Yes Temperature alarm: Screen font color alarm Image storage: Built-in memory card Number of image files: 30000 Image format: BMP Shock/vibration: GB/T 2423.5-2019; GB/T 2423.10-2008 Electromagnetic compatibility(EMC): GB/T 17799.2; GB17799.3-2012 Protection level: IP54 Installation mode: Tripod mount UNC-20 Focus mode: Auto focusing Hardware interface: Type-C USB Battery type: Rechargeable lithium battery (3.7V/2500mAh) The working hours of the battery: >7h@25℃ Charging time: <3h@25℃ Charging voltage/current: 5V/2A Boot speed: 3 seconds Automatic power off: Disable(default)(optional–10 Min, 20 Min, 30 Min, 40 Min, 50 Min, 60 Min, Disable) Operating temperature: –10℃ to +50℃ Storage temperature: –40℃ to +70℃ Working humidity: ≤85%RH (Non-condensing) Drop: 1.5m |
| Weight & Size | Product Weight: 0.28kg Package Weight: 0.485kg Product Size(L x W x H): 19.3x5.9x7.7cm Package Size(L x W x H): 22x10x8cm |

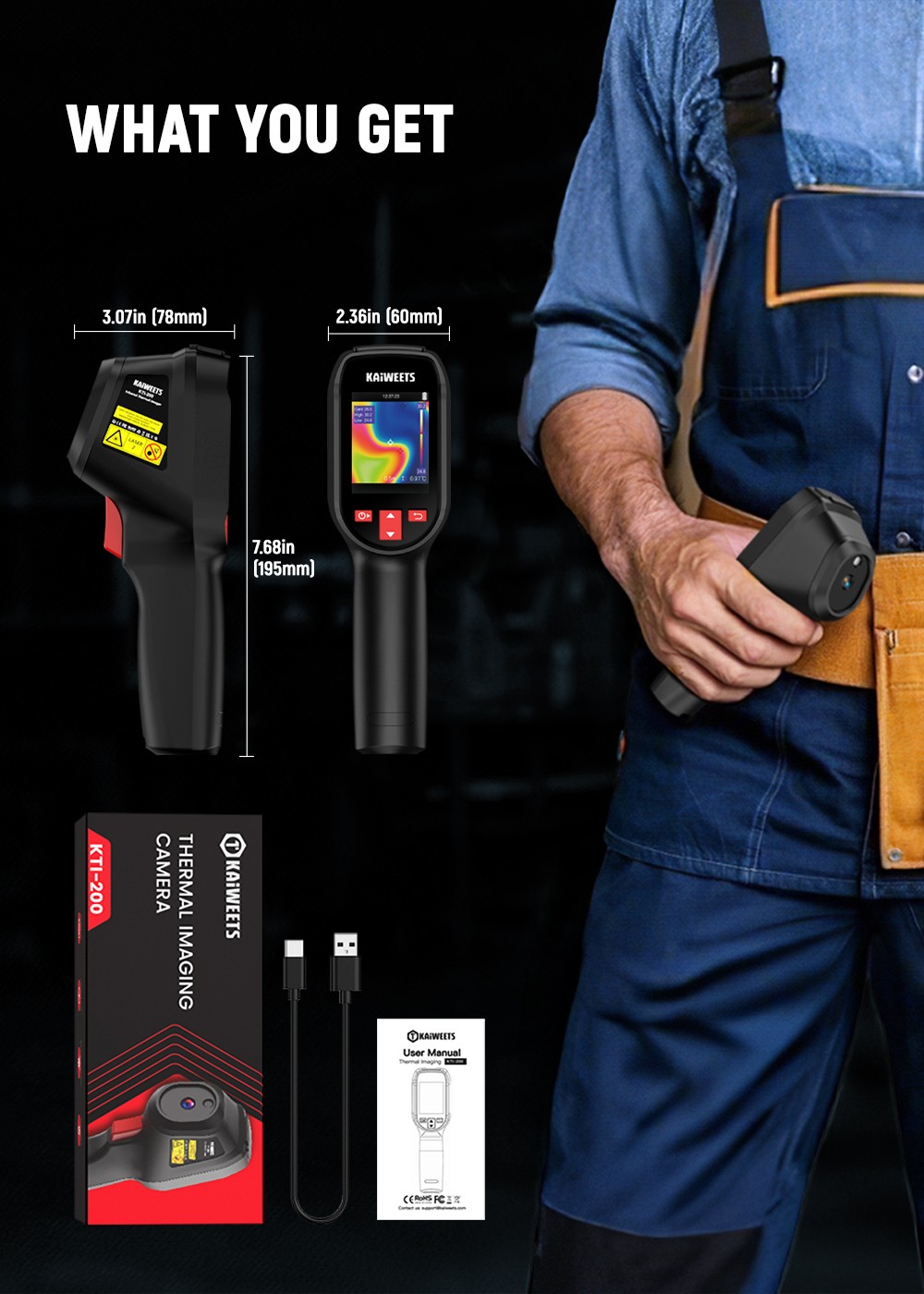

| Package Contents | 1 x Thermal Imager 1 x USB-C Cable 1 x User Manual |
