Highlights
20W Powerful Cutting
Longer RAY5 20W laser engraver adopts the highest power quad-core diode laser engraving and cutting, which can cut 0.05mm stainless steel sheets, and cut 10mm basswood, 15mm pine, and 8mm acrylic in one pass.
0.08*0.1mm High Accuracy Laser Spot
With newly upgraded 32 bits chipsets, the motherboard works more smoothly and stably. The advanced built-in 256-bit color scale with 0.08*0.1mm ultra-fine laser focus area achieves a finer engraving result and a higher contrast effect.
3.5inch Color Touchscreen & 4 Connection Methods<
Longer RAY5 20W laser engraver equips a 3.5-inch color touchscreen with a user-friendly interface that allows the users to directly operate the machine through the touchscreen, such as checking the engraving progress, adjusting the engraving speed, or other operations. And it supports WiFi, APP, USB cable, and TF cards data transmission.
Multi-Color Engraving
The 20W high-energy laser beam instantly oxidizes the metal surface, bringing rich colors to fulfill your colorful creative needs.
5 Safety Protections
A laser emergency stop will be triggered when tilted, flame, data connection interruption, and laser head freezing over 15 seconds are detected. In addition, the panoramic filter glass can effectively filter the laser and protect the eyes, safer to use.
Multiple Machines Control
One computer can control multiple RAY5 laser engravers work parallelly, Whether it is RAY5 5W, RAY5 10W, or RAY5 20W, and improve the production efficiency.
Wide Compatibility
RAY5 20W laser engraver is compatible with various mature carving software, such as LaserGRBL, and LightBurn, and supports Windows 7+, macOS, and Linux; carving file formats support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.
20W Laser Cutting by Longer Ray5 20W Laer engraver
Longer Ray5 20W Laer engraver can cut 0.59"/15mm pine wood and 0.31"/8mm acrylic in one pass, 25mm wood and 35mm acrylic in multiple passes, in addition to 0.002"/0.05mm stainless steel.
Specification
| General | Brand: LONGER Type: Laser Engraver Model: RAY5 20W Color: Black |
| RAY5 20W Specification | Laser Technology: Dioser Technology Working Area: 375x375 mm Laser Wavelength: 450 - 460 nm Focal Length: Fixed Focus-40mm Optical Output Power: 18 - 21 W Power Max Consumption: 120W Engraver Output: DC 24V 5A Engraver Input: AC 220V Z Axis-Height Range: Up to 47mm Fastest Working Speed: Speed 10000mm/min Software: LaserGRBL & LightBum Input Image Format: JPG, PNG, BMP, GIF, SVG, AI, etc. Connection Type: USB/TF Card/WiFi Limit Switches: Yes Air Assist Interface: Yes |
| RAY5 20W Weight & Size | Package Weight: 5.51Kg Product Size(L x W x H): 610 x 670 x 200mm Package Size(L x W x H): 621 x 347 x 127mm |
| H44 Laser Bed |
Size: 440*440*22mm Material: Aluminum+Steel Working Area: 400*400mm Product Weight: 1.8kg Package Weight: 2.19kg Product Size(L x W x H): 440*440*22mm Package Size(L x W x H): 500x500x52mm |
| Rotary Roller with Bracket |
Product Weight: 1.25kg Package Weight: 1.25kg Product Size(L x W x H): 26.8x18.4x6cm Package Size(L x W x H): 33.5x23.6x8.8cm |
| Walnut Sheets |
Product Weight: 1.036kg(Walnut) Package Weight: 1.161kg(Walnut) Product Size(L x W x H): 30×30×0.3cm Package Size(L x W x H): 31.5×31.5×2.5cm |
| Mahogany Sheets |
Product Weight: 0.95kg(Mahogany) Package Weight: 1.078kg(Mahogany) Product Size(L x W x H): 30×30×0.3cm Package Size(L x W x H): 31.8×32×2.5cm |
| Air Assist Kit | Rated Voltage: AC 220V 50Hz Max Power: 16W Max Pressure: 0.03 MPa Max Air Flow: 30 L/Min Air Outlet Diameter: 1/8 inch Air Pump Noise Test Data: <60db Product Weight: 1.456kg Package Weight: 1.756kg Product Size(L x W x H): 13x13x7.8cm Package Size(L x W x H): 24.8x19.2x11.5cm |

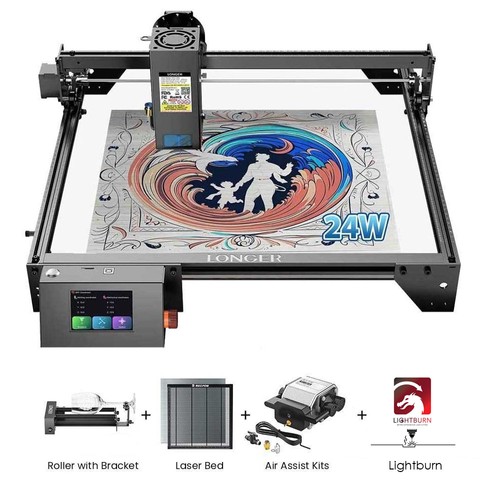

| Package Contents | 1 x X-Axis Frame 1 x Laser Module 1 x Timing Belt 1 x Limit Switch 1 x Rear Frame 1 x Left Frame 1 x Right Frame 1 x Front Frame 1 x Power Cable 1 x Safety Glasses 1 x USB Cable 1 x Plywood 1 x Support Feet 1 x Control Box 1 x Card Reader & TF Card 1 x Cable Tie 1 x Wooden Brush 1 x Nylon Isolation Column 1 x Laser Focus Plate 4 x Corner Groove 4 x T-shaped Screw 2 x M5 Flat Washer 1 x Wrench 4 x M5*25 8 x M5*16 1 x M5*8 4 x M5*6 2 x M3*6 4 x Allen Wrench 2 x Thumb Screw 1 x User Manual 1 x Rotary Roller with Bracket 1 x Laser Bed 1 x Lightburn License 1 x Air Assist Kit |
Loger Ray5 20W vs 10W vs 5W
| Model Number | Ray5 20W | Ray5 10W | Ray5 5W |
|---|---|---|---|
| Laser Technology | Dioser Technology | Dioser Technology | Dioser Technology |
| Working Area | 375x375 mm (14.76x14.76 inch) | 400x400mm (15.75x15.75inch) | 400x400mm (15.75x15.75inch) |
| Laser Wavelength | 450 - 460 nm | 450nm | 450nm |
| Focal Length | Fixed Focus-40mm | Fixed Focus-50mm | Fixed Focus-30mm |
| Laser Spot Size | 0.08x0.10mm | 0.06x0.06mm | 0.08x0.08mm |
| Optical Output Power | 18 - 21 W | 10W | 5W |
| Power Max Consumption | 120W | 60W | 40W |
| Engraver Output | DC24V5A | DC12V5A | DC12V5A |
| Engraver Lnput | AC110-240V | AC110-240V | AC110-240V |
| Z Axis-Height Range | Up to 47mm | Up to 47mm | Up to 47mm |
| Fastest Working Speed | Speed 10000mm/min | Speed 10000mm/min | Speed 10000mm/min |
| Software | LaserGRBL&LightBum | LaserGRBL&LightBum | LaserGRBL&LightBum |
| Input Image Format | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. |
| Connection type | USB/TF Card/Wifi | USB/TF Card/Wifi | USB/TF Card/Wifi |
| limit switches | Yes | Optional | Optional |
| Air assist interface | Yes | Optional | Optional |
| Laser Engraver Size | 610 x 67 x 200 mm (24.02 x 26.38 x 7.87 inch) |
586 x 583 x 176.5mm (23.07x22.95x6.95inch) |
586 x 583 x 176.5mm (23.07x22.95x6.95inch) |
| Packaging Size | 621 x 347 x 127mm (24.45 x 13.66 x 5 inch) |
621x299 x 127mm (24.45 x11.77 x 5 inch) |
621 x 299 x 127mm (24.45 x 11.77 x 5 inch) |
Videos
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Q1: The engraved pattern appears to vibration, or is not closed?
A: 1. Adjust the eccentric nut to make the parts move smoothly without shaking;
2. Re-tension the timing belt;
3. Adjust the synchronous wheel to prevent the synchronous belt from rubbing against the side of the synchronous wheel during movement.
Q2: How to maintain the RAY5 laser module?
RAY5's lasers are carefully designed to resist stains, but after long-term use, there may still be dust and grease on the laser hood, air guide, and even the lens. This will affect the appearance and performance. It is recommended that you clean it regularly laser to keep it in top condition. You need to perform the following steps to clean the laser. Preparation: hex wrench, non-woven fabric, alcohol/isopropanol solution.
Start:
1. Remove the laser hood and air guide;
2. Dip a little alcohol/isopropyl alcohol solution in a non-woven fabric;
3. Carefully wipe the laser lens with a non-woven fabric;
4. Reinstall the laser hood and air guide;
Warning: Excess solution may immerse inside the laser and cause damage to the laser.
Q3: How to solve alarm 2 error or hard limit?
A: It adds two limit switches in the RAY5 20W laser engraver compared with RAY5 5W or 10W, the firmware has a hard limit and soft limit features to locate the laser module position precisely. The position of the laser module is assumed to be the home position by default when powered on. So the engraver will trigger the alarm 2 or hard limit error if the laser head is moved in the X or Y negative direction at this time. Then it needs to home the engraver as shown in the picture below.
Q4: How to solve the upload error of the APP?
A: To use APP for engraving, it needs to insert the SD card into the motherboard first to ensure that the data can be received normally; otherwise, it will prompt an upload error.
