Highlights

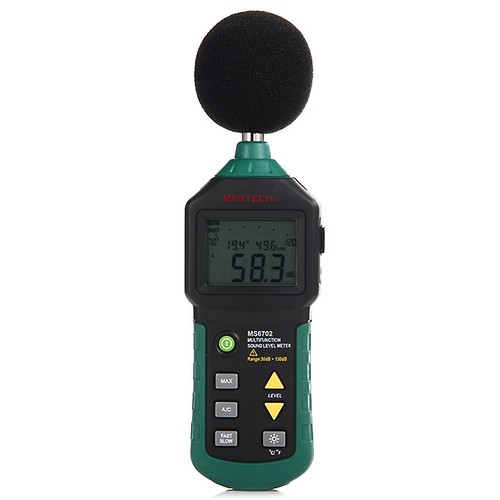

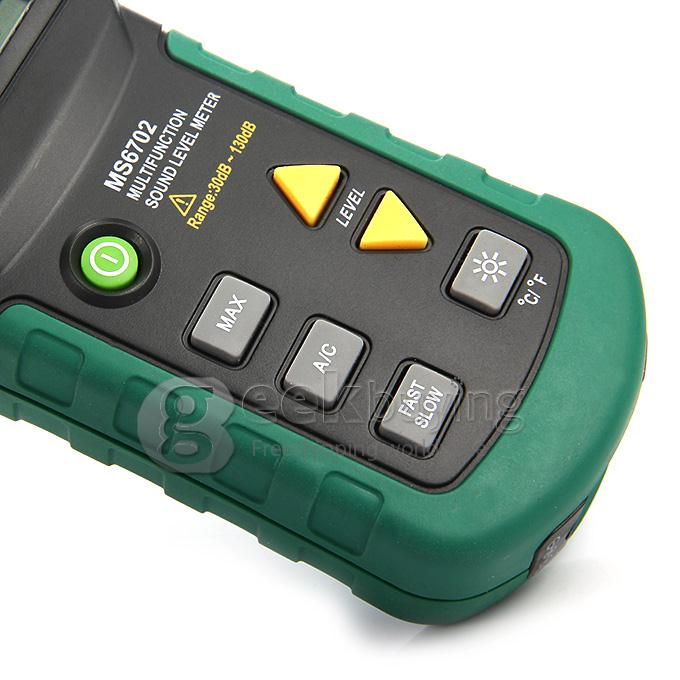

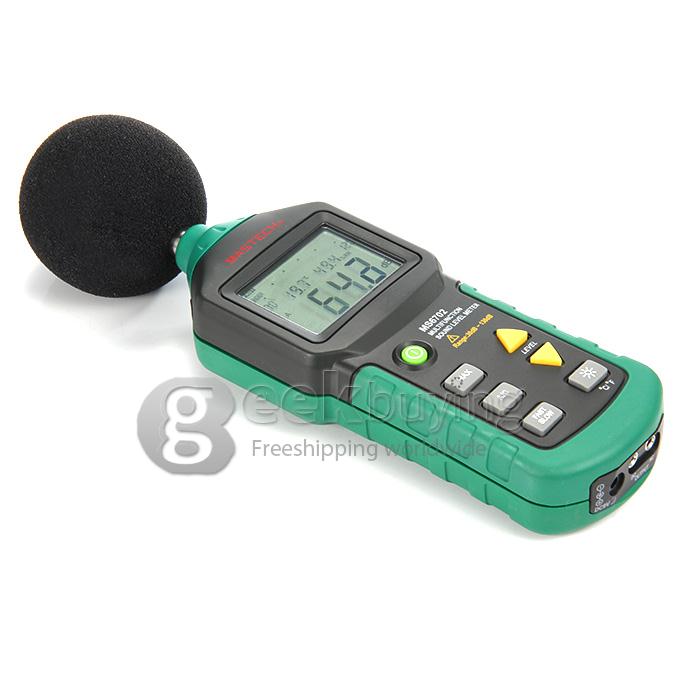

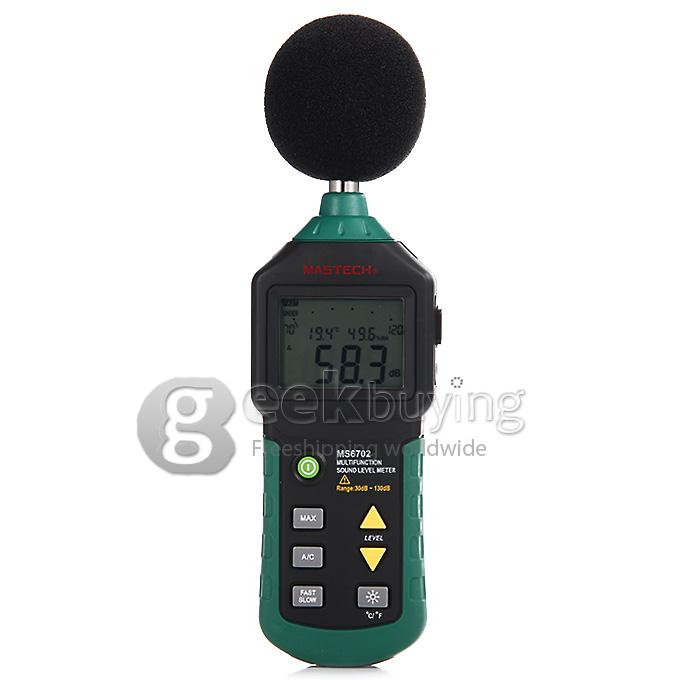

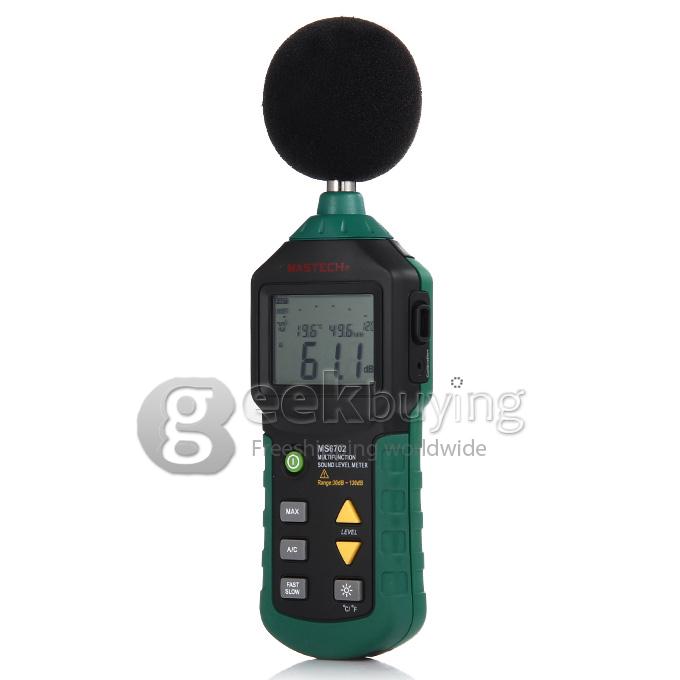

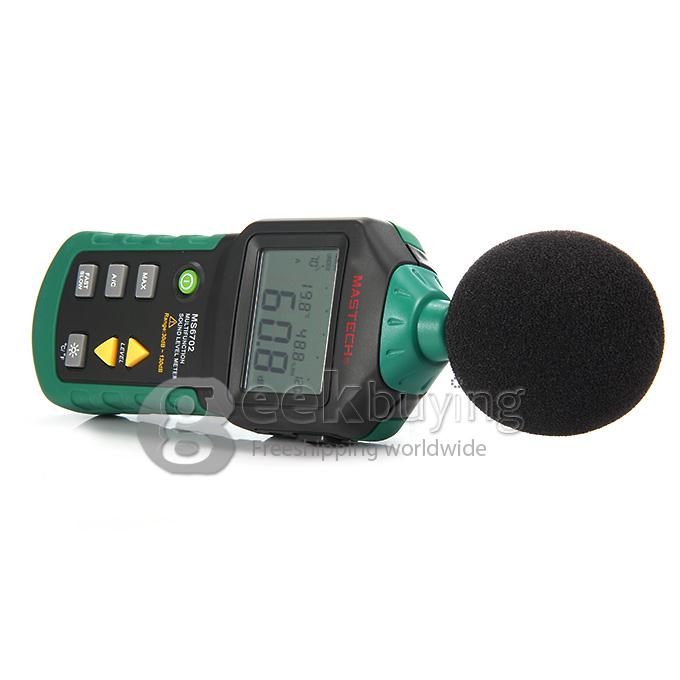

- This sound level meter complies with IEC651 Type 2 and ANSI S1.4 Type2.
- With the measuring scope from 30 to 130 db and automatic shifting function
- A and C weighting network selection
- High speed (FAST)/Low speed (SLOW) response rate selection
- Maximum (MAX) locking function
- It can measure temperature and humidity.
- Digital display, good anti-interference performance, power saving
- With backlight, it is appropriate for gathering the sound data at night. To save power, backlight auto power off function is provided.
- Composite material injection molding process is used for compatibility with anti-shock structure design. It is not only extremely wear-resistant, but also elegant in appearance
- With power saving and high-reliability circuit design, the well-designed high-efficiency power supply circuit makes the batteries more durable
- Analog bar indication
- Auto range & manual range
- Auto power off
- Fast/Slow selection
- MAX value hold function
- A/C weighting selection
- Date and Time display
- USB Interface
- Display Backlight
- Low Battery display
Specification
| Brand | MASTECH |
| Model | MS6702 |
| Measurement range | 30dB~130dB |
| Accuracy | ±2dB |
| Resolution | 0.1dB |
| Display | 2000 counts |
| Sample rate | 2 times/s |
| Frequency range | 30Hz~ 8KHz |
| Data logging | 16000 records |
| Over range Indication | “UNDER” / “OVER” |

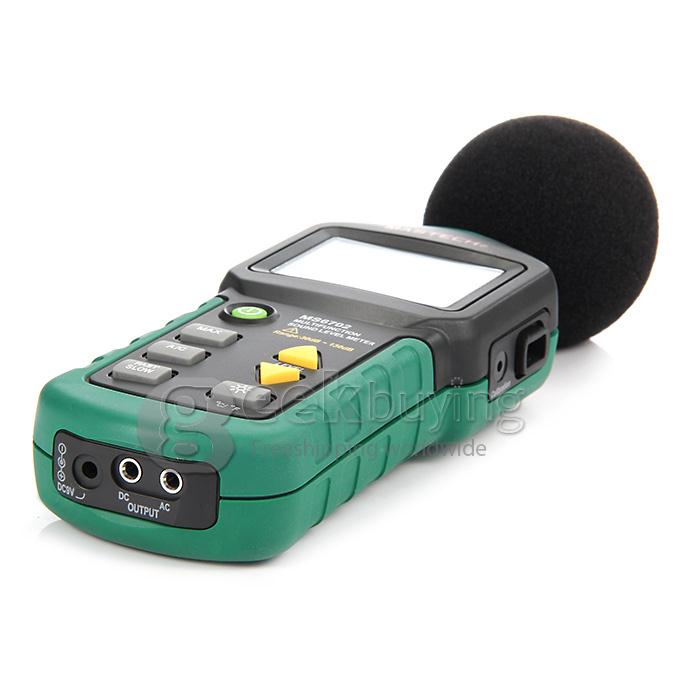

| Auxiliary output | AC: 0.707 Vrms at full range for each level, impedance 600Ω |
| DC: 10mV/dB, impedance 100Ω | |
| Power Supply | 6×1.5V AAA batteries (not included) |
| Product Size | 270mm×80mm×35mm / 10.1”×3.1”×1.4” |
| Product Weight | 300g / 10.4oz |
| Category | CE |
| Package | 1 x Mastech MS6702 Digital Multimeter Electrical Meter 1 x Box 1 x User manual 1 x Connector |
