Highlights
- AC/DC voltage test
- Phase indication function of three-phase dAC
- Continuity test
- Judging functin of live wire

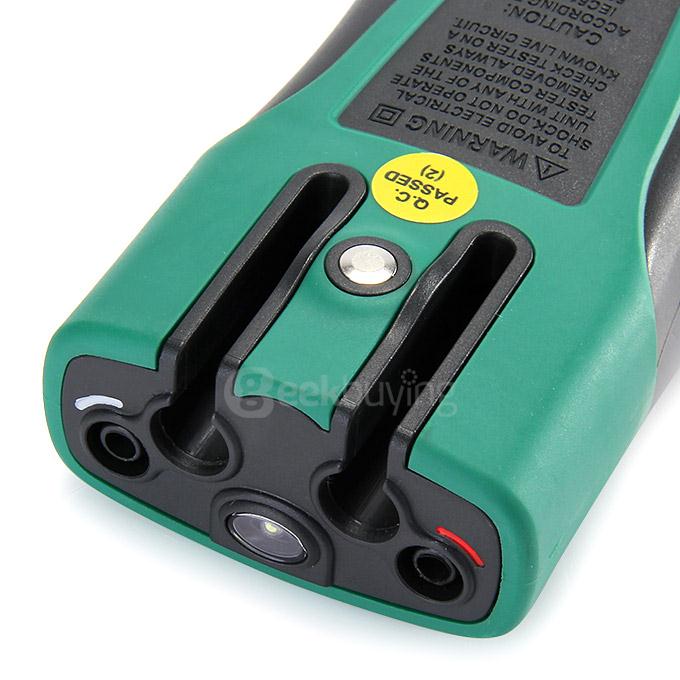

- Lighting function in dark environment
Specification
| General | |
|---|---|
| Brand | MASTECH |

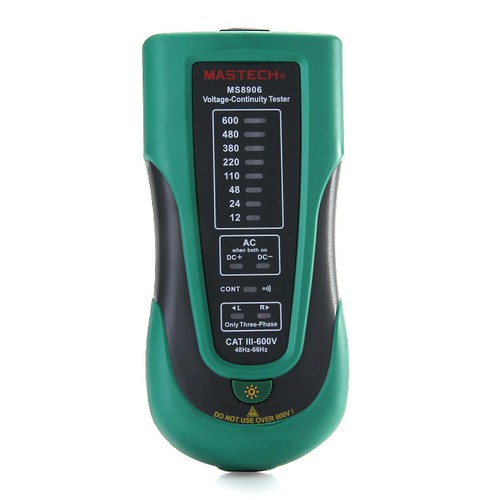

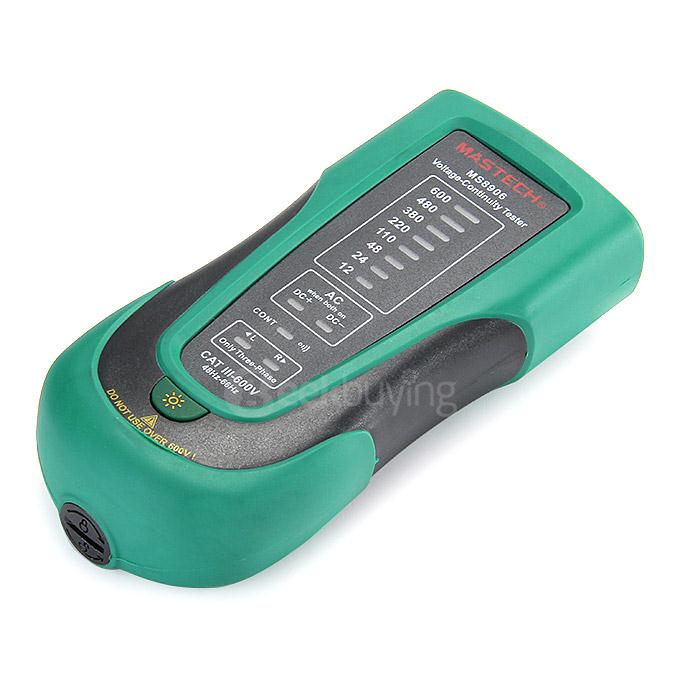

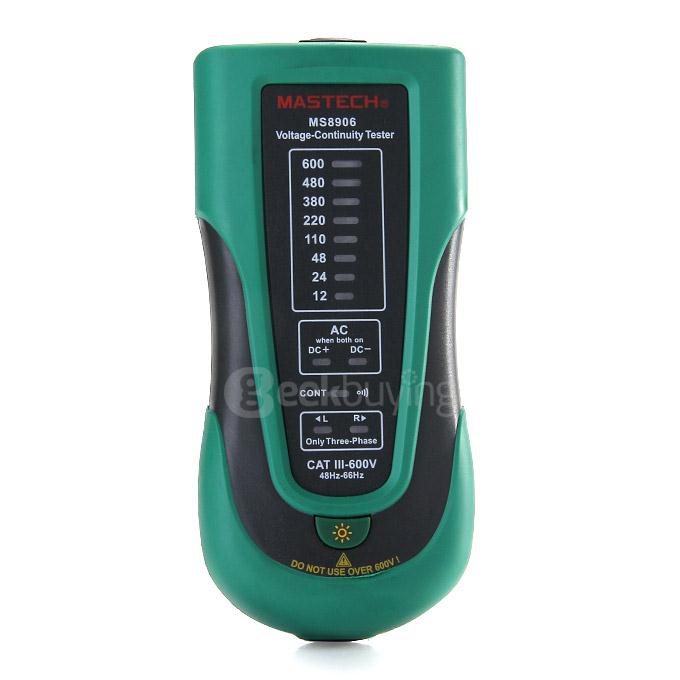

| Model | MS8906 |
| Quantity | 1 Piece |
| Specification | |
| Voltage Test Range | 12V~ 600V AC/DC |
| LED Voltage Indication Points | 12V/24V/48V/110V/220V/380V/480V/600V |
| Voltage Test | Automatic |
| Prompt Tone | Yes |
| Polar Indication (positive and negative) | AC/DC |
| Range Selection | Automatic |
| Response Time | <0.1S |
| Working Current | <0.5mA |
| Internal Basic Load | About 30mA when the voltage is 600V |
| Internal Battery Consumption | About 15mA( when the light is on) |
| Testing Time | 10S |
| Recovery Time | 1Min |
| Single Probe Test | Voltage range: 100-600V; Hz range: 50-400Hz |
| Phase Sequence Test (three phase AC) | Voltage Range, 100-600V; Hz range, 48-66Hz; Test principles, Bipolar connected |
| Continuity Test | 0-200K ohm, accuracy: Rn+50% |
| Overvoltage Protection | 600V AC/DC |

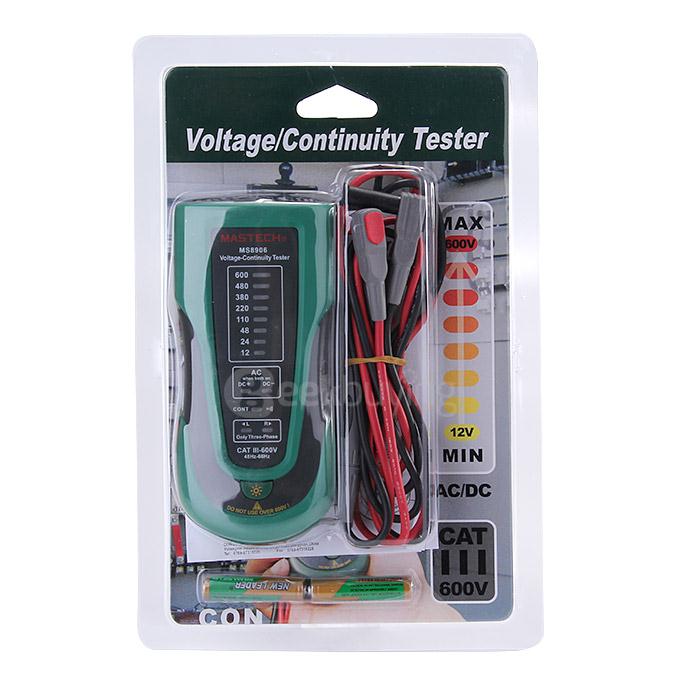

| Package Contents | |
| 1* Tester | |
| 2* Batteries | |
