Highlights
- Three different ways to play this music robot
- 1.Control by the position of gestures(Using an ultrasonic modules detect the position)
- 2.A pre-programmed tune can be played(or you programme to play)
- 3.Control by PC Software
- High quality stepper motor mates with high performance Me stepper motor dirver
- Easy to drive and can play Xylophone very well

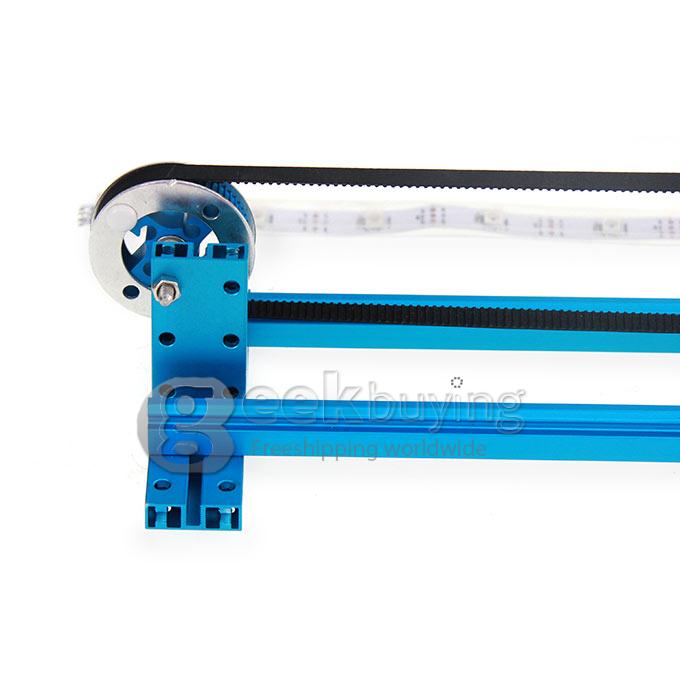

- Strong aluminum extrusion parts, anodizing surface
- Music Robot Kit V2.0 (With Electronics) is the improved version of Music Robot Kit V1.0 (With Electronics)

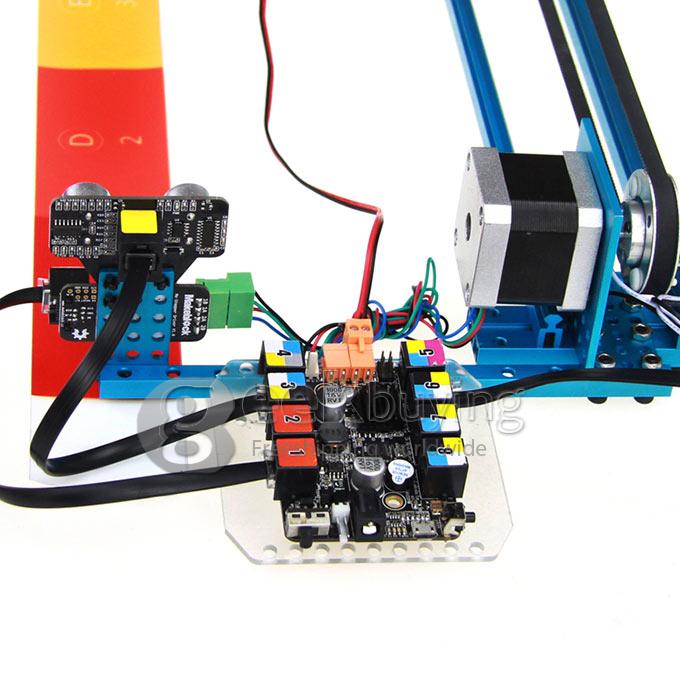

- Me BaseBoard instead of previous Meduino and Me BaseShield
- Reduced Size and easier to users
- Simplified the mechanical structure, abandoning some unnecessary components

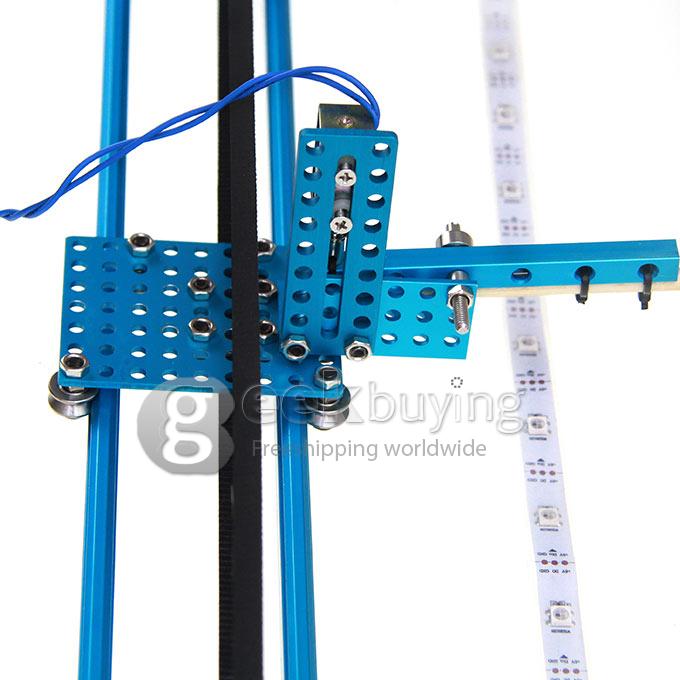

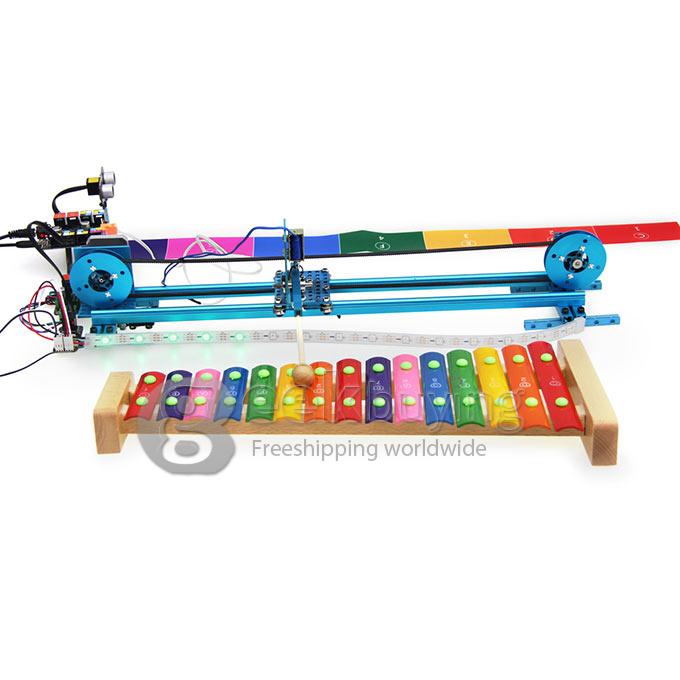

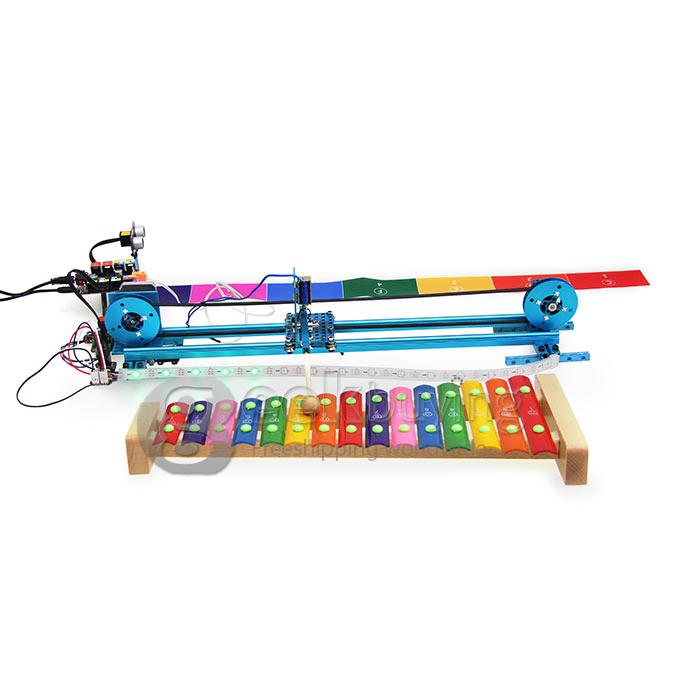

- Adding LED RGB strip to realize some shiny effects when playing music
- Adding two new control mode:Me Ultrasonic modules allows users to play the music via detecting the position of gestures;a pre-programmed tune can be played

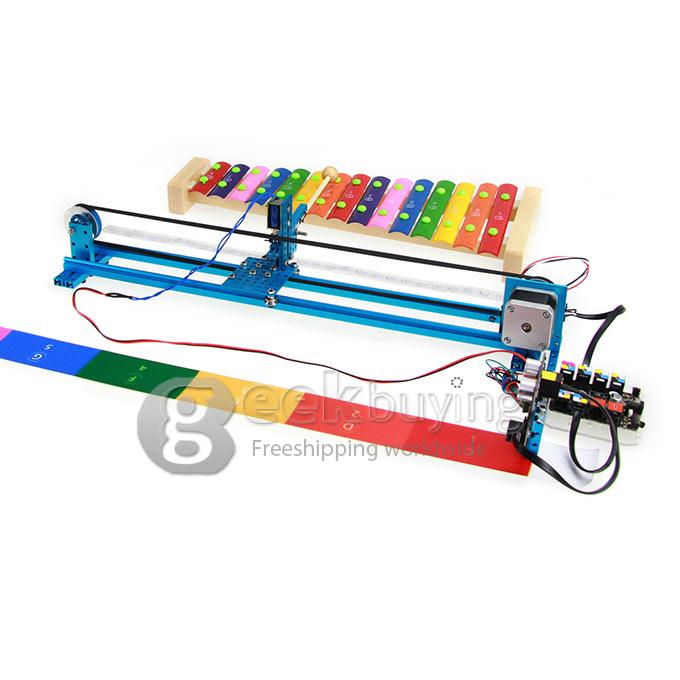

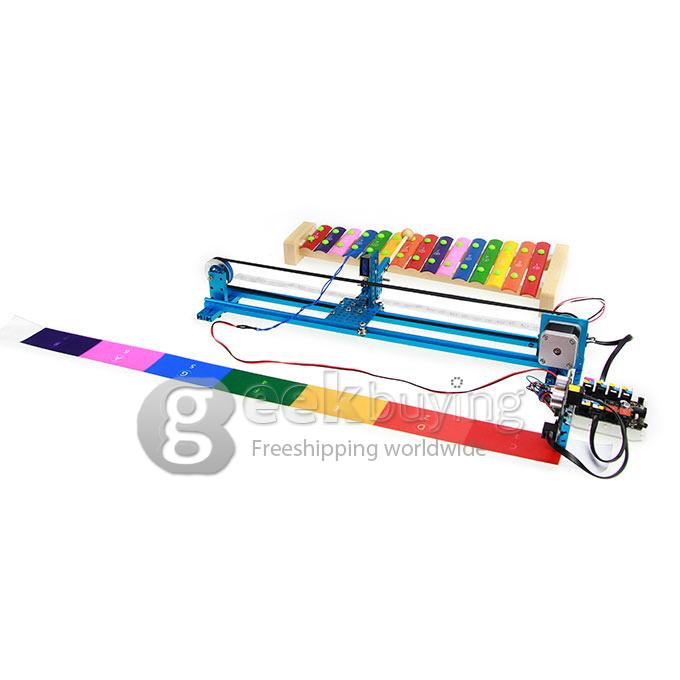

- This kit can be used to build a Music Robot. It can play the Xylophone by an application via USB cable installed on computer. With this application,you can use your keyboard of computer to play the Xylophone by the Number Key from 1 to 7 directly. And you can also type a music score in the application and then send it to the robot, the robot will play the music you have sent automatically.
Specification
| General | |
|---|---|
| Brand | Makeblock |
| Quantity | 1 Piece |
| Specification | |
| Power Supply | 12V |
|
Note |
The power supply in this kit is USA plug AC to DC wall power supply. You can buy other Power plugs in our website. |

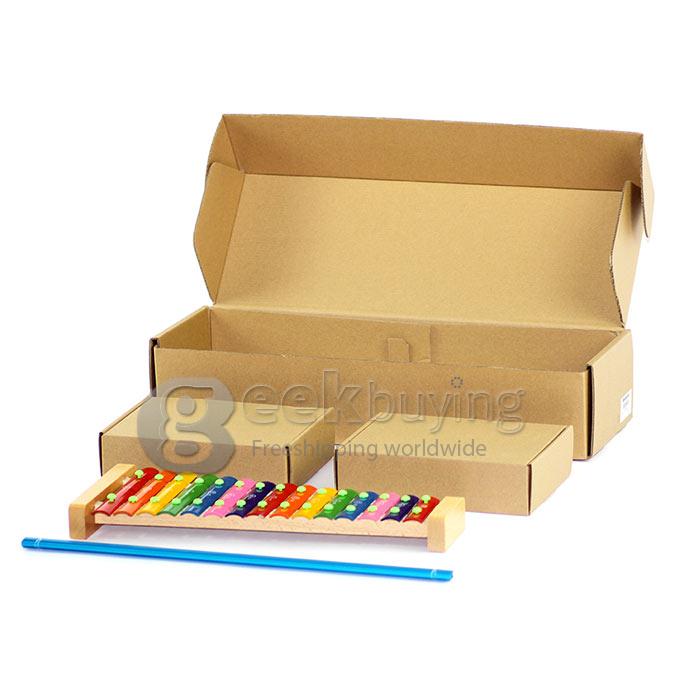

| Package Contents | |
| 1xMusic Robot Kit | |
Part list:
|
1 x Beam 0824-48 |
1 x Open-end Timing Belt (1.3m) |
4 x Plastic Rivet R4120 |
|
2 x Beam 0824-96 |
2 x Threaded Shaft 4x39mm |
4 x Plastic Ring 4x7x2mm |
|
1 x Beam 0808-88 |
2 x Shaft Collar 4mm |
1 x Xylophone |
|
1 x Beam 0808-184 |
4 x V-slot Bearing |
1 x Streamer |
|
2 x Slider 496 |
2 x Flange Bearing 4x8x3mm |
1 x Me-Orion |
|
1 x Bracket 3x6 |
1 x HEX Screwdriver 2.5mm |
1 x Me-Ultrasonic Sensor |
|
1 x Plate 3x6 |
1 x Cross Screwdriver 3mm |
1 x Me Stepper motordriver V1.0 |
|
1 x Plate 7x9 |
2 x HEX Allen Key 1.5mm |
1 x LED RGB Strip |
|
1 x Plate I1 |
1 x Wrench |
1 x Micro Switch |
|
1 x Belt Connector |
10 x Socket Cap Screw M4x8 |
1 x RJ25 Adapter |
|
1 x 42BYG Stepper Motor Bracket |
26 x Socket Cap Screw M4x14 |
1 x Wall Adapter Power Supply - 12VDC |
|
1 x DC Frame Type Solenoid HCNE1-0530 |
27 x Nut M4 |
3 x 6P6C RJ25 cable-20cm |
|
1 x 42BYG Stepper Motor |
6 x Countersunk Screw M3x8 |
1 x USB 2.0 A-Male to Micro B-Male Cable |
|
1 x Shaft Connector-4mm |
3 x Headless Set Screw M3x5 |
1 x Base Bracket V1.1 |
|
2 x Timing Pulley 62T |
6 x Plastic Rivet R4060 |
6 x Nylon Cable Ties |
|
1 x Timing Pulley Slice 62T |
4 x Plastic Rivet R4100 |
5 x Gasket |
