Highlights

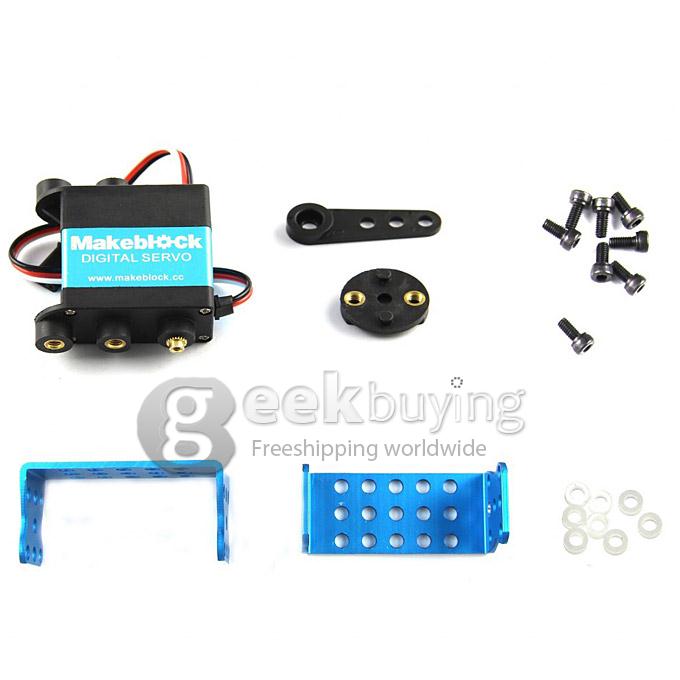

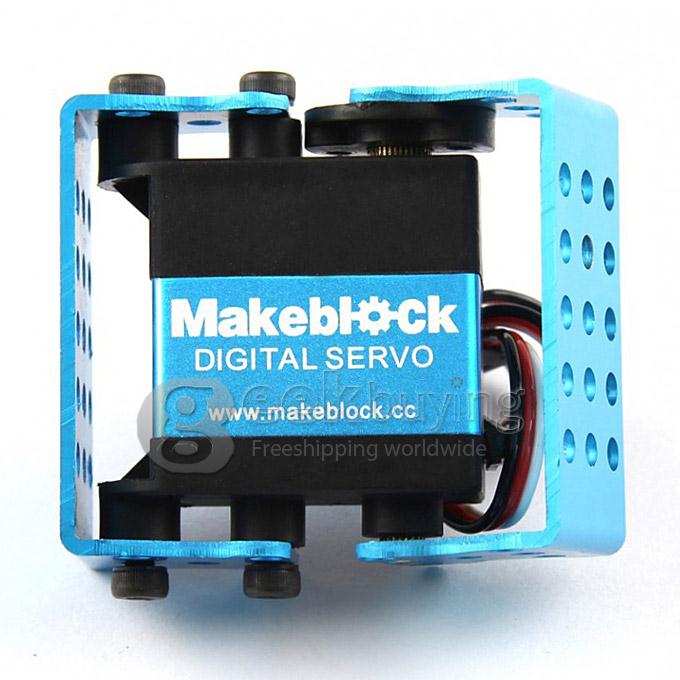

- This Kit contains a Makeblock high torque(15kg.cm) digital servo and 2 servo bracket. Wth these bracket, it's easy to build a joint for a robot, also there are a lot of ways to conenct the servo with other Makeblock parts.
Specification
| General | |
|---|---|
| Brand | Makeblock |
| Quantity | 1 Piece |
| Color | Blue |
| Material | Aluminum alloy+Engineering plastics |
| Specification | |
| Gear | 5 Metal gear |
| Limit Angle | 210 ±5 Degrees |
| Bearing | 2*Bearing |
| Horn Gear Spline | Φ8mm35T |
| Horn Type | Plastic, POM |
| Connector Wire | 230mm±5mm |
| Motor | Coreless Motor |
| Splash Water Resistance | No |
| Electrical Specification | Operating voltage: 6.0V Idle current: 8mA No load speed: 0.19sec/60° Runnig current: 450mA Peak stall torque: 16.5kg.cm Stall current: 2500mA |
| Control Specification | Command Signal: Pulse, width modification AmplifierType : Digital controller Pulse Width Range: 500-2500usec Neutral Position: 1500usec Running Degree: 180±3 Degrees (1000~2000usec) Dead Band Width: 5usec Rotating Direction: Counterclockwise(1000~1500usec) |
| Dimensions & Weight (Main Product) | |
| Dimension | 40×20×41mm |
| Weight | 75g |
| Package Contents | |
| 1 x MECDS-150 Servo Motor | |
| 2 x MECDS-150 Servo Bracket | |
| 8 x Socket Cap Screw M4x8 | |
| 8 x Plastic Ring 4x7x2mm | |
