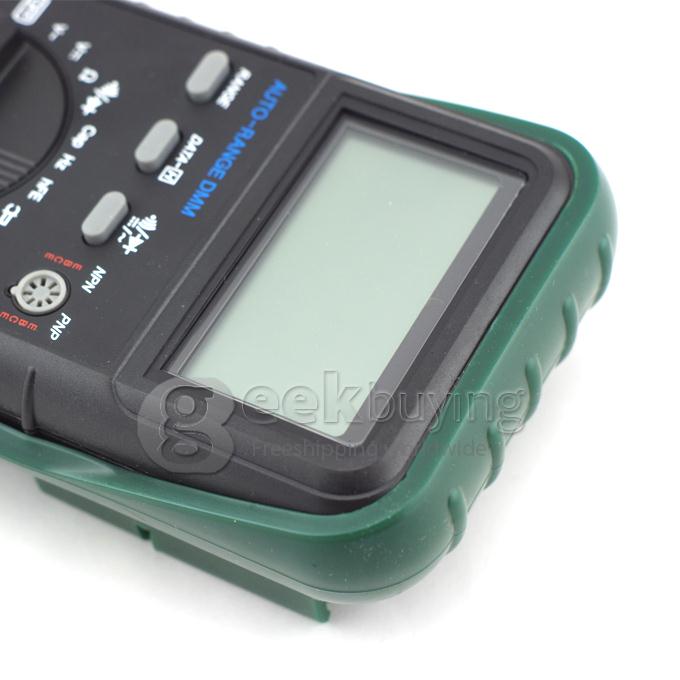

Mastech MY68 Series Handheld Digital Multimeter 33/4 Autorange

Specification

Environment conditions:

1000V CAT. II and 600V CAT. III

Pollution degree: 2

Altitude < 2000m

Operating temperature:

0~40 °c, 32°F~122°F (<80% RH, <10 °c non-condensing)

Storage temperature:

-10~60 °c, 14°F ~140°F (<70% RH, battery removed)

* Temperature Coefficient:

0.1×(specified accuracy) /(<18 °c or >28 °c)

* MAX. Voltage between terminals and earth ground:

750V AC rms or 1000V DC.

* Fuse Protection:

μA and mA: F 500mA/250V ø5×20;

10A: F 10A/250V ø6.3×32.

* Sample Rate: 3 times/sec for digital data.

* Display:

3 3/4 digits LCD display. Automatic indication of functions and symbols.

* Range selection: automatic and manual.

* Over Range indication: LCD will display "OL".

* Low battery indication:

The "" is displayed when the battery is under the proper operation range.

* Polarity indication: "−" displayed automatically.

* Power source: 9V

* Battery type: NEDA 1604, 6F22, or 006P.

* Dimensions: 91(L)×189(W)×31.5(H) mm.

* Weight: 310g. Approx. (battery included).

What's in the box?

• 1 x MY68 Multimeter
• 1 x Manual
• 1 x set Test Leads
