Highlights

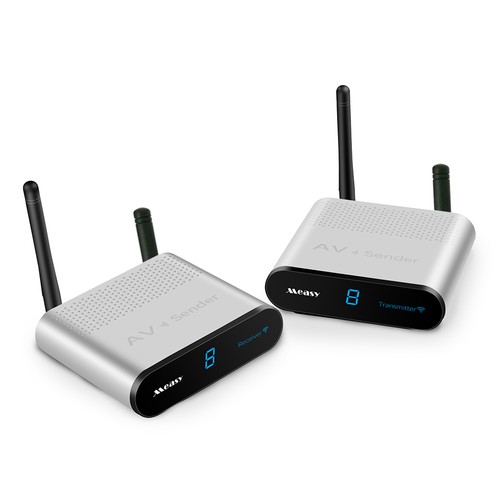

AV230 is Wireless Audio/Video Transmitter and Receiver.
It consists of a transmitter and a receiver, Adopting advanced 2.4GHz wireless transmission technology,

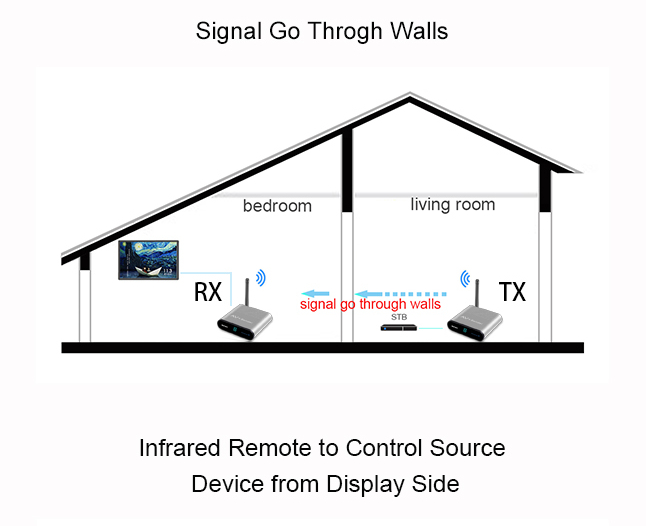

It can transmit the signal from any A/V devices at transmitter to TV sets connecting receiver in different room. DVD, DVR, CCTV camera, IPTV, Satellite receiver, Digital TV Set Top Box etc.

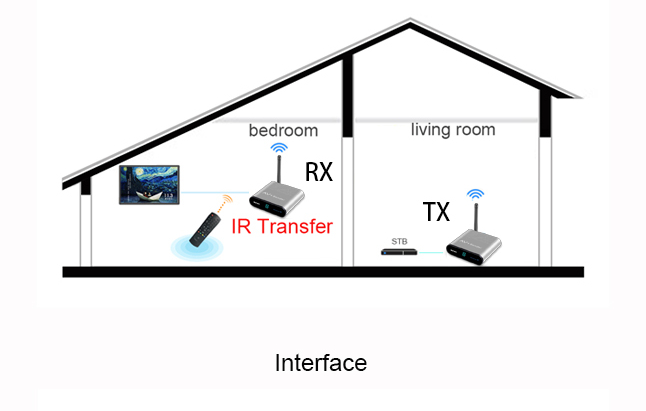

Moreover, it can support the IR remote control at the receiver end to realize the function of wireless control of devices from another place.
Patented Wireless technology. avoiding the interference from other wireless device.
A display screen indicate the selected channel.
Support 1 group of AV signal input/ output.
Support 1 transmitter and more than one receivers at the same time, when keeping Transmitter and receiver setting at the same channel.
Support any AV output devices, VCD, DVD, IPTV, DVR, Satellite receiver, CCTV Camera Digital STB etc.
Support superheterodyne 433MHz infrared remote signal transmission, while Compatible for 38KHz infrared carrier control signal.
Transmitter have built-in infrared signal emission or infrared transmission extension cable, so that you can do remote control the signal from DVD, DVR, STB, IPTV, and other device.
Support PAL/ NTSC system and stereo audio transmission
Without installing any software, without any setting, plug and play

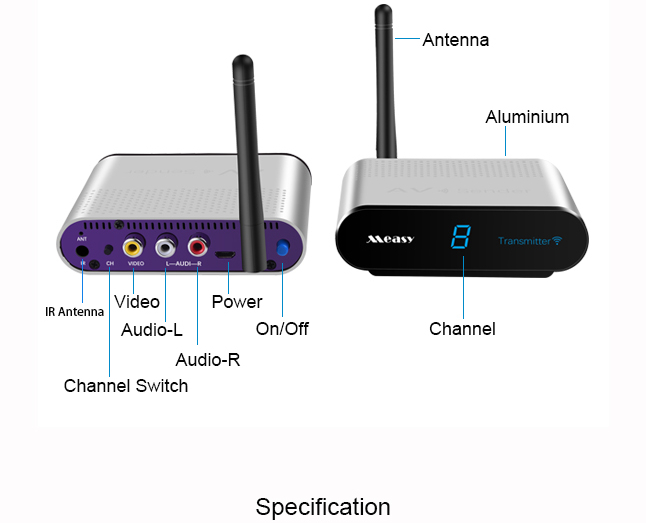

Specification
| Transmitter&Receiver | Type: Wireless Frequency: 2.4GHz System: PAL / NTSC Sensitivity: -90dBm transmitted power: 50mW Channels: 8 groups Transmission range: 1312FT/400M AV input/output: RCA One video input/output: 1Vp-p(PAL/NTSC) One audio input/output: 1Vp-p(Stereo) Housing: Aluminium IR Remote Control: 38KHz Power input: 5V/1000mA Machine size: 100*1000*25mm Operating temperature: 0~40°C Storage temperature: 20~60°C Humidity: 20~90RH Transmission Distance: ≤300 Meter |

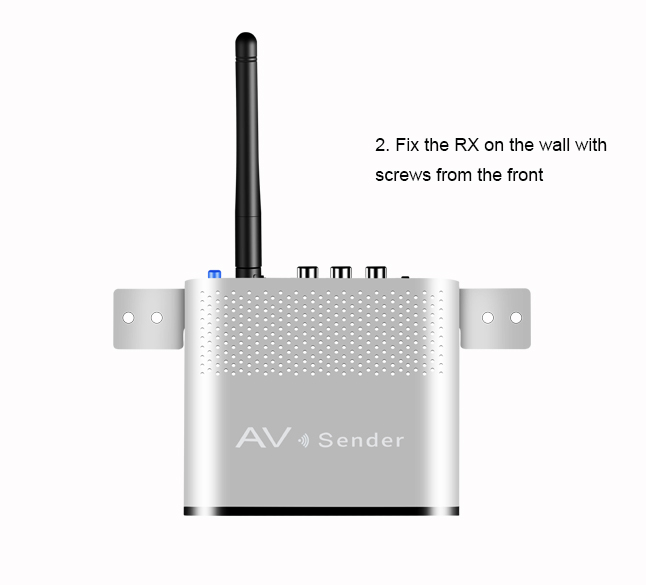

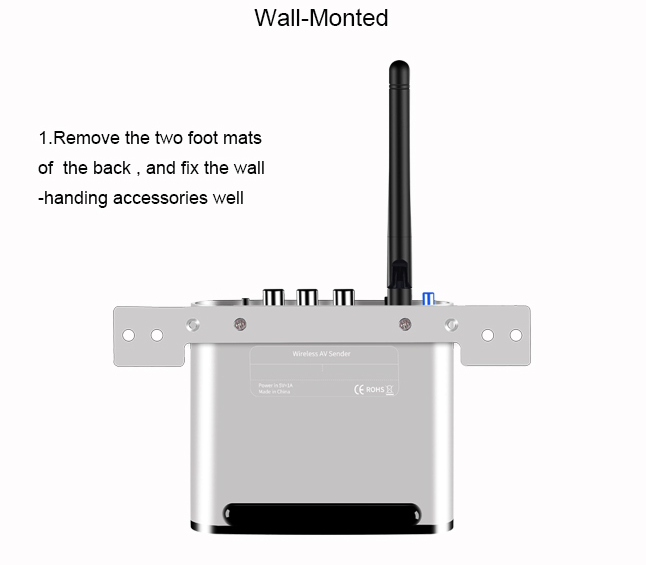

| Package Contents | 1* Transmitter 1* Receiver 2* Power adapter 2* AV cable 1* User manual 2* Wall-hung bracket |
