Highlights
5.8GHz ISM frequency band.
1630 feet transmission range without any holdback.
Patented Wireless technology. avoiding the interference from other wireless device.
A display screen indicate the selected channel.

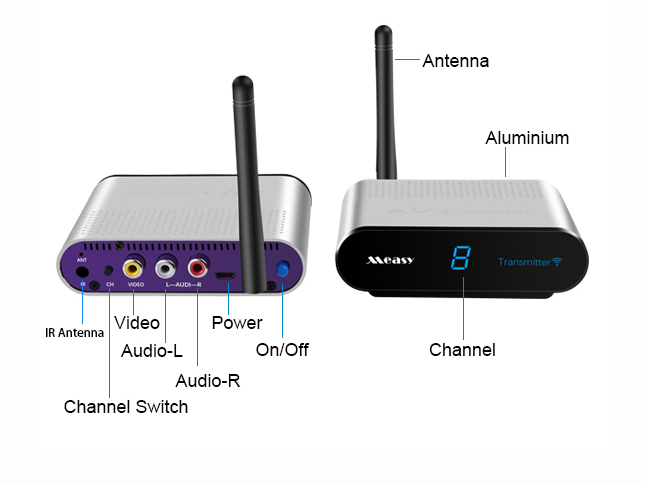

Support 1 group of AV signal input/ output.
Support 1 transmitter and more than one receivers at the same time, when keeping Transmitter and receiver setting at the same channel.
Support any AV output devices, VCD, DVD, IPTV, DVR, Satellite receiver, CCTV Camera Digital STB etc.
Support superheterodyne 433MHz infrared remote signal transmission, while Compatible for 38KHz infrared carrier control signal.

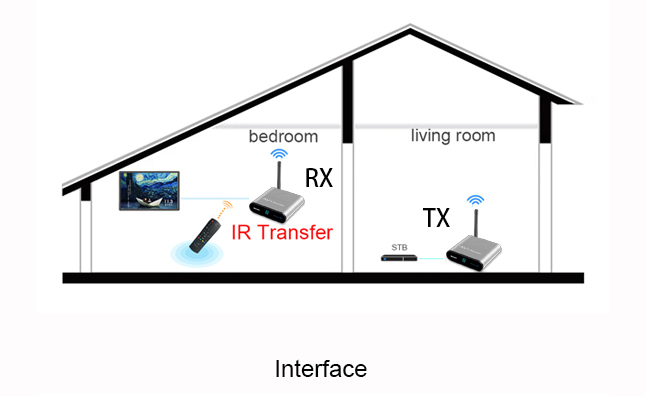

Transmitter have built-in infrared signal emission or infrared transmission extension cable, so that you can do remote control the signal from DVD, DVR, STB, IPTV, and other device.
Support PAL/ NTSC system and stereo audio transmission
Without installing any softwarewithout any setting, plug and play
Specification
| Transmitter&Receiver | Type: Wireless Frequency: 5.8GHz System: PAL / NTSC Sensitivity: -90dBm transmitted power: 50mW Channels: 8 groups Transmission range: 1640FT/500M AV input/output: RCA One video input/output: 1Vp-p(PAL/NTSC) One audio input/output: 1Vp-p(Stereo) Housing: Aluminium IR Remote Control: 38KHz Power input: 5V/1000mA Machine size: 100*1000*25mm Operating temperature: 0~40°C Storage temperature: 20~60°C Humidity: 20~90RH Transmission Distance: ≤500 Meter |
| Package Contents | 1* Transmitter 1* Receiver 2* Power adapter 2* AV cable 1* User manual 2* Wall-hung bracket |
