Highlights
Stable Frame Structure & High Carving Quality
The frame structure adopts CNC technology, precise assembly, and balanced structural design, ensuring the accuracy of the X, Y, and Z axis directions and carving quality. Automatic reset, "one key start", wireless offline function combined with software operation allow you to freely create anywhere.
App Control
NEJE software and apps can achieve photo engraving, text engraving, and wireless transmission of engraving files in just one step, allowing you to create diverse works without professional engraving knowledge. NEJE 3 is also compatible with the new NEJE+lightburn wireless control mode. If you plan to use NEJE 3 as a productivity tool, it is possible to wirelessly manage countless NEJE devices with a single laptop.
Advanced Laser Module

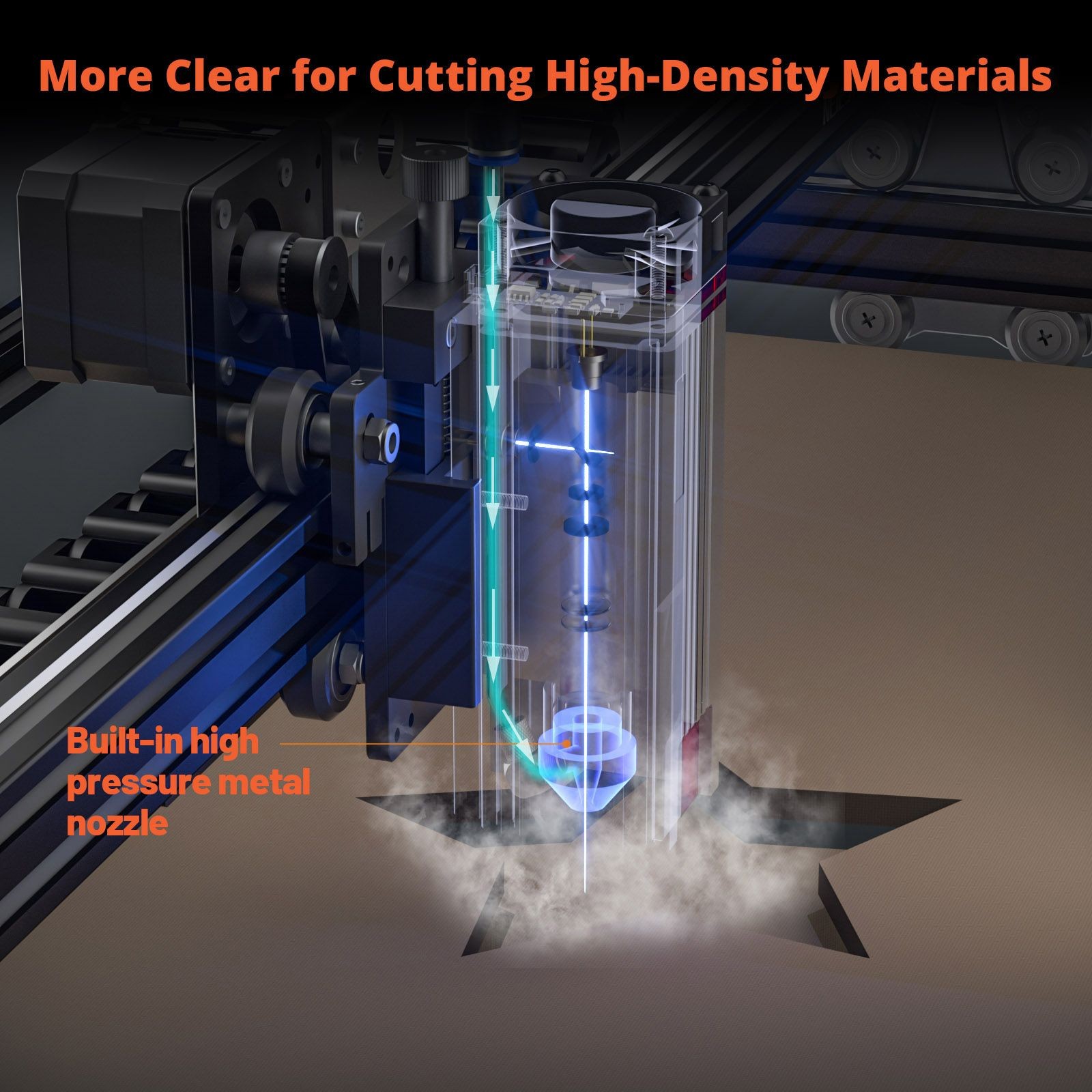

NEJE E40 is a 2-beam fixed module with 12W+ pulse and 11W+ continuous power output capability. The minimum focus point reaches 0.03x0.04mm. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, easier use of air assist, and more stable output power for cutting.
Wide Compatibility

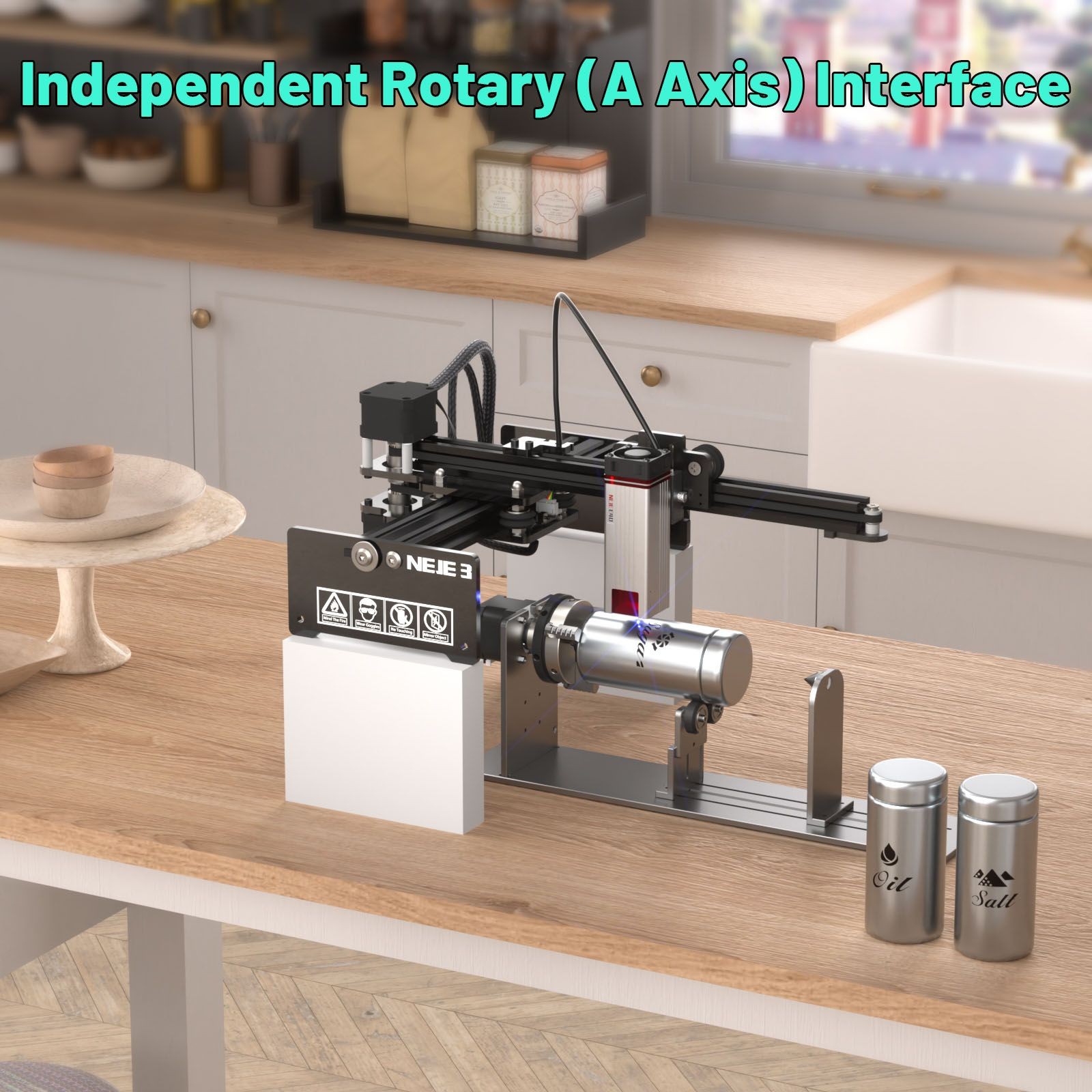

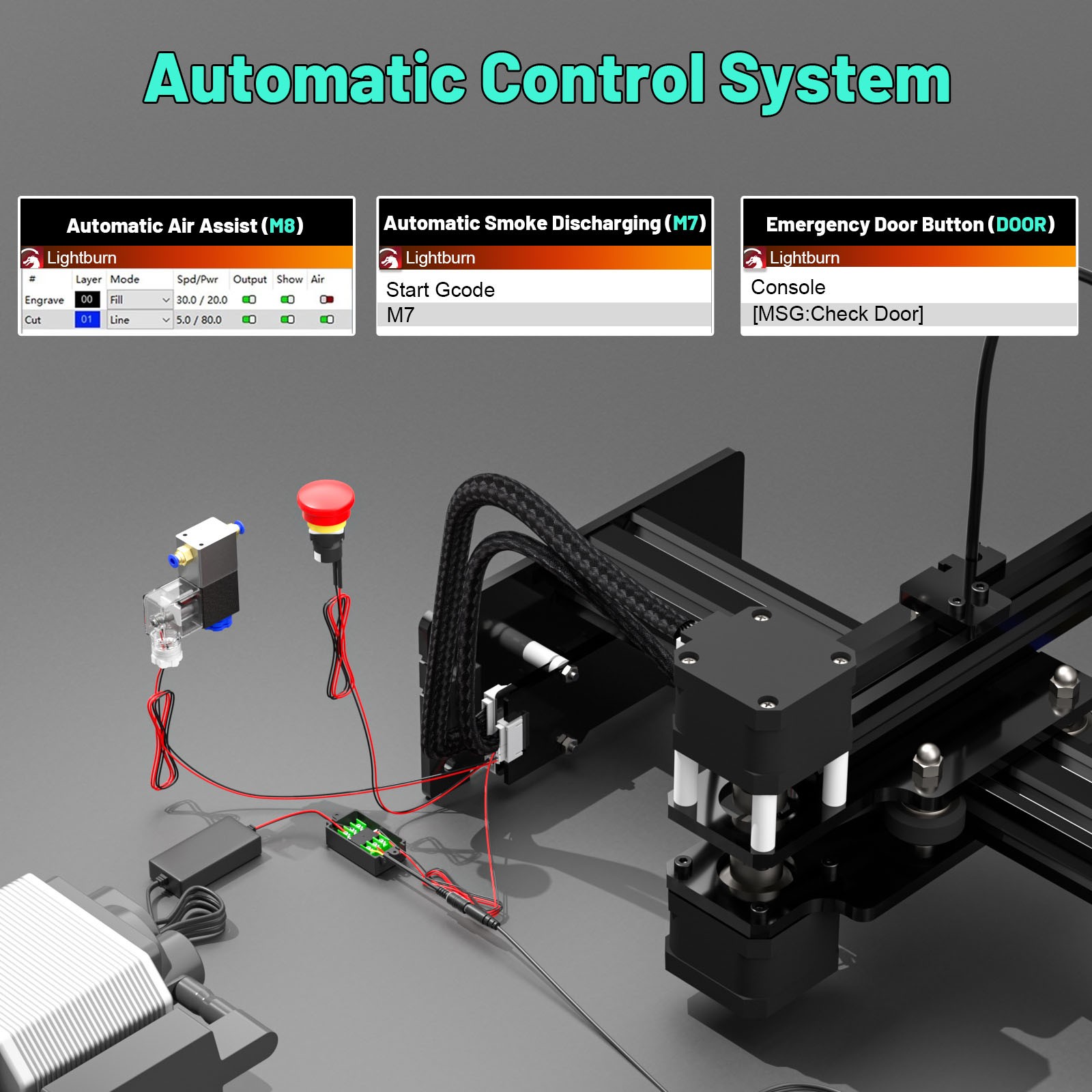

The updated NEJE 3 is compatible with extended functions such as NEJE rotary and M8, M7, and Door, compatible with native Z-axis, rotary, and automation expansion. The newly designed module installation interface is compatible with the classic N30610, B30635, and N30820 manual zoom laser function modules. At the same time, it is also compatible with the NEJE simple height adjuster, which improves engraving efficiency by expanding the input power (12V 4A) and upgrading the NEJE E40 module and A40640 module. At the same time, the NEJE 3 control system can expand the X-axis and Y-axis areas by modifying area parameters.
Vibration Protection
Equipped with MEMS sensing protection as standard, you can set appropriate vibration protection functions to ensure safe operation in case of unexpected vibration and displacement.
Easy to Install
The NEJE 3 series is NEJE's classic development architecture, with very simple assembly. You only need to tighten 4 screws to start your creation, making it an excellent tool for beginners and commercial mass engraving and production.
Specification
| General | Brand: NEJE Type: Laser Engraver Model: 3 E40 Color: Black |
| Specification | NEJE 3 Working Area (X-Y): 170 x 170mm, support expanded working area X-axis: Linear high-speed roller track with adjustable clearance Y axis: Linear high-speed roller track with adjustable clearance Z-axis: With a Z-axis interface, supporting the expansion of the roller and other roller modules Limit Switch: Build in X Y, supporting Z limit expansion Homing Repeat Position Accuracy: 0.01mm Repeat Position Accuracy: X Y: 0.01mm Recommended acceleration and top speed: 400mm/s Vertical Carving: Yes (90°) Accuracy: 338dpi Pixel: 2267 x 2267 px Input Voltage: 12V or 24V, Match according to module voltage Interface: 5.5x2.1, Max 6A Compatible: all 12V and 24V NEJE modules Height adjuster: N30820, N30610, and B30635 can directly adjust the module height up and down through the installation interface Support the installation of NEJE fixed height adjuster Compatible with other high-power modules: E40, A40640 Not recommended for heavy modules such as E80 M7, M8, Door Extension: Yes Lightburn Offline Control: Yes Lasergrbl Offline Control: Yes BLE Bluetooth Function: Support Bluetooth 4, Windows 10, iOS 8, and Android 4.2 and above App control: Yes MEMS protection: Yes NEJE Software OTA Upgrade: Yes Software: NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL Firmware: build-in NEJE firmware and GRBL 1.1f(optimized) Systems Support: Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS file Format Supports: GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc. Module: NEJE E40 Focus: 0.03x0.04mm Focus Method: fixed focus( 5mm from the radiator ) Optical Power: Pulse 12W+, CW 11W Wavelength: 450nm Weight: 280g Module Size: 40x48x130mm Input: DC 12V 4A Interface: 4pin PH2.0 + (2pin DC12v extra power) Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc. Power Control: PWM Power Modulation Fan: Double Ball High Life Fan Drive: NEJE Smart Quiet Drive, Built-in static elimination technology. Surge Protection: Yes Smart Feedback: Yes Temperature Feedback: Yes Temperature Control: 45 Celsius Air pump: ACO 328+ air pump, or 30psi+ waterless air pump (used when cutting mdf / leather and higher density materials. Needle-type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump) Air Interface: 4mm PVC trachea Protective Window Lens: Yes (withstand 1000 Celsius) |
| Weight & Size | Package Weight: 2.6kg Package Size(L x W x H): 45*29*19cm |

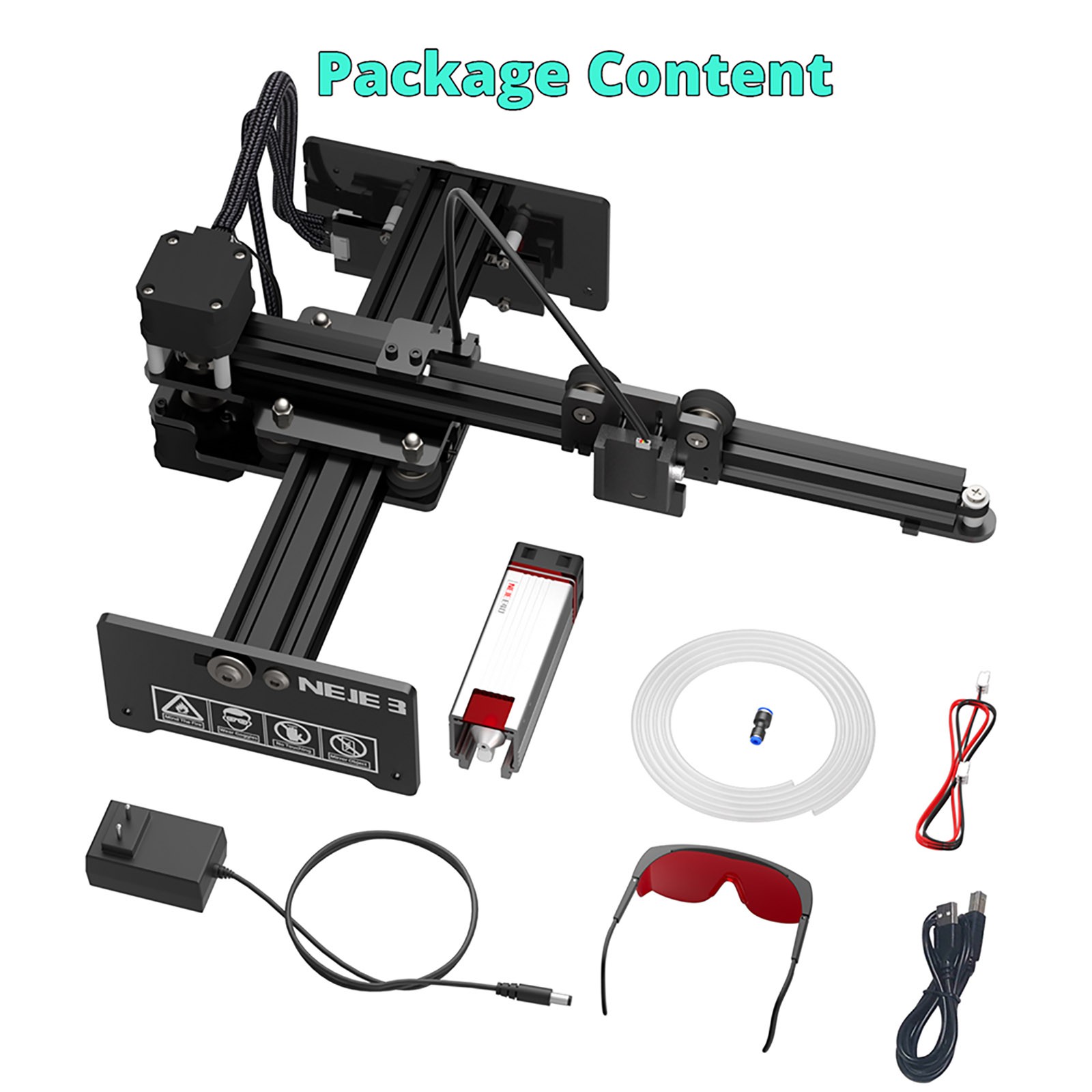

| Package Contents | 1 x Laser Engraver 1 x User Manual |
