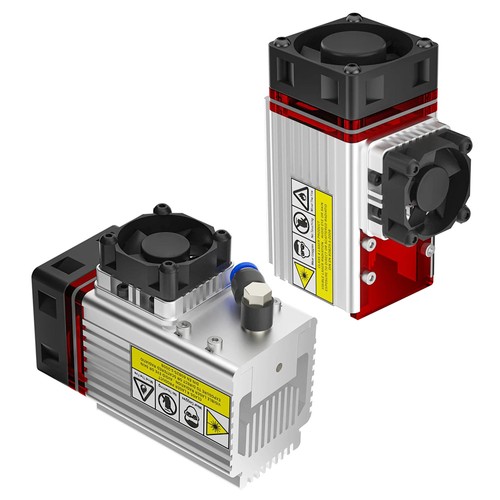

NEJE A40640 12W Laser Module Kit, 0.04*0.06mm Focus Spot, Metal Air Nozzle Module Radiator, FAC Tech 2 x Beam, 20mm Cutting Thickness

$259.00
Selected: 0

Total Price: $259.00

=

Highlights

Professional Laser Module
Features 12W+ pulse and 11W continuous optical power, it can cut 4mm plywood by 1 pass (speed 200), and cut 3mm black acrylic board by 1 pass. Also, it's able to engrave stainless steel, but it needs good focus adjustment.
Designed for Laser Engraver, 3D printer, CNC mill, and Arduino project.
More Safety
Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
Quieter
The intelligent drive adjusts the cooling fan speed according to laser temperature.
Easy to Use
Digital PWM wave pulse signal generator adjustable frequency duty cycle board is for NEJE laser module.
The slidable mounting fixture is provided for easy adjustment of focus.

Specification

General

Brand: NEJE
Type: Laser Module Kit
Model:  A40640
Luminous Color: Blue

Specification

Module: NEJE A40640
Focus: 0.04x0.06mm
Focus Method: adjustable ( Recommend 30-55mm )
Optical Power: Pulse 12W+, CW 11W+, Use 80% power (9W+) when cutting for a long time
Replaceable Lens Design: Yes, Added window protection lens to extend service life (high temperature resistance of 1000 degrees Celsius)
Stainless Steel Direct Grayscale Engraving: Yes
3D Hardwood Engraving: Yes
Maximum Cutting Thickness: 20mm
Wavelength: 450nm
Input: DC 12V 4A
Interface: 4pin PH2.0
Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 3 Plus, NEJE 2s Max, NEJE 2s Plus, etc.
Power Control: PWM Power Modulation
Fan: double ball high life fan
Drive: NEJE smart quiet drive, built-in static elimination technology.
Surge Protection: Yes
Smart Feedback: Yes
Temperature Feedback: Yes
Temperature Control: 45 Celsius
Air Pump: 0.5-1.5mpa clean air (Needle type air nozzle supports oily and water-containing air source, and sealed air nozzle can only use clean air pump)
Air Interface: 4mm PVC trachea

Weight & Size

Product weight: 204g
Packing weight: 490g
Product size (L x W x H): 40x50x85mm
Package size (L x W x H): 180x120x100mm

Package Contents

1 x NEJE A40640 Laser Module (Built-in High-Pressure Air Nozzle and Module Radiator)
1 x Laser Module Height Adjuster
1 x 4-pin Cable (30cm)
1 x 2pin Yellow and Black Signal Line + 3pin Input Line
1 x NEJE Digital PWM Temperature Test/Switch/Interface Adapter Board
1 x NEJE Test/Switch/Interface Adapter Board
1 x 2.5mm L-Wrench
1 x 5mm L-Wrench
1 x Tube (4mm x 2m)
1 x Connector (M8 to M4)
1 x User Manual
