Highlights
Motor-Driven Z-Axis

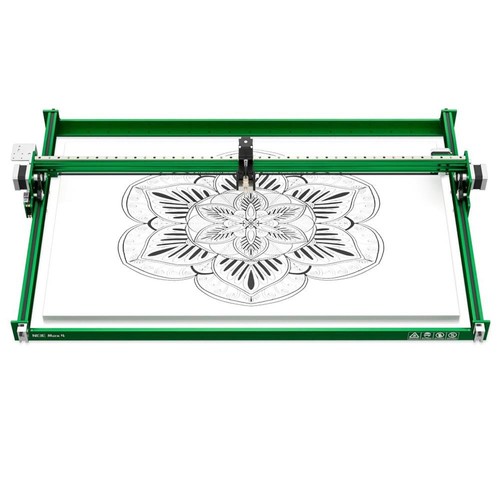

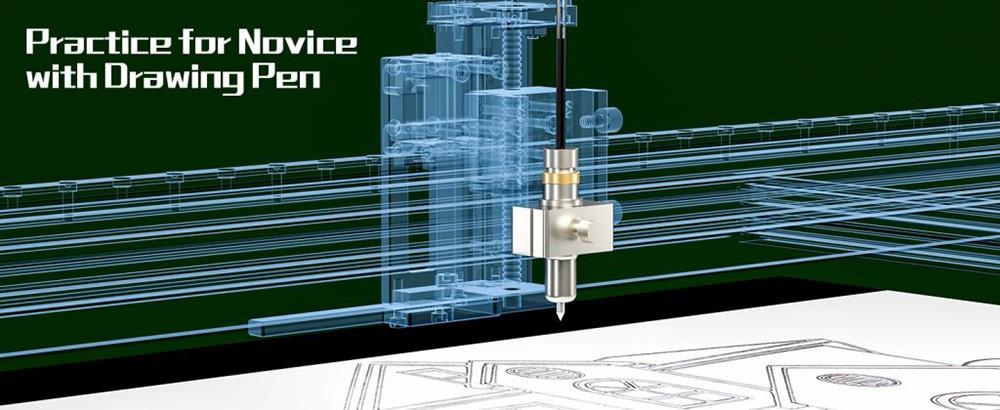

The NEJE Max 4 laser engraving machine has been fully upgraded. It adopts electric Z-axis with high precision, which can load up to 1kg and travel 45mm. This electric Z-axis realizes high-precision repositioning with an accuracy of 0.001 mm. In the LightBurn software, the focus distance of each layer can be set automatically, and the thicker material can be cut efficiently through the control of the Z-axis. Meanwhile, it comes with a drawing pen, which is suitable for novices to practice.
Four-Axis Control System

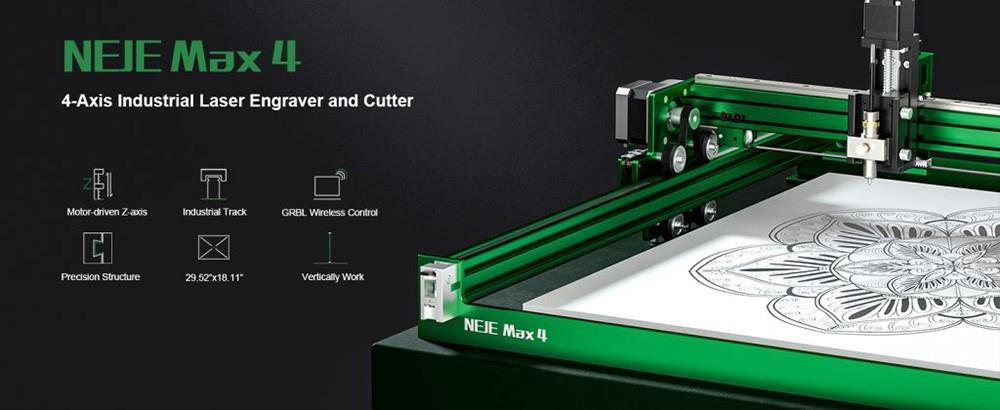

NEJE Max 4 is the first laser engraving machine on the market that can realize 4-axis collaboration. Through the collaboration of the X-axis, Y-axis, Z-axis, and A-axis, it can automatically complete more precise processes. Through expandable functions, the machine can automatically complete M7, and M8 auto smoke discharging, air assist, door safety functions, and visual positioning functions, and perfectly integrated with various extended functions of LightBurn.
High Precision & High Stability

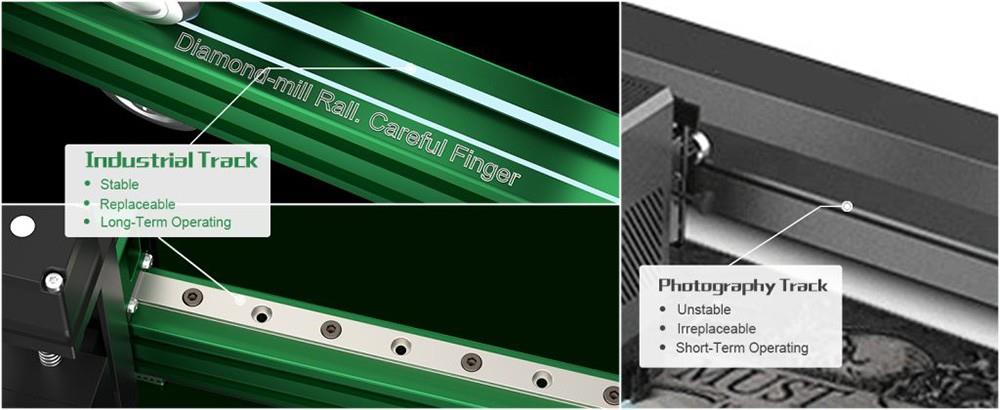

Equipped with an industrial-grade maintainable track, NEJE Max 4's service life is up to 20,000 hours. Through reasonable design and precise processing technology, the precision of the frame is improved, and the mechanical precision reaches 0.01 mm. The adaption of a higher hardness alloy frame effectively eliminates the vibration of the equipment and improves the stability of the machine.
Support Wireless Offline Work
NEJE Max 4 supports wireless offline work. You can create everything you want in LightBurn and use NEJE software to operate the machine wirelessly. Offline work distance within 10 meters is available, so you can operate the machine anytime and anywhere without computer restrictions.
Specification
| General | Brand: NEJE Type: Laser Engraver Model: Drawing Pen Color: Green |
| Specification | Laser Engraver: Frame Size (L*W*H): 970x582x60mm Working Area(X*Y): 750 x 460mm, Extends to 750x1030mm Drive Accuracy: XY-axis repeat positioning accuracy 0.01mm, Z-axis 0.001mm Number of Controllable Axes: X, Y, Z, A four axes Input Voltage: 12V / 24V, Match according to module voltage Limit Switch: Yes, both XYZ Max Move Speed: 750mm/s GRBL Offline Control: Yes M7, M8, Door Extension: Yes App Control: Yes MEMS: Yes NEJE Software OTA Upgrade: Yes Vertical Carving: Yes (90 degrees) Systems Support: Win 7/Win 8/Win 10, Android, iOS, iPadOS, macOS File Format Supports: .GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2/AI/SC/etc. |
| Weight & Size | Product Weight: 6.5kg Package Weight: 6.5kg Product Size(L x W x H): 104*25.5*19cm Package Size(L x W x H): 104*26*19cm |
| Package Contents | 1 x NEJE Max 4 Laser Engraver 1 x Metal Air Assist Kit 1 x Drawing Pen 1 x Power Adapter 1 x Goggles 1 x Belt 1 x USB Cable 1 x User Manual |
Videos
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Q: Does NEJE Max 4 support Curved surface engraving?
A: Curved surface carving is a relatively professional CNC function, as it requires you to first create a 3D path file using CAM software. You can execute it through NEJE or Lightburn software.
Q: How's the CNC precision frame?
A: The machine has an anti-jitter design, so there is no ripple in such a large area of lightweight equipment. NEJE can effectively eliminate the jitter of precision drawing by customizing alloy materials with different hardness and matching reasonable shock absorption design.
Q: Is the working frame stable?
A: The new built-in anti-static design will make the equipment more stable and reliable
Q: How does the Native A-axis - Rotary work with NEJE Max 4?
A: The NEJE Max 4 is a standalone A-axis that can be easily configured with the rotation axis function by setting it in the Lightburn software. You don't need to use the Y, and Z axes as rotation axes When configuring the rotation axis, you need to first position the Y axis to the specified position, and then start the A axis. You need to remember that when using the A axis, you need to multiply the actual object diameter by a fixed parameter as the input diameter.
Q: How to use M8, M7, and DOOR Extention?
A: The NEJE series devices support M8, M7, and Door function expansion. We usually use M8 to control automatic air assist, which is used to assist in cutting or protecting the lens. It can automatically control the gas supply when the equipment starts and ends. You can connect M8 through a relay switch or electromagnetic air valve. The M7 function can be configured in the Lightburn software and NEJE software to check whether it is enabled. Usually, we use M7 to expand the automatic smoke-discharging system, and we usually use relay modules to control the power supply of smoke-discharging equipment. The Door function mainly expands safety functions. NEJE engineers have designed expansion functions for flame sensors, emergency stops, and safety doors. The expansion of the Door function can help prevent safety issues to a certain extent By expanding the interface, you can obtain a more automated device that greatly improves operational efficiency and experience in the actual operation process. (Please select the corresponding voltage air valve according to the input power supply voltage otherwise the functions of the main board M8 and M7 may be damaged)
Q: Do you sell the camera for NEJE Max 4?
A: NEJE's specially designed 85-degree distortionless 16MP pixel Lightburn camera can clearly display details for working areas larger than 1 meter; With this camera, you can easily locate the image on the surface of the sculpted object to improve operational efficiency.
Q: Do you have the protective case for NEJE Max 4?
A: NEJE provides an external frame, which not only can collect exhaust gas and fire protection functions but also can install cameras when the area is expanded.
Q: Do you have NEJE Max 4 upgrade kit?
A: The motorized Z-axis module needs to be paired with a brand-new control board. There are multiple versions of the Max series, but we are sorry that we are currently unable to provide a standard part for upgrading and renovating.
Q: Can I buy the motorized Z-axis separately?
A: Sorry, the motorized Z-axis only applies to NEJE Max 4 now, it cannot be sold separately.
