Highlights
Standard shield interface, perfectly compatible with Arduino UNO/MEGA2560
Very easy to use with the libary for Arduino:RFIDMaster
The NFC Shield features a transceiver module,MFRC52,which handles wireless communication at 13.56MHz,which means that you can read and write a 13.56MHz tag with this shield.It also leads out the UART interface which can be connected with serial Bluetooth module or Serial Wifi module.Serial MP3 Player module and D3 / D4 port that can connect to I2C OLED module.
Specification
| General | |
|---|---|
| Quantity | 1 Piece |
| Specification | |
|
Operating Voltage |
4.5~5.2V |
| Interface logic level | Onboard level converter chip, compatible with 3.3V / 5V |
| Operating Current | 13-26mA |
|
Idle Current |
10-13mA |
|
Sleep Current |
<80uA |
| Peak Current | <50mA |
| Operating Frequency | 13.56MHz |
|
Supported Card Types |
Mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire |
| Data Transfer Rate | Maximum 10Mbit/s |
|
Application |
Smart home project, Voice broadcast access control system, Attendance punch card system. |
| Package Contents | |
| 1xNFC Shield | |

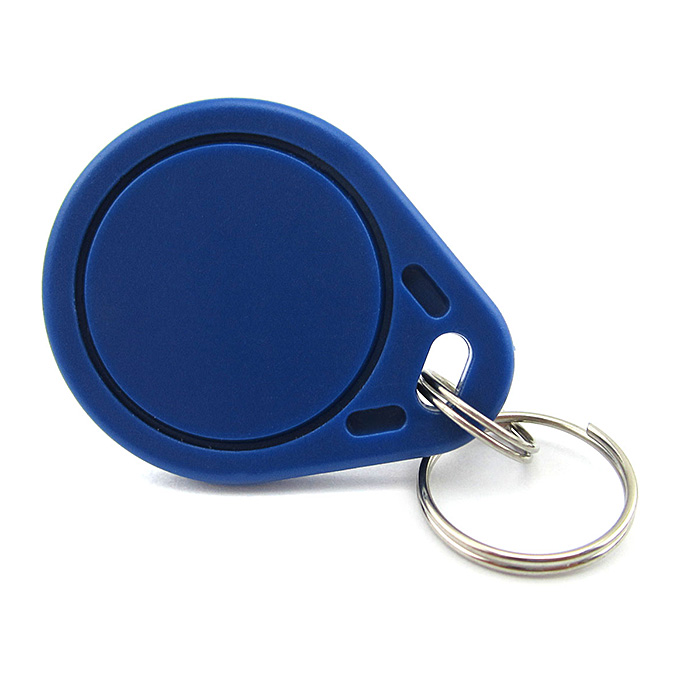

| 1xS50 special-shaped card | |
