OWON XDM1041 Portable Bench Digital Multimeter, 55000 Counts, True RMS, High Accuracy, with 3.5-inch TFT LCD Screen - AU Plug

Highlights

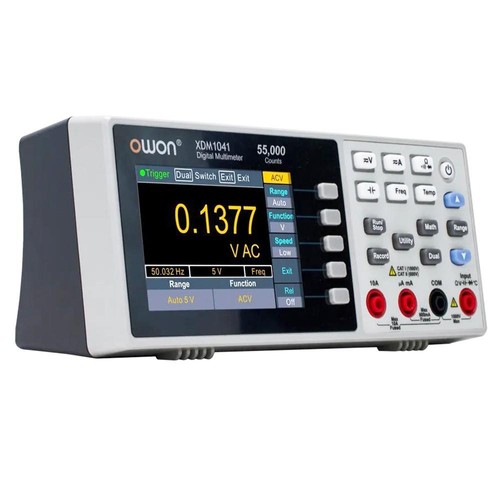

The Owon XDM1041 is a benchtop-style high-precision multimeter with a True RMS function to measure the AC voltage and current. With a reading speed of up to 65 values per second, the XDM1041 multimeter is able to store data internally and display it on the 3.5" high-resolution LCD display instantly. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the USB port on the back of the device, the meter can be programmed and controlled via SCPI.

Data Record Function
Features manual record and auto record, and both records share a table of data stored in internal storage. The maximum number of recorded points is 1000. After collecting the data, it can be exported to your computer, and you can read and process the recorded data with the computer. The trend analysis is accessible in chart mode and supports SCPI.

3.5-inch TFT LCD Screen, 55000 Counts
OWON XDM1041 digital multimeter is designed with a 3.5-inch 480x320 high-resolution TFT LCD screen with backlight, it has 55000 counts, DC voltage accuracy up to 0.05%, and dual-line display supported, providing a clear and precise display.

Multi-Function
With diode testing, continuity, temperature, and other functions, this digital multimeter can test AC / DC current, voltage, resistance, capacitance, etc.

Replaceable Fuse
It has an anti-burn design, which is safe and reliable. The line fuse is in the plastic fuse box below the power line input on the rear panel. Equipped with a spare fuse, it is more convenient and cost-effective.

Widely Use
The true RMS multimeter is made of high-quality ABS material, perfect for instruments and laboratories, factories, radio enthusiasts, and families.
