Package C for Cubieboard Development Board + DVK522 + 7" LCD + GPS + USB WIFI + AT45DBXX + MAG3110 + Camera Other Accessory

Highlights

• This package C includes:
• 1 x Cubieboard
• 1 x DVK522
• 1 x 7inch Capacitive Touch LCD (D)
• 1 x AT45DBXX DataFlash Board
• 1 x MAG3110 Board
• 1 x DS18B20
• 1 x UART GPS
• 1 x USB WIFI BL-150UM RTL8188
• 1 x USB Camera OV7670
• and other accessories.

Specification

Overview

The Cubieboard is a RasPi-like development board, features a 1G ARM cortex-A8 processor. It's a credit-card sized computer which is capable of running Android, Ubuntu and other Linux distros.

Cubieboard Product introduction

• Processor
  • Allwinner A10
• Features
  • 1GB DDR3@480MHz
  • HDMI 1080p Output
  • 10/100M Ethernet
  • 4Gb Nand Flash
  • 2 USB Host
  • 1 micro SD slot
  • 1 SATA
  • 1 IR
• Others
  • 96-pin expansion pinheaders including I2C, SPI, RGB/LVDS, CSI/TS, FM-IN, ADC, CVBS, VGA, SPDIF-OUT, R-TP...
  • Running Android, Ubuntu and other Linux distros. Pre-loaded Android 4.0.

Processor Features

• CPU
  • ARM Cortex-A8
  • 32KB I-Cache
  • 32KB D-Cache
  • 256KB L2 Cache
• GPU
  • ARM Mali-400
• Video
  • UHD 2160P video decoding
  • 3D video decoding
  • Support various video decoding formats, including VP8, AVS, H. 264 MVC, VC-1, MPEG-1,2,4, etc
  • H.264 HP video encoding up to 1080p @ 30 fps or dual-channel 720p @ 30 fps
• Display
  • Multi-channel HD display
  • Integrated HDMI 1.4
  • YPbPr, CVBS, VGA
  • Multiple LCD interfaces, including CPU, RGB, LVDS up to Full HD
• Memory
  • 32-bit DDR2/DDR3 Memory capacity up to 16G bits
  • SLC/MLC/TLC/DDR NAND
    - 8 flash chips, 64-bit ECC
    - Memory capacity up to 64GB
    - Support NAND of 5xnm, 4xnm, 3xnm, 2xnm, etc
    - Support NAND of Samsung, Toshiba, Hynix, etc
• Boot Devices
  • NAND Flash
  • SPI NOR Flash
  • SD Card
  • USB

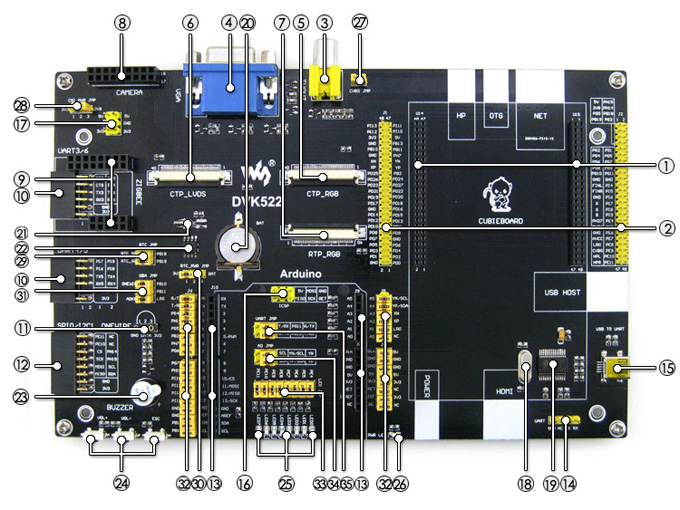

     DVK522 Product introduction


  • 1.Cubieboard/Cubieboard2 connector
  • 2.Cubieboard/Cubieboard2 expansion ports
  • 3.TVOUT interface: video CVBS output, for connecting display devices like TV
  • 4.VGA interface: video VGA output, for connecting monitor
  • 5.7inch capacitive touch LCD RGB interface: for connecting capacitive touch LCD with RGB interface
  • 6.7inch capacitive touch LCD LVDS interface: for connecting capacitive touch LCD with LVDS interface
  • 7.7inch resistive touch LCD RGB interface: for connecting resistive touch LCD with RGB interface
  • 8.CAMERA interface: for connecting camera modules like OV7670
  • 9.ZIGBEE connector: for connecting ZigBee modules like Core2530, supports working with ZB501
  • 10.UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
  • 11.ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  • 12.SPI0/I2C1 interface: easily connects to SPI or I2C modules such as MAG3110 Board, AT45DBXX Dataflash, etc.
  • 13.Arduino connector: for connecting compatible Arduino boards and/or Arduino shields
  • 14.UART interface (PL2303TA): connects to the UART0 of Cubieboard/Cubieboard2 for debugging
  • 15.USB interface: USB TO UART (PL2303TA)
  • 16.ICSP interface: Arduino ICSP
  • 17.5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
  • 18.12M crystal: for PL2303TA
  • 19.PL2303TA: onboard USB TO UART convertor
  • 20.RTC backup battery: 3.3V battery
  • 21.32.768K crystal: for PCF8563
  • 22.PCF8563: onboard RTC chip
  • 23.Buzzer
  • 24.AD keys: 3 common Android keys
  • 25.User LEDs: 8 LEDs
  • 26.Power indicator
  • 27.TVOUT jumper
  • 28.CAMERA power selection jumper
  • 29.RTC jumper
  • 30.RTC power selection jumper
  • 31.ONE-WIRE, Buzzer, and AD Keys jumper
  • 32.Arduino Port selection jumper: easily controlling the Arduino connection
  • 33.User LEDs jumper
  • 34.Arduino AD selection jumper
    • short the right: while connecting Arduino ADC shield
    • short the left: while connecting Arduino I2C shield
  • 35.Arduino UART selection jumper
    • short the right: while connecting Arduino UART shield
    • short the left: while connecting Arduino microcontroller board

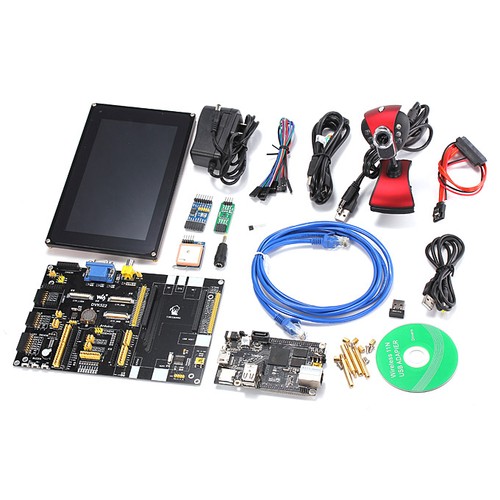

What's in the box?

• 1 x Cubieboard
• 1 x SATA Cable for Cubieboard
• 1 x USB power cable
• 1 x Power Adapter US Standard 5V 2A 5.5/2.1mm
• 1 x Power Adapter Connector 5.5/2.1mm to 4.0/1.7mm
• 1 x DVK522
• 1 x 7inch Capacitive Touch LCD (D)
• 1 x AT45DBXX DataFlash Board
• 1 x MAG3110 Board
• 1 x DS18B20
• 1 x UART GPS
• 1 x USB WIFI BL-150UM RTL8188
• 1 x USB Camera OV7670
• 1 x 4-pin 2-pin wires pack
• 1 x USB type A plug to mini-B plug cable
• 1 x Ethernet cable
• 1 x 40-pin FFC 0.5 200mm (same sides contact)
• 1 x 7inch LCD screws pack
