Highlights
Powerful MPPT Technology
The intelligent MPPT 60A solar charge controller features a max efficiency of no less than 98.1%, and PV utilization is no less than 98%.

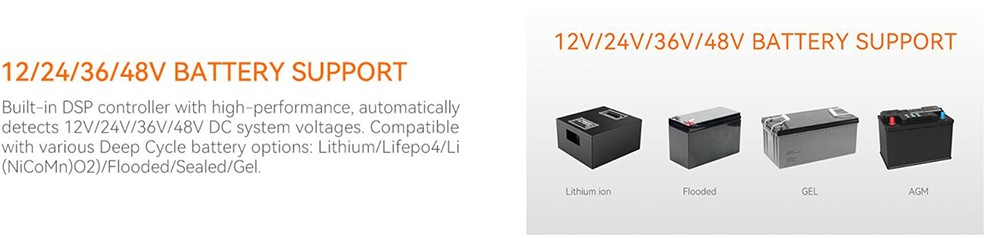

12/24/36/48V Battery Support
Built-in DSP controller with high performance, PowMr 60A solar charge controller can automatically detect 12V/24V/36V/48V DC system voltages. It is compatible with various deep-cycle batteries, such as Lithium-ion, Flooded, Gel, AGM, etc.

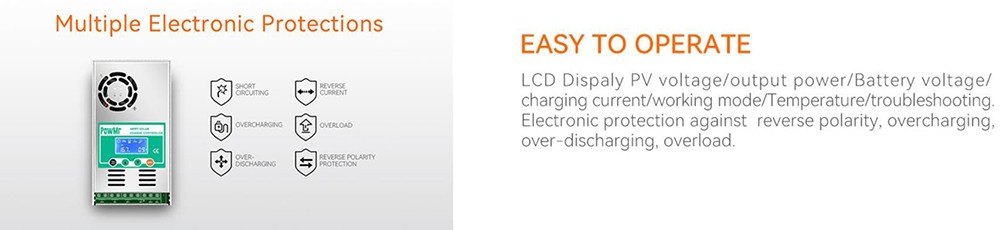

Easy to Operate, Multiple Protection
LCD display PV voltage, output power, battery voltage, charging current, working mode, temperature, and troubleshooting. Also, it has electronic protection against reverse polarity, overcharging protection, over-discharging protection, and overload protection.
Wide Range Solar Voltage/Power Support
The PowMr solar charge controller supports a high PV input voltage of up to 160V, which allows users to connect multiple panels in series, increase efficiency, and save money on wires and connectors.
Specification
| General | Brand: PowMr Type: Solar Charge Controller Model: HHJ-60A Color: White |
| Specification | Charging Mode: 3-stage: constant current (MPPT), 4-constant voltage, Floating Overcharging Protection Voltage: 60V Limited Current Protection: 61A Max Efficiency: ≥98. 1% PV Utilization: ≥99% Max.PV Input Power: 12V system: 720W 24V system: 1440W 36V system: 2100W 48V system: 2800W Input Specification DC: 12V system DC: 20V - 80V 24V system DC: 37V - 105V 36V system DC: 50V - 160V 48V system DC: 72V- 160V Battery Voltage Automatic Recognition: 12V Battery: DC 9V - DC 15V 24V Battery: DC 18V - DC 29V 36V Battery: DC 30V - DC 39V 48V Battery: DC 40V - DC 60V Temperature Protection: 75 Celsius / 167 Fahrenheit Fan-on Temperature: >45 Celsius / 104 Fahrenheit Fan-off Temperature: <40 Celsius / 95 Fahrenheit Electromagnetic Compatibility: Accord to EN61000, EN55022, EN55024 Enclosure: IP21 Environmental Temperature: -20 - 55 Celsius Storage Temperature: -40 - 75 Celsius |
| Weight & Size | Product Weight: 1.1kg Package Weight: 1.2kg Product Size(L x W x H): 21.1*11.5*5cm Package Size(L x W x H): 22.5*20.5*7.2cm |
| Package Contents | 1 x MPPT Solar Charge Controller 4 x Corner Connections 4 x Screws for Controller Casing 1 x User Manual |
