Highlights

QIDI TECH X-Plus 3 Main Features

QIDI Tech X-Plus 3 3D printer, a Fast and reliable FDM 3D printer for high-performance material, offers a super high printing speed of 600mm/s. With 20000mm/s²  of printing acceleration and 35mm³/s extruder flow, the Klipper-based machine is undoubtedly the leading desktop high-speed FDM 3D printer sporting a CoreXY structure,

  • 600mm/s print speed
  • Klipper firmware
  • High-temp printing
  • Heated build chamber
  • Automatic bed leveling
  • Fast Speed 600mm/s
  • 280*280*270 mm
  • High-Flow 35mm³/s
  • Acceleration: 20000mm/s²

QIDI TECH X-Plus 3 3D printer comes with:

  • Two high-temp hotends
  • Dryer box
  • Spool of filament
  • All the necessary tools

New Upgrade All-metal Frame

QIDI TECH X-Plus 3 features an all-metal chamber that is ultra-stable, reinforced with metal crossbeams at the bottom, and resistant to deformation.

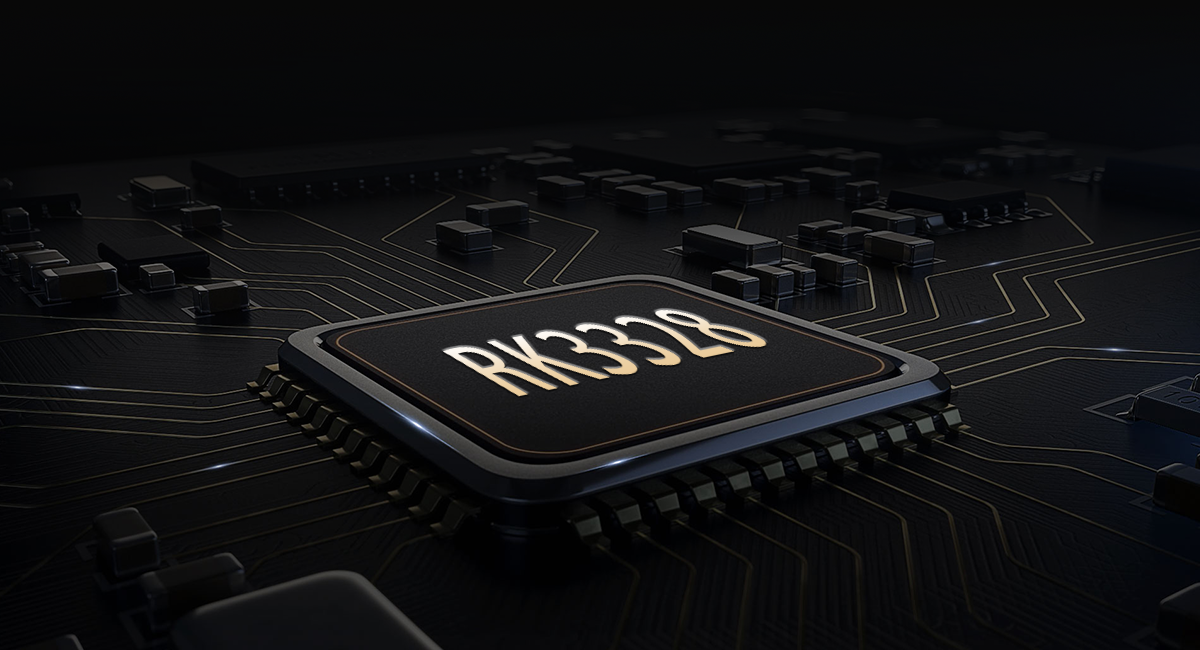

64-Bit Processor

For a higher printing speed and improved printing results, QIDI X-Smart 3 adopts Cortex-A53 64-bit processor, which has a 1.5Ghz frequency, 8G-EMMC, and 1G DDR3.

CoreXY Structure

With TMC2209 silent drive and CoreXY structure, this 3D printer can reduce motion Inertia and improve the motion speed, offering a low-noise printing experience.

High-grade Hardness Steel Linear Hollow Optical Axis

Improved surface straightness, and a 60% lower error deflection. Highly durable and has no need for frequent maintenance.

High-Speed Extruder with Cooling System

The extruder with a 9.5:1 transmission ratio is steadier, stronger, and faster. The new cooling system can reduce the risk of clogs and ensure smooth extrusion.

Automatic Levelling

Klipper adaptive meshing and purging, fast ensure flawless first layer for every 3D print.

Flexible HF Board

The double-sided flexible magnetic HF plate has excellent adhesion, no warping trouble, and is easy to remove the prints.

Two Sets of Hot End

Copper alloy nozzle for better thermal conductivity, smooth printing and to be more durable. Hardened steel nozzle for abrasive materials, and long-term usage. While both have a max print temp of 350 Celsius.

Temperature Controlled Chamber and Drying Box

With an independent heating device that has a maximum temp of 65 Celsius, QIDI X-Plus 3 3D printer can high-efficiency print PET-CF, PAHT-CF, etc. It also has a chamber circulation fan with an activated carbon air filter.

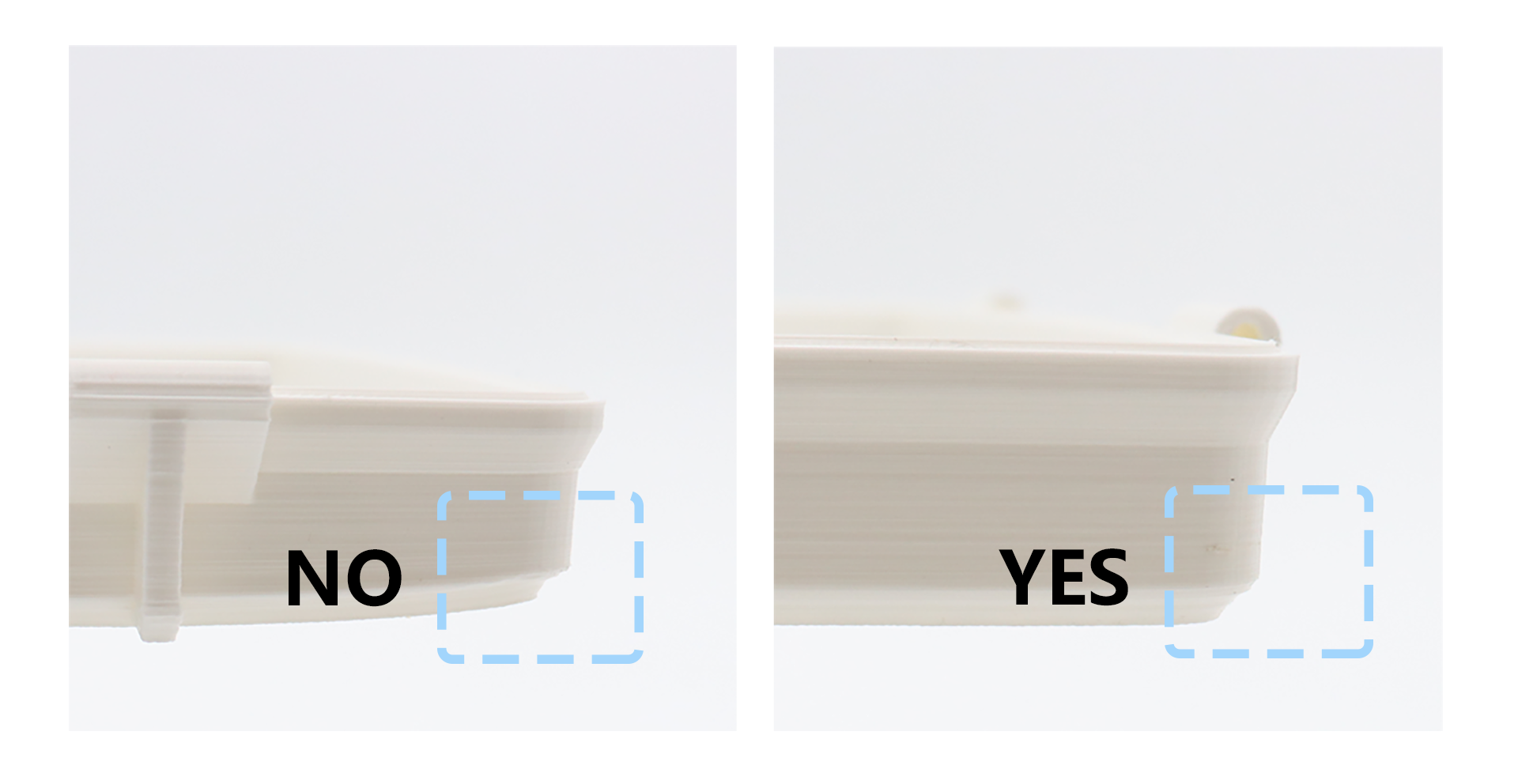

No Layer Separation

The higher the temperature in the heated chamber, the larger the material range that can be printed. The heated chamber ensures that the part is built uniformly without the generation of internal stresses.

Excellent User Experience

The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started. It also supports other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.

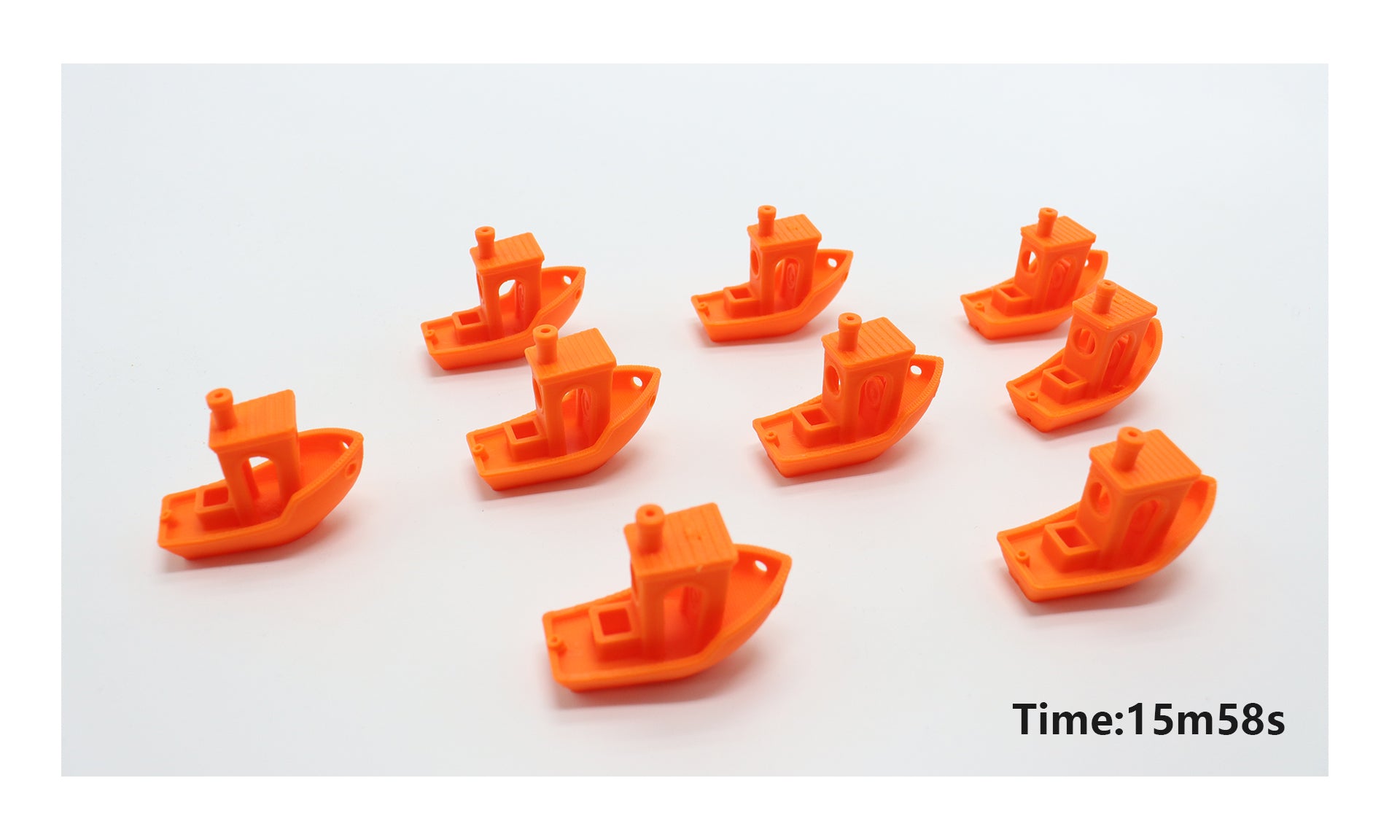

QIDI Tech X Plus 3 - Designed for High-Speed Printing

The successor to the X-PLUS 3D printer, the QIDI Tech X-PLUS 3 is similar to the more advanced X-MAX 3 but with a slightly smaller build volume and the lack of a carbon air filter. The printer comes fully assembled and is quick and easy to set up and use.

The QIDI X-PLUS 3 sports a CoreXY structure to avail extremely fast printing speeds of up to 600 mm/s and acceleration of 20000 mm/s². The Klipper firmware makes it possible to enable resonance compensation so as to reduce vibrations at high speeds. Another way to achieve faster and smoother movements comes from the application of carbon rods on the X-axis and a lightweight extruder, which allows reducing the weight of the printhead with the X-axis to only 600 g. The auto bed leveling function uses a capacitive sensor to probe the print bed in 16 points to ensure the build plate flatness and good print adhesion.

The enclosed build chamber of the X-PLUS 3 sports an independent heater and can reach 65 °C, which reduces warping and delamination with high-temperature filaments. The transparent lid of the printer can be removed for faster part cooling when printing with low-temperature filaments, such as PLA.

QIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mm



Supreme Print Quality & Compatibility with Nylon, PC, Fiber-reinforced Composites

The QIDI Tech X-PLUS 3 equips a direct drive extruder with a 9.5:1 gear ratio and a maximum flow rate of 35 mm³/s. With a max temperature of 350 °C, the printer provides a fast heat-up time and consistent extrusion. Apart from the default copper alloy nozzle for processing common filaments, the QIDI Tech X-PLUS 3 is supplied with a hardened steel nozzle for printing with abrasive materials.

A standard 0.4 mm nozzle can be replaced with optional 0.2, 0.6, or 0.8 mm nozzles. With a minimum layer height of 50 microns, the X-PLUS 3 produces accurate models with a smooth surface finish. The print bed heats up to 120 °C and features a magnetic flexible build plate that ensures good adhesion and easy print removal.

Thanks to its high-temp extruder and heated build chamber, the X-PLUS 3 is compatible with a wide range of consumer and engineering-grade thermoplastics, including Nylon, PC, fiber-reinforced composites, and others. The printer is compatible with both proprietary and third-party filaments.





QIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mm

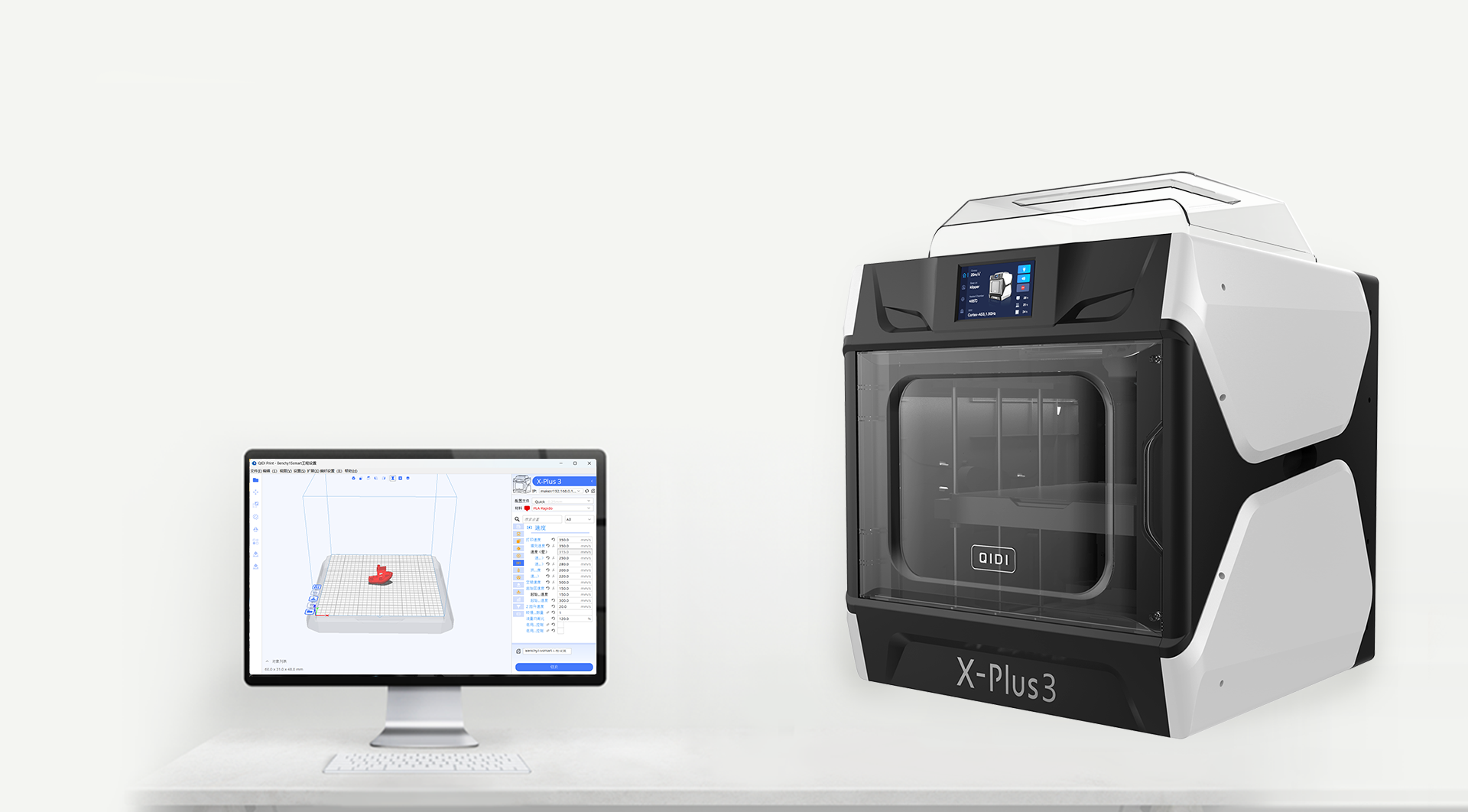

Printer controls and  QIDI Print software

The QIDI X-PLUS 3 is controlled via a 5" color touchscreen with an intuitive user interface. The machine supports Wi-Fi, Ethernet, and USB connectivity.

Based on the popular Cura slicer, the QIDI Print software has normal and expert modes to provide maximum flexibility both for beginners and experienced users. It runs on Windows, macOS, and Linux. The printer is also compatible with Cura, Simplify3D, or PrusaSlicer.



QIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mmQIDI TECH X-Plus 3 3D Printer, Auto Levelling, 600mm/s Printing Speed, Flexible HF Board, Chamber Circulation Fan, Filament Detection, Dryer Box, 280*280*270mm

Specification

General Brand: QIDI
Type: 3D Printer
Model: X-Plus 3
Color: Black
Specification Technology: FDM
Build Volume: 280*280*270mm
Printing Speed: ≤600mm/s
Extruder Flow: 35mm³/s
Extruder Temp: ≤350°C
Hotend (Included): Copper alloy nozzle hotend for Common materials; Hardened steel nozzle hotend for Abrasive materials
Auxiliary Part Cooling Fan: Yes
Chamber Temperature Control: 65 Celsius Independent Chamber Heating
Chamber Circulation Fan with Activated Carbon Air Filter: Chamber Circulation Fan
Screen: 5.0-inch, 800*480 touchscreen
Seal Print: Dryer Box + Desiccant
Connection Options: 150M 2.4G WiFi; USB Flash Drive/Ethernet Cable
Rated Power: 800W
Recommended Filament: PAHT-CF, PET-CF, PA12-CF
Compatible Filament: PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc.
Structure: CoreXY
Z-axis: Double Z axis
X-axis: High-grade hardness steel linear hollow optical axis
Firmware: Klipper
Printing Acceleration: 20000mm/s²
Printing Accuracy: ±0.1 mm
Filament Diameter: 1.75mm
Bed Leveling: Automatic Leveling
Extruder Transmission Ratio: 9.5:1
Hot End: Ceramic Heating Core
Extruder: High-flow Direct Drive Extruder
Nozzle Diameter: 0.4mm (0.2,0.6,0.8mm Optional)
Hot Bed Temperature: ≤120 Celsius
Printing Plate: Double-Sided Flexible Magnetic HF Plate
Filament Detection: Yes

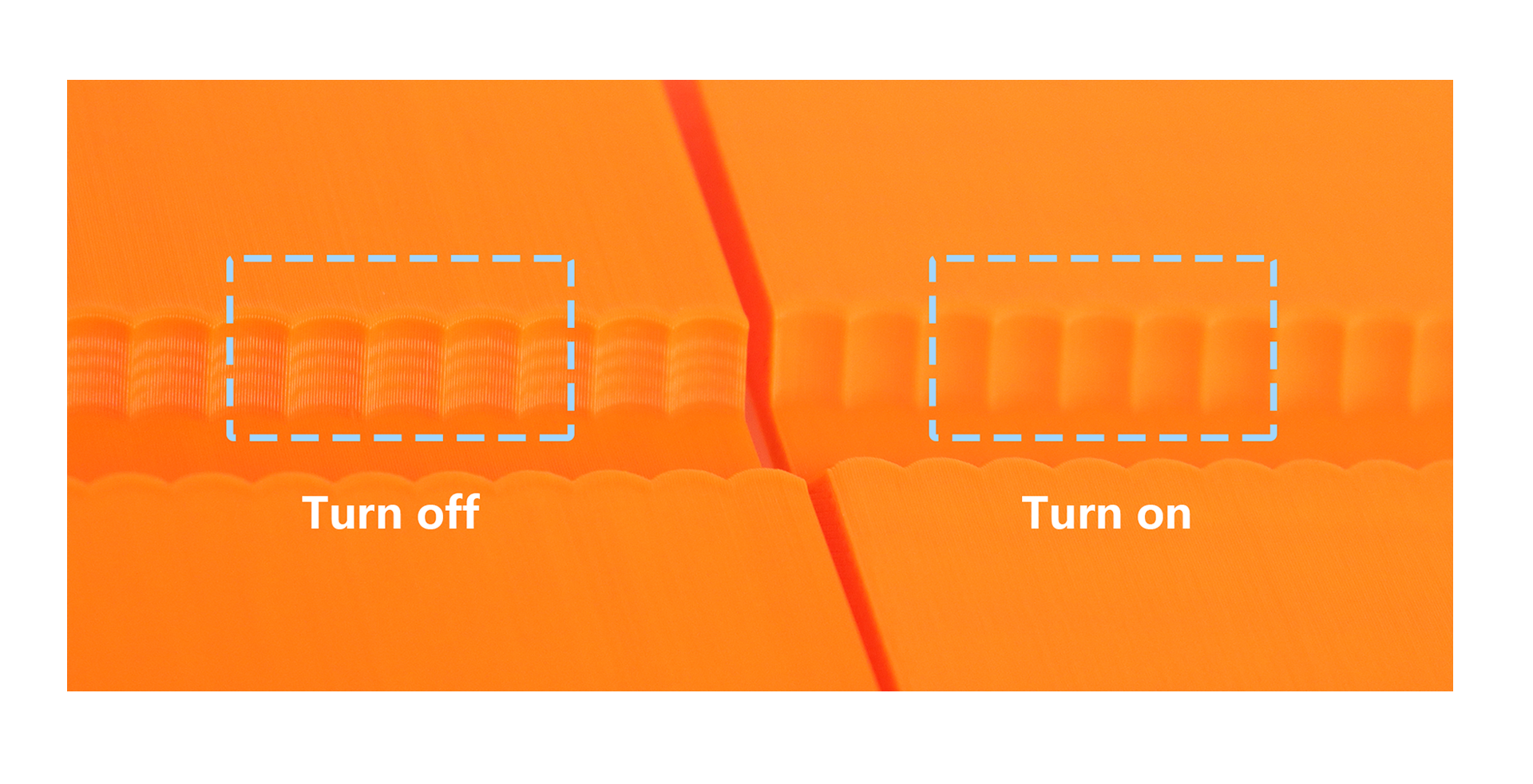

Resonance Compensation: Yes
Pressure Advance: Yes
Voltage: 100-240VAC, 50/60Hz
Main Processor: Cortex-A53, 64-bit Processor, 1.5Ghz,8G-EMMC,1G DDR3
Slicer: QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.
Operating System: Windows, MacOS, Linux
Assembled: Assembled and First Print within 10 minutes
Weight & Size Product Weight: 24.3kg
Package Weight: 25kg
Product Size(L x W x H): 511x527x529mm
Package Size(L x W x H): 630x630x650mm

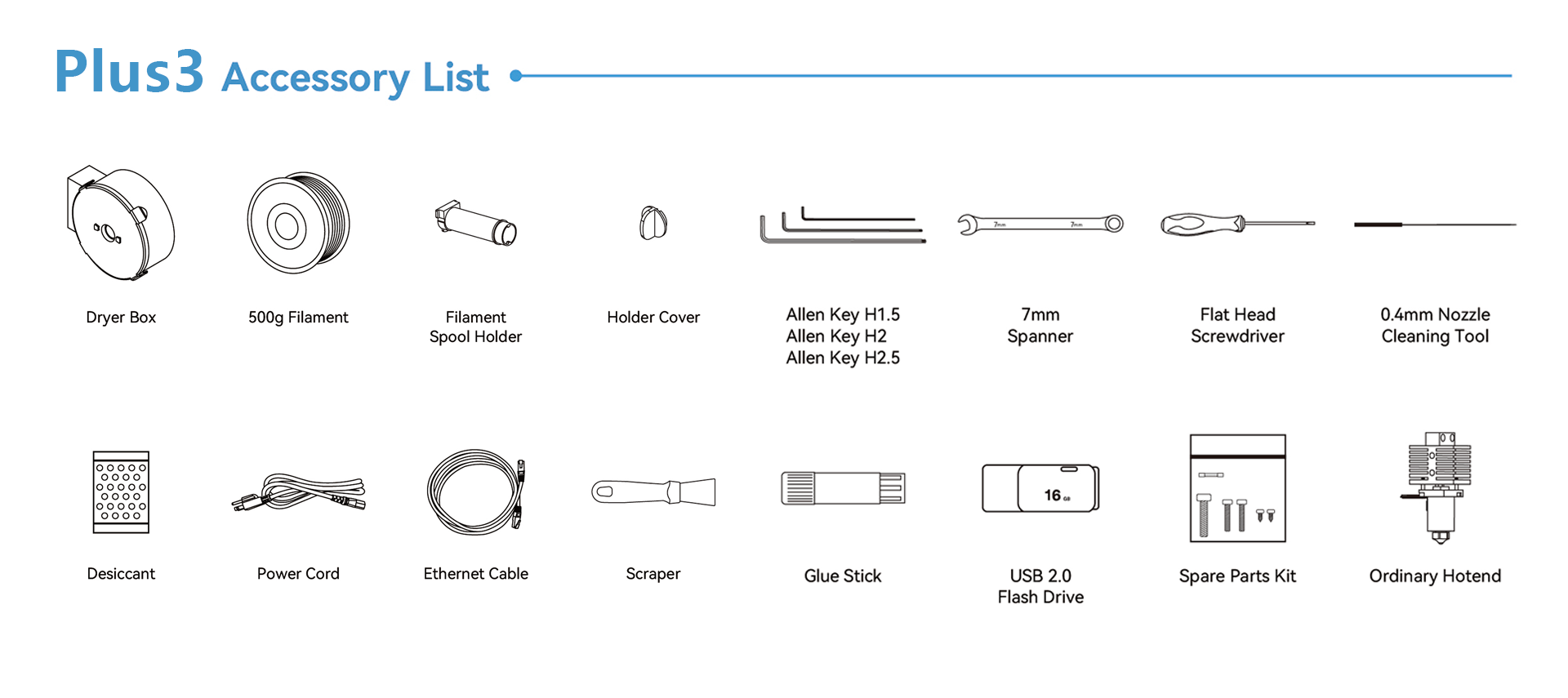

Package Contents 1 x 3D Printer
1 x Dryer Box
1 x 500g Filament
1 x Filament Spool Holder
1 x Holder Cover
1 x Power Cord
3 x Allen Key (H1.5, H2, H2.5)
1 x 7mm Spanner
1 x Flat Head Screwdriver
1 x 0.4mm Nozzle Cleaning Tool
1 x Desiccant
1 x Ethernet Cable
1 x Scraper
1 x Glue Stick
1 x USB 2.0 Flash Drive
1 x Spare Parts Kit
1 x Ordinary Hotend
1 x User Manual
