Highlights
DSSS And FHSS Spread Spectrum
4KM Control Distance Brand New Choice
More Stabilized,More Faster
Low Consumption Of Battery
Twelve Channels Transmitter Full Types And Functions
4096 Precision
Real-time Data Telemetry
SBUS,PPM And PWM Support
Anti-Polarity Connect Protection Intelligent
Programmable Mix Control
USB Upgrade
Multitype Alarm
Two signal working mode of R12DS:
(1)PWM signal output working mode: red LED indicates PWM signal output, 11 channels Totally.
(2) S-BUS signal output working mode: blue/purple LED indicates S-BUS signal output, 12 channels totally.
S-BUS and PWM signal working at the same time. S-BUS signal channel(3 pin of row 11) output 12 channels S-BUS signal, PWM signal channels(3 pin of row 1 to row 10) output CH3 to CH12 PWM signals, but 12 channel in total. How many PWM signal channels you can use depends on how many S-BUS signal channels you have used(e.g: you have use 4 S-BUS signal channels, then you have 8 PWM signal channels to use).
How to match code with transmitter:
1. Put the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R12DS.
3. Connect CH3 of R12DS to ESC.
4. There is a black button on the R12DS, use a thin stick press the button twice in two seconds, receiver light starts blinking, after about blinking 8 times, match code success and receiver signal LED always on.
Specification

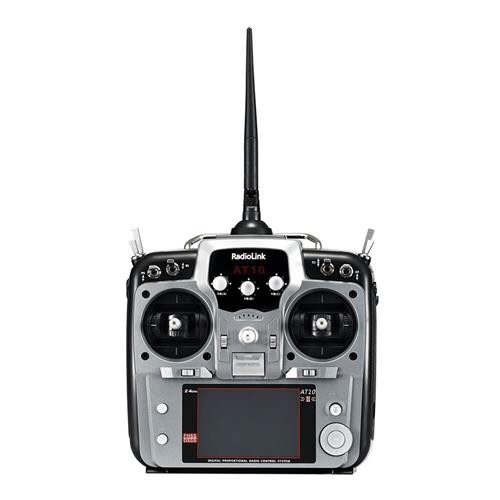

| General | Brand Name: RadioLink Color: Gray Item Name: AT10II transmitter with receiver |
| AT10 IITransmitter | Frequency :2.4GHz ISM band (2400MHz to 2485MHz) Channel :12 Channel,5-12 Channels are customized Modulation Mode :QPSK Channel Bandwidth :5.0MHz Spread Spectrum :DSSS,FHSS Adjacent Channel Rejection :>38dBM Transmitter Power :<100mW (20dBm) Operating Current :<105mA Operating Voltage :7.4~15V Control Distance :up to 4km,the actual control distance depends on the flying environment Simulator Mode :Under the simulator model the transmitter action turn off, change to power saving model Screen :16 colorful screen Size:78 x 52mm 320*480 pixel Compatible Model :Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider, five flying model. Size :18 x 9.5 x 22cm Weight :0.95kg |
| R12DS Receiver |
Frequency :2.4GHz |
| Package Contents | 1 X Radiolink AT10 II Transmitter 1 X R12DS Receiver 1 X PRM-01 module 1 X Manual |
