Highlights

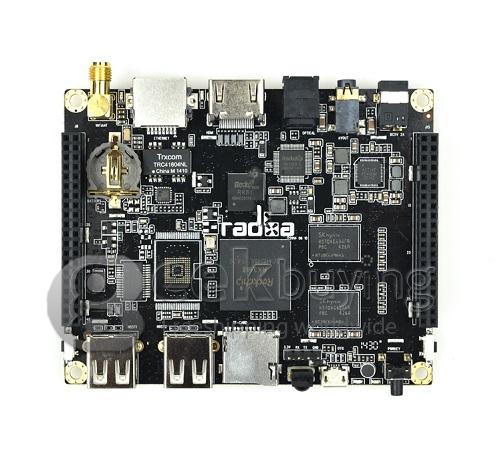

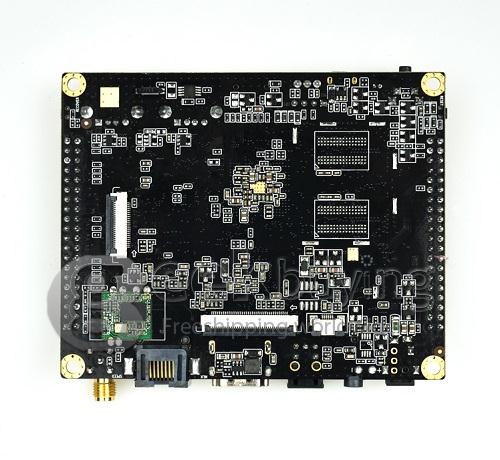

- Radxa Rock Pro lite is a new version of radxa product family ,more economical and easy to use, based on RK3188, integrated with WiFi, LAN, RTC, IR and etc. The CPU is ARM Cortex-A9 with Quad-core at 1.6Ghz, and also including GPU that support OpenGL ES 2.0. It means you play 1080p videos, and output with HDMI.
- it can expande via MicroSD card that supports SDXC cards up to 128GB. As a barebones single-board computer, the key feature for developers however will be the dual 40-pin headers that provide a range of extra goodies including 'GPIO, I2C, SPI, Line in, USB 2.0, PWM, ADC, LCD, GPS,camera and more.
- Features:
- ARM Cortex-A9, Quad Core at RK3188 SoC
- Supported WiFi,LAN
- USB Host and USB OTG
- HDMI, supported 1080p@60Hz
- Supported Linux, Android, FreeBSD
- RTC On-board
Specification
| Model | Rock lite |
| System | |
| CPU | ARM Cortex-A9 quad core @ 1.6 Ghz |
| Memory | 1GB DDR3 @ 800Mhz |
| Storage | Micro-SD SDXC up to 128GB |
| Display and Graphics | |
| GPU | Mali400-mp4 @ 533Mhz, OpenGL ES 2.0 |
| Digital Video | HDMI 1.4 up to 1080 @ 60hz |
| Analog Video | AV output |
| Network | |
| LAN | 10/100M Ethernet port |
| WIFI | 150Mbps 802.11b/g/n with antenna |
| Bluetooth | NO |
| I/O | |
| Audio | S/PDIF, headphone jack |
| USB HOST | 2 USB 2.0 standard A types |
| USB OTG | USB OTG micro-USB connector |
| Serial | Serial Console for debugging |
| IR | Support self-defined IR remote |
| Key | 1 power key. 1recovery key, 1 reset key |
| Other | |
| Led | 3 programable leds |
| RTC | Support power off alarm |
| Extend Header | 80 pins including GPIO, I2C, SPI, Line in, USB 2.0, PWM, ADC, LCD, etc |
What's in the box?
- 1 x Radxa Rock board
- 1 x USB cable
- 1 x Antenna
- 1 x ear Acrylic Case
