Highlights
Overview

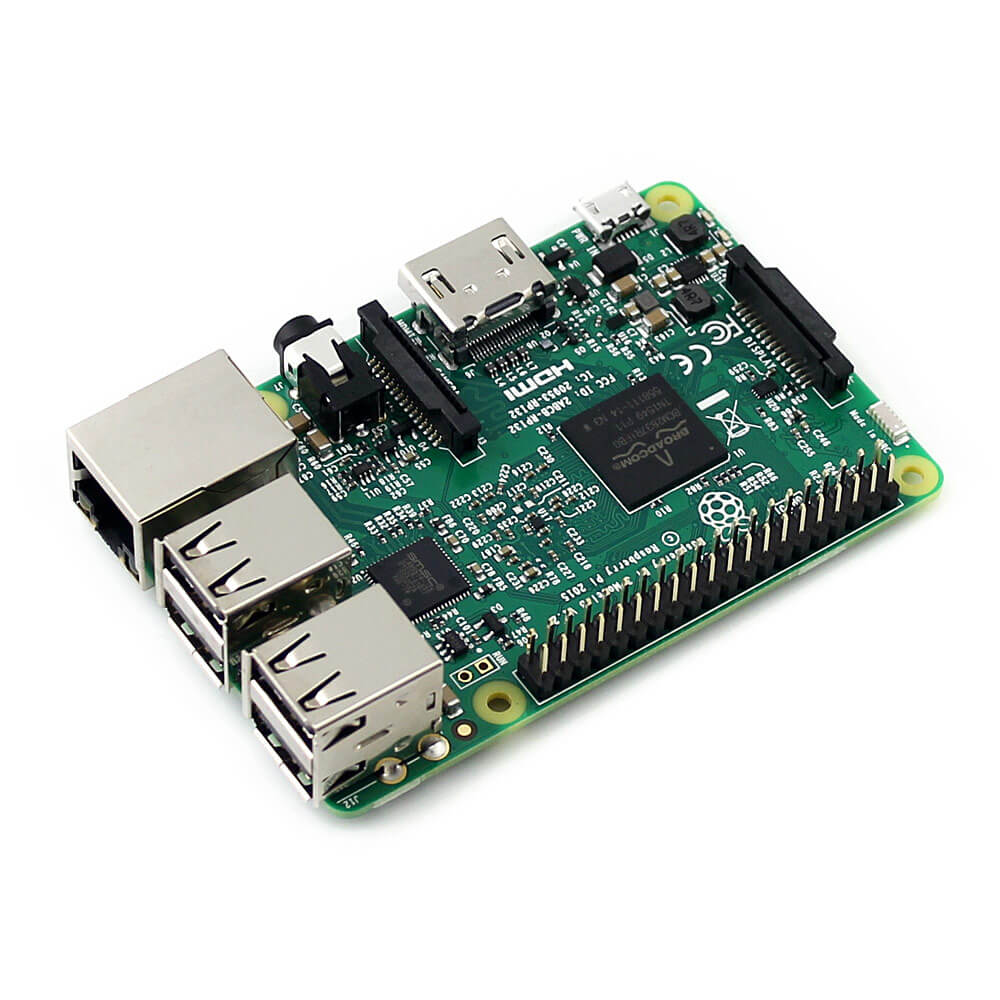

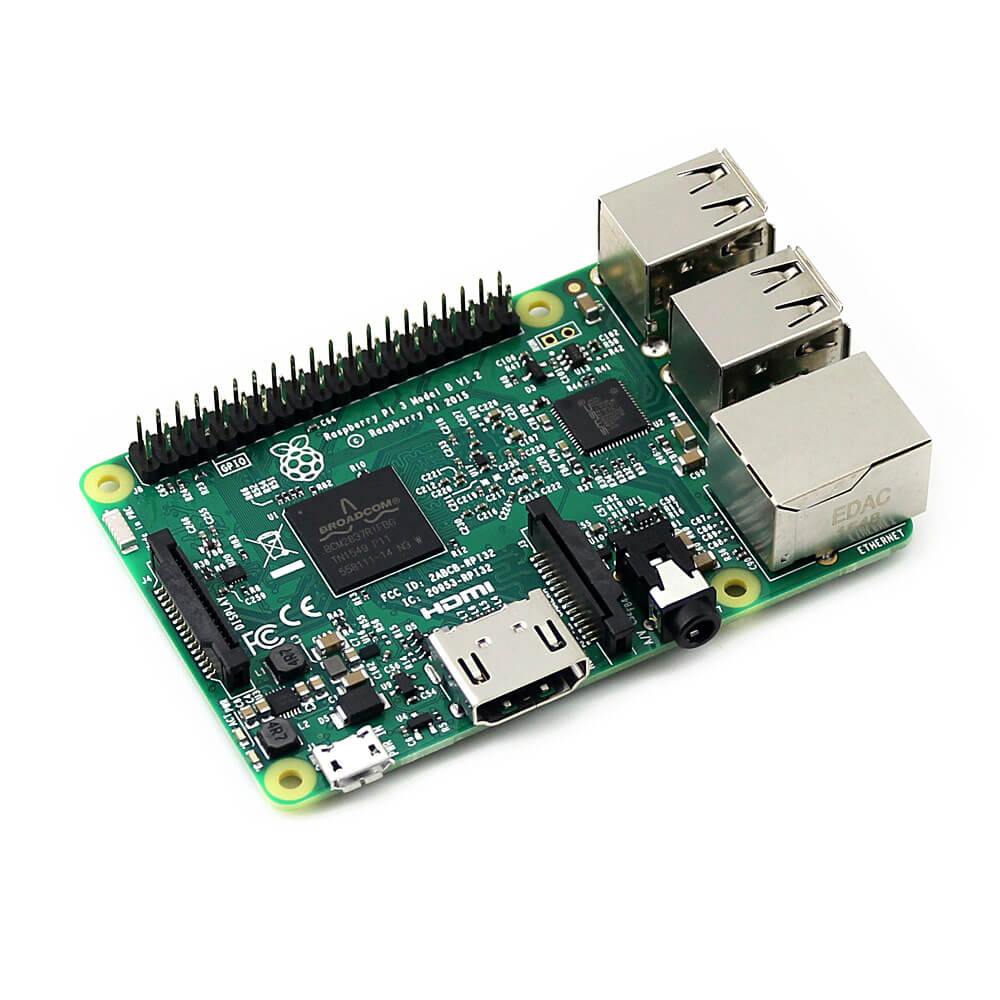

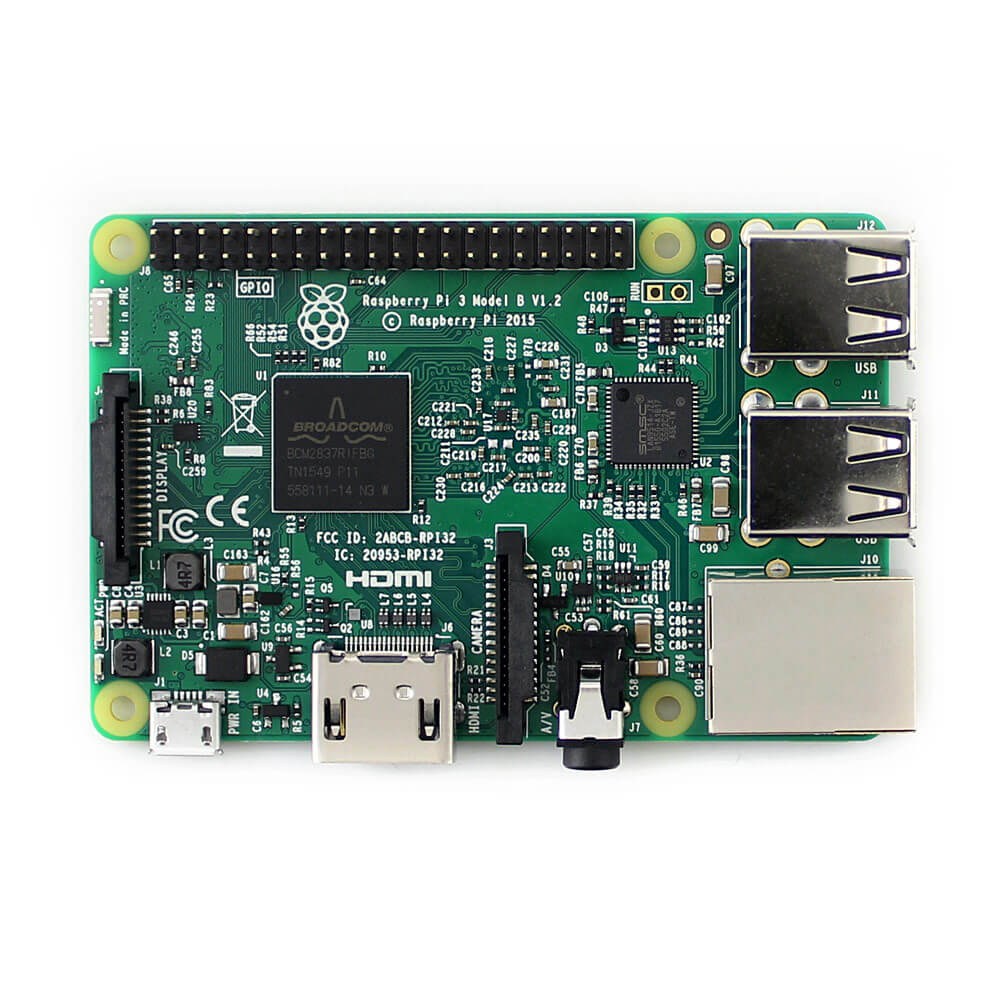

- The Raspberry Pi 3 is the third generation Raspberry Pi. It replaced the Raspberry Pi 2 Model B in February 2016. Compared to the Raspberry Pi 2 it has:
- A 1.2GHz 64-bit quad-core ARMv8 CPU
- 802.11n Wireless LAN
- Bluetooth 4.1 & Bluetooth Low Energy (BLE)
Features
- BCM2837, 1.2GHz 64-bit quad-core ARM Cortex-A53
- 1GB RAM
- 10/100 Ethernet port
- 802.11n WiFi NIC
- Bluetooth 4.1 & Bluetooth Low Energy (BLE)
- HDMI port
- USB 2.0 interface x 4
- Micro SD card slot
- Combined 3.5mm audio jack and composite video
- 40-pin GPIO interface
- Camera interface (CSI)
- Display interface (DSI)
- Upgraded power management, supports more peripherals (requires a 2.5A power supply or above)

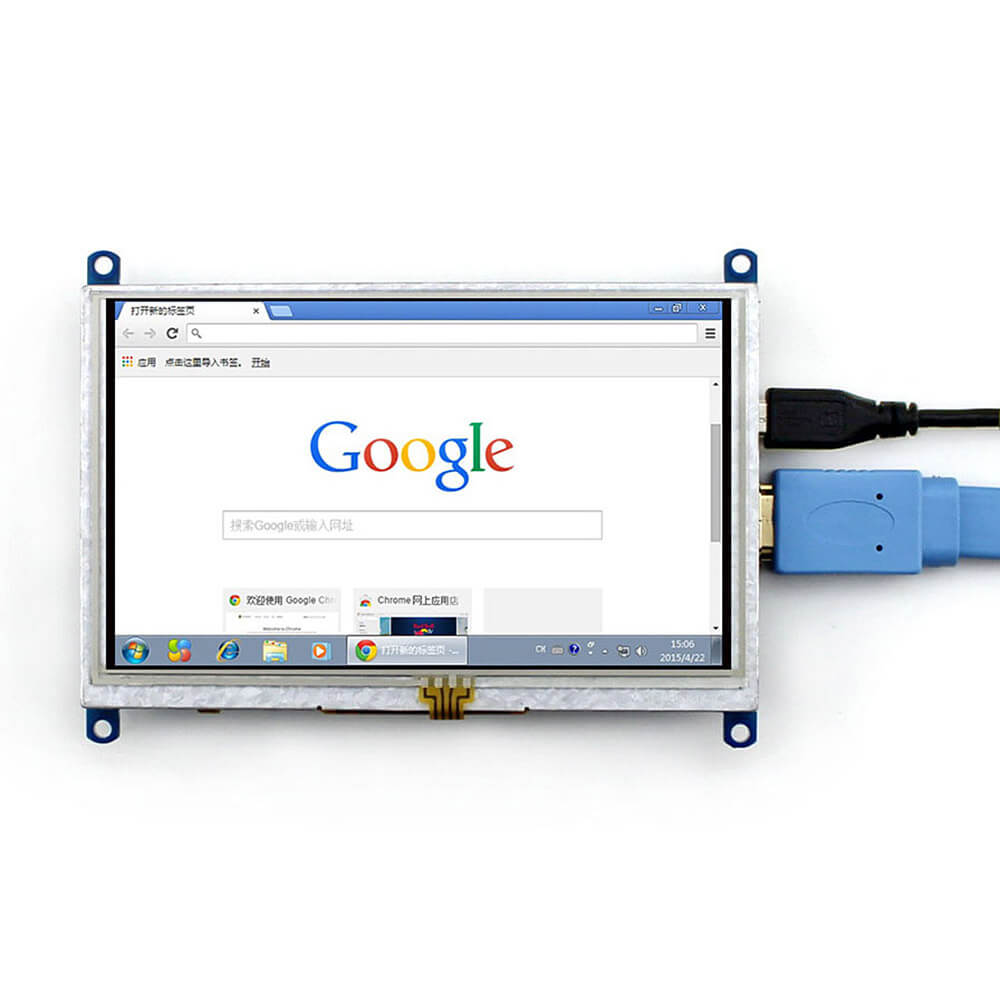

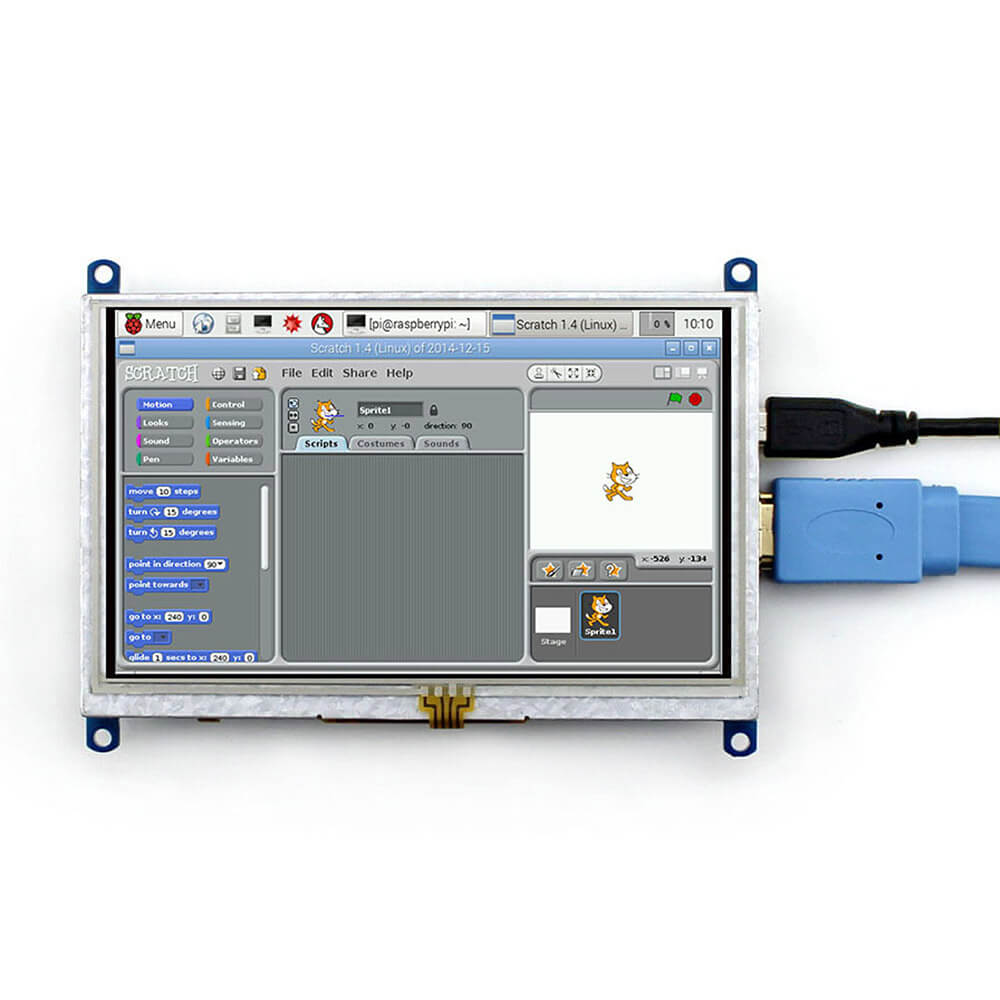

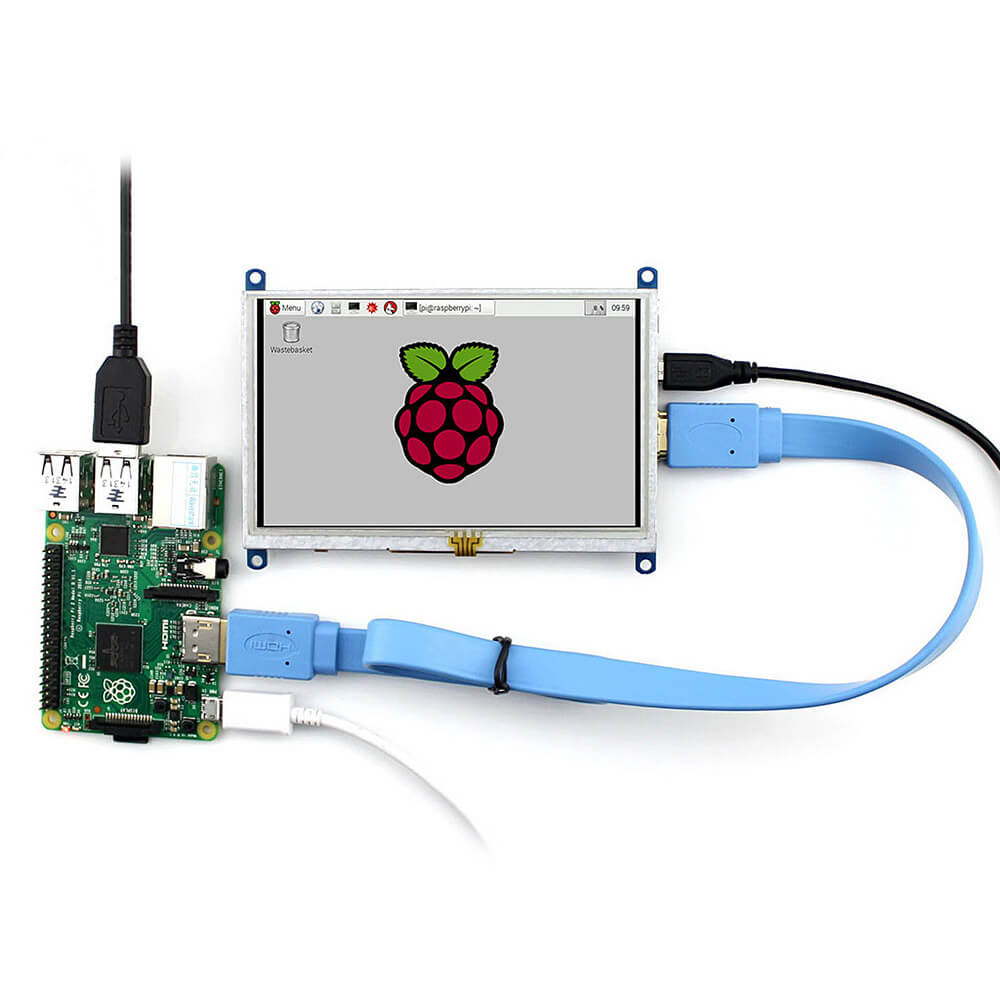

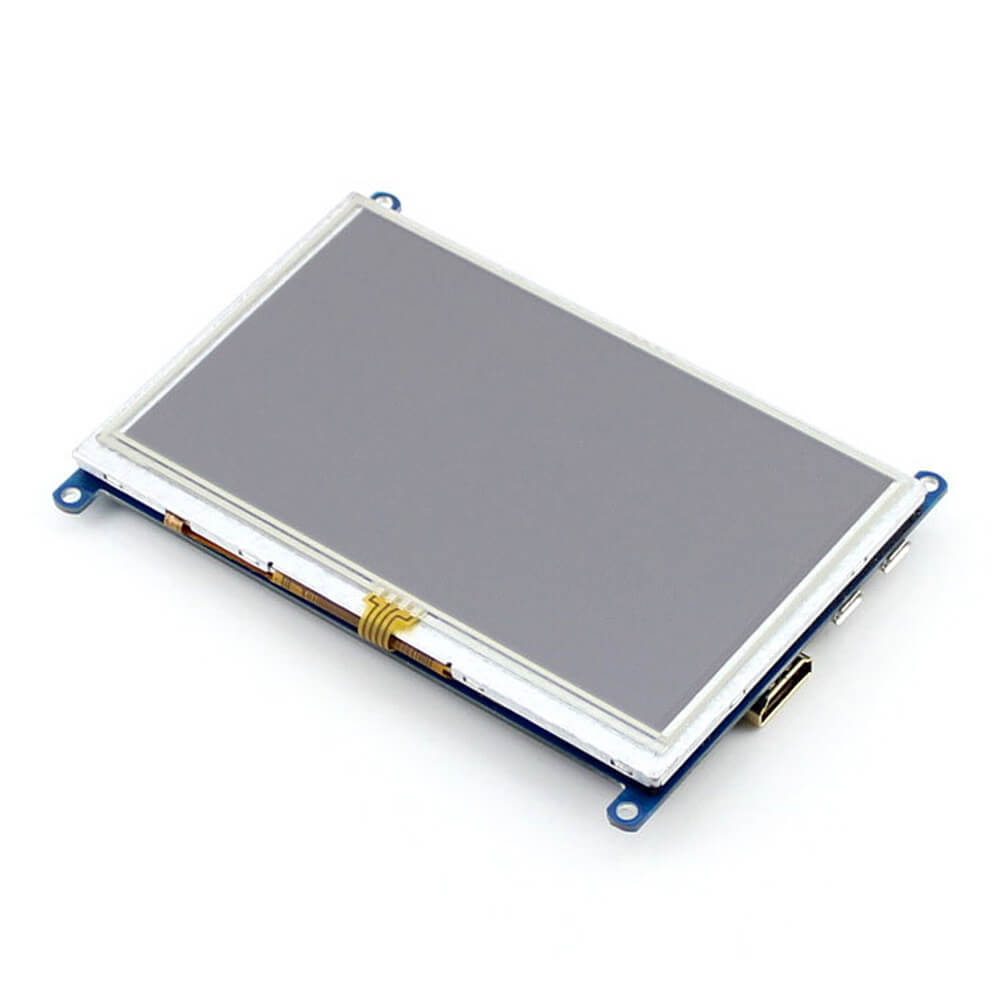

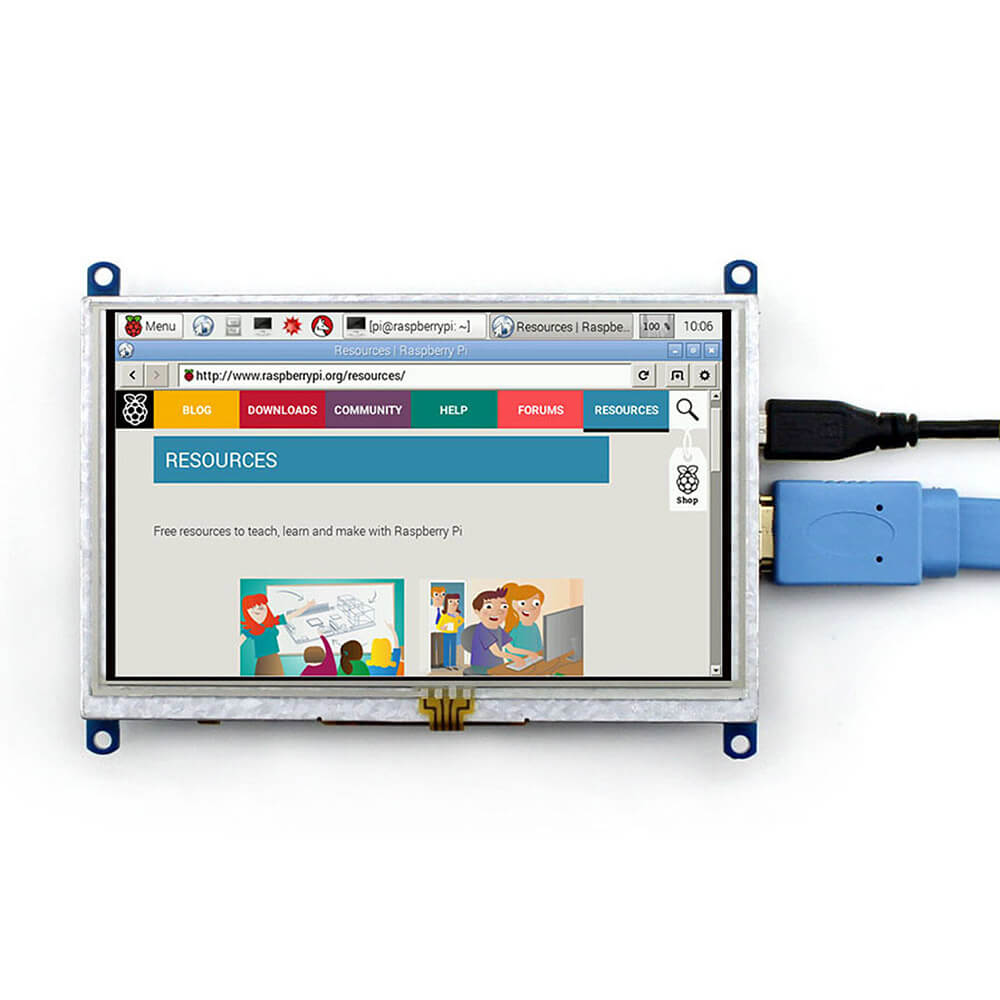

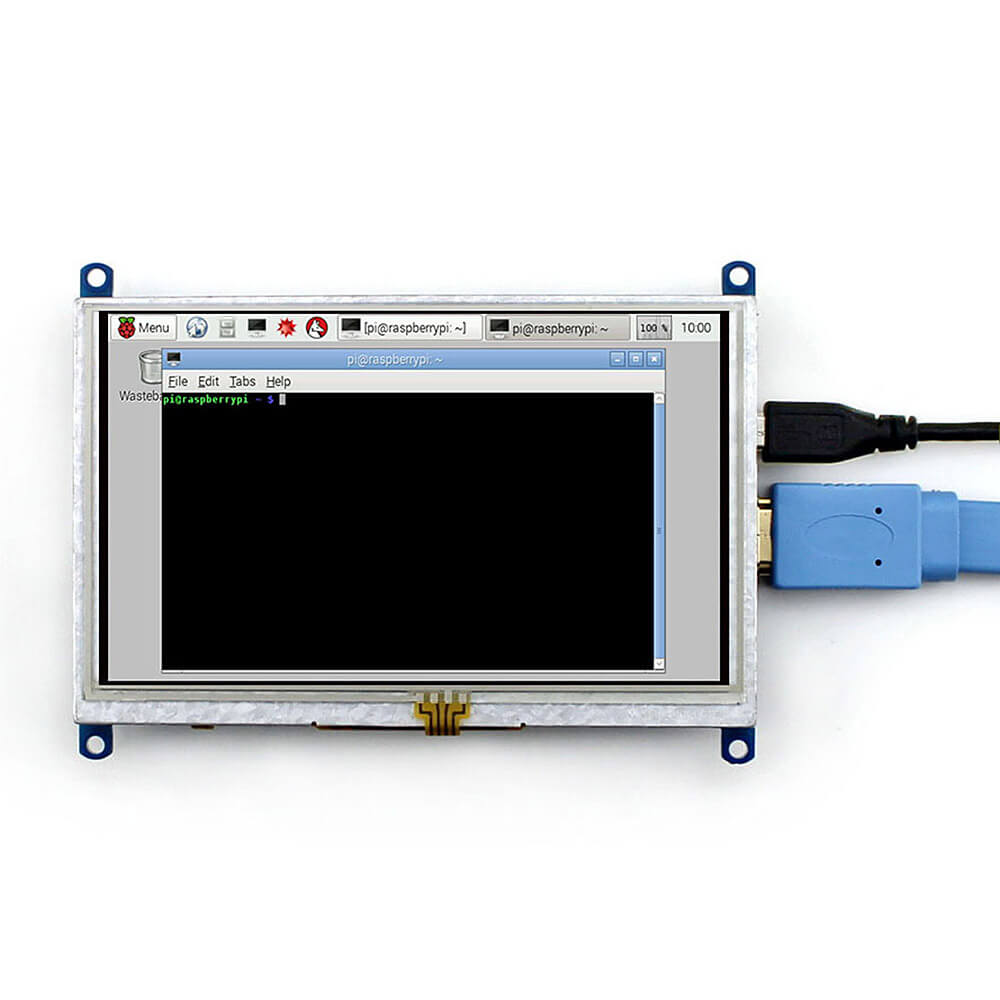

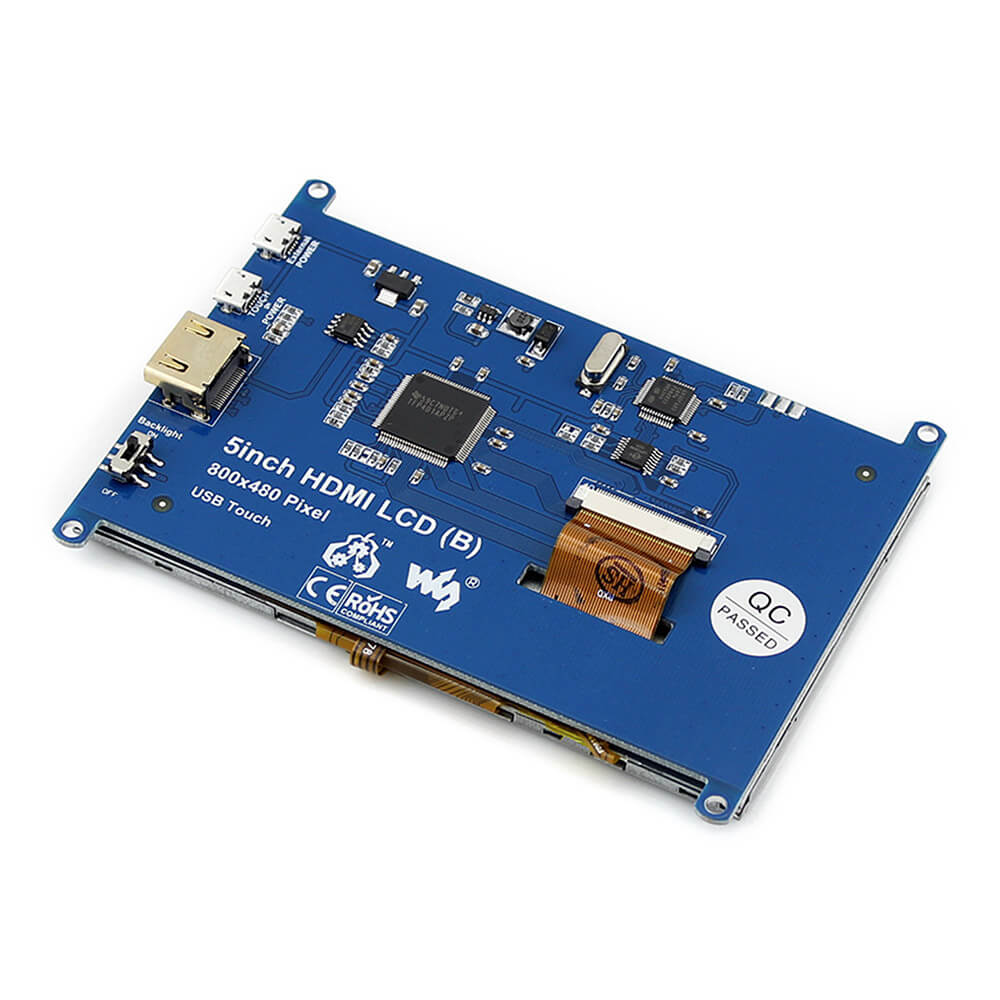

The LCD
- 800×480 high resolution
- Resistive touch control
- Supports Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
- Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image
- For other mini-PCs, driver is required and should be developed by users

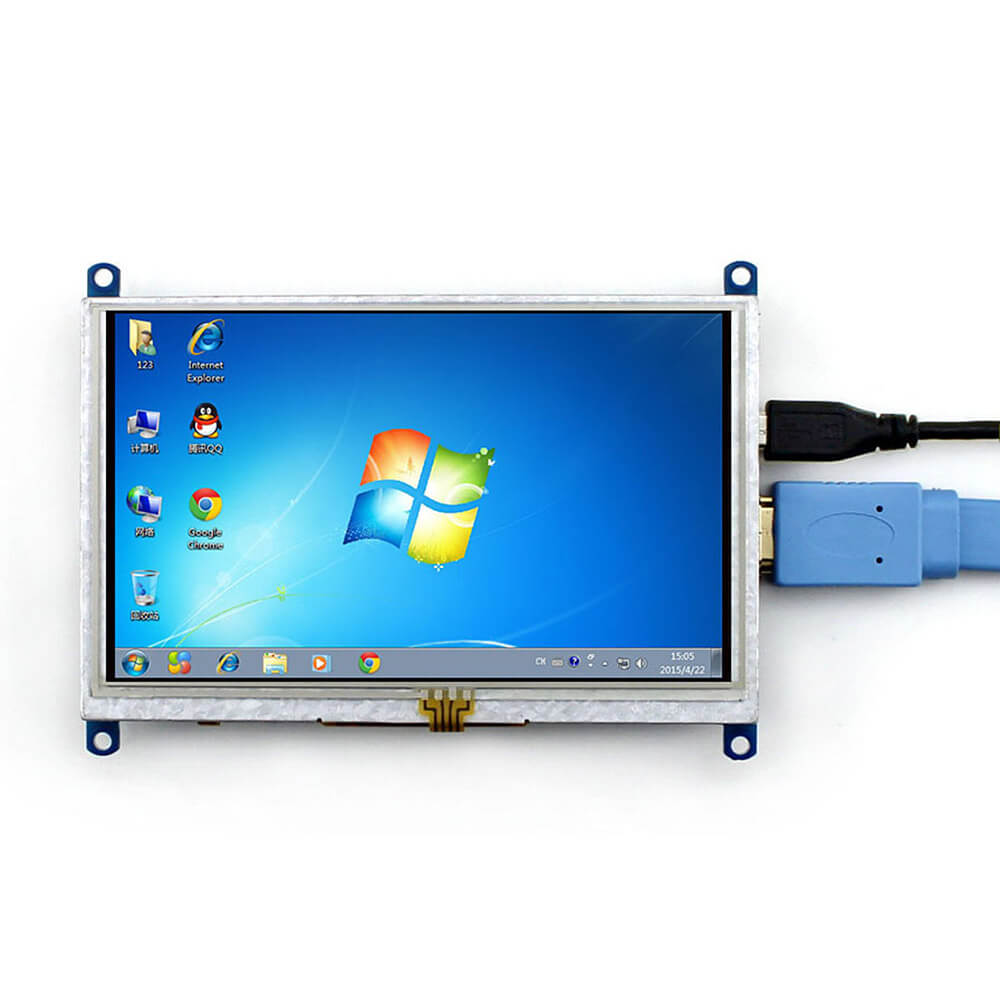

- Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen (touch function is unavailable in this case)
- HDMI interface for displaying, USB interface for touch control
- Back light control to lower power consumption
Specification
| General | |
|---|---|
| Type | LCD |
| Model | Raspberry Pi 3 Model B |

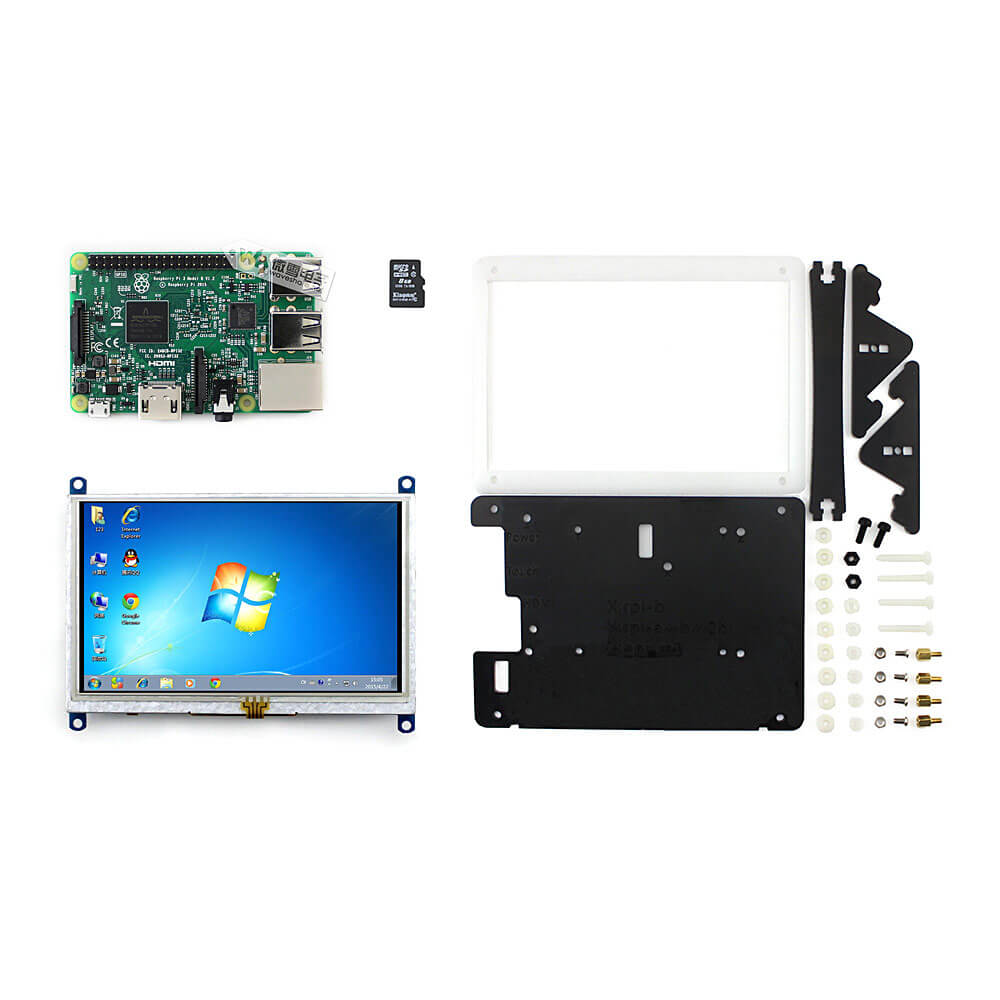

| Package Contents | |
| Raspberry Pi 3 Model B x 1 | |
| 5inch HDMI LCD (B) x 1 | |
| HDMI cable x 1 | |
| Touch pen x 1 | |
| USB type A plug to micro B plug cable x 2 | |
| RPi LCD screws pack (4pcs) x 1 | |
| DVD x 1 | |
| Bicolor Case for 5inch LCD Type B x 1 | |
| Screws Pack x 1 | |
| Micro SD Card 8GB x 1 | |
| Power Adapter US Standard 5V 2.5A USB Output x 1 | |
More info : 5inch HDMI LCD (B)

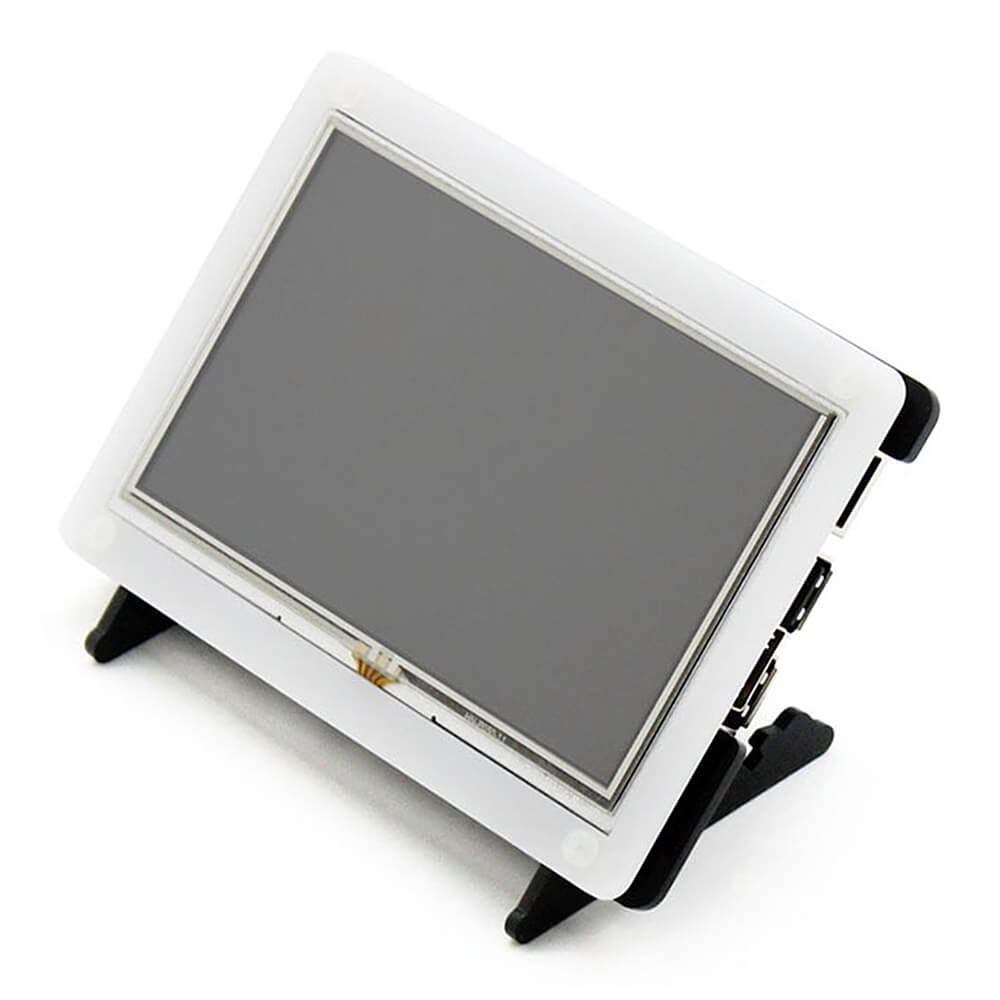

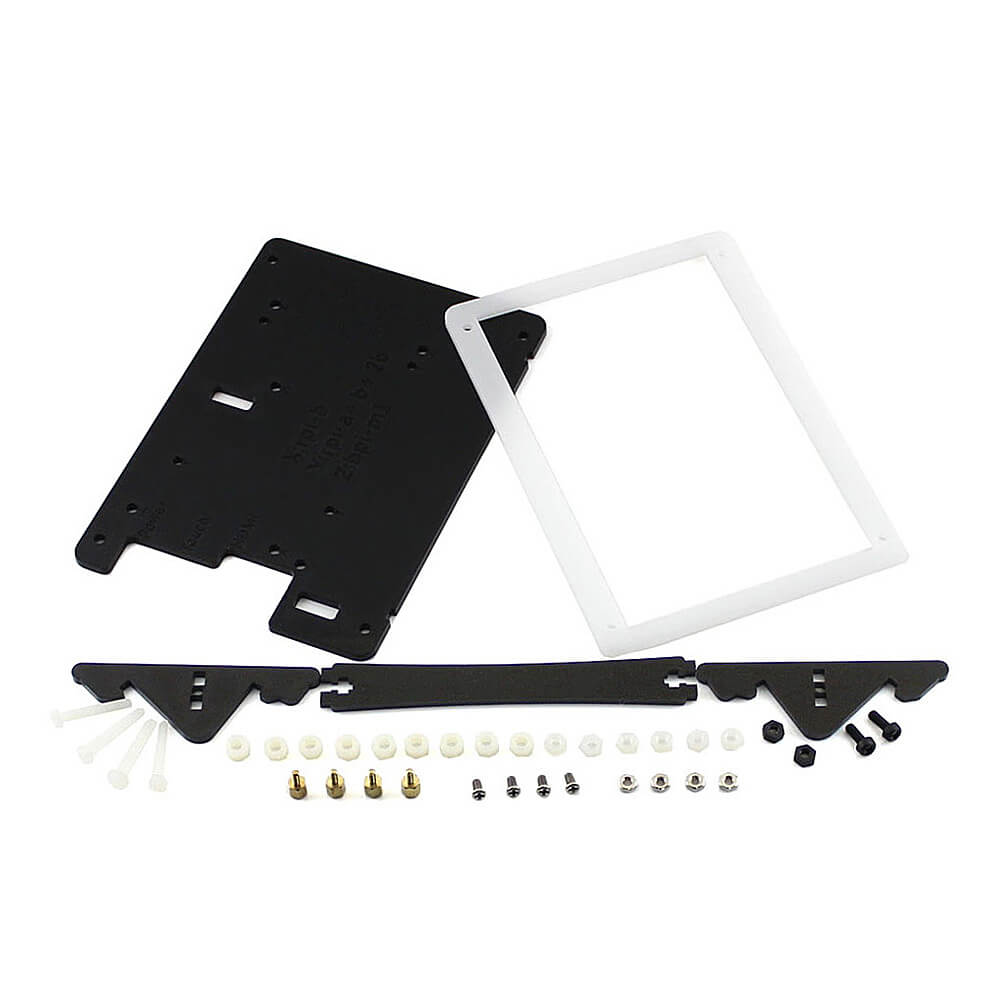

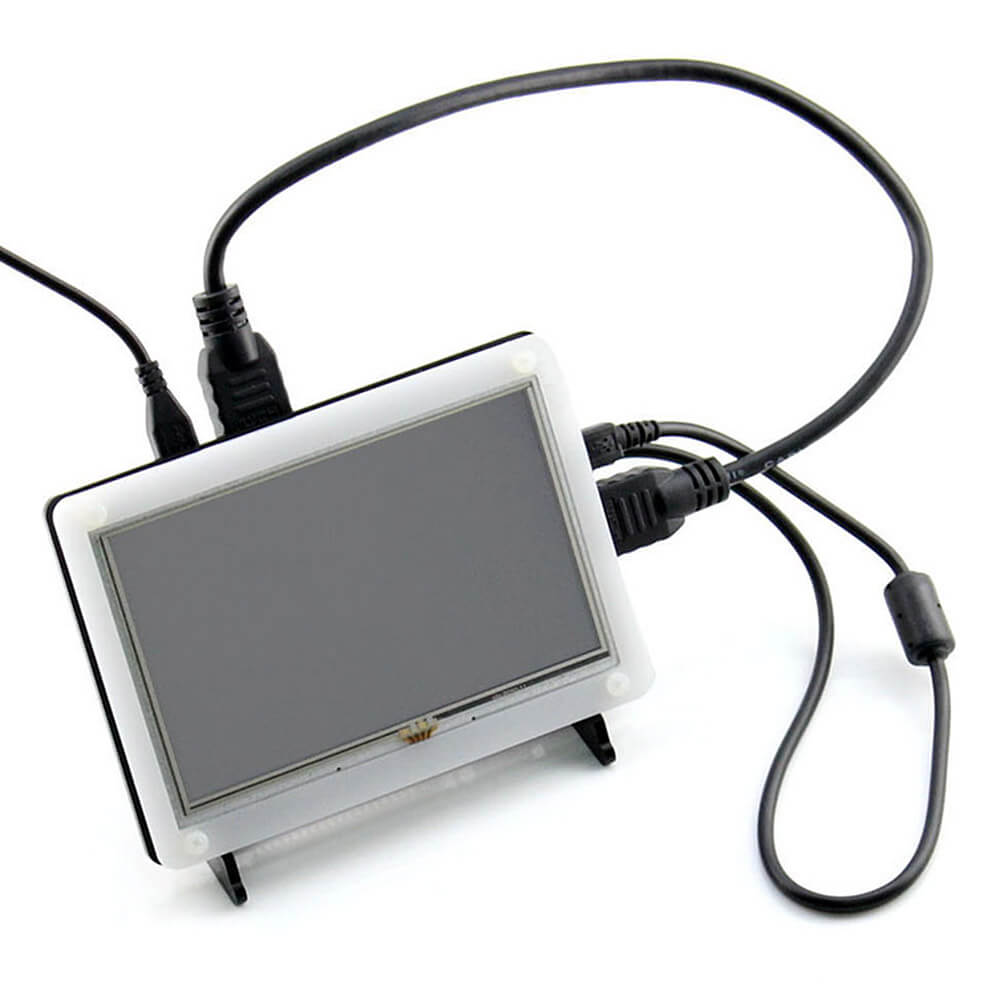

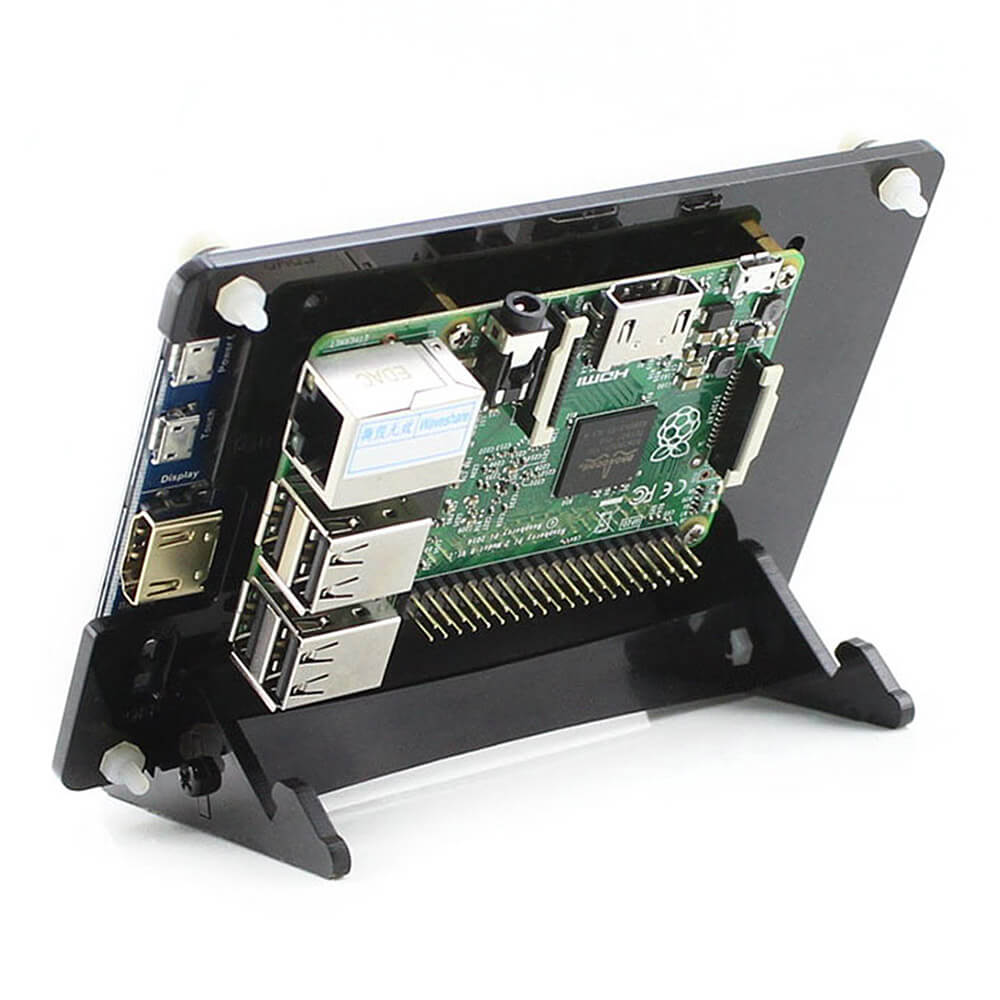

The Case
- Material : high quality bicolor Acrylic, black and white
- Comes with bottom holder, optional tilt angle, 45° or 60°
- Features mounting holes for Raspberry Pi B/A+/B+/2B/3B, Banana Pro
More info : Bicolor Case for 5inch LCD Type B
Supported mini PC
| mini PC | Driver | Image |
|---|---|---|
| Raspberry Pi B | Raspbian | Raspbian |
| Raspberry Pi A+ | Raspbian | Raspbian |
| Raspberry Pi B+ | Raspbian | Raspbian |
| Raspberry Pi 2 Model B | Raspbian | Raspbian, Ubuntu, Windows 10 IoT |
| Raspberry Pi 3 Model B | Raspbian | Raspbian, Ubuntu, Windows 10 IoT |
| Banana Pi | - | Raspbian, Lubuntu |
| Banana Pro | - | Raspbian, Lubuntu |
| BB Black | - | Angstrom |
Note :
Drivers can be added to your current system to support LCD display and touch control.
Images CAN NOT be used with your current system. They're stand-alone systems which support LCD display and touch control already.
Development Resources
Wiki : www.waveshare.com/wiki/RPi3_B_Package_E
Raspberry Pi 3 Selection Guide
| Package Contents | Products | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | Description | Acce. B | Package B | Acce. D | Package D | Acce. E | Package E | Acce. F | Package F |
| RPi3 B | Raspberry Pi 3 Model B | √ | √ | √ | √ | ||||
| Pioneer600 | Expansion Board, provides expansion interfaces and onboard components | √ | √ | ||||||
| DS18B20 | Temperature sensor | √ | √ | ||||||
| Infrared Remote Controller | IR control | √ | √ | ||||||
| Micro SD Card 8GB | 8GB Miro SD Card, class 10 | √ | √ | √ | √ | √ | √ | ||
| 5V 2A Power Adapter | Required while heavy-loaded | √ | √ | √ | √ | √ | √ | ||
| ARPI600 | Raspberry Pi to Arduino | √ | √ | ||||||
| Sensors Pack | Various sensors in one pack | √ | √ | ||||||
| 5inch HDMI LCD (B) | 5inch HDMI interface touch screen LCD | √ | √ | ||||||
| Bicolor Case for 5inch LCD Type B | Case and holder | √ | √ | ||||||
| 7inch HDMI LCD (C) | 7inch HDMI interface touch screen LCD, high-definition | √ | √ | ||||||
| Bicolor Case for 7inch LCD | Case and holder | √ | √ | ||||||
