Highlights
Overview

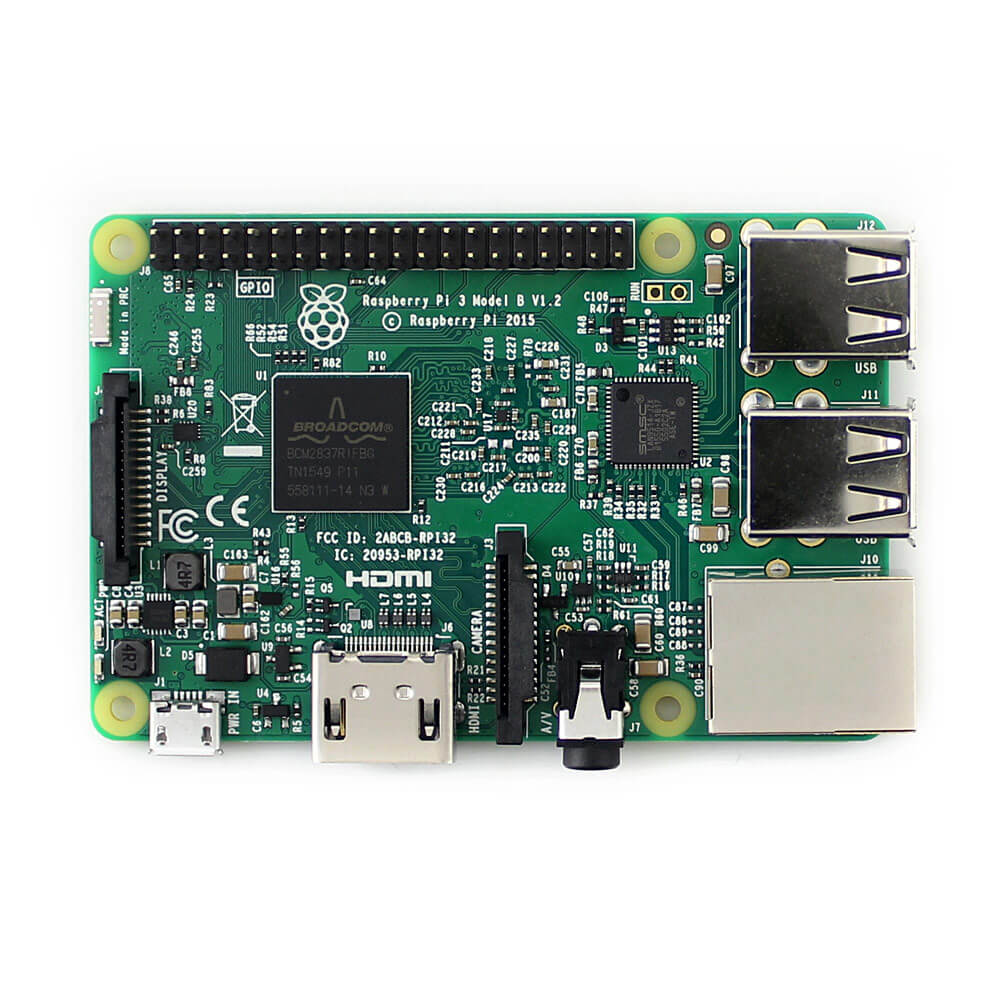

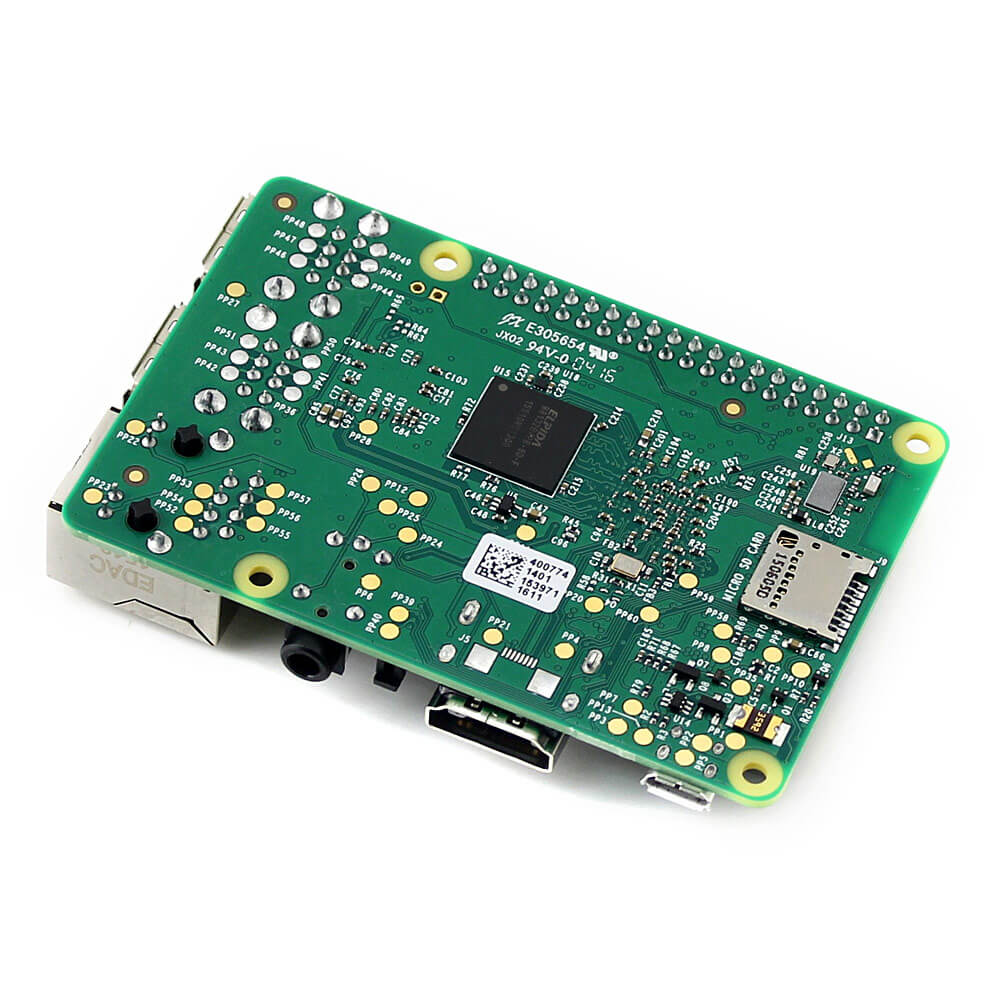

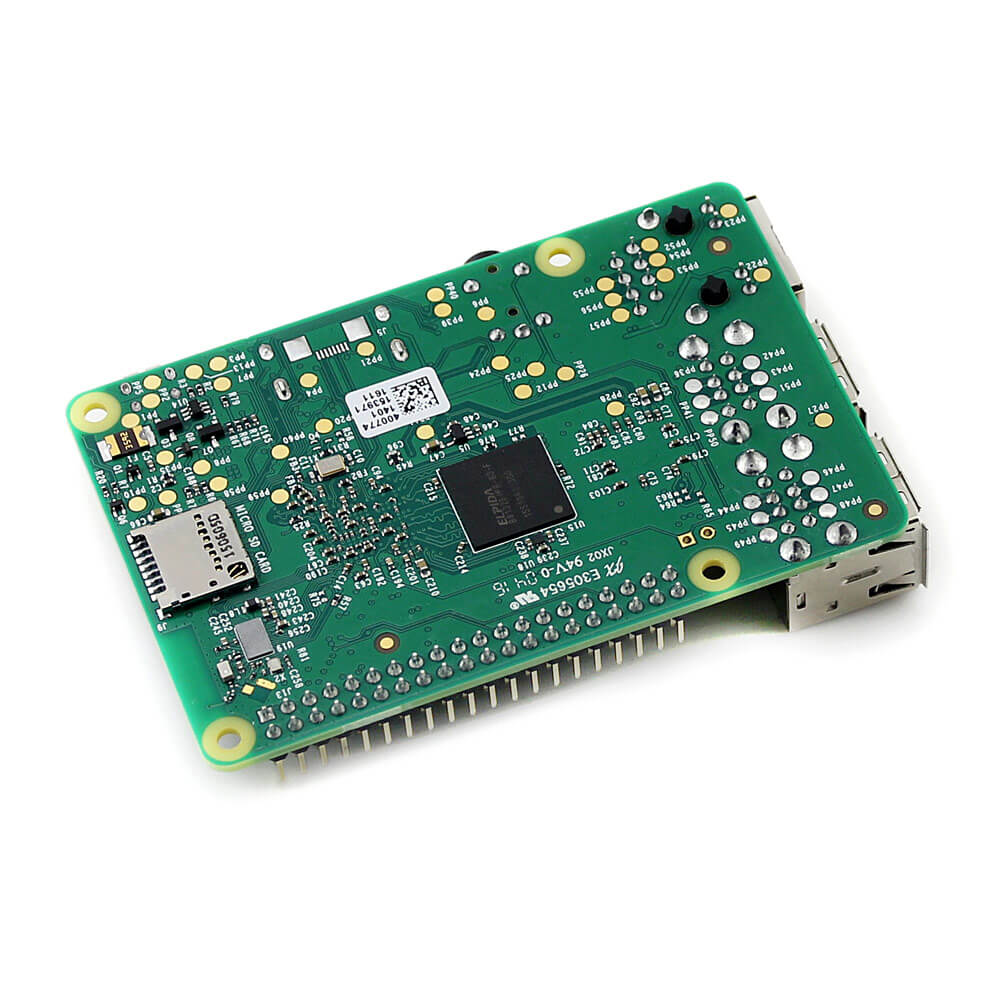

- The Raspberry Pi 3 is the third generation Raspberry Pi. It replaced the Raspberry Pi 2 Model B in February 2016. Compared to the Raspberry Pi 2 it has:
- A 1.2GHz 64-bit quad-core ARMv8 CPU
- 802.11n Wireless LAN
- Bluetooth 4.1 & Bluetooth Low Energy (BLE)
Features
- BCM2837, 1.2GHz 64-bit quad-core ARM Cortex-A53
- 1GB RAM
- 10/100 Ethernet port
- 802.11n WiFi NIC
- Bluetooth 4.1 & Bluetooth Low Energy (BLE)
- HDMI port
- USB 2.0 interface x 4
- Micro SD card slot
- Combined 3.5mm audio jack and composite video
- 40-pin GPIO interface
- Camera interface (CSI)
- Display interface (DSI)
- Upgraded power management, supports more peripherals (requires a 2.5A power supply or above)
Pioneer600 Features
- Supports Raspberry Pi A+/B+/2B/3B
dual LED, joystick, buzzer, the basic components CP2102, control the Pi through serial terminal 0.96inch OLED, big world in the little screen PCF8591, 8-bit resolution, screw terminal IO interface PCF8574, more GPIO, more possibility LFN0038K, Raspberry Pi remote control comes true -
BMP180, measuring air pressure and temperature - <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
for connecting various sensors

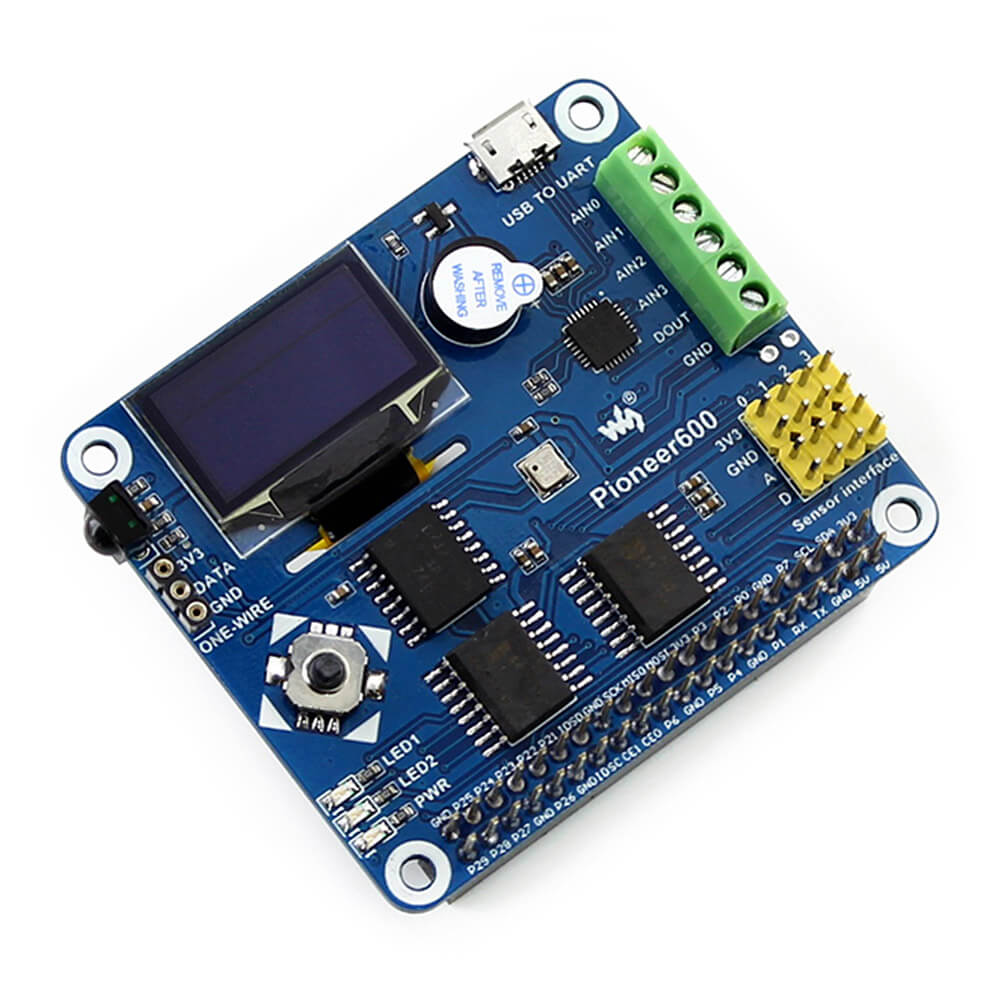

What's on the Pioneer600
- Raspberry Pi GPIO interface : for connecting Raspberry Pi
- USB TO UART : control the Pi through serial terminal
- AD/DA IO interface : screw terminal
- 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
- Sensor interface : for connecting various sensors
- 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
- Buzzer
- CP2102 : USB TO UART converter
- PCF8591 : 8-bit AD/DA converter, I2C interface
- BMP180 : pressure sensor, I2C interface
- PCF8574 : I/O expansion chip, I2C interface
- DS3231 : high precision RTC chip, I2C interface
- Power indicator
- User LED
- Joystick
- LFN0038K IR receiver
Development Resources
- Schematic
- Demo codes : python and C (WringPi/BCM2835 C Library/SysFs)
- Raspberry Pi tutorials
- Raspbian (configured system image)
- Wiki : www.waveshare.com/wiki/Pioneer600
Specification
| General | |
|---|---|
| Type | Expansion Board |
| Model | Raspberry Pi 3 Model B |

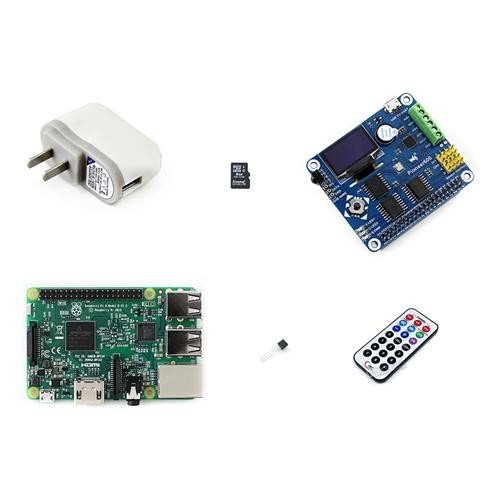

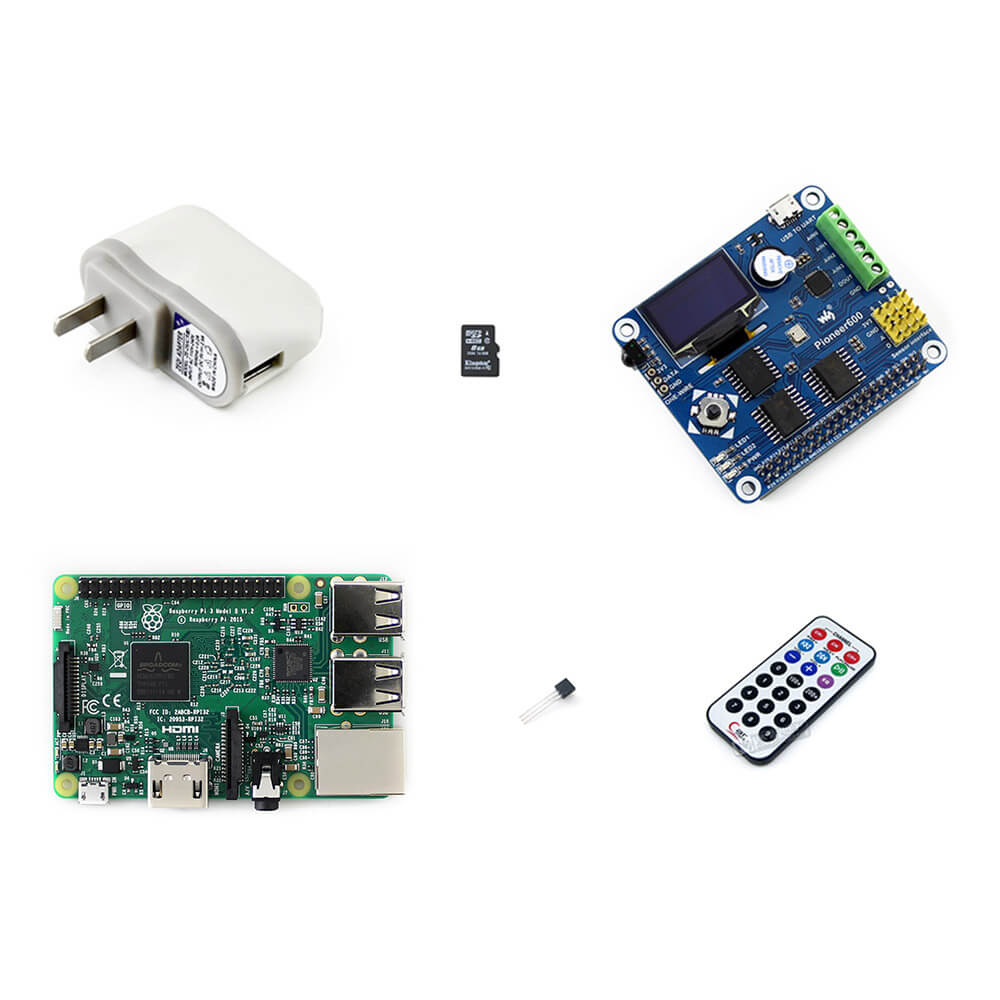

| Package Contents | |
| Raspberry Pi 3 Model B x 1 | |
| Pioneer600 x 1 | |
| DS18B20 x 1 | |
| USB Type A Plug to Micro B Plug Cable x 1 | |
| RPi screws pack (2pcs) x 1 | |
| Micro SD Card 8GB x 1 | |
| Power Adapter US Standard 5V 2.5A USB Output x 1 | |
| Infrared Remote Controller x 1 | |
Examples
| Peripheral | Interface | Python | WiringPi | BCM2835 C Library | SysFs |
|---|---|---|---|---|---|
| LED | I/O | √ | √ | √ | √ |
| KEY | I/O | √ | √ | √ | |
| IRM | I/O | √ | √ | √ | |
| UART | UART | √ | √ | ||
| DS18B20 | ONE-WIRE | √ | √ | ||
| PCF8574 | I2C | √ | √ | √ | √ |
| PCF8591 | I2C | √ | √ | √ | |
| DS3231 | I2C | √ | √ | √ | |
| BMP180 | I2C | √ | √ | √ | |
| OLED | SPI | √ | √ | √ |
Raspberry Pi 3 Selection Guide
| Package Contents | Products | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | Description | Acce. B | Package B | Acce. D | Package D | Acce. E | Package E | Acce. F | Package F |
| RPi3 B | Raspberry Pi 3 Model B | √ | √ | √ | √ | ||||
| Pioneer600 | Expansion Board, provides expansion interfaces and onboard components | √ | √ | ||||||
| DS18B20 | Temperature sensor | √ | √ | ||||||
| Infrared Remote Controller | IR control | √ | √ | ||||||
| Micro SD Card 8GB | 8GB Miro SD Card, class 10 | √ | √ | √ | √ | √ | √ | ||
| 5V 2A Power Adapter | Required while heavy-loaded | √ | √ | √ | √ | √ | √ | ||
| ARPI600 | Raspberry Pi to Arduino | √ | √ | ||||||
| Sensors Pack | Various sensors in one pack | √ | √ | ||||||
| 5inch HDMI LCD (B) | 5inch HDMI interface touch screen LCD | √ | √ | ||||||
| Bicolor Case for 5inch LCD Type B | Case and holder | √ | √ | ||||||
| 7inch HDMI LCD (C) | 7inch HDMI interface touch screen LCD, high-definition | √ | √ | ||||||
| Bicolor Case for 7inch LCD | Case and holder | √ | √ | ||||||
