Raspberry Pi RPi Model A+ (Package D) Accessory Kits ARPI600+MQ-5 Gas Sensor+Color Sensor+Flame Sensor+Metal Sensor etc

Highlights

• The Model A+ is the low-cost variant of the Raspberry Pi. It is recommended for embedded projects and projects which require very low power, and which do not require Ethernet or multiple USB ports.

Specification

What's New

Raspberry Pi Model A+ replaced the original Model A in November 2014. Compared to the Model A it has:

• More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model B.
• Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
• Lower power consumption. By replacing linear regulators with switching ones we’ve further reduced power consumption.
• Better audio. The audio circuit incorporates a dedicated low-noise power supply.
• Smaller, neater form factor. We’ve aligned the USB connector with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes. Model A+ is approximately 2cm shorter than the Model A.

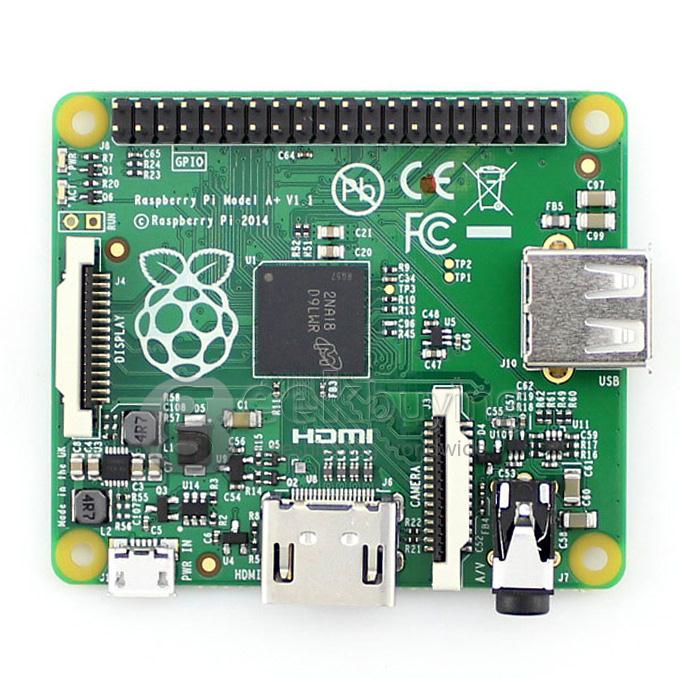

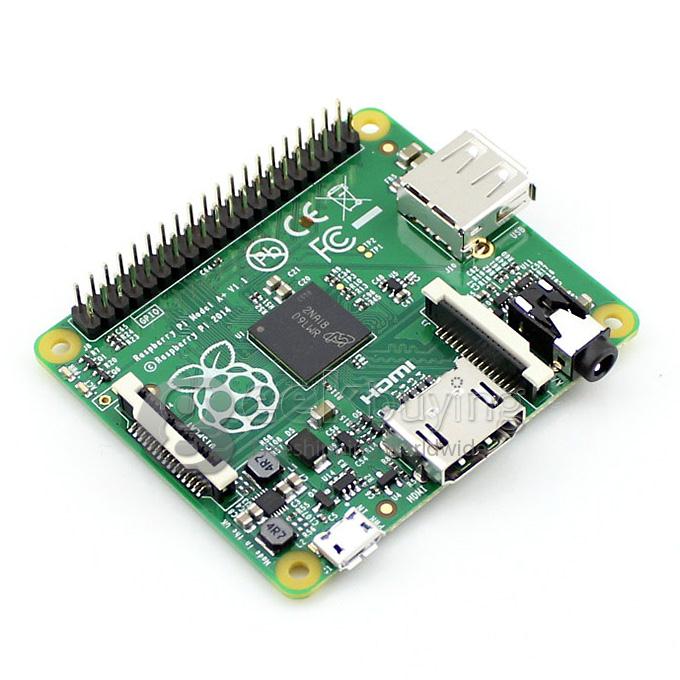

Raspberry Pi Model A+Features

1. Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and Videocore 4 GPU
2. GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
3. GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
4. 256MB RAM
5. Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
6. HDMI output
7. 4-pole 3.5mm stereo audio jack with composite video output
8. USB 2.0 interface
9. Camera connector
10. Display Serial Interface connector
11. MicroSD card slot
12. Powered by 5v micro USB
13. 40-pin 2.54mm expansion pinheader
14. Dimensions: 66 x 56 x 14mm

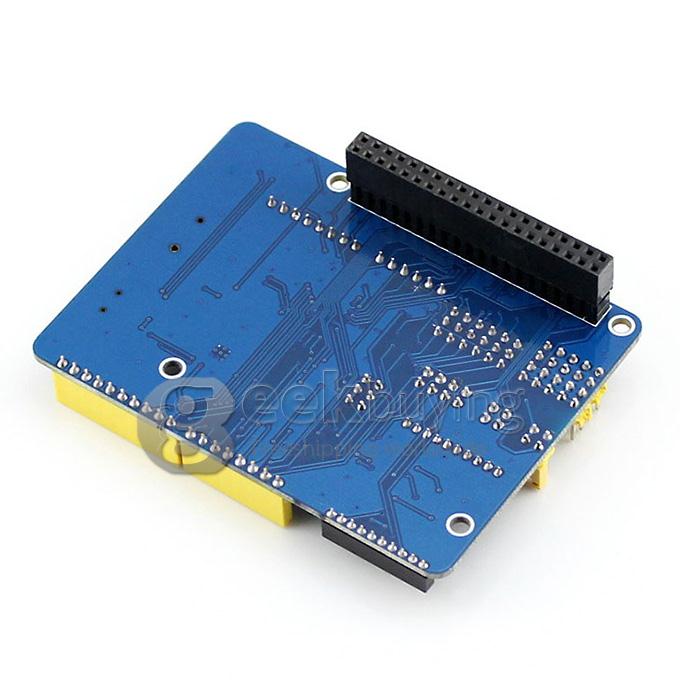

    ARPI600 Features

15. Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
16. XBee connector for connecting various XBee modules
17. Sensor interface for connecting various sensors
18. Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
19. Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
20. Onboard RTC

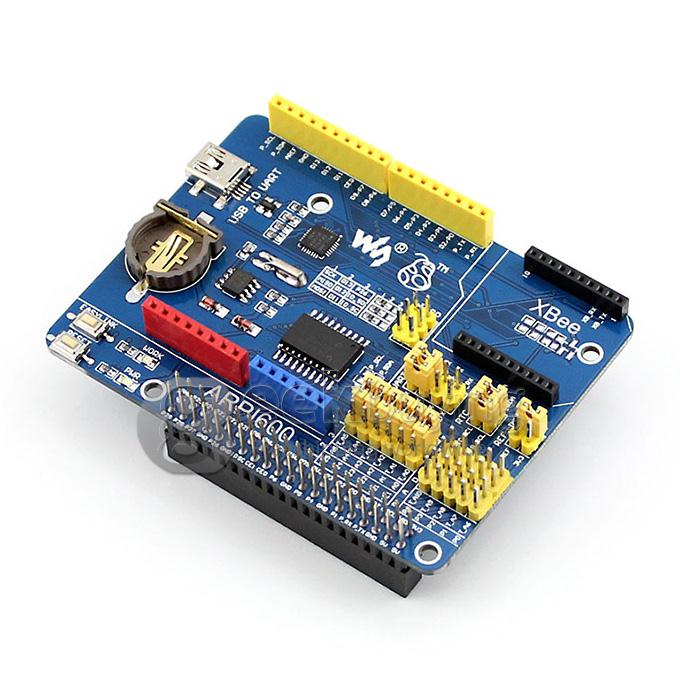

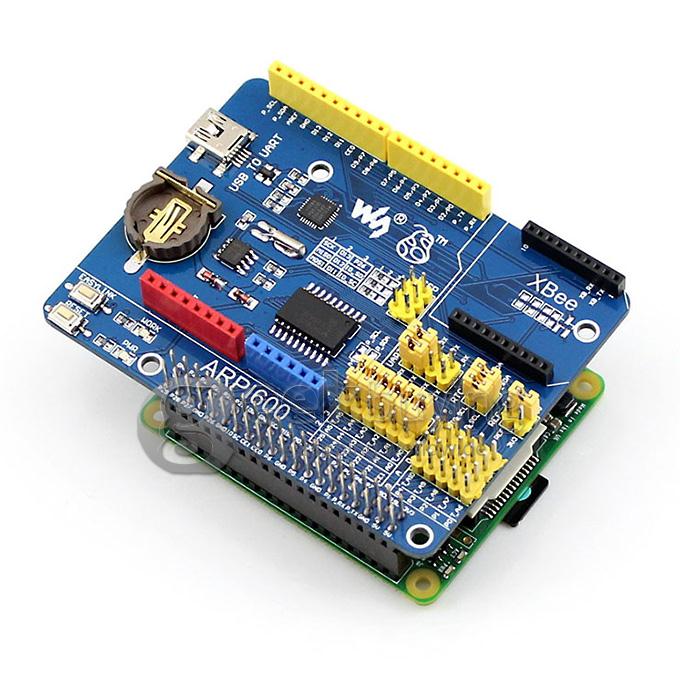

     ARPI600 Product introduction

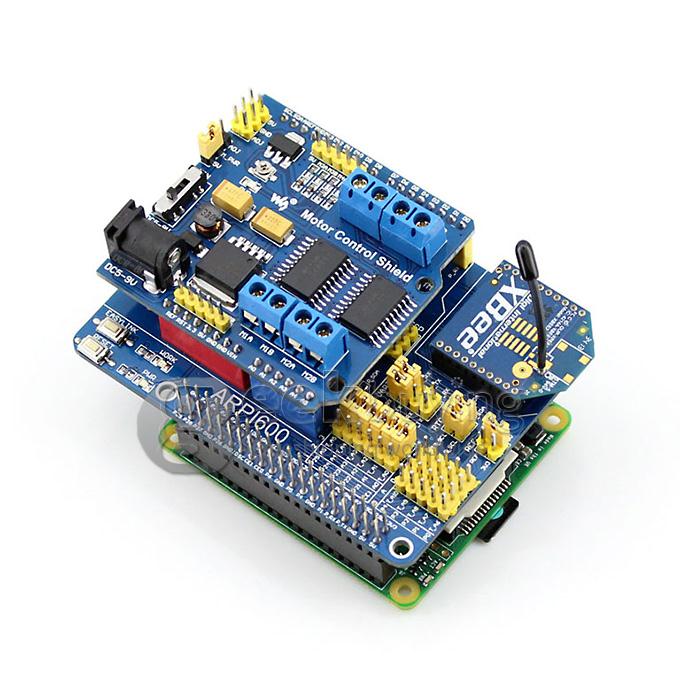

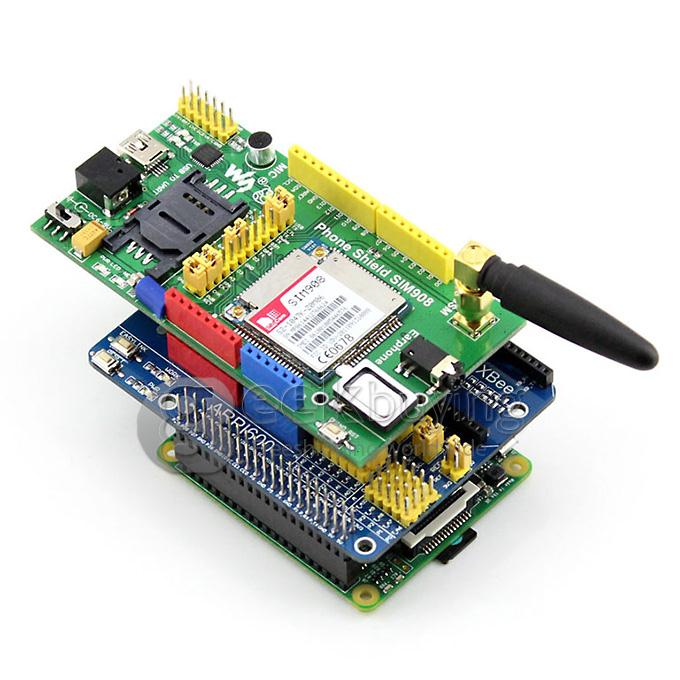

21. Arduino connector : for connecting Arduino shields
22. ICSP interface : Arduino ICSP
23. XBee connector : for connecting XBee communication modules
24. Sensor interface : for connecting sensors
25. Raspberry Pi connector : for connecting Raspberry Pi
26. USB TO UART
27. TLC1543 : AD converter
28. PCF8563 : RTC
29. CP2102
30. 32.768KHz crystal : for RTC
31. Power indicator
32. XBee state LED
33. XBee and Arduino interface RESET button
34. XBee EASYLINK button
35. RTC battery holder : for CR1220 button battery
36. TLC1543 reference voltage configuration jumper
37. RTC jumper
38. UART jumper
    • when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
    • when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
    • when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
39. Arduino AD selection jumper
    • short 2 and 3 : Arduino A0-A5 as AD input
    • short 1 and 2 : Arduino A0-A5 as digital control
40. Arduino I2C selection jumper
    • short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
41. Arduino SPI selection jumper
    • short 1 and 2 : Arduino D11-D13 as SPI control (default)
    • short 2 and 3 : Arduino D11-D13 as digital control

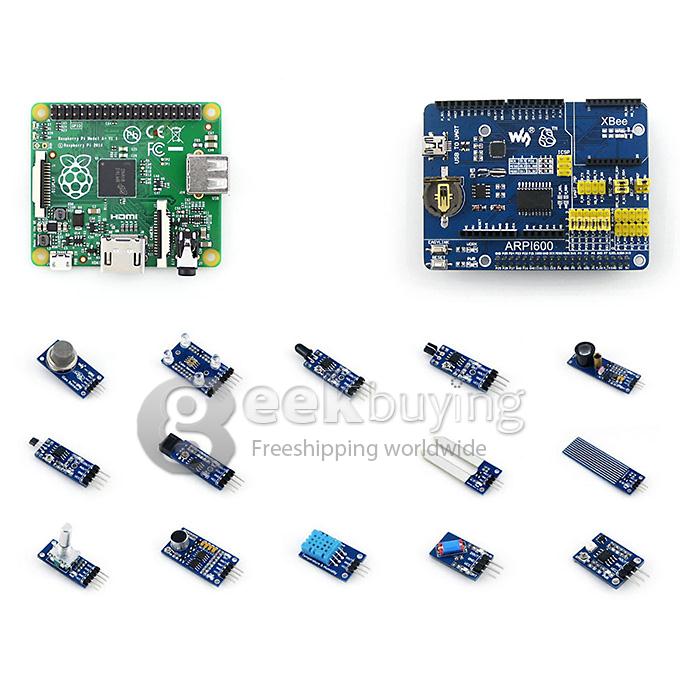

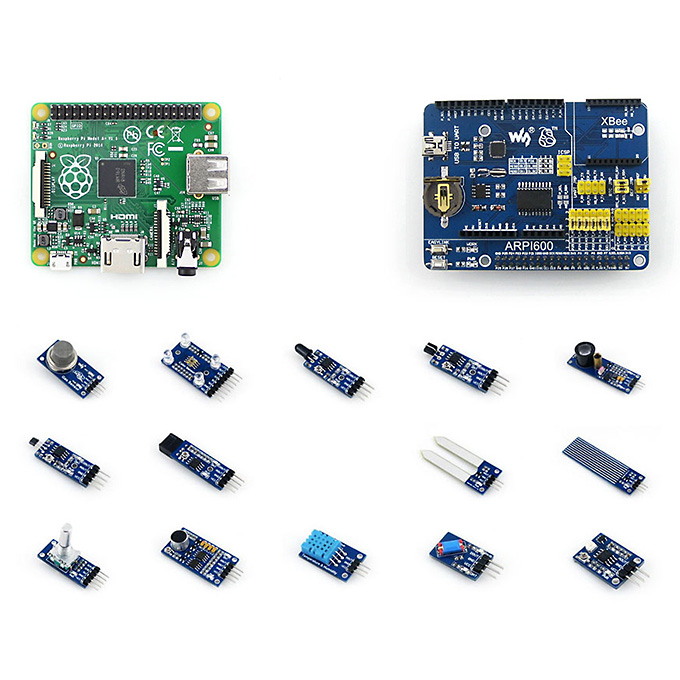

What's in the box?

• 1 x Raspberry Pi Model A+
• 1 x ARPI600

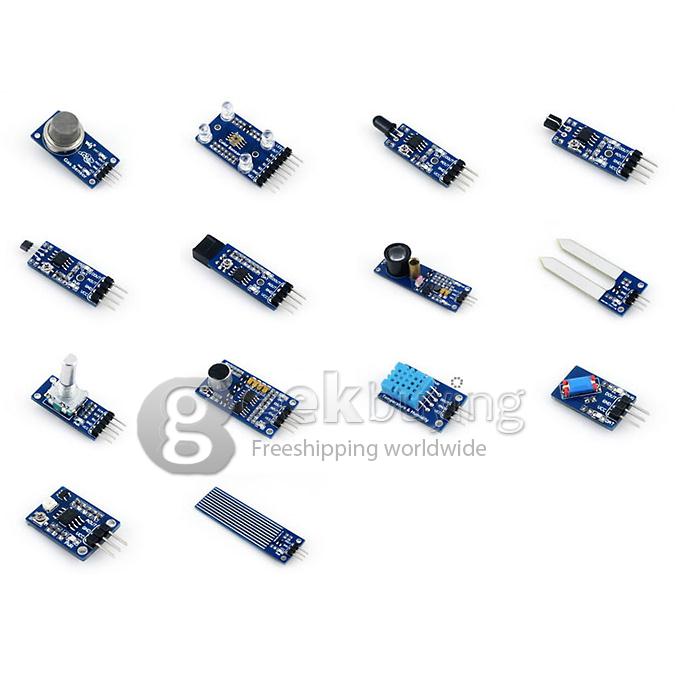

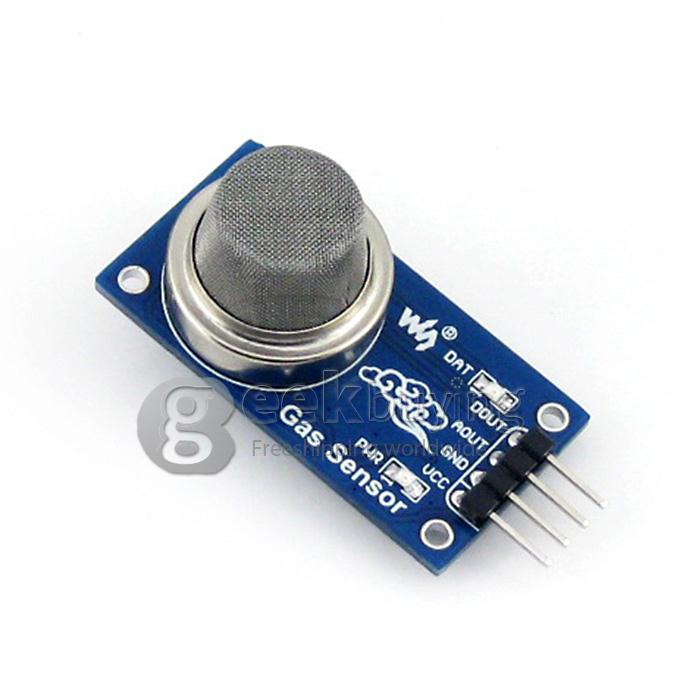

• 1 x MQ-5 Gas Sensor

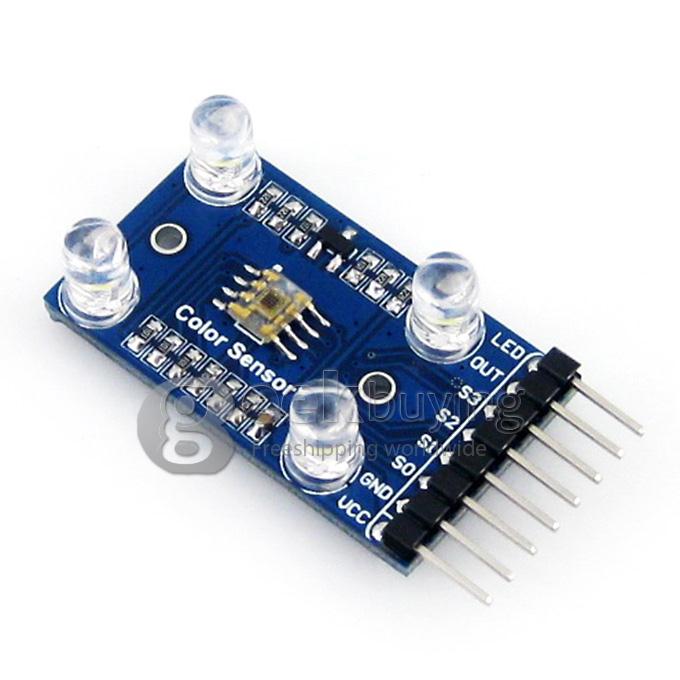

• 1 x Color Sensor

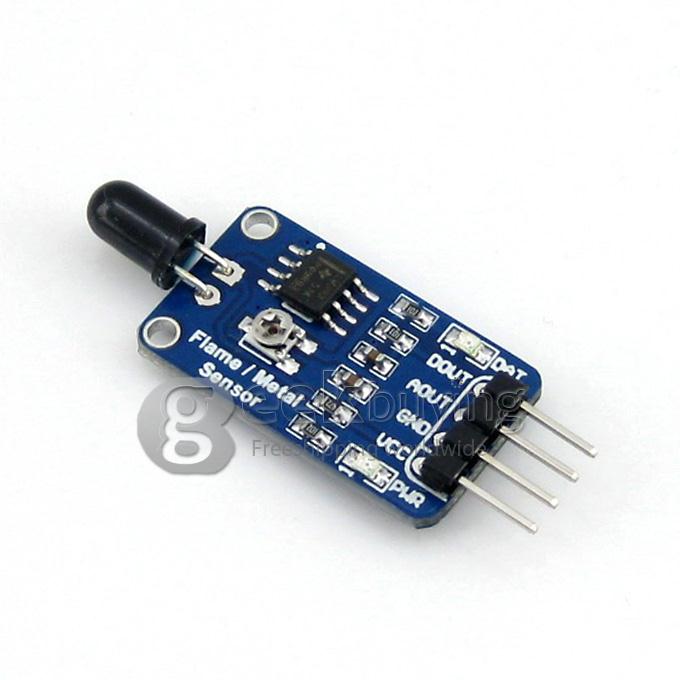

• 1 x Flame Sensor
• 1 x Metal Sensor

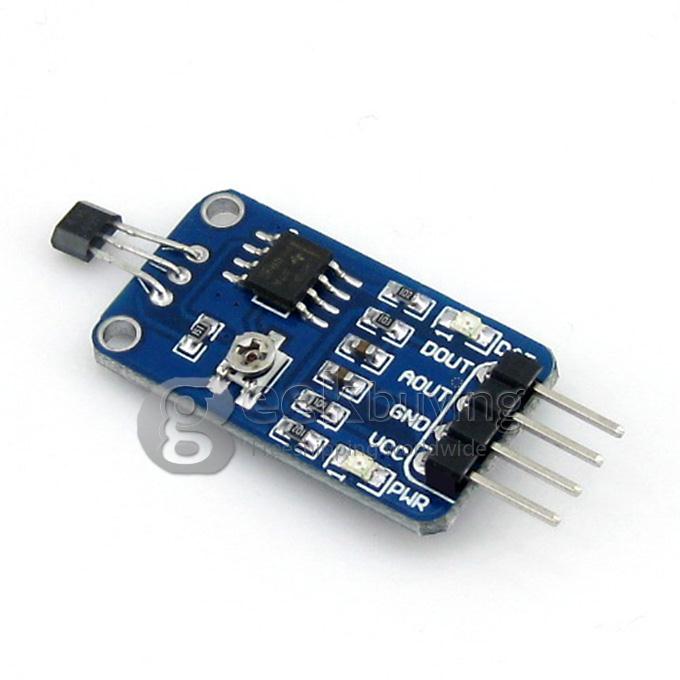

• 1 x Hall Sensor
• 1 x Infrared Reflective Sensor

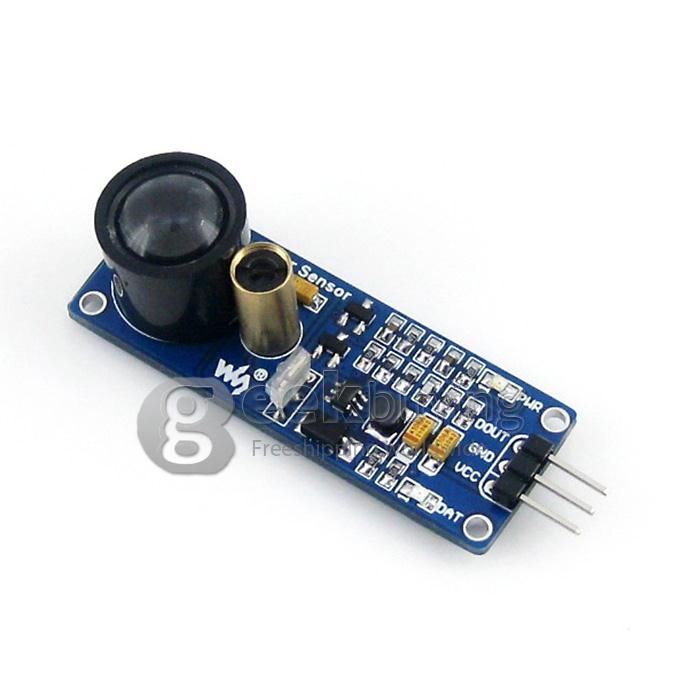

• 1 x Laser Sensor

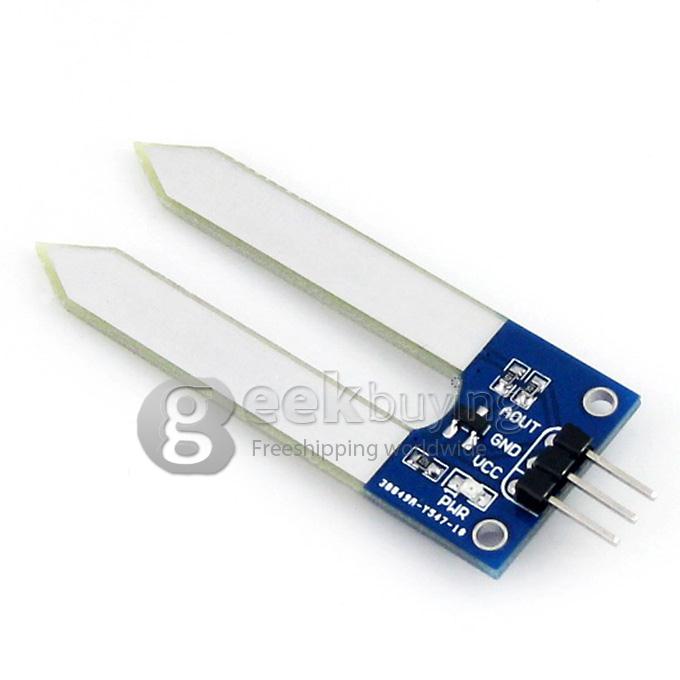

• 1 x Moisture Sensor

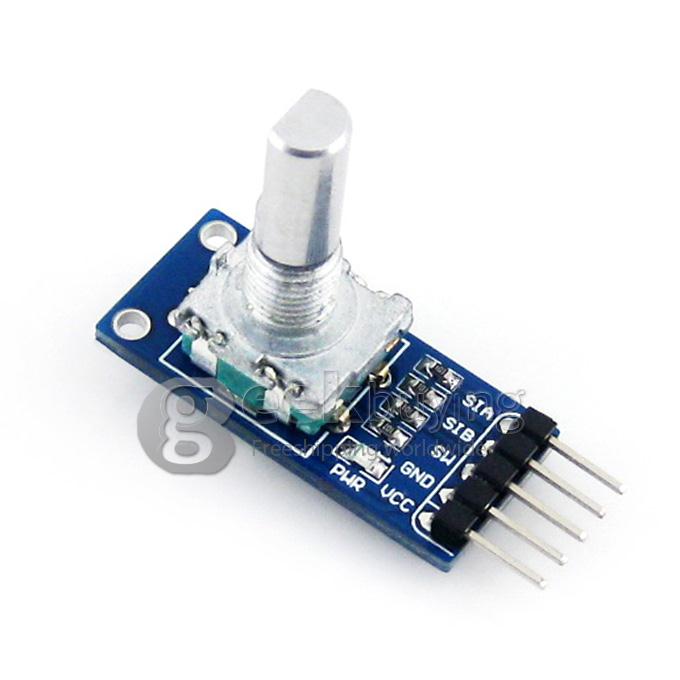

• 1 x Rotation Sensor
• 1 x Sound Sensor

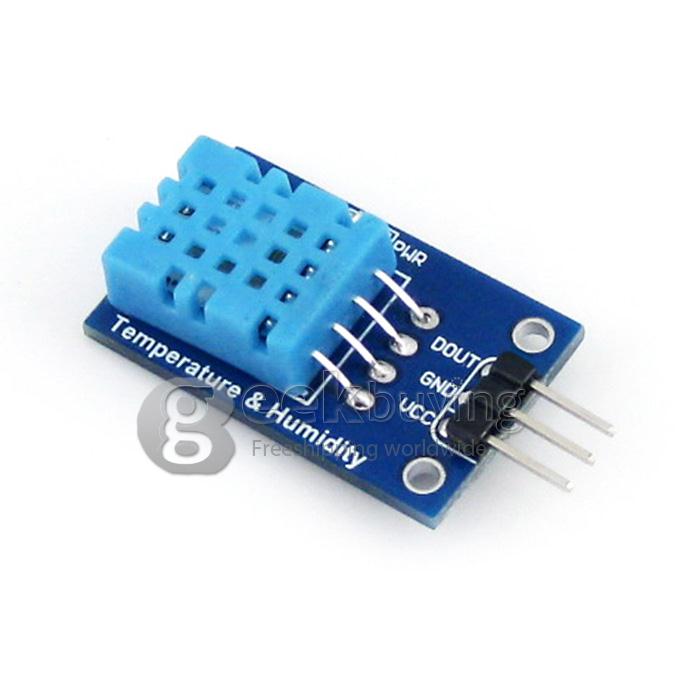

• 1 x Temperature-Humidity Sensor

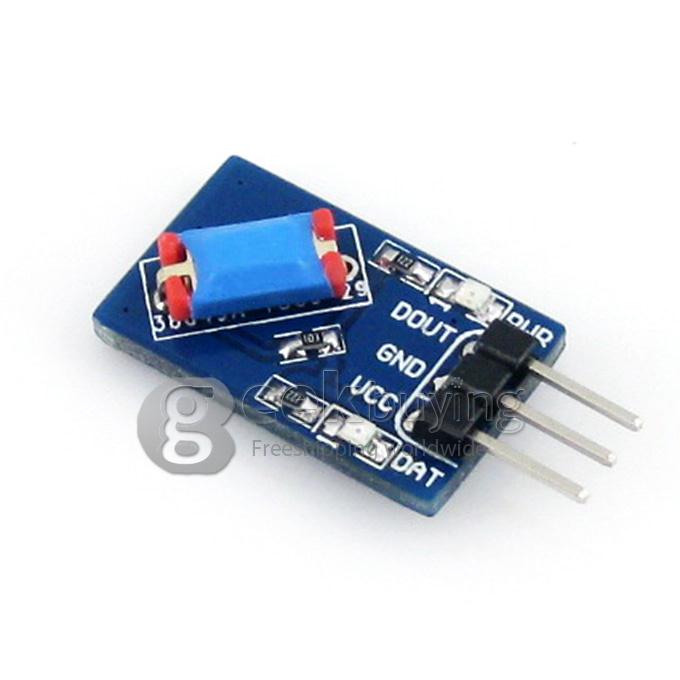

• 1 x Tilt Sensor

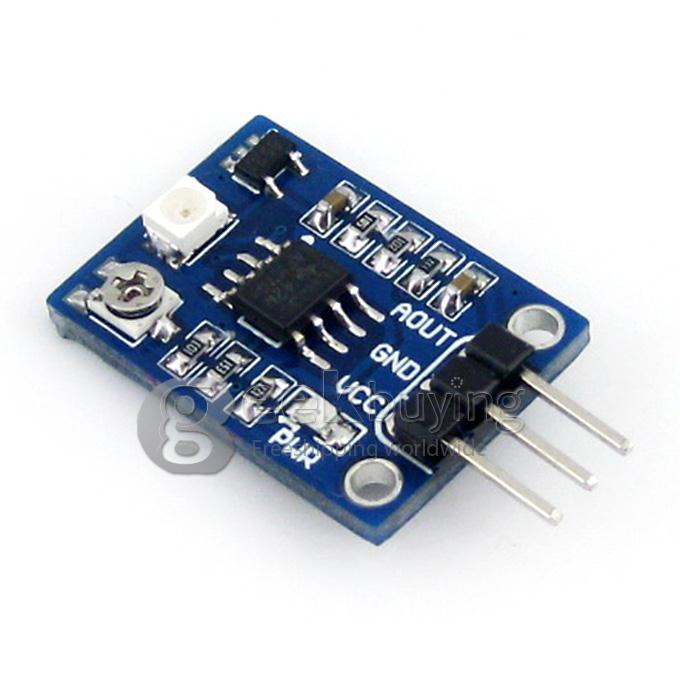

• 1 x UV Sensor

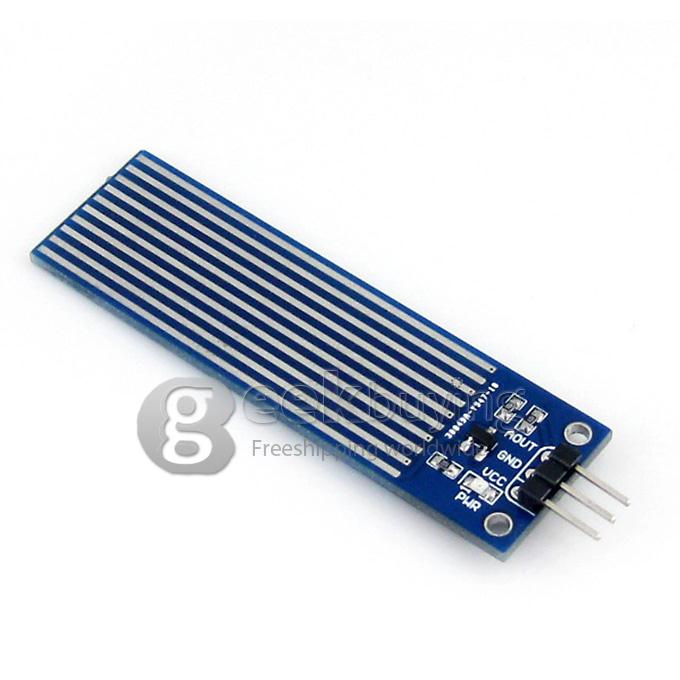

• 1 x Liquid Level Sensor
• 3 x 3-pin custom connector jumper wire
• 4 x 4-pin custom connector jumper wire
• 1 x 5-pin custom connector jumper wire

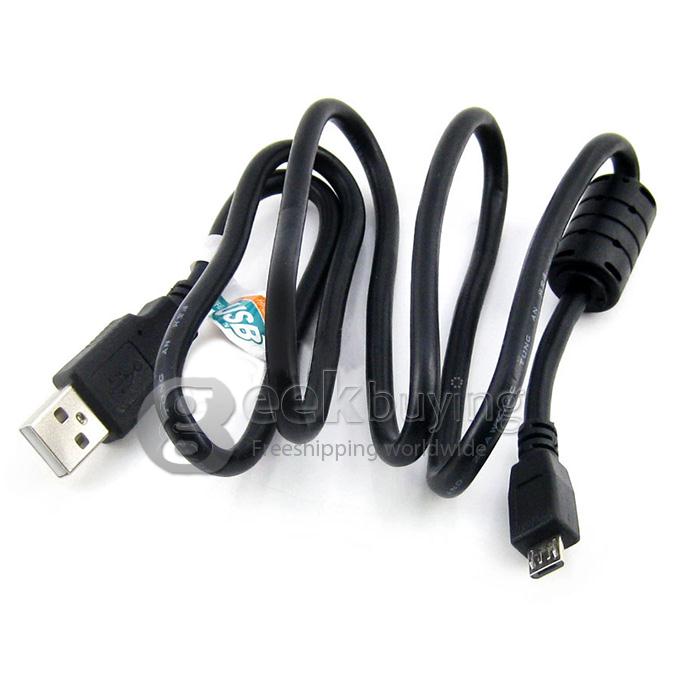

• 1 x USB Type A Plug to Micro B Plug Cable
• 1 x USB type A plug to mini-B plug cable

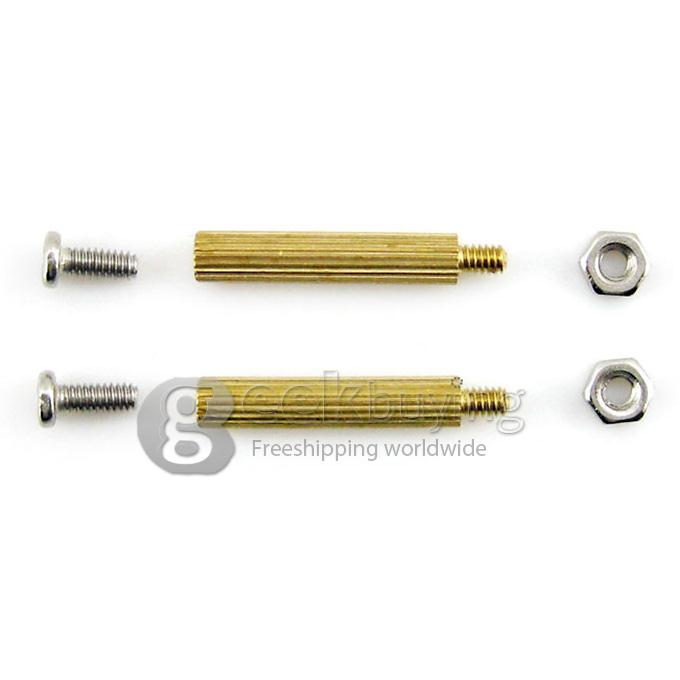

• 1 x RPi screws pack (2pcs)
