Raspberry Pi RPi Model B+ (Package A) Accessory Kits ARM11 + 3.5" LCD + DVK512 + PCF8591 + L3G4200D + LSM303DLHC + 74LVC8T245 + Mix Board

Highlights

• Package A for Raspberry Pi model B+ include: Raspberry Pi Model B+ ARM11 Board, DVK512, 3.5 inch RPi LCD (A), PCF8591 AD DA Board, L3G4200D Board, LSM303DLHC Board, Mix Board, 74LVC8T245 Board.

Specification

Raspberry Pi Model B+ Features:
1.Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and Videocore 4 GPU
2.GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
3.GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
4.512MB RAM
5.Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
6.10/100 wired Ethernet
7.HDMI output
8.USB 2.0 interface x 4
9.4-pole 3.5mm stereo audio jack with composite video output
10.Micro SD card slot
11.Powered by 5v micro USB
12.Camera connector
13.40-pin 2.54mm expansion pinheader
14.Dimensions: 85mm x 56mm x 17mm

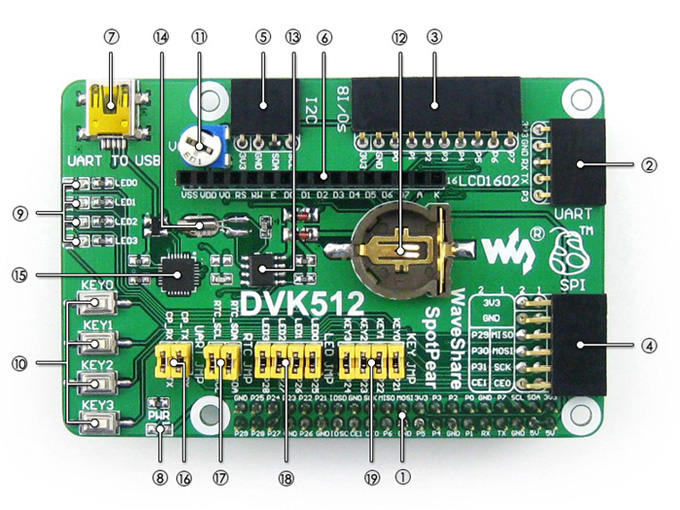

DVK512 Product introduction

1.Pinheaders for connecting with the RPi
2.UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
3.8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
4.SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
5.I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
6.Character LCD interface: for connecting character LCDs like LCD1602
7.USB connector: USB TO UART, supported by onboard converter CP2102
8.Power indicator
9.User LEDs
10.User Keys
11.Potentiometer: for LCD1602 contrast adjustment
12.RTC battery holder
13.PCF8563: onboard RTC chip
14.32.768K crystal: RTC crystal
15.CP2102: onboard USB TO UART chip, for debugging
16.CP2102 jumper
17.RTC jumper
18.User LEDs jumper
19.User Keys jumper

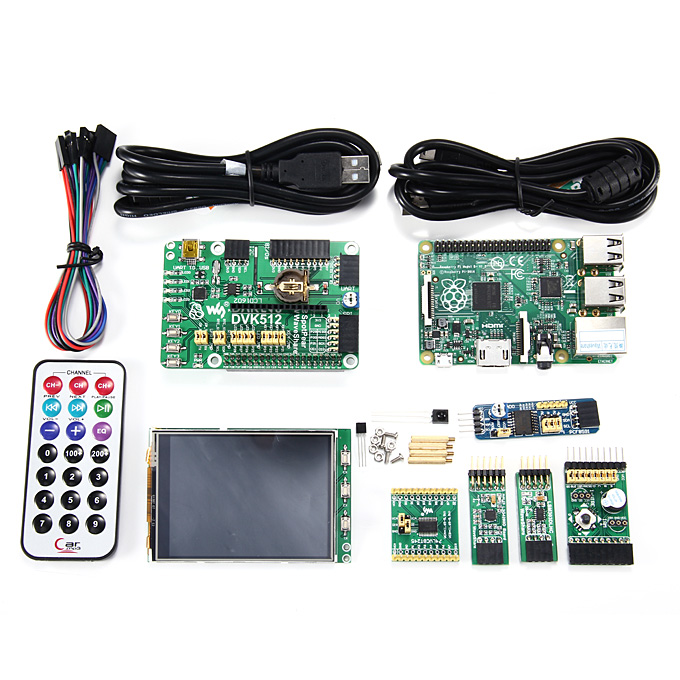

What's in the box?

• 1 x Raspberry Pi Model B+
• 1 x DVK512 Board
• 1 x 3.5inch RPi LCD (A)
• 1 x PCF8591 AD DA Board
• 1 x L3G4200D Board
• 1 x LSM303DLHC Board
• 1 x Mix Board
• 1 x Logic Level Converter
• 1 x Infrared Remote Controller
• 1 x LFN0038K (Infrared Receiver)
• 1 x DS18B20
• 1 x USB Type A Plug to Micro B Plug Cable
• 1 x USB type A plug to mini-B plug cable
• 1 x 4-pin 2-pin wires pack
• 1 x RPi screws pack (4pcs)
• 1 x User guide CD
