Raspberry Pi Smart robot building kit: Raspberry Pi 3B + AlphaBot + Camera

Name: Raspberry Pi robot building kit
Brand: Waveshare
SKU: 375638
Price: 135.99 USD
Availability: InStock

Share to

Ship to:

United States

Select the desired shipping method

Shipping Company Estimated Delivery Time Shipping Cost

*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.

0 item(s) added

View CartContinue Shopping

Description
Reviews
Q&A
Support & Firmware
Learn More

Sold Out

Highlights

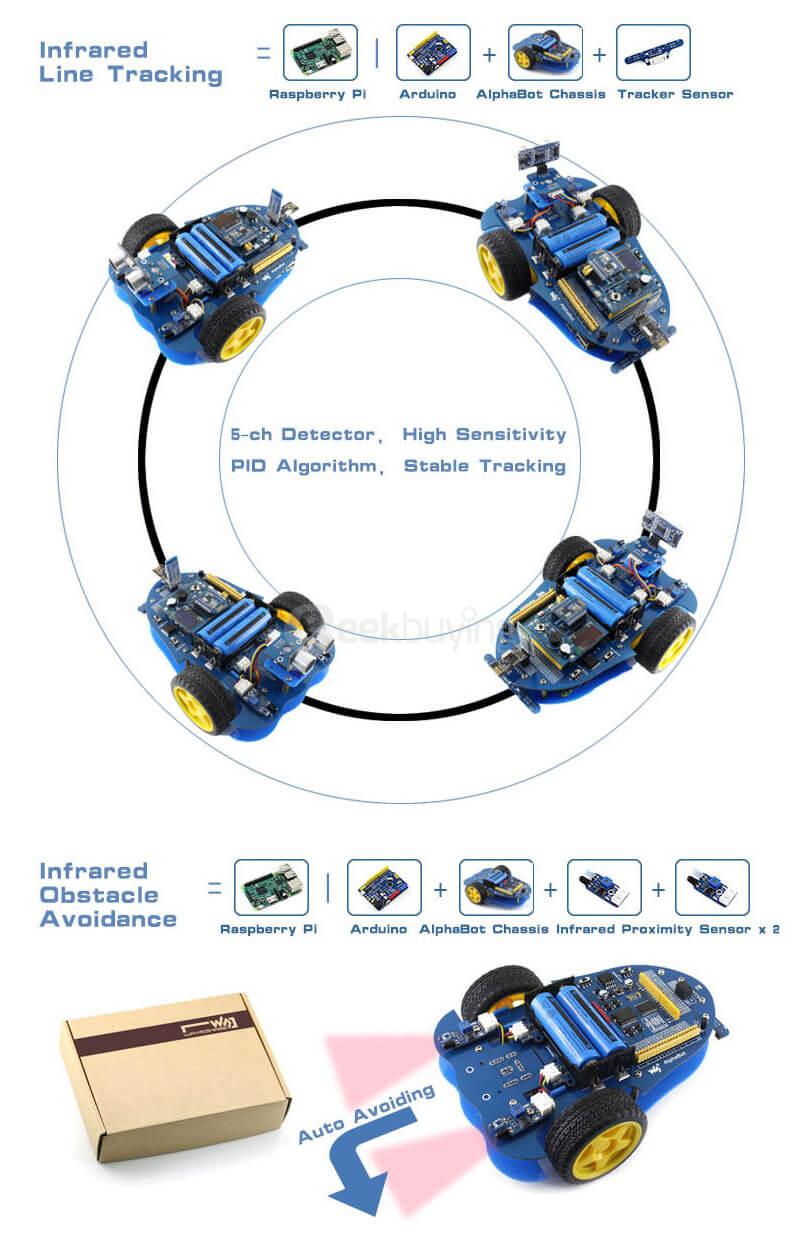

This kit comes with Raspberry Pi 3 Model B, AlphaBot robotic platform (line tracking, obstacle avoidance, speed measuring, IR control), and a camera (with servo and 2 DOF pan head).

With modules in the kit, you can fast get started with robotic development like line tracking, obstacle avoidance, IR remote control, and video monitoring via network, etc. What's more, thanks to the rich Raspberry Pi open source resources, and the modular design of AlphaBot, you'll learn how to extend and refit, and finally build your own Raspberry Pi robot.

Specification

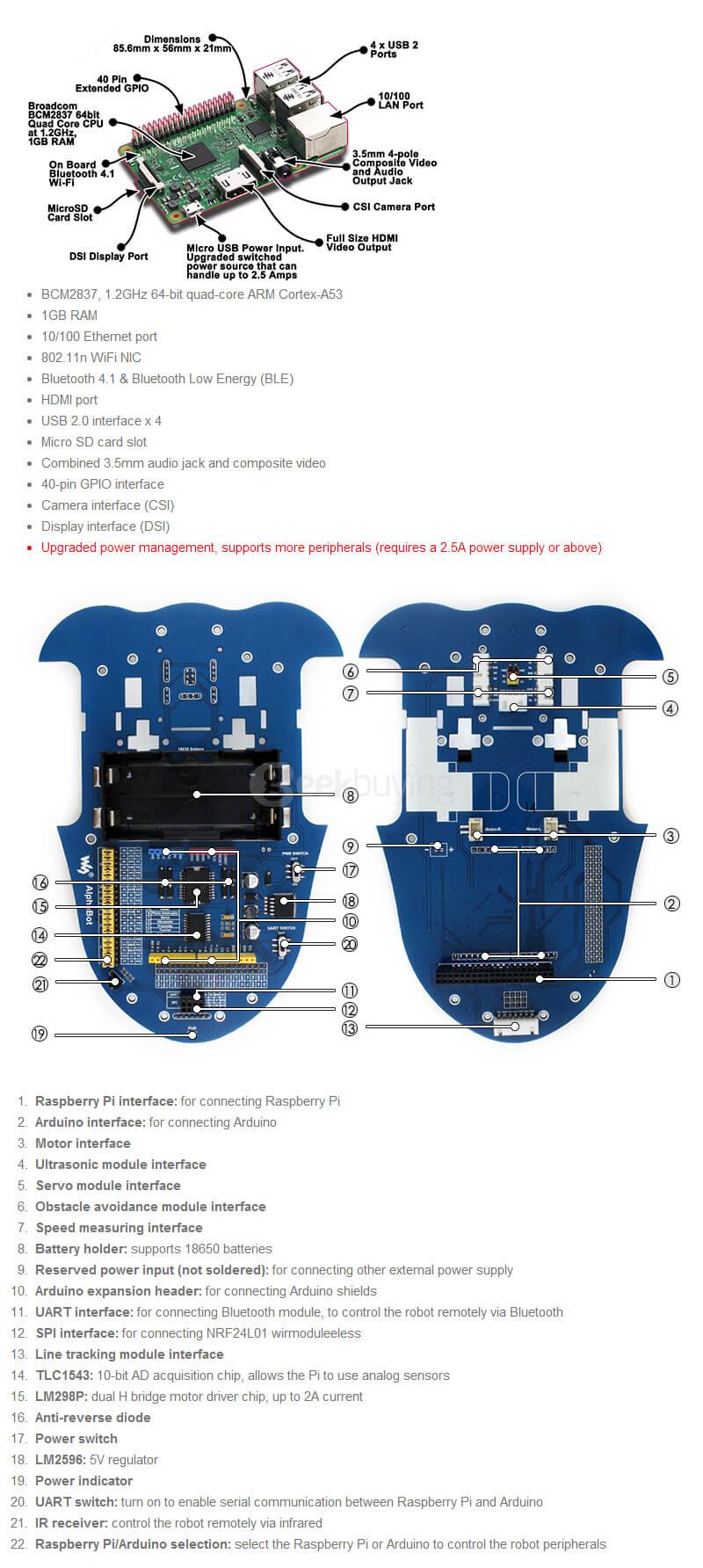

AlphaBot Features

Raspberry Pi/Arduino interfaces, works with either one separately, or both
Arduino extend header, supports Arduino shields
Modular design, plug-and-play modules like line tracking, obstacle avoidance, speed measuring, etc. eliminating the trouble of connecting mess wires.
LM298P motor driver with diode protection circuit, more safety
LM2596 voltage regular, provides stable 5V power to the Raspberry Pi/Arduino
TLC1543 AD acquisition chip, allows the Pi to use analog sensors

Package contect

AlphaBot mainboard x1
Tracker Sensor x1
Photo Interrupter Sensor x2
Infrared Proximity Sensor x2
Motor with gearbox 2PCS x1
AlphaBot wheel 2PCS x1
AlphaBot acrylic chassis x1
Motor mounting plate 4PCS x1
18650 battery 2PCS x1
18650 battery charger x1
omni-direction wheel x1
20-slots encoder disk 2PCS x1
IR remote controller x1
XH2.54 4cm 4Pin 2PCS x1
XH2.54 4cm 3Pin 2PCS x1
XH2.54 4cm 7Pin x1
AphaBot screws x1
Additional Parts in the Kit
Raspberry Pi 3 Model B x1
RPi Camera (B) x1
SG90 servo x2
2 DOF pan and tilt kit x1
15PIN FFC 25cm x1
Micro SD Card 8GB x1
Power Adapter US Standard 5V 2.5A USB Output x1
Micro SD Card Reader x 1 (Extra Free)
USB type A plug to micro B plug cable x1
