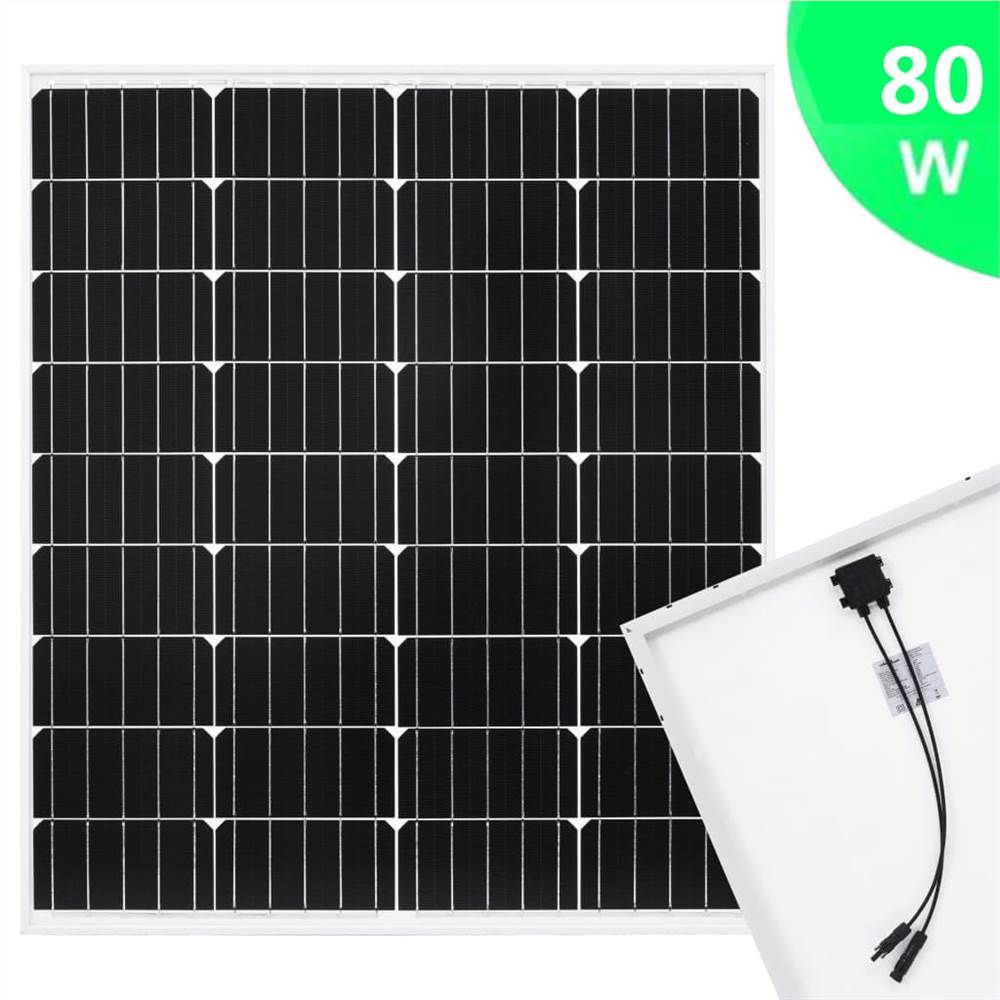

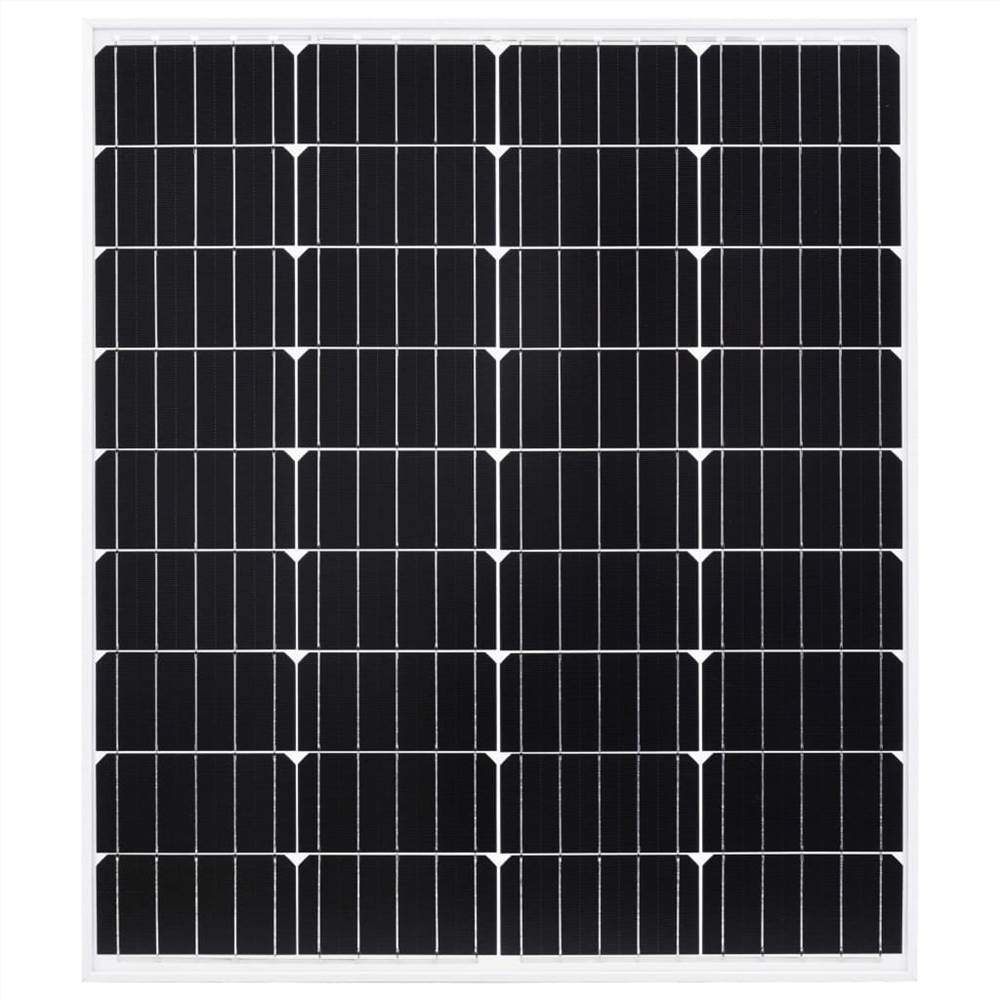

Solar Panel 80 W Monocrystalline Aluminium and Safety Glass

Utilizing highly efficient monocrystalline cells, this solar panel is lightweight and easy to transport and mount, making it ideal for mobile applications. The cells are embedded in a sheet of transparent tempered glass to withstand different weather conditions. Premium aluminum frame is the choice to resist strong wind. With advanced materials, our solar energy panel is designed and manufactured in high standards which can guarantee excellent electrical performance and long life span. Additionally, 2 built-in diodes prevent reverse charging.

• Dimensions: 770 x 665 x 30 mm (L x W x H)

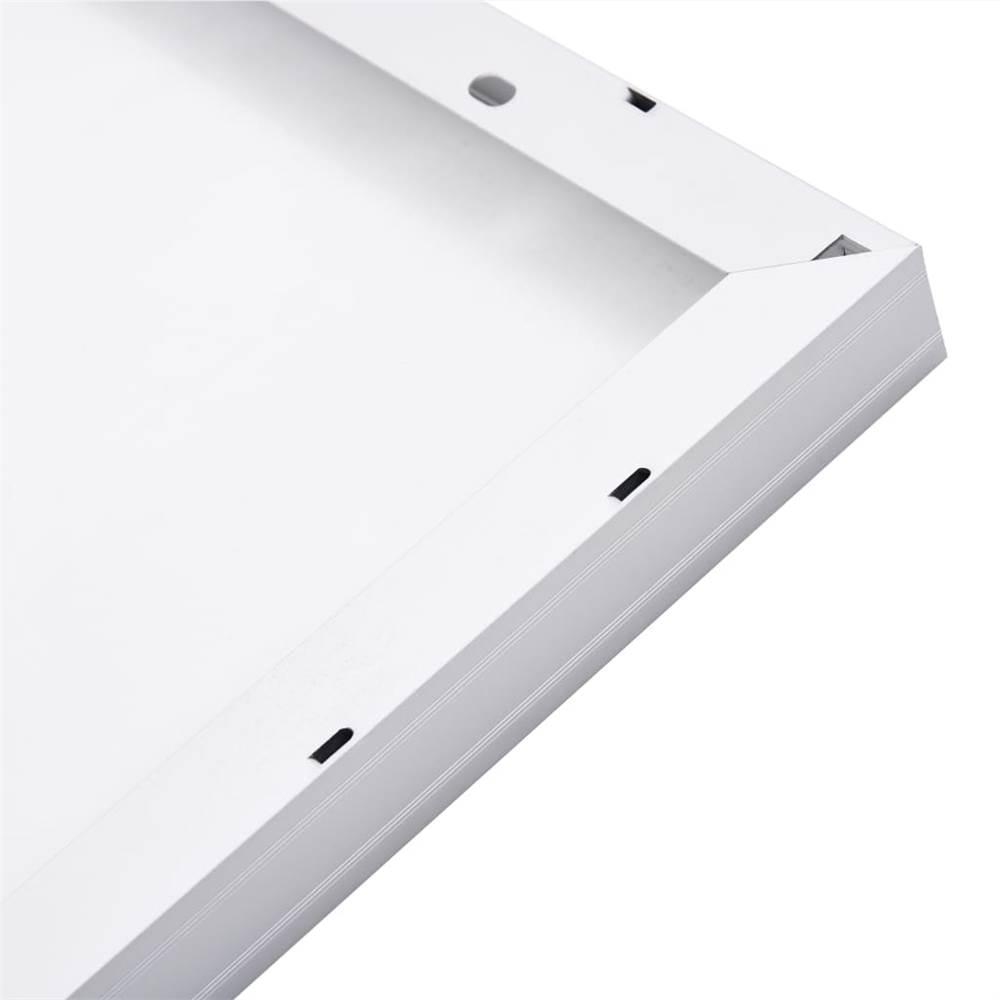

• Material: Aluminium frame + safety glass
• Weight: 5.7 kg

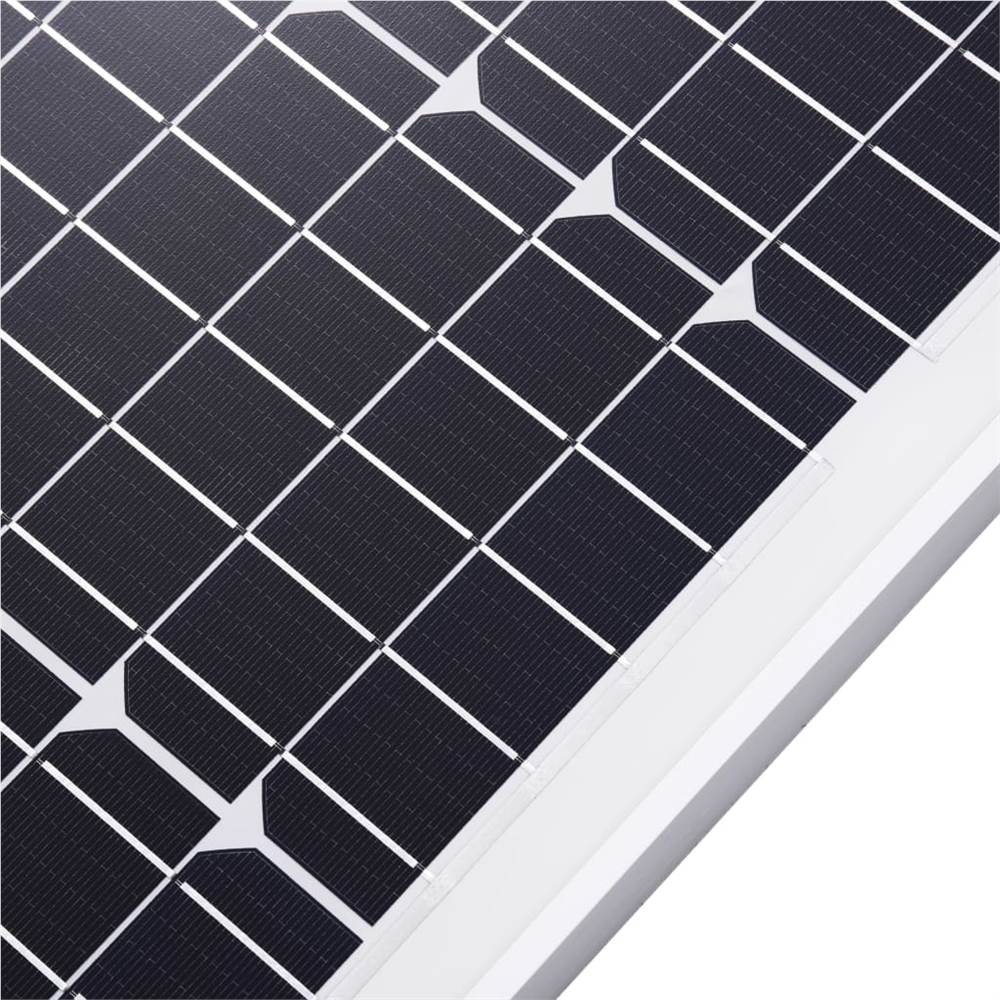

• Cell type: Monocrystalline
• Cell quantity: 36
• Cell efficiency: 18.5 %
• Rated maximum power: 80 W
• Output tolerance: 0~ +4.99 W
• Current at Pmax: 4.3 A
• Voltage at Pmax: 18.6 V
• Short-circuit current: 4.65 A
• Open-circuit voltage: 22.8 V
• Maximum system voltage: DC 715 V
• Maximum series fuse rating: 6 A
• Temperature range: -40℃ ~ +85℃
• By pass diode: 10 A (2 piece)

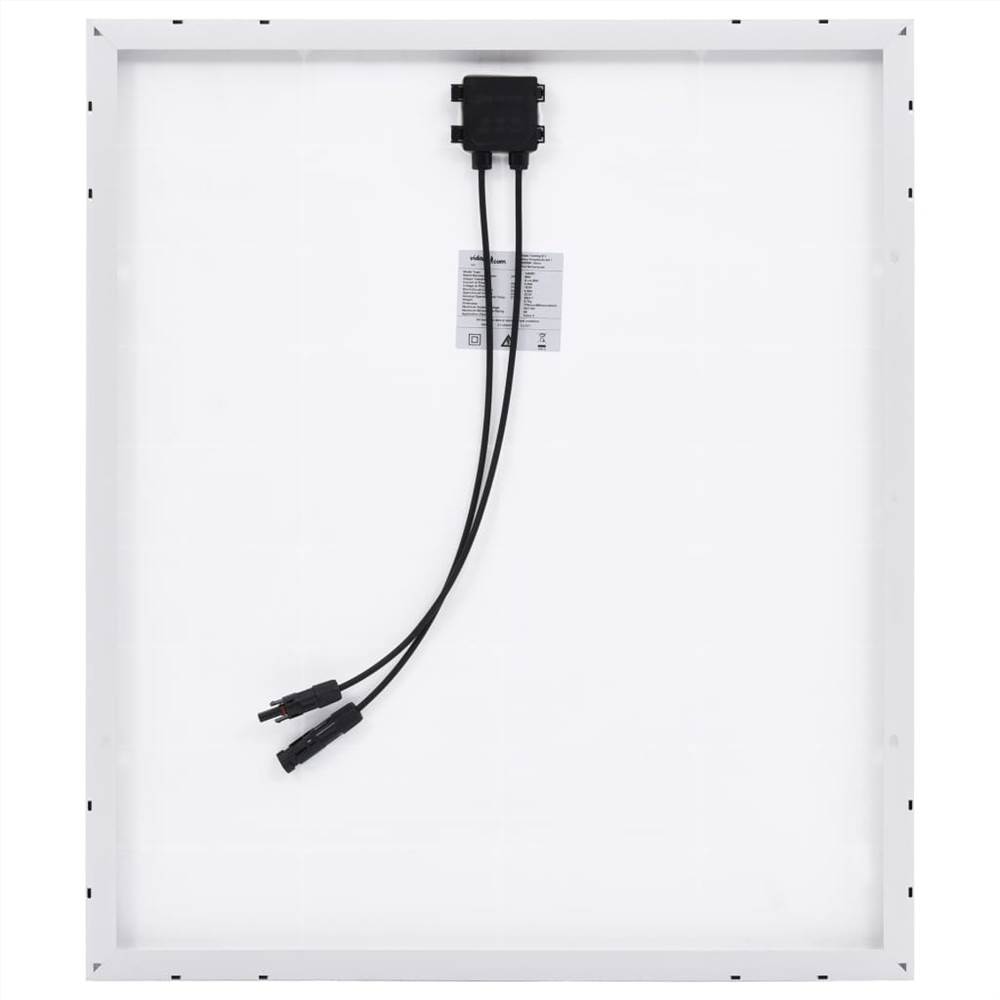

• With 50 cm cable and 4MC connector
