This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch. low frequency, low Idle Current, BTS cable, remote control.
The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.

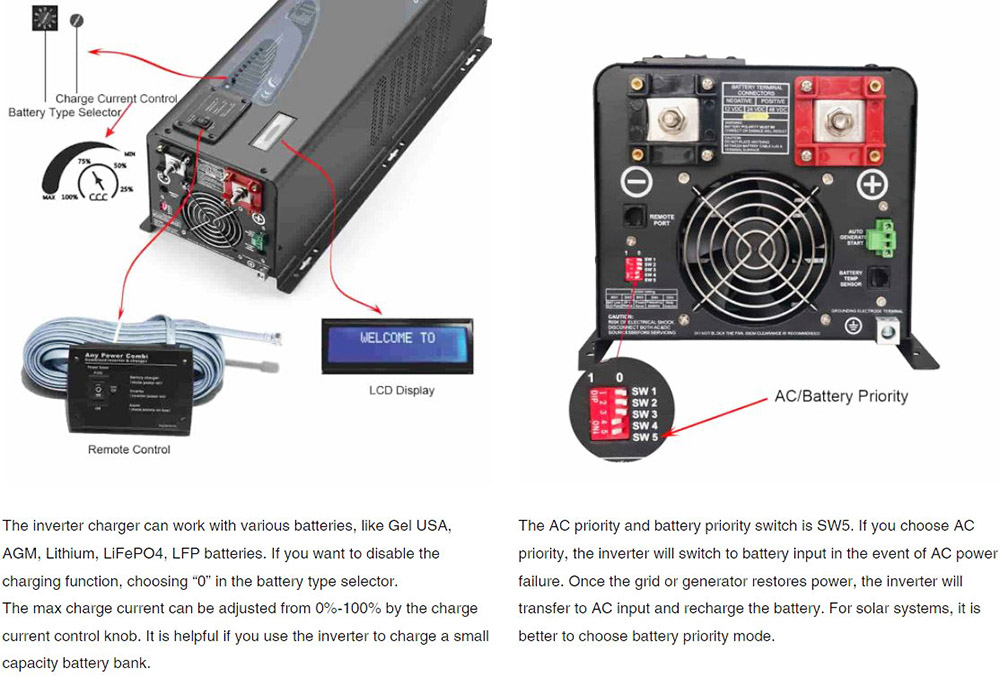

AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
Auto Gen Start: The inverter can start up a generator when the battery voltage goes low. and turn the generator off after battery charging is finished.
*Continuous Output Power: 4000W
*Surge Rating: 12000W (20 Seconds)
*AC Output: AC 120V and AC 240V
*AC Input: 240V
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%
*Nominal Input Voltage: 48.0Vdc
*Minimum Start Voltage: 40.0Vdc
*Low Battery Alarm: 42.0Vdc-44.0Vdc
*Low battery Trip: 40.0Vdc-42.0Vdc (select by SW1)
*High Voltage Alarm: 64.0Vdc
*Low battery Voltage Restart: 52Vdc
*Idle Consumption: 48W
*Power Saver Mode Idle Consumption: 19W
AC Charger :
*Charger Rate: 40+/-5A
*AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)
*Over Charge Protection Shutdown:62.8V
*Selectable Charge Setting based on battery type
*Adjustable charge current: off 0%-100%
*3-step intelligent battery charger
|Weight & Size||Unit Weight: 55LB
Unit Size: 22 x 9.1 x 7.5 inch
Shipping Weight: 64 LB
Shipping Size: 27 x 13.4 x 13 inch
1 x PURE SINE WAVE INVERTER
