TWO TREES 24V 235*235*3mm Zoned Hot Bed

Highlights

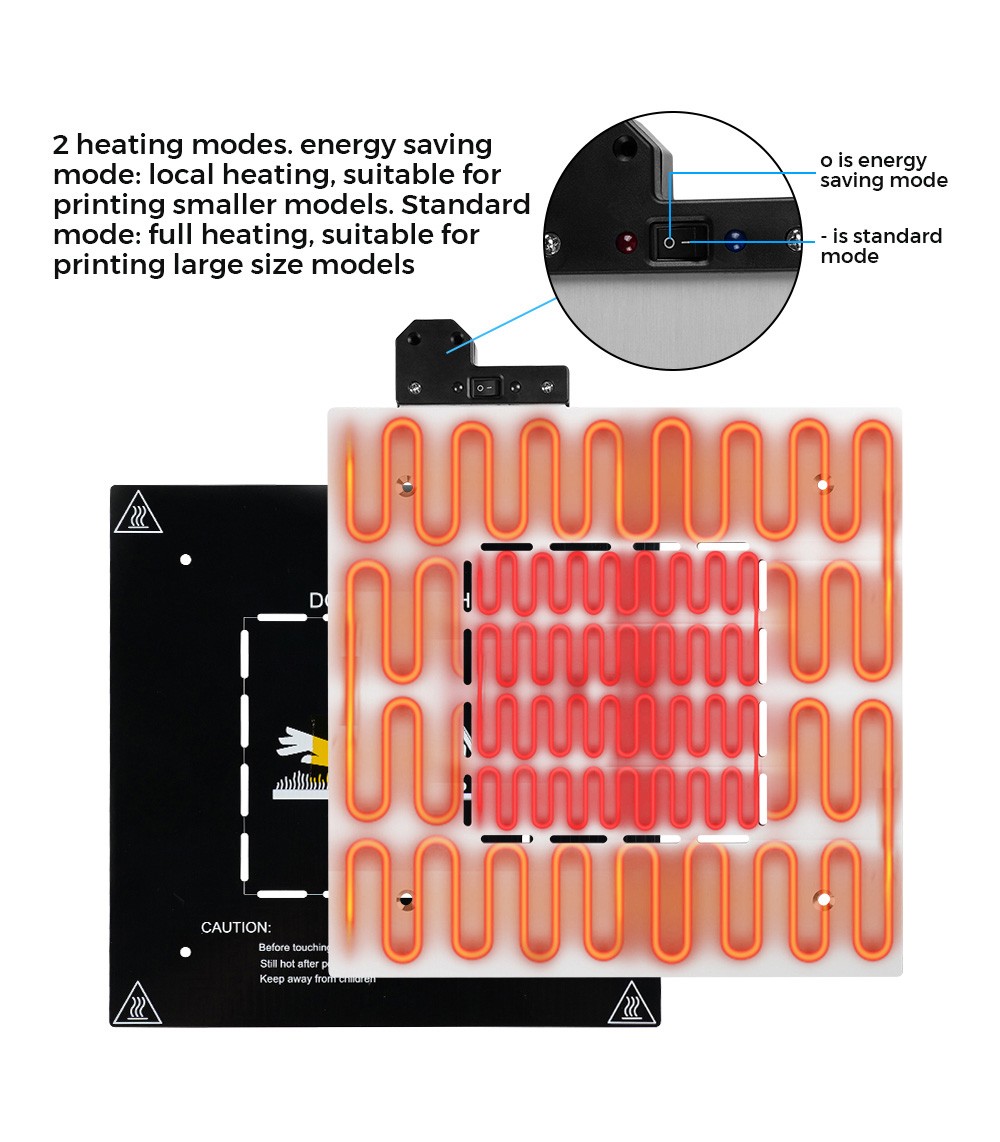

• This hotbed uses zoning heating without the need for motherboard support, and the hotbed can also achieve 120*120mm middle-range zoning heating. It can be used in more than 90% of ENDER-3 series models on the market.
• The heating time is 20% faster than the ordinary hotbed.
• When the printing model ranges in the middle of the 120*120mm range in the hotbed, there is a partition switch to turn him off, which theoretically can achieve power savings of 70%, measured 24 hours can save 0.5 kW·h of electricity, to achieve energy saving.
• The new zoning hot bed uses a new spraying technology, black spraying than gold PEI better adhesion, printing PLA temperature at the same time in the case of 60 Celsius, adhesion than gold PEI better than 20%.
• The new partitioned heat bed adopts the middle heat insulation slot to make the middle 120*120mm range of temperature conduction to the side more slowly thus solving the unnecessary heat loss.
• Support models: Creality ENDER-3 series, Elegoo Neptune 3 pro, Anycubic Kobra, BIQU-B1, BIQU Hurakan, SUNLU T3, KINGROON KP5M, Two Trees BLU-3, and other 3D printers.

Note:

• Positive and negative wiring should not be reversed. The reverse connection will cause the power indicator not to light up, but the function of normal use.

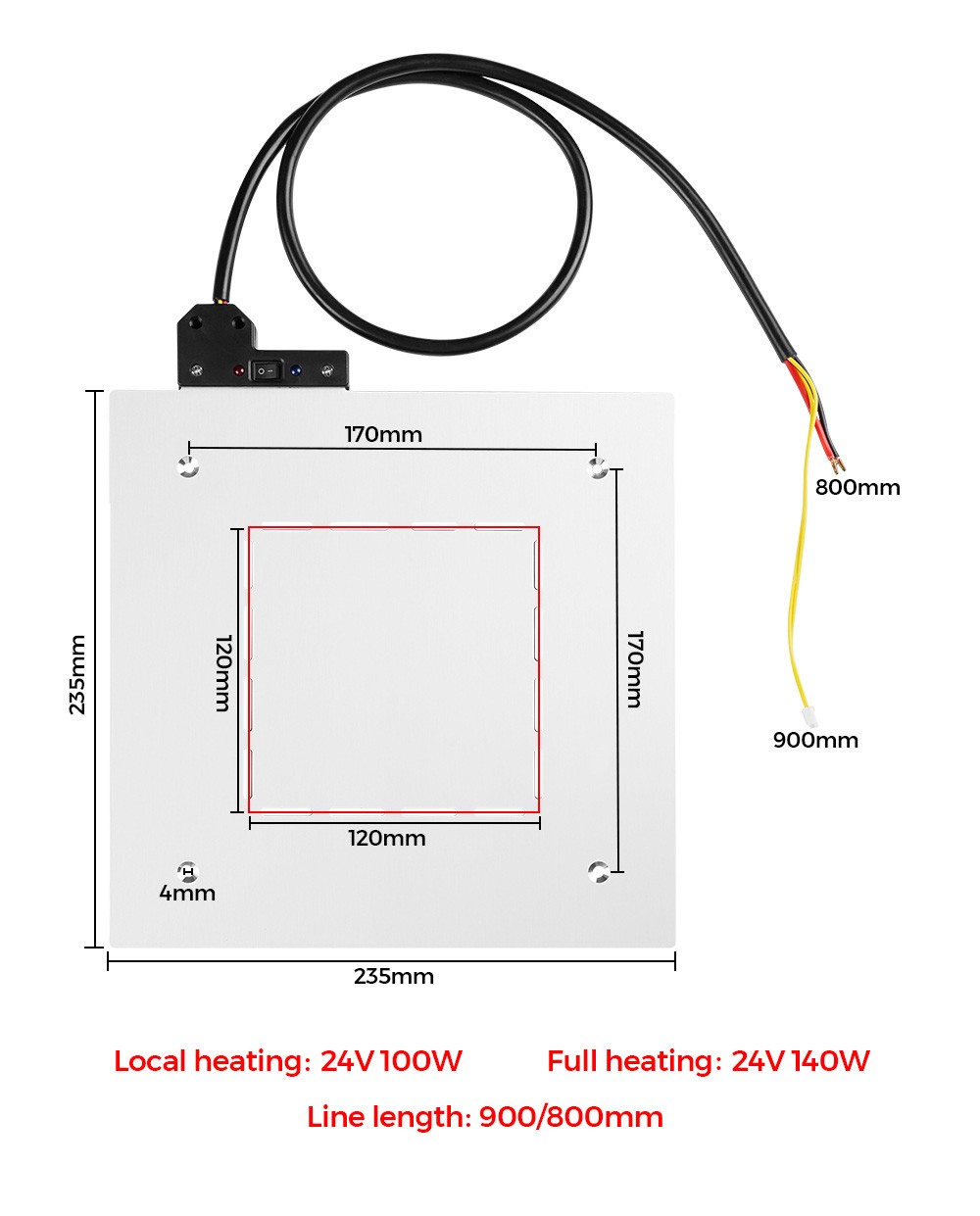

• This hotbed print size is 235mx235mm. The fixed leveling hole position is 170mx170m.
• Hotbed is designed with 24v voltage, the most power is 240W and the least power is 100W (partition function).
• When using the hotbed, the printer needs at least a 24V 300W power supply for the whole machine. In theory, it can perfectly replace and support all printing areas 235mnx235mm fixed holes for 170mx170m printers.
• Support models: Creality ENDER-3 series, Elegoo Neptune 3 pro, Anycubic Kobra, BIQU-B1, BIQU Hurakan, SUNLU T3, KINGROON KP5M, Two Trees BLU-3, and other 3D printers.

Specification
