Highlights
- Easy to install and wire.
- Position/speed/torque closed-loop, it can run at high speed without losing a step.
- Field-Oriented Control, low noise, low vibration, and Low calorific.
- 4 half-bridge drivers with 8 MOSFET bring high operating efficiency.
- 14-bit magnetic encoder, high angle resolution.
- Support 1-256 subdivision, odd subdivision(such as 11 subdivision) is also available.
- Support motors with 0.9 degrees or 1.8 degrees.
- Maximum speed 1000RPM.
- With the user interface, you can connect the computer by serial port, for parameter adjustment and query.
Specification
| General | Brand: TWO TREES Type: Closed Loop Stepper Motor |
| Specification | The frequency of update: position 10KHz, Velocity 10KHz, Torque 20KHz PID control mode: Incremental PID Driver: 4 Half-bridge driver with 8 MOSFET OLED: YES Operating Voltage: 7-28V Adjustable range of current: 0-3000mAh USART: Yes Field-Oriented Control: Yes Subdivision: 1-256 (1, 2, 4, 8, 16, 32, 64, 128, 256 can be set by the key, and others can be set by Serial port) Angle Resolution: 0.08 degrees Maximum speed: 1000RPM Motor vibration: low Motor Noise: low Motor temperature: low Signal common: positive negative NC Signal voltage: 3.3-2.4V Signal isolation: N Power: Single |

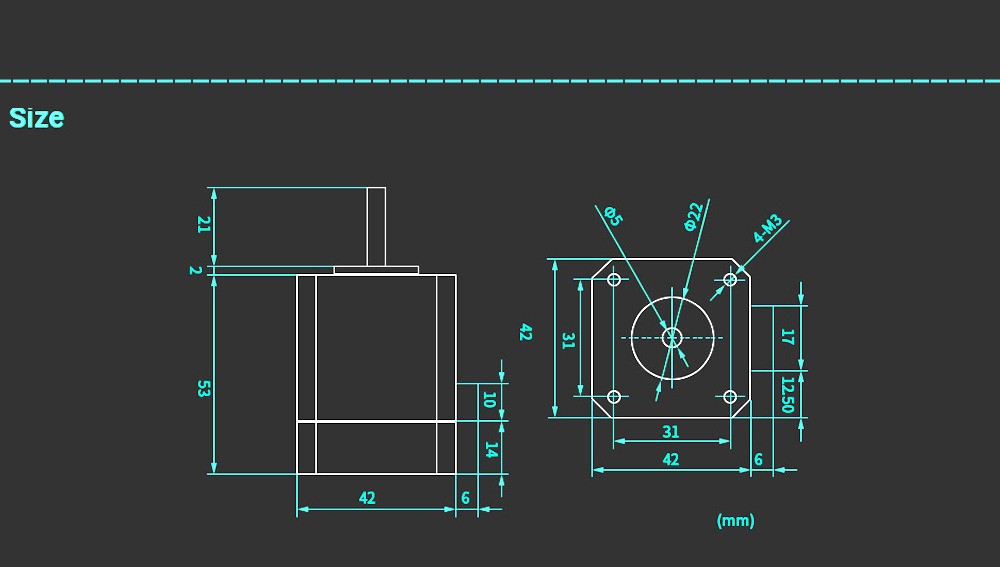

| Weight & Size | Package Weight: 0.32kg Package Size(L x W x H): 11x7.2x7cm |
| Package Contents | 1 x Closed Loop Stepper Motor |
