Highlights
Compatibility Upgrade

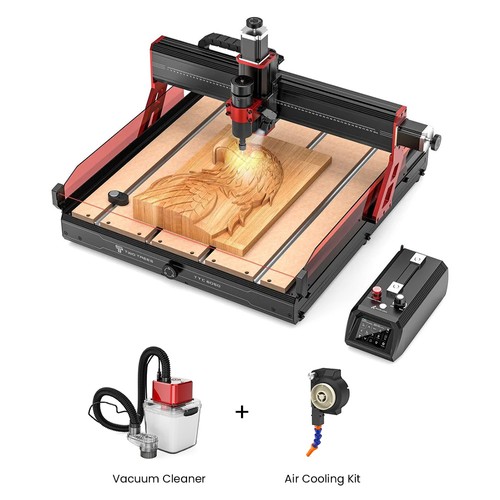

The TTC6050 engraving machine comes standard with a 500W spindle and can be used with the Two Trees TC20 module(laser module not included). 65mm and 69mm fixtures are also provided for customized upgrades, such as a 65mm trimmer. It should be noted that the trimmer and module need to be purchased separately
High Safety
The CNC engraving machine is equipped with an infrared beam sensor. When the sensor is triggered, the machine will stop working and report an error until the problem is solved. The control box has a spindle stop function. When the tool needs to be changed, just press the button and the spindle will be powered off, which enhances safety
Large Engraving Area
The CNC engraving machine is equipped with a large-area engraving platform of 600mm x 500mm x 100mm. The X-axis uses a 110mm x 42mm profile, the Y-axis uses a 68mm x 61mm profile, and the Z-axis uses an 80mm x 38mm profile. This design makes the machine more robust
High Precision
The XYZ axis adopts a linear guide drive design and is equipped with a ball screw, which improves accuracy during movement and engraving. The machine uses durable aluminum T-shaped rail extrusions to support the MDF density board. These rails are compatible with various fixture kits, which are convenient for configuring additional components and maintaining and replacing individual MDF density boards when necessary
Dust Baffle Design
The XYZ transmission profile adopts a sealed design, which effectively blocks dust, wood chips, and metal debris from entering the transmission structure, improving the life and operation stability of the ball screw and linear guide
Specification
| General | Brand: TWO TREES Type: CNC Router Machine Model: TTC6050 Color: Black |
| Specification | Working area: 600 x 500 x100 mm (23.6in19.6in3.9in) Material: Aluminium Supported tool diameters: 0.5-7 mm (ER11 clip) Device display: 3.5-inch IPS resistive color screen, touch (480 x 320 pixel resolution) Max milling speed: 5000 mm/min Maximum acceleration: 500 mm/s² Spindle motor: 500W Spindle Motor Main shaft speed: 12000 rpm Compatible software: Artcam,Fusion360,EASEL,Carveco Maker Firmware: GRBL is open source and supports both CNC and laser (no firmware required) Operating system: Windows, macOS, Linux Voltage: 24V Performance: 110W Total, 15W In Standby Mode Carving layer height: Non-metal 0.1mm-20mm | Metal 0.1mm-0.2mm Compatible engraving materials: Plywood/MDF/Solid wood/Acrylic/Carbon fiber/Aluminum/Copper/Stainless steel |
| Weight & Size | Product Weight: 35.9kg Package Weight: 39.7kg Product Size(L x W x H): 81.1x76.9x53cm Package Size(L x W x H): 84.5x49.1x34.2cm |
| Package Contents | 1 x Left Component 1 x Y-axis Support Component 1 x Right Component 1 x Right Protective Profile 2 x Two-Side Density Boards 1 x Left Protective Profile 3 x Middle Density Boards 4 x Density Board Support 1 x Drag Chain 1 x X-axis Motor Assembly 1 x 500W Spindle 1 x Infrared Beam 1 x Magnetic Block 1 x Spindle Mounting Seat 1 x Trimming Machine Mounting Seat 1 x Z-axis Component 1 x Y-axis Drive Connection Beam 1 x X-axis Component 1 x Rear Base Panel 1 x Front Base Panel 1 x Control Box 2 x Acrylic Guard 2 x Machine M4X3 screw 1 x Motor Hand-wheel 4 x Round head M5X12 Screw 4 x Cup Head M5X30 Screws 16 x Cup Head M5X12 Screws 12 x Cup Head M5X15 Screws 4 x Cup Head M5X65 Screws 4 x Cup Head M5X55 Screws 1 x Cup Head M4X10 Screw 4 x Cup Head M4X12 Screws 14 x Cup Head M3X5 Screws 6 x Round head M3X6 Screw 6 x Cup Head M5X18 Screws 28 x Cup Head M5X20 Screws 2 x Cup Head M4X5 Screws 8 x Countersunk Head M4X8 Screw 4 x M8 Screws 4 x Self-tapping M3X10 Screws 4 x M8 Hand Screwthe Nut 4 x CNC Workholding Plate 4 x Pressure Plate Rotating Shaft 1 x Power Cable 1 x Tool Setting Apparatus 5 x Hexagonal Wrench 1 x Crosshead Screwdriver 1 x Spotlight 4 x M8 Slider Nuts 4 x Spring 8 x M8 Gasket 10 x Cutter 3 x Tow Chain Bracket 1 x Towing Chain Mounting Plate 2 x Open Wrench 1 x M4 slider Nuts 1 x Data Cable 15 x Cable Tie 8 x φ5X8 Locating Pin 1 x TF Card 1 x 500W Air Cooling Kit 1 x CNC Router Vacuum Cleaner |
