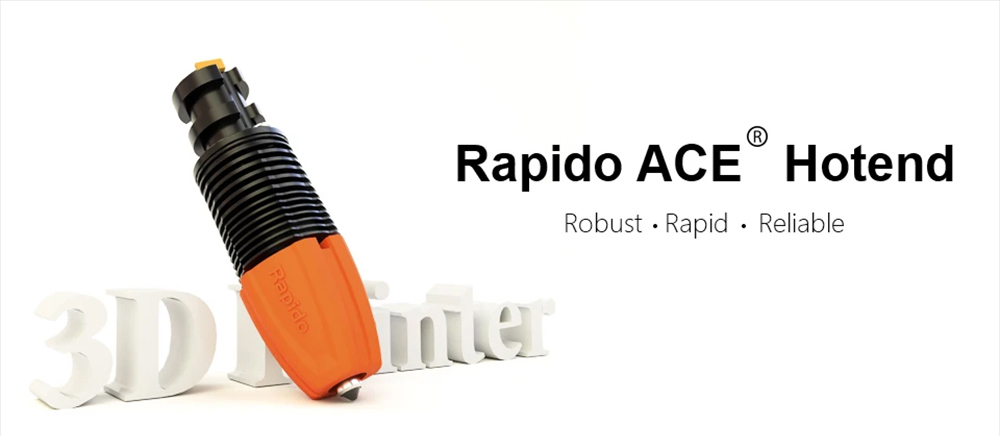

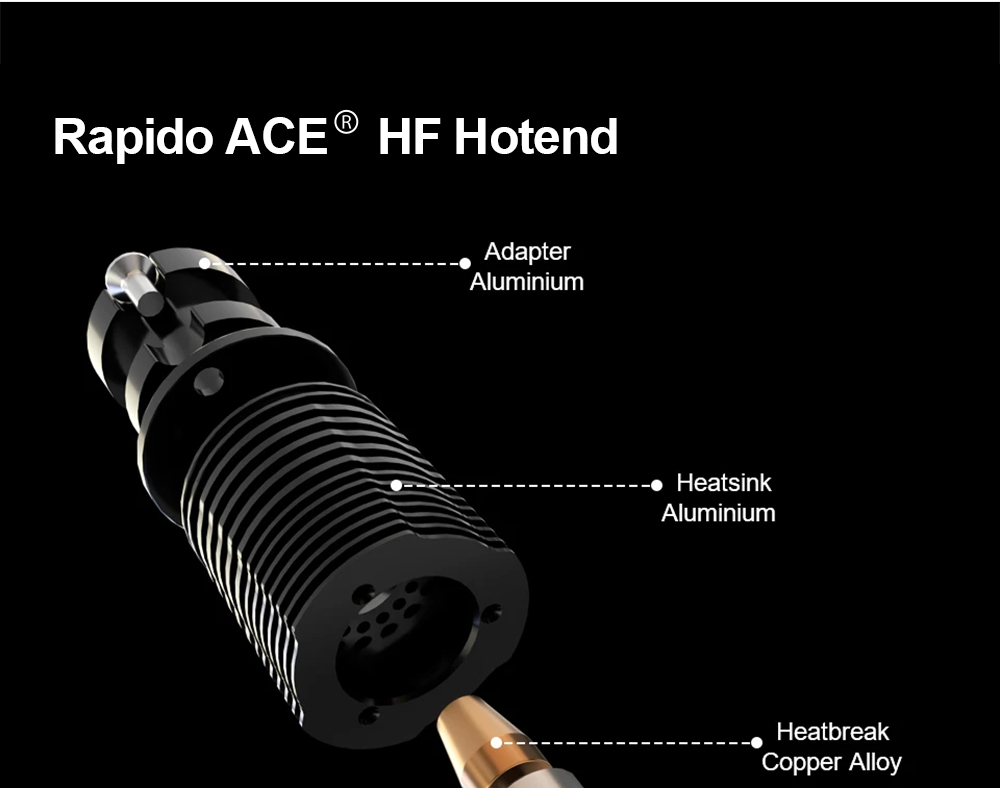

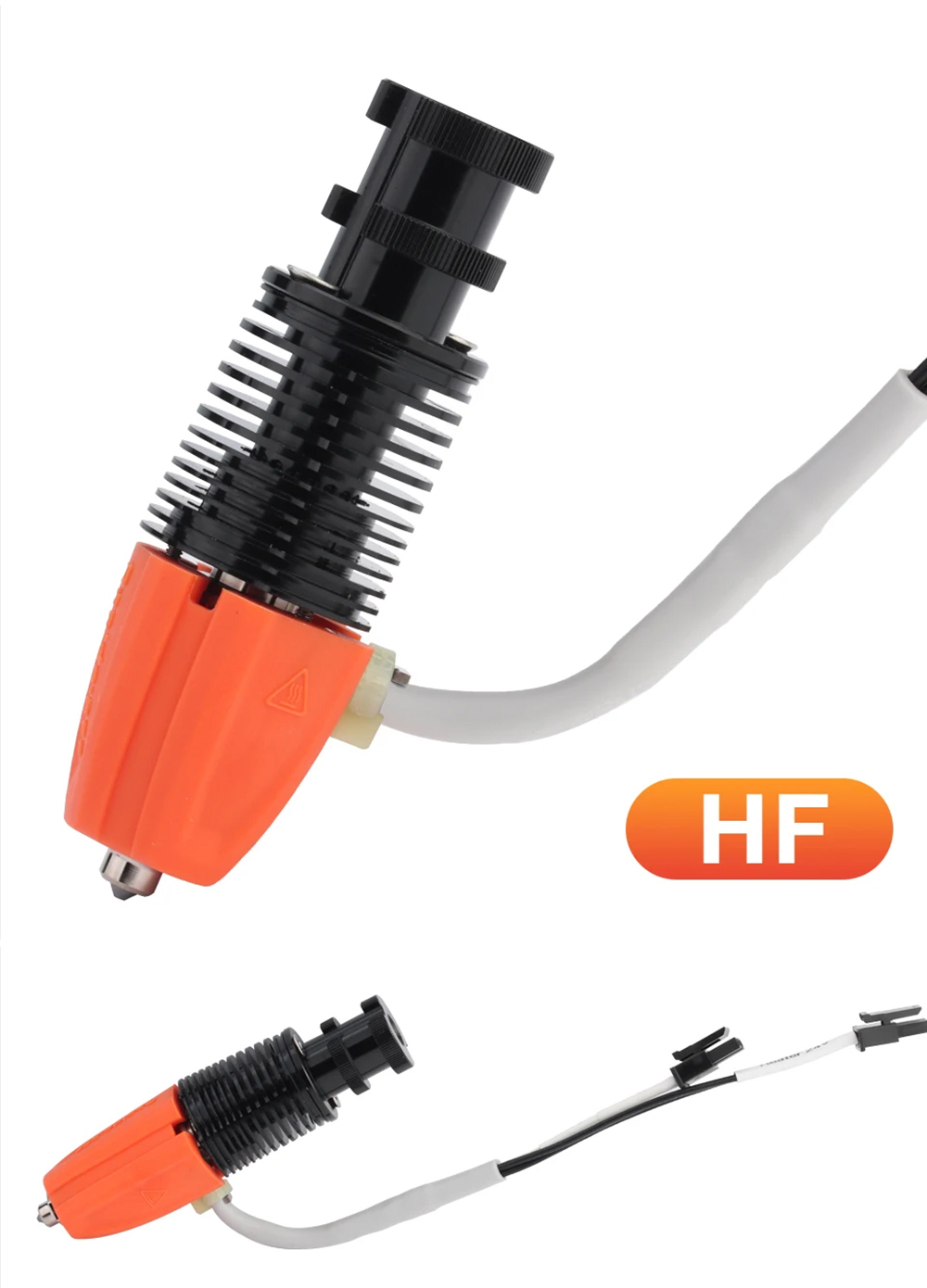

Trianglelab Rapido ACE HF Hotend - 104NT-4 Thermistor, Compatible with Dragon/Rapido, V6 Adapter

Highlights

1. Smaller heatsink size, but still compatible with previous Rapido or Dragon mounting parts using a spacer.

2. Multiple mounting holes on the top allow for multi-angle mounting of your print head.

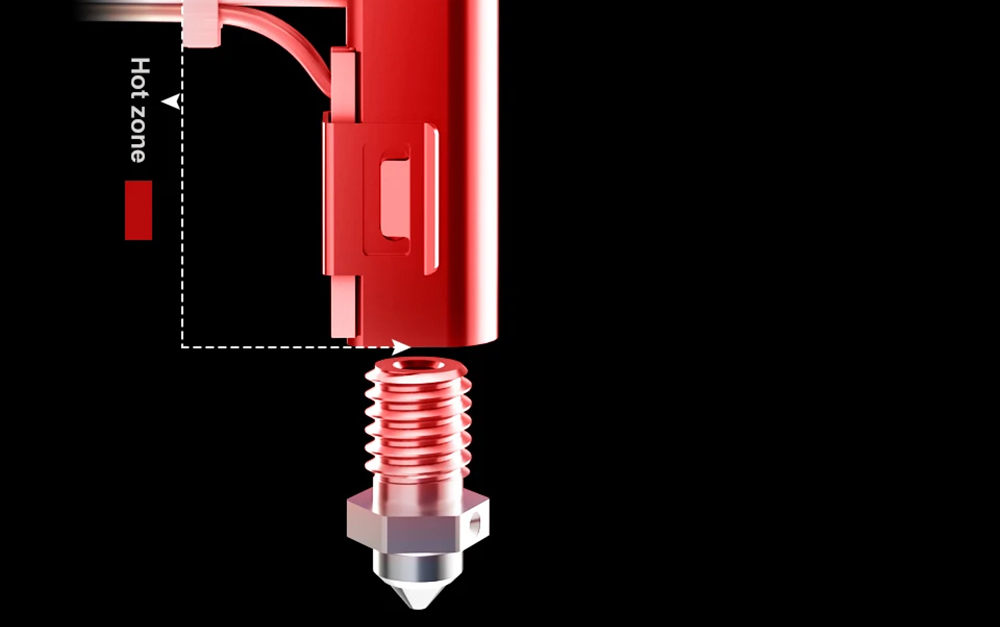

3. Longer melt zone and higher flow rate in the even smaller overall size.

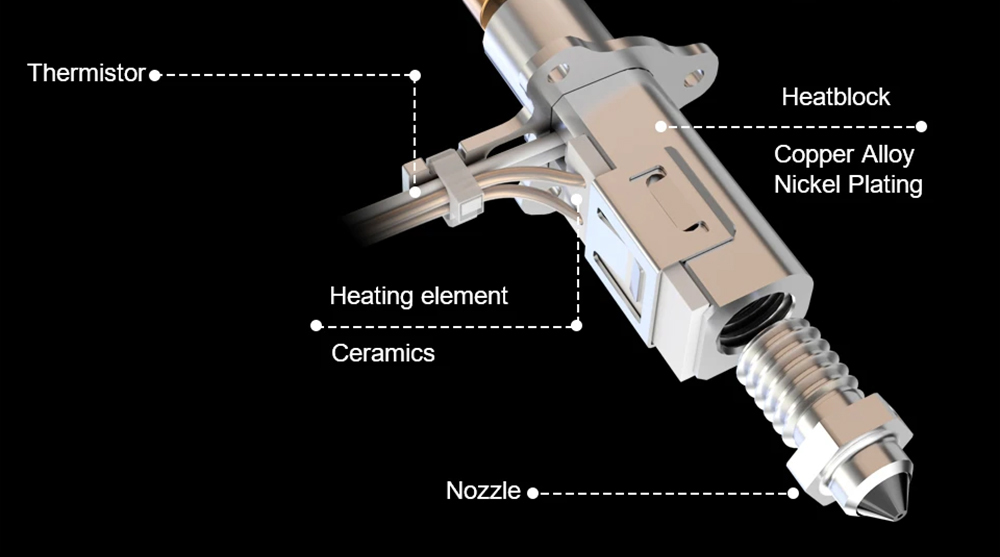

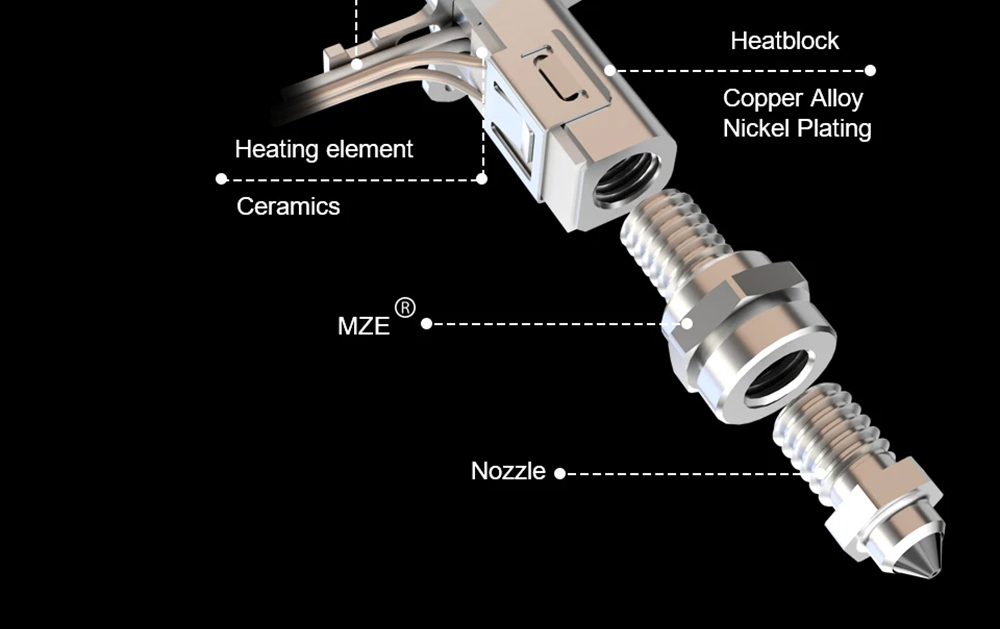

4. Ceramic heating element is replaceable and more cost-effective to maintain.

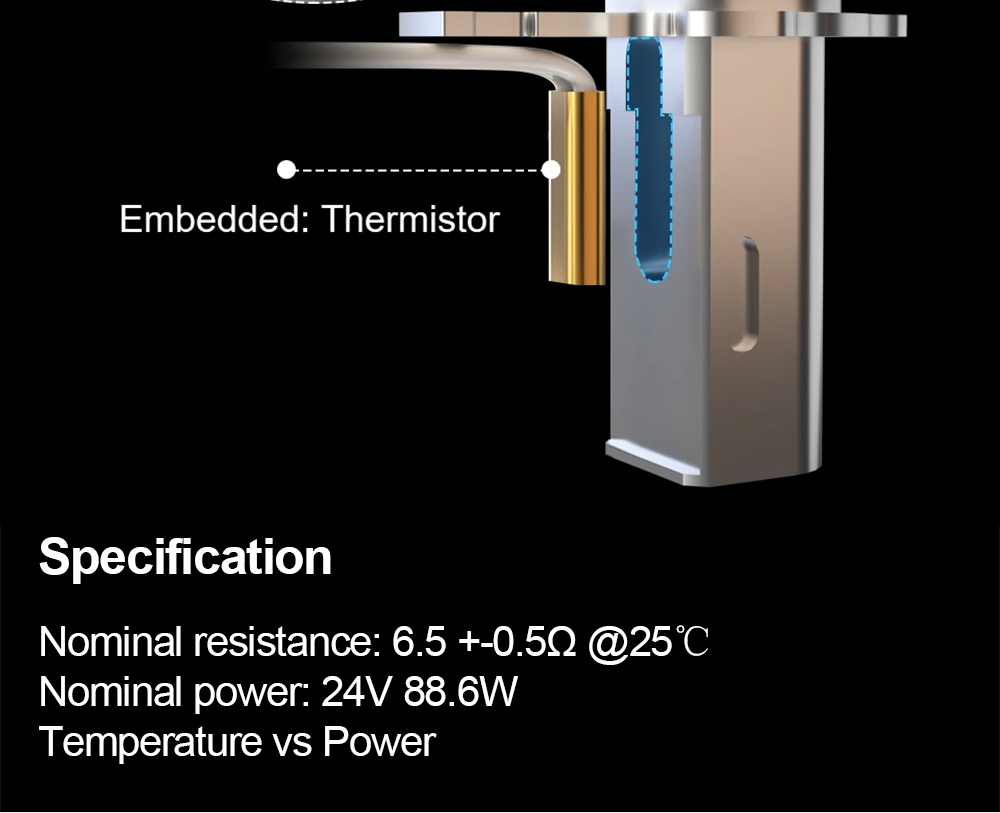

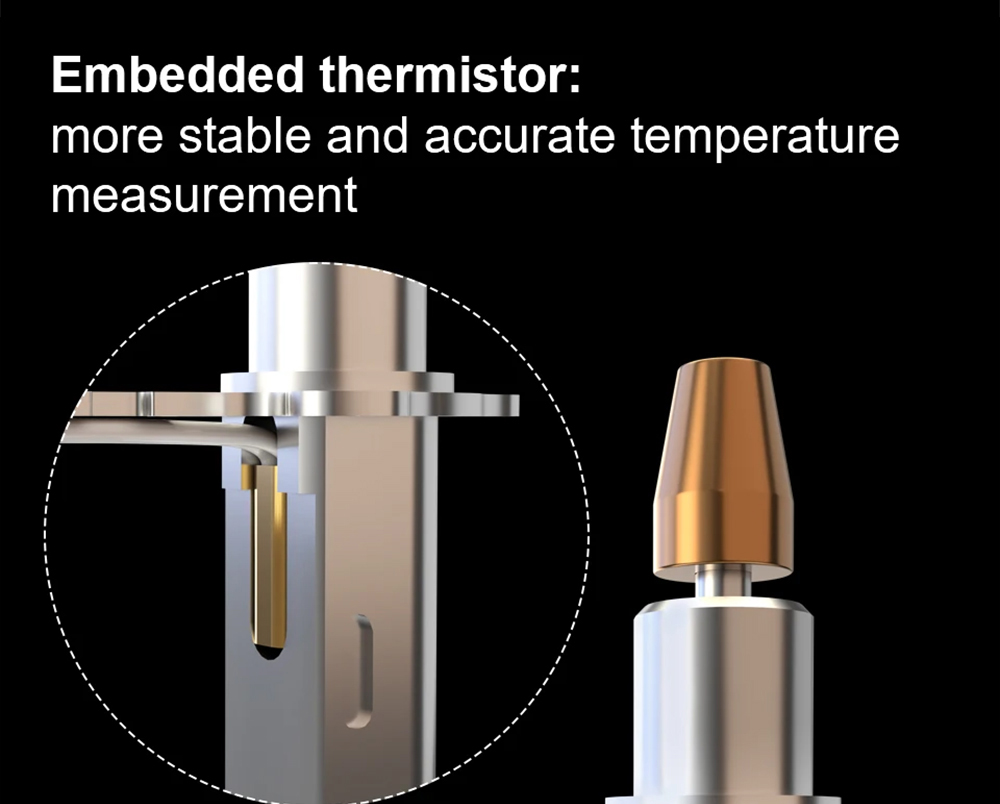

5. Carefully designed internal temperature sensor for more accurate and stable heater block temperature readings.

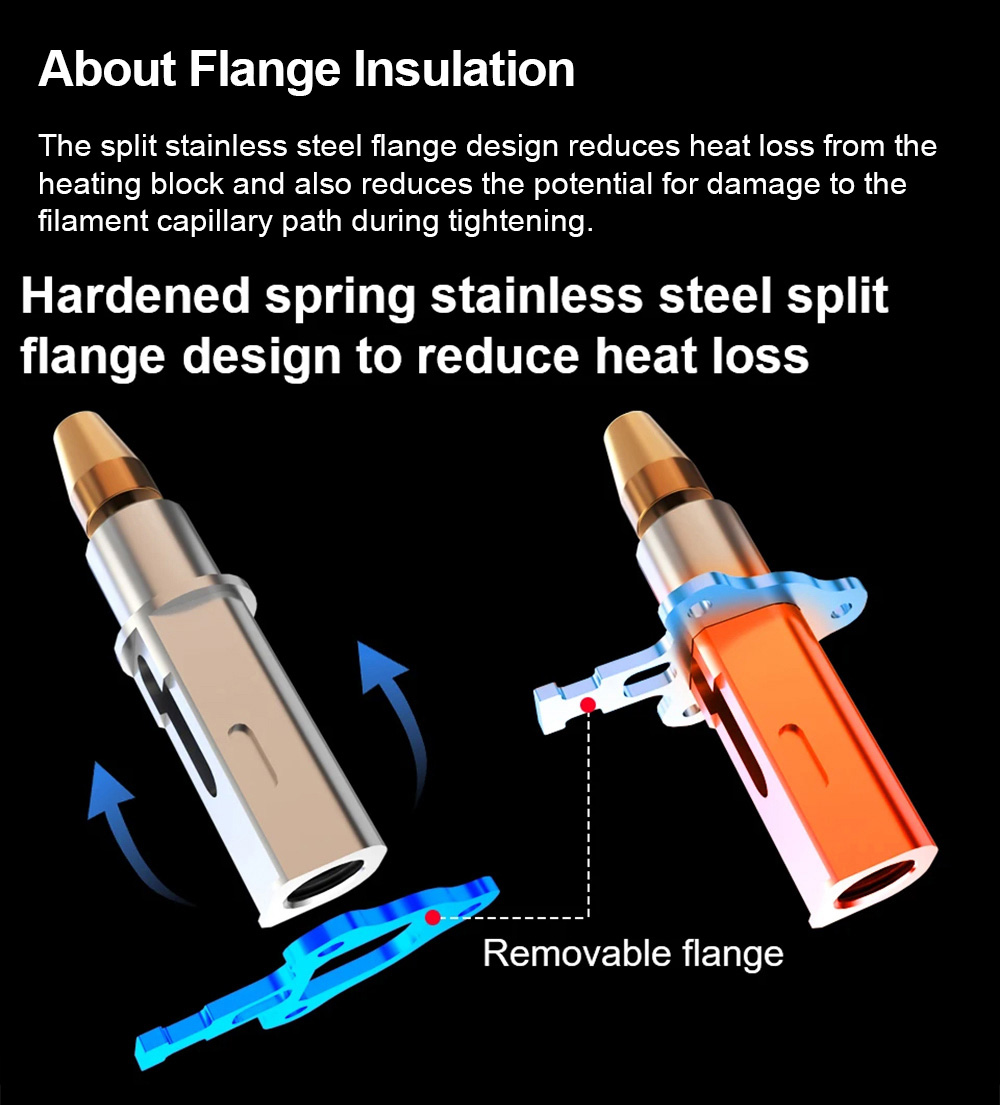

6. The split stainless steel flange design reduces heat loss from the heating block and also reduces the potential for damage to the filament capillary path during tightening.

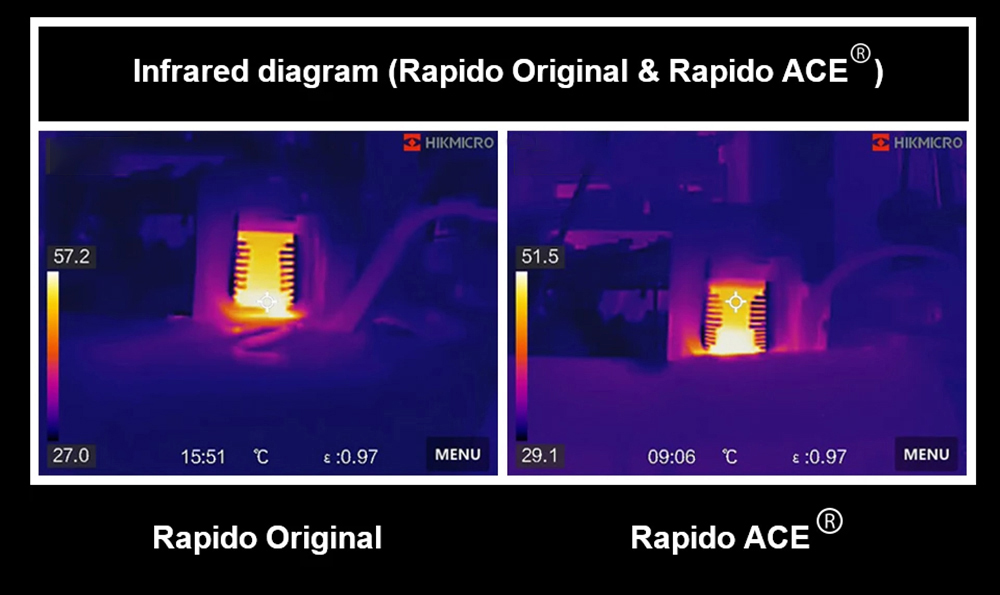

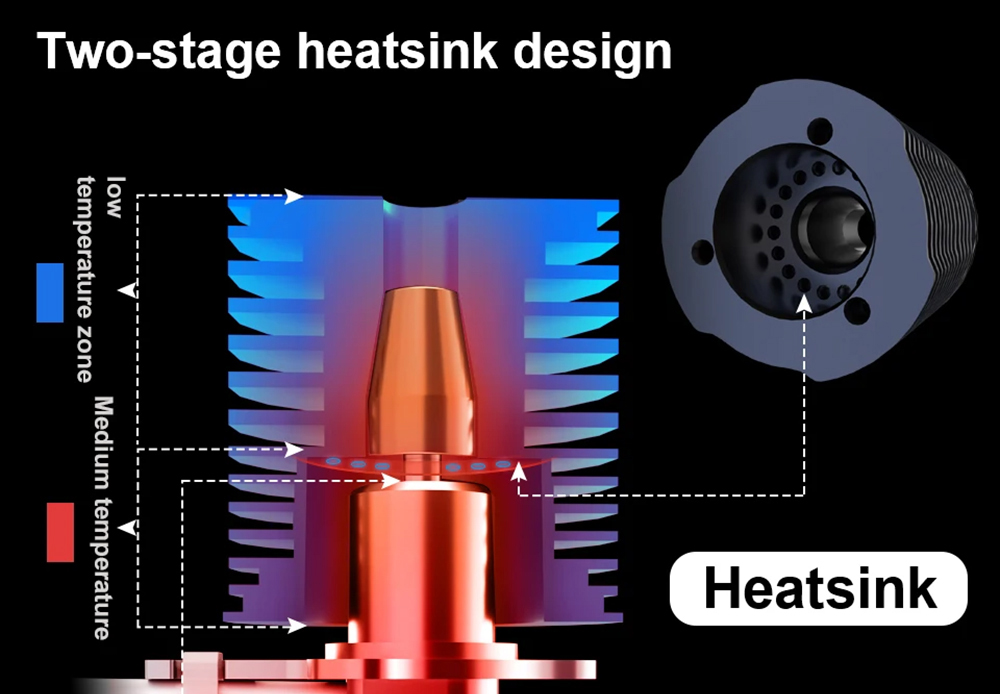

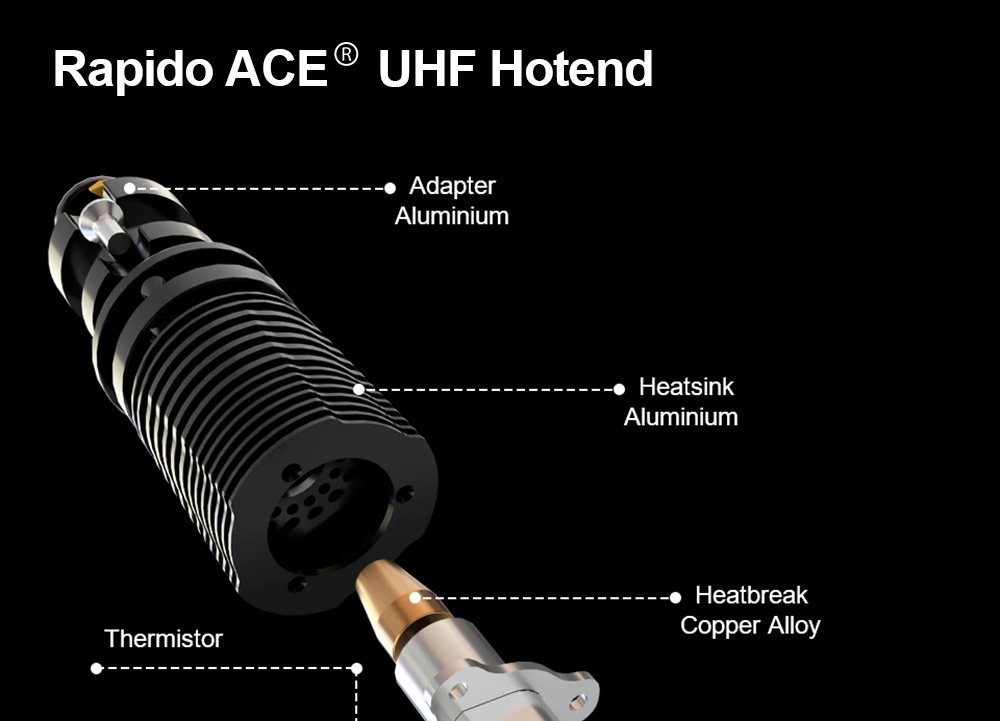

7. Two-stage insulated heatsink design prevents heat from the heating block mounting screws from being conducted further upwards. (See infrared image)

8. The tapered heatsink cooling section ensures effective and tight contact. The cold end of the heat breaker only comes into contact with the coldest top of the heatsink, ensuring that the cold end temperature of the heat breaker is as low as possible, reducing the likelihood of heat creep.

9. Maximum practical flow rate of 65mm³/S. (PETG@265°C φ1.2mm nozzle)

Compatibility:

Specification
