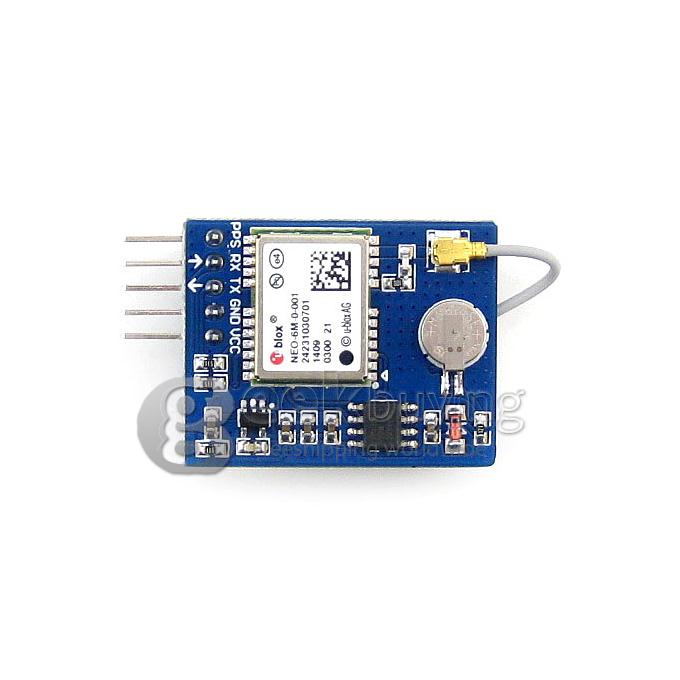

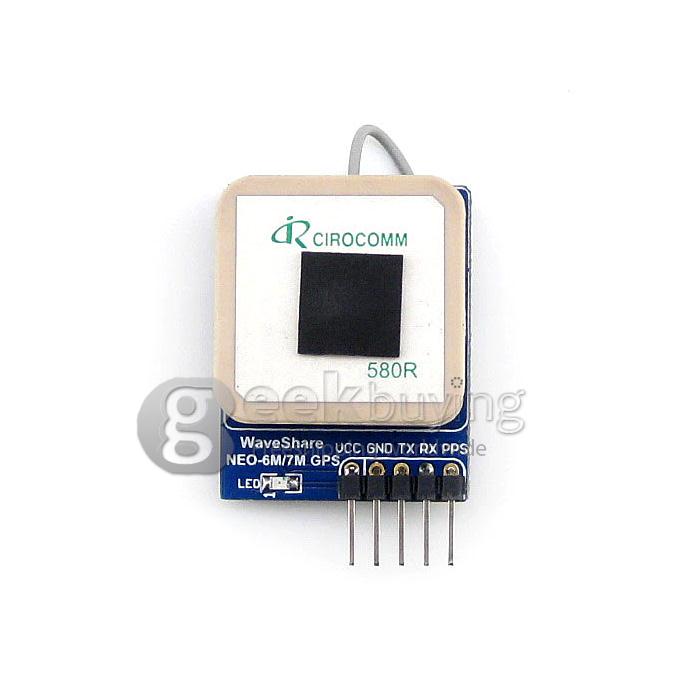

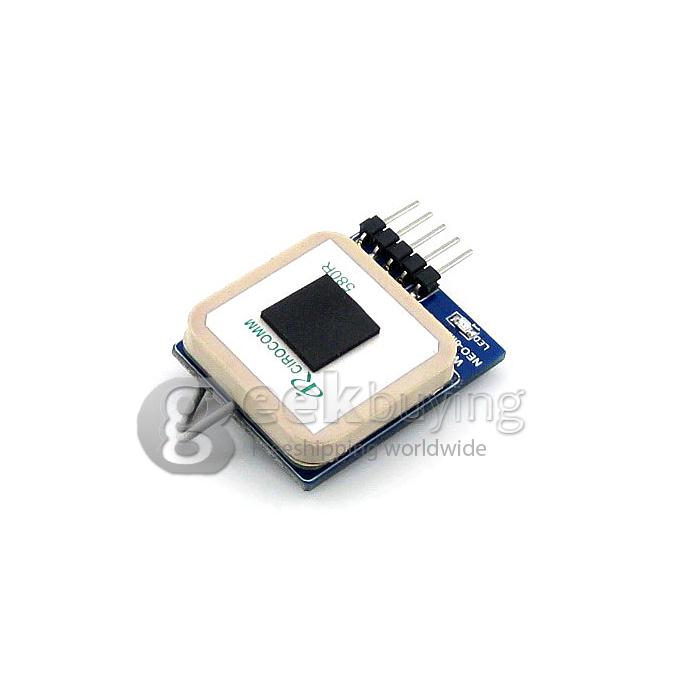

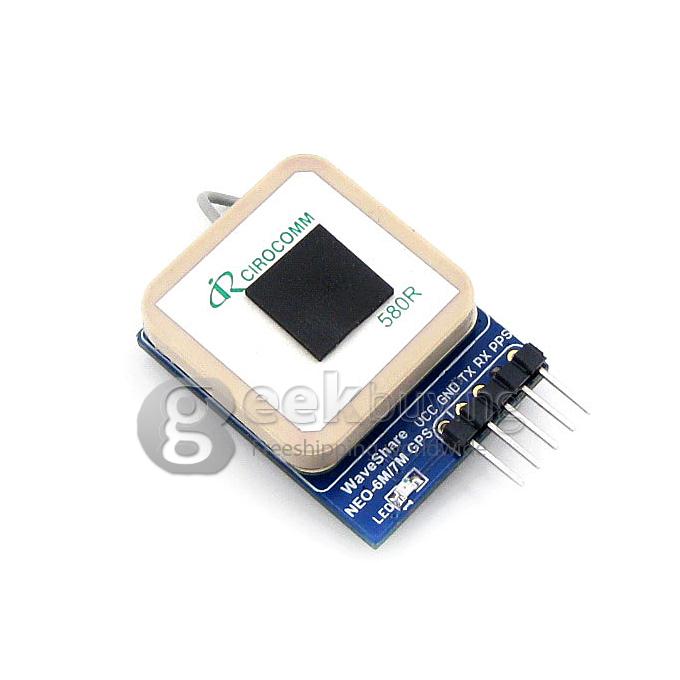

UART GPS Module U-blox NEO-6M Onboard Curved / Horizontal Pinheader with Antenna

Highlights

• U-blox NEO-6M onboard, with high-gain active antenna
• IPX interface, for connecting different active antennas
• Chargeable backup battery, keeps the ephemeris data when power down, supports hot starts
• Onboard EEPROM for storing config information

Specification

• TTL level, compatible with 3.3V/5V systems
• Default baud rate 9600, configurable via u-center

Applications

• GPS Navigator
• Quadcopter Positioning

How to Use

In the case of working with a MCU:

• VCC: connects to 3.3V/5V
• GND: connects to GND
• TXD: connects to MCU.RX
• RXD: connects to MCU.TX
• PPS: connects to MCU.IO, timepulse output (optional)

Software Demo

The UART GPS NEO-6M module supports software like u-center, GoogleEarth, etc., pretty easy to use. The following pictures show that using the module with u-center:

U-center user interface:

Positioning info on the text console:

What's in the box?

• 1 x UART GPS NEO-6M
