Highlights

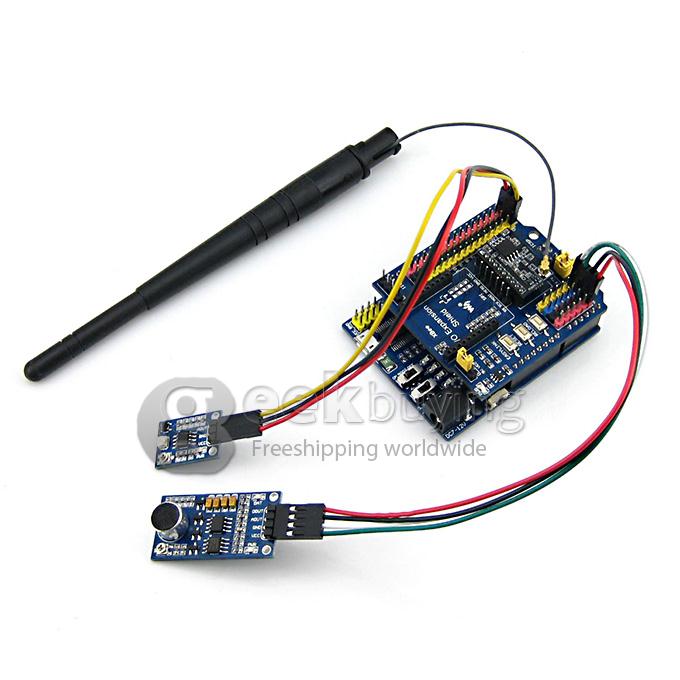

- This UNO PLUS Package A includes: UNO PLUS, USB Type A Plug to Micro B Plug Cable, IO Expansion Shield, MQ-5 Gas Sensor
- Color Sensor, Flame Sensor, Metal Sensor, Hall Sensor, Infrared Reflective Sensor, Laser Sensor, Moisture Sensor, Rotation Sensor, Sound Sensor, Temperature-Humidity Sensor, Tilt Sensor, UV Sensor, Liquid Level Sensor etc.
Specification
Overview
UNO PLUS is a development board compatible with the Arduino UNO R3, an improved & enhanced alternative solution for Arduino UNO R3.
Advantages

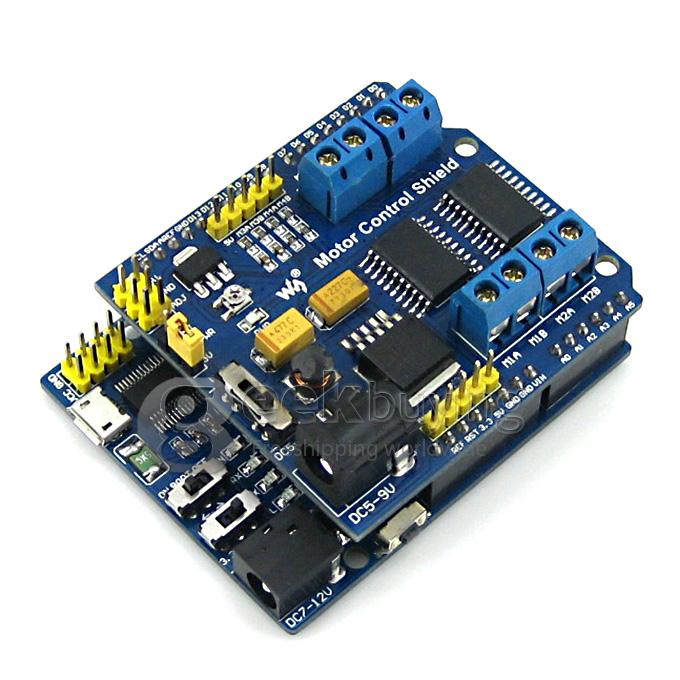

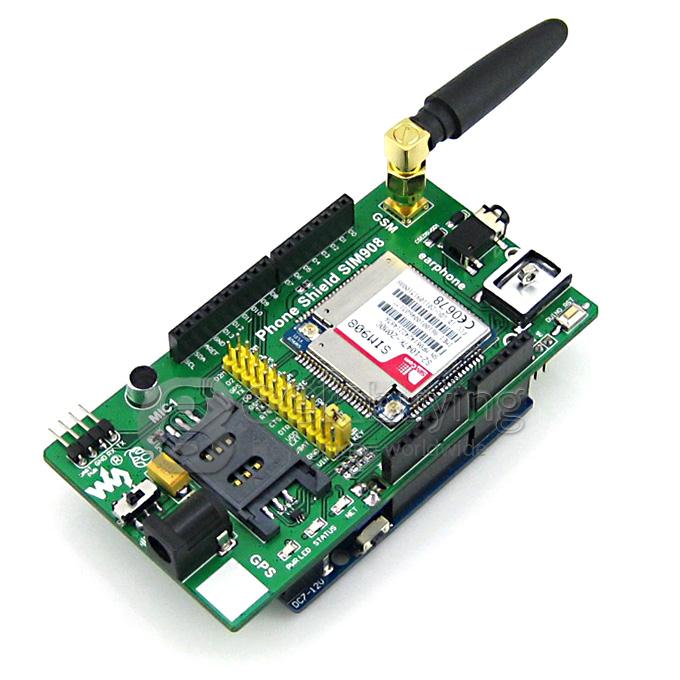

| UNO PLUS | UNO R3 | Remarks | |
| Operating voltage | 5V/3.3V | 5V | Dual voltage level to support more shields |
| Reset | Lateral | Vertical | Lateral button is easier to use when connecting with shield |
| Bootloader switch | Yes | None | The board can be configured to run program immediately when power-up by the switch |
| USB connector | Micro USB | USB Type B | Micro connector is more commonly used, and shields won't be blocked anymore while connecting |
| DC jack | Low profile | Normal height | Shields won't be blocked anymore while connecting |
| Power output header | Yes | None | Providing 5V/3.3V power output OR common-grounding with other boards |
| 3.3V power output | 800mA Max | 150mA Max | UNO PLUS features higher driving capability |
| Oscillator | Crystal oscillator | Ceramic resonator | Crystal oscillator is suit for applications where accurate clock reference is required |
| ADC channel | 7 | 6 | An additional channel ADC6 from the Reserved PIN |
| Connecting with prototype breadboard | Supported | Not supported | Solder pads is provided for DIY interfaces to connecting with prototype breadboard |
| USB driver | Compatible with all main systems | Doesn't compatible with WIN7/WIN8 Express Edition | Driver will never failed to install thanks to the onboard FT232 |
| Firmware fixing | Supported | Not supported | Firmware can be fixed by using the onboard FT232, no extra programmer is needed |

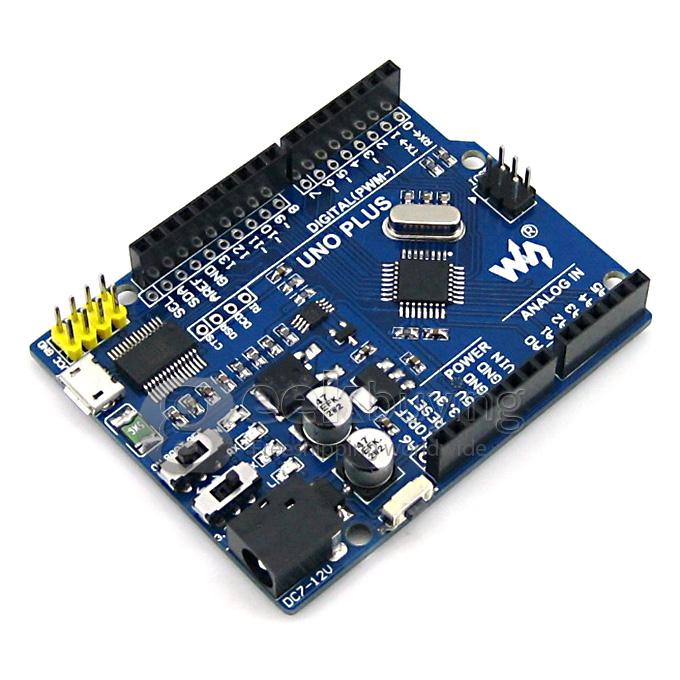

UNO PLUS Product introduction
- ATMEGA328P-AU
- AMS1117-3.3 : 3.3V voltage regulator
- NCP1117ST50T3G : 5V voltage regulator
- FT232RL : USB to UART convertor
- Arduino interface
- compatible with standard Arduino interface with an additional analog input (A6)
- solder pads provided, supports prototype breadboard
- ICSP interface
- MICRO USB connector : for uploading program OR serial port debugging
- Power output header : 3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards
- FT232 pins : for burning Bootloader into the microcontroller
- DC input : 7V ~ 12V
- Reset button
- Power indicator
- Serial port Rx/Tx indicator
- User LED
- Power configuration switch : for configuring the operating voltage
- Bootloader selection switch
- turn ON : the board will reset when power-up OR other USB devices were detected connecting to the PC
- turn OFF : the onboard program runs immediately when power-up, and the board will not reset when other USB devices were detected connecting to the PC
UNO PLUS Dimension
What's in the box?
- 1 x UNO PLUS
- 1 x USB Type A Plug to Micro B Plug Cable

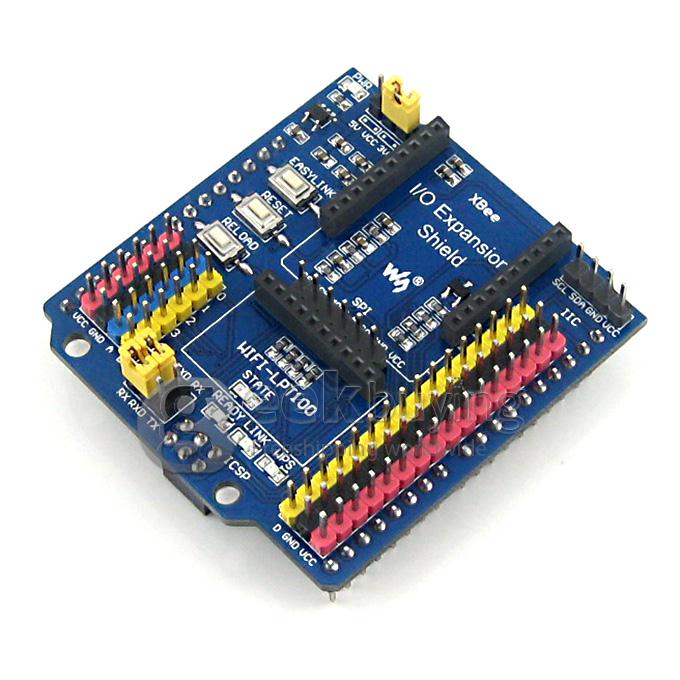

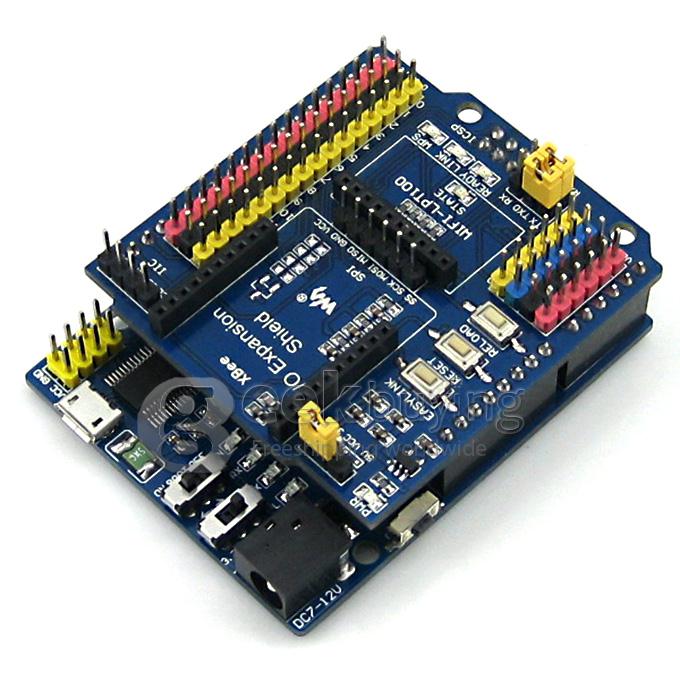

- 1 x IO Expansion Shield
- 1 x MQ-5 Gas Sensor
- 1 x Color Sensor
- 1 x Flame Sensor
- 1 x Metal Sensor
- 1 x Hall Sensor
- 1 x Infrared Reflective Sensor
- 1 x Laser Sensor
- 1 x Moisture Sensor
- 1 x Rotation Sensor
- 1 x Sound Sensor
- 1 x Temperature-Humidity Sensor
- 1 x Tilt Sensor
- 1 x UV Sensor
- 1 x Liquid Level Sensor

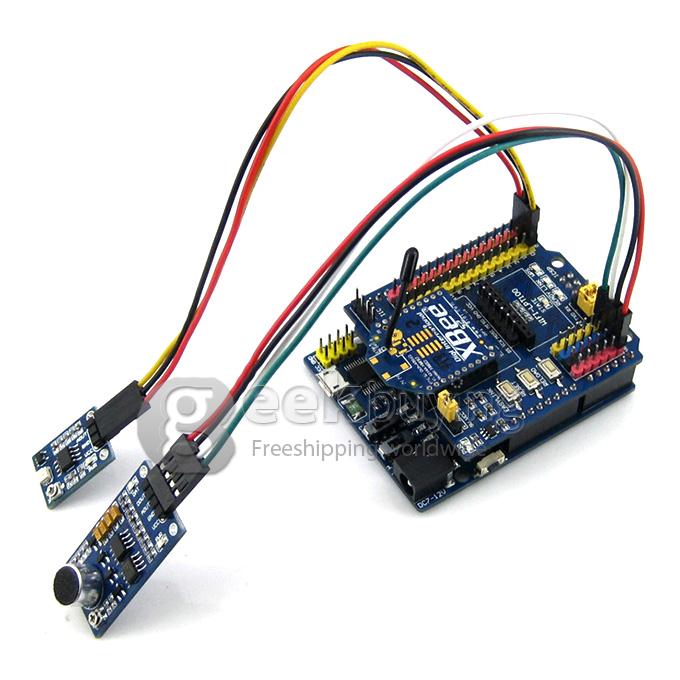

- 3 x 3-pin custom connector jumper wire
- 4 x 4-pin custom connector jumper wire
- 1 x 5-pin custom connector jumper wire
