Highlights
- The kit is very suitable for enthusiasts to make their own Arduino board.
- With the help of the soldering tutorial, the soldering is easy and convenient.
- You can use the Arduino official board to burn bootloader of this board.
- It uses a locking seat, so it is easy to replace the chip.
- You can use FT232 USB to TTL module or CH340G module to burn the program.
- 100% compatible with Arduino UNO R3 program, expansion shields, development environment IDE.
- On-board test indicator LED, and the beginners can program to control it.
- Onboard power indicator.
Specification
| General | |
|---|---|
| Type | UNO R3 ATmega328P Development Board |
|
Microcontrollers |
ATmega328P-PU |
| Operating Voltage | 5V |
| IO Interface Logic Voltage | 5V |
| Operating Current | 500mA (max) |
| Digital I / O Pins | 14 (of which 6 can provide PWM output) |
| Analog Input Pins | 6 |
| Clock Frequency | 16MHz |
| Bootloader Burning Interface | ICSP |
| Programming Interface | GND, 5V, RX, TX, DTR |
| Compatible | Arduino |
| Rayfile | //pan.baidu.com/s/12ndIu |

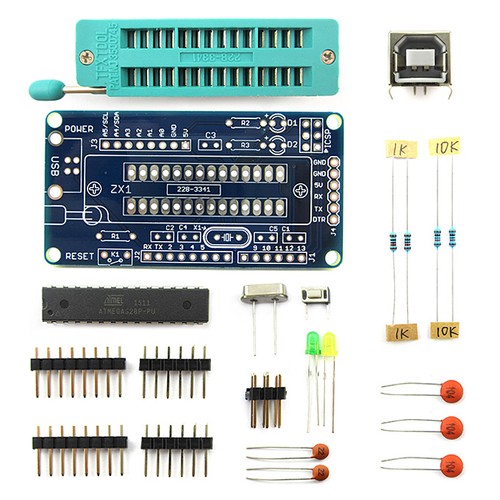

| Package Contents | |
| 1 x ATmega328P-PU 3 x 100nF ceramic capacitor 2 x 22pF Ceramic capacitor 2 x 10kOhm metal film resistor 2 x 1kOhm metal film resistor |
|
| 1 x 3mm green LED 1 x 3mmyellow LED 1 x 2X3P pin header 2 x 1X6P pin header 2 x 1X8P pin header |
|
| 1 x Button 1 x USB socket 1 x HC-49S 16MHz crystal oscillator 1 x Chip locking seat 228-3341 |
|
