Highlights
- Download Link: //pan.baidu.com/s/1iVIc6
Specification
| Brand | No |

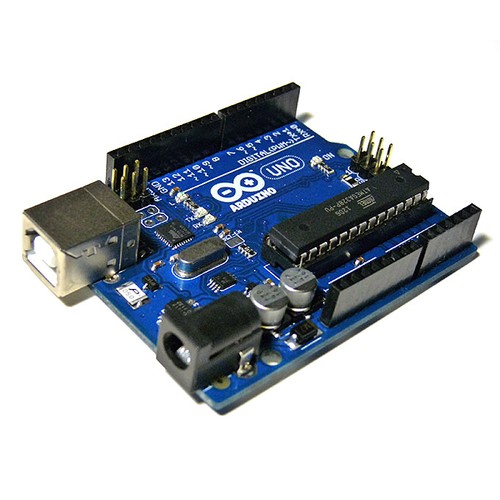

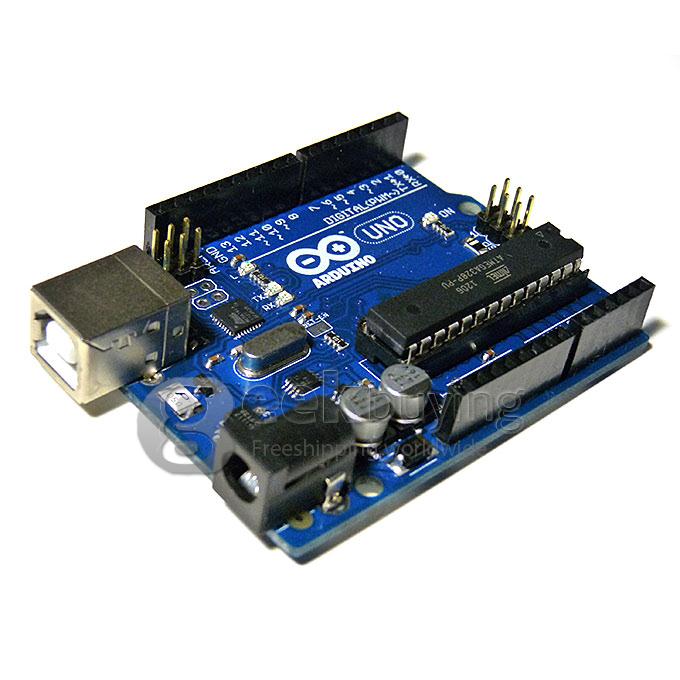

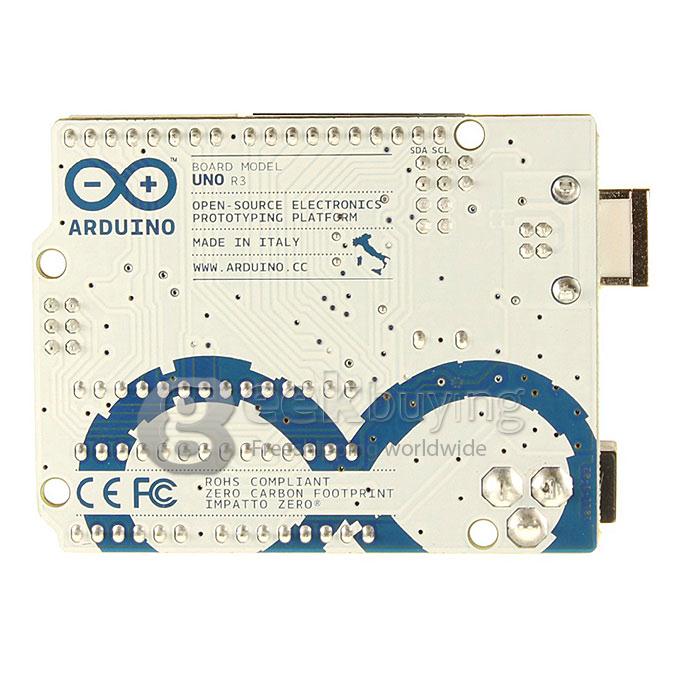

| Model | UNO R3 |
| Quantity | 1 |
| Color | Black + blue |
| Material | Heavy gold plate |
| Features | Using ATMega 16U2 microcontroller |
| Specification | Micro controller: ATmega328 Operating Voltage: 5V Input Voltage (recommended); 7-12V Input Voltage (limits): 6-20V Digital I/O Pins:14 (of which 6 provide PWM output) Analog Input Pins: 6 DC Current per I/O Pin: 40 mA DC Current for 3.3V Pin: 50 mA Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM: 2 KB (ATmega328) EEPROM:1 KB (ATmega328) Clock Speed: 16MHz |
| Application | Learning board; development board |
| English Manual/Spec | //arduino.cc/en/Main/Software |

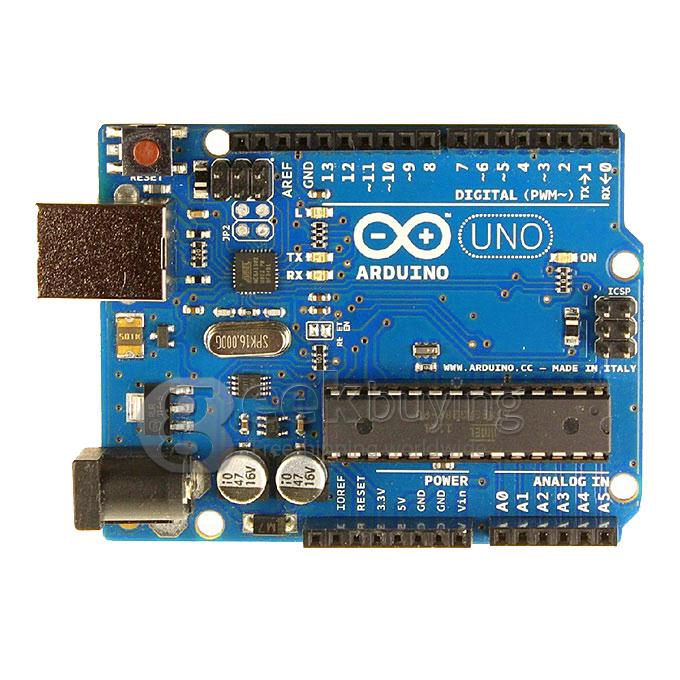

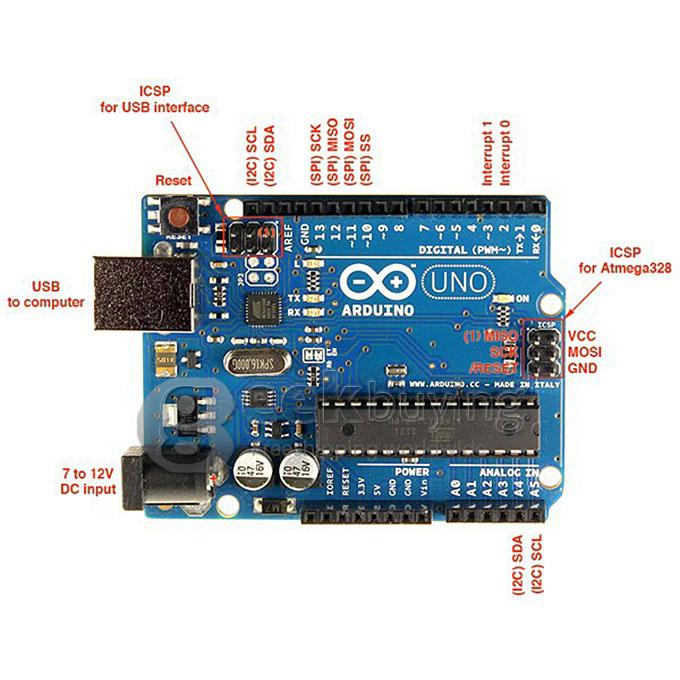

| Other | Stitching changes: beside the AREF sutural are two extra I2C pins (SDA and SCL which are copy of Analog 4 and 5, not additional I2C interface). Beside the RESET also are two extra pins, one is IOREF which supports the extension board stand load voltage. The stitching just shows extension board the current on-board voltage. The other one is backup placeholder pins. The RESET circuit is more stable. RESET button position is changed, and moved to near the USB interface of voids, which is more convenient. ATmega16U2 replaced 8U2, but it does not mean that the 16k flash of R3 can make your code run faster. This upgrade works to the USB interface chip, which enables UNO simulate USB HID in theory, such as MIDI/Joystick/Keyboard. |
| Dimensions | 2.72 in x 2.09 in x 0.55 in (6.9 cm x 5.3 cm x 1.4 cm) |
| Weight | 0.95 oz (27 g) |
| Package List | 1 x Development board 1 x USB cable |
