Highlights

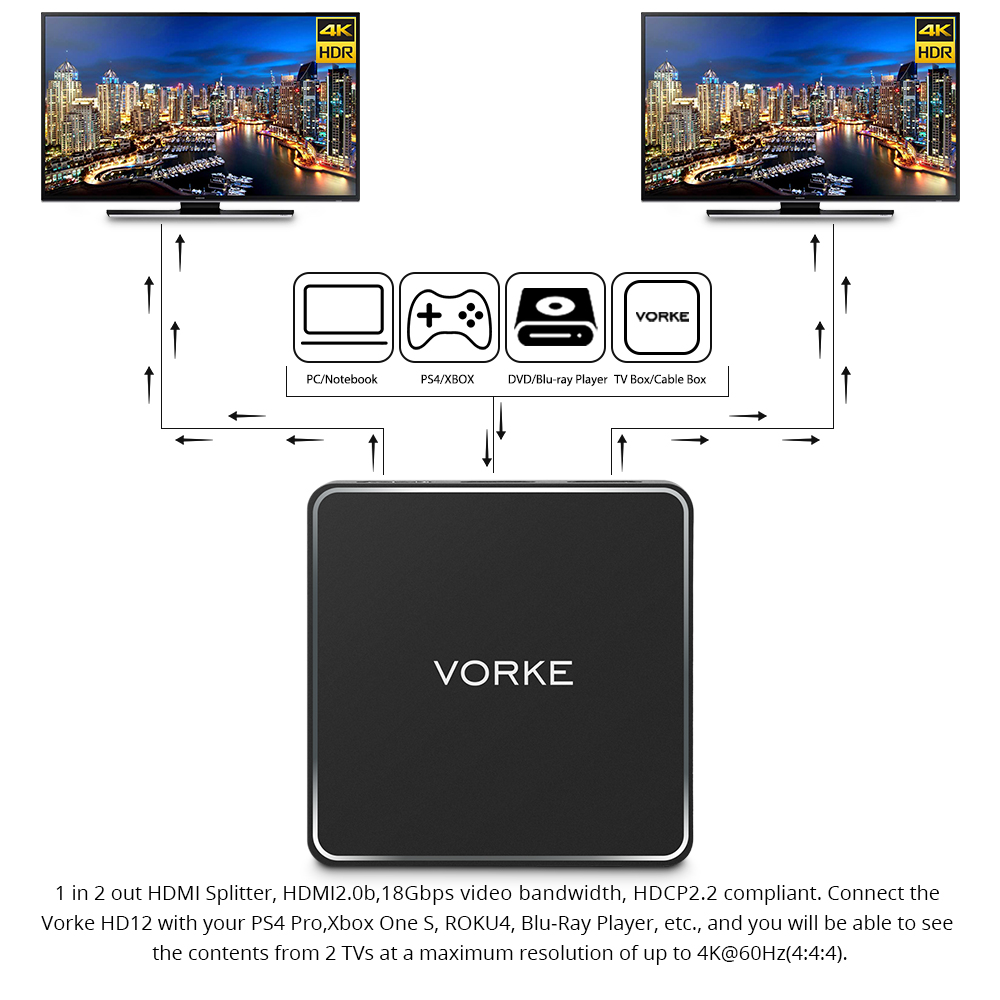

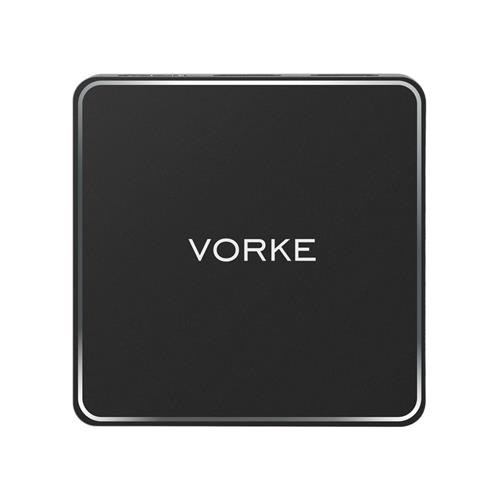

The VORKE HD12 1 X 2 HDMI 2.0 Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4Kx2K@60Hz (YUV4:4:4) resolution and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
1 Port HDMI 2.0 input, 2 Port HDMI 2.0 output
Compliant with HDMI2.0b, HDCP2.2
Support video format up to 4Kx2K@60Hz with 8bit YCbCr 4:4:4, 4Kx2K@30Hz with 12bit YCbCr 4:4:4
Support 3D frame sequential video format up to 1080p@60Hz
Support high resolution VESA mode video format up to QSXGA@60Hz
Supports PCM, Dolby ATOMS,Dolby True HD, DTS-X,DTS-HD Master Audio
Specification
|
Video Bandwidth |
600MHz/18Gbps |
|
Input Ports |
1 x HDMI 2.0 (Female type) |
|
Output Ports |
2 x HDMI 2.0 (Female type) |
|
Output Resolution |
480i~1080p 50/60Hz,4Kx2K@60Hz with 8bit YCbCr 4:4:4 and 12bit YCbCr 4:2:2 , |
|
ESD Protection |
±8 kV (air-gap discharge) |
|
±4 kV (contact discharge) |
|
|
Operating Temperature |
0 °C~40 °C/ 32 °F~104 °F |
|
Storage Temperature |
−20 °C ~ 60 °C/−4 °F ~140 °F |
|
Dimensions |
80mm (W) × 80 mm (D) × 19 mm (H) |
|
Power Supply |
5 V/1A DC |
|
Weight |
150g |
|
What's in the box |
HD12 HDMI Splitter |
|
5V/1A DC power adaptor |
|
|
User manual |
