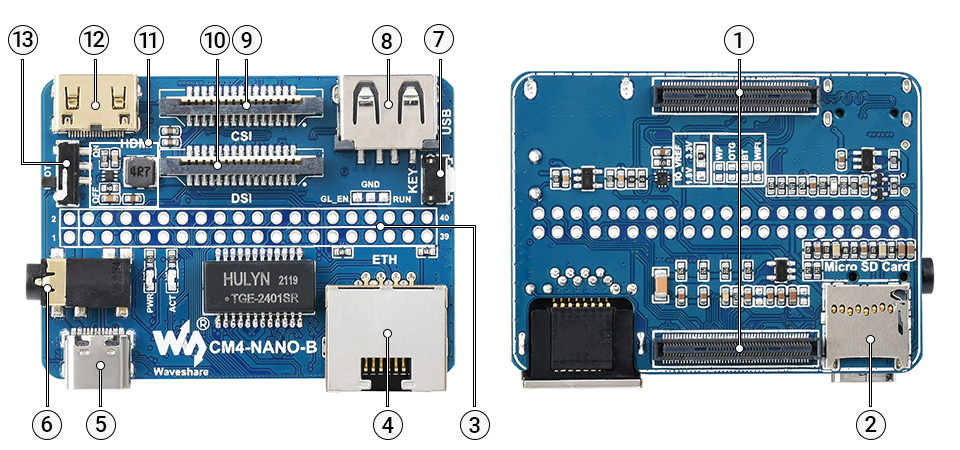

Highlights
1. CM4 socket
suitable for all variants of Compute Module 4
2. Micro SD card slot
for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
3. 40PIN GPIO header
for connecting sorts of HATs
4. Gigabit Ethernet RJ45 connector
5. Power supply / Programming
5V power supply, or used for eMMC burning
6. 3.5mm audio jack
7. User button
8. USB2.0 connector
for connecting sorts of USB devices
9. CSI connector
MIPI CSI camera interface
10. DSI connector
MIPI DSI display interface
11. MP1658
12. Mini HDMI connector
supports 4K 30fps output
13. BOOT switch
ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

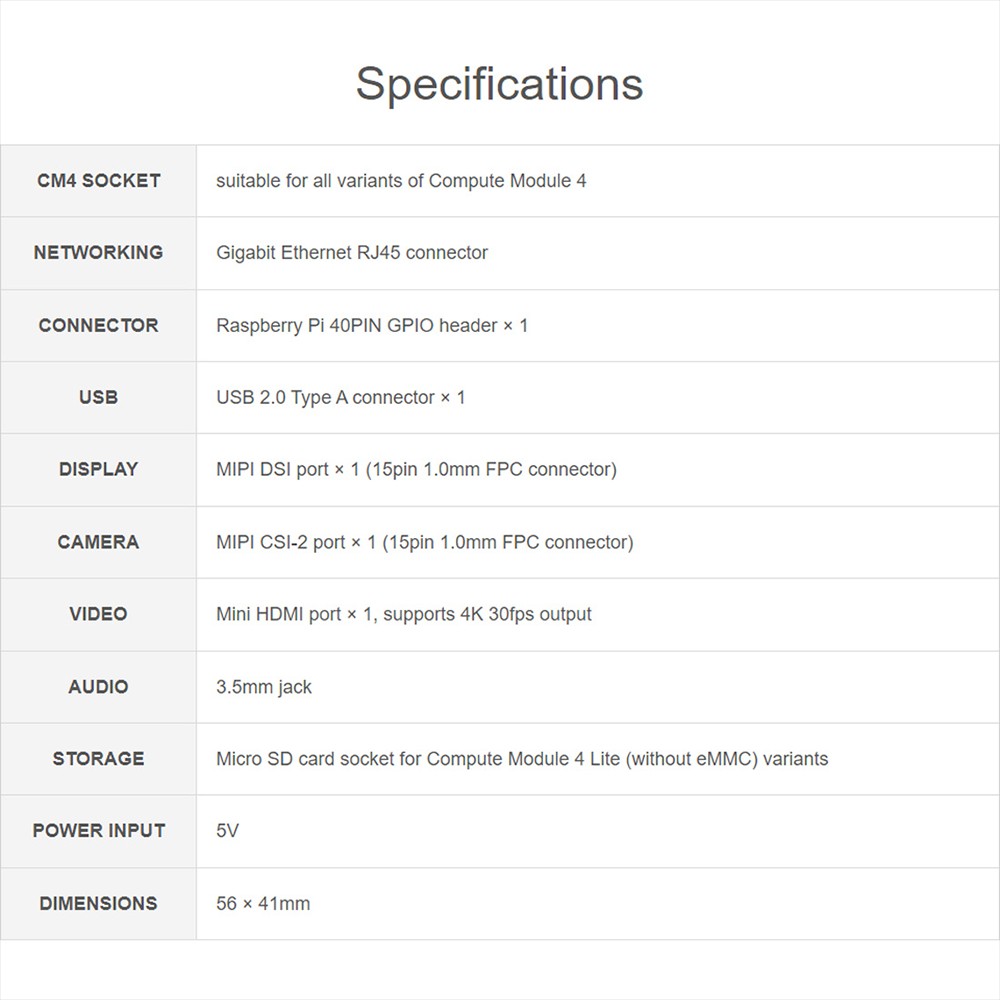

Specification
| General |
Brand: Waveshare |
| Specification | CM4 SOCKET: suitable for all variants of Compute Module 4 NETWORKING: Gigabit Ethernet RJ45 connector CONNECTOR: Raspberry Pi 40PIN GPIO header USB: USB 2.0 Type A interface DISPLAY: MIPI DSI port × 1 (15pin 1.0mm FPC connector) CAMERA: MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector) VIDEO: Mini HDMI port × 1, supports 4K 30fps output AUDIO: 3.5mm jack STORAGE: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants POWER INPUT: 5V |
| Weight & Size |
Product Weight: 0.019kg |
| Package Contents |
1 x CM4-NANO-B |
