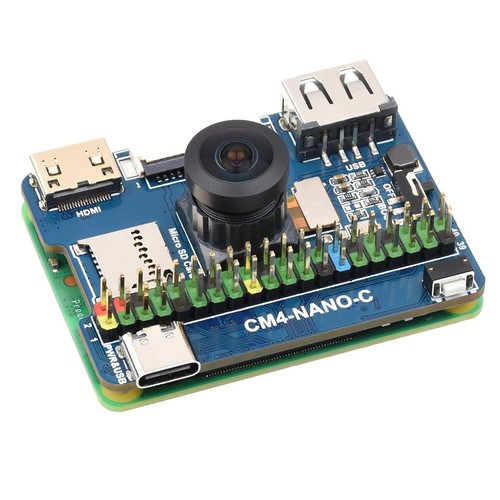

Highlights
1. CM4 socket
suitable for all variants of Compute Module 4
2. Mini HDMI port
supports 4K 30fps output
3. DSI port
MIPI DSI display interface
4. USB2.0 port
for connecting sorts of USB devices
5. TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
6. Power supply / Programming
5V power supply, or used for eMMC burning
7. 40PIN GPIO header
for connecting sorts of HATs
8. IMX219-D160 Camera
8MP, 160° FOV
9. User button
Connect to GPIO21
10. BOOT switch
ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or TF card)
11. ACK Indicator
CM4 working status
12. PWR Indicator
CM4 power status
Specification
| General |
Brand: Waveshare |
| Specification | CM4 SOCKET: suitable for all variants of Compute Module 4 CONNECTOR: Raspberry Pi 40PIN GPIO header USB: USB 2.0 Type A port DISPLAY: MIPI DSI port × 1 (15pin 1.0mm FPC connector) CAMERA: IMX219-D160 (8MP, 160°FOV) VIDEO: Mini HDMI port × 1, supports 4K 30fps output STORAGE: TF card socket for Compute Module 4 Lite (without eMMC) variants POWER INPUT: 5V |
| Weight & Size | Product Weight: 0.002kg Product Size(L x W x H): 5.5x4x2.1 cm Package Size(L x W x H): 8x7x3 cm |
| Package Contents |
1 x CM4-NANO-C |
