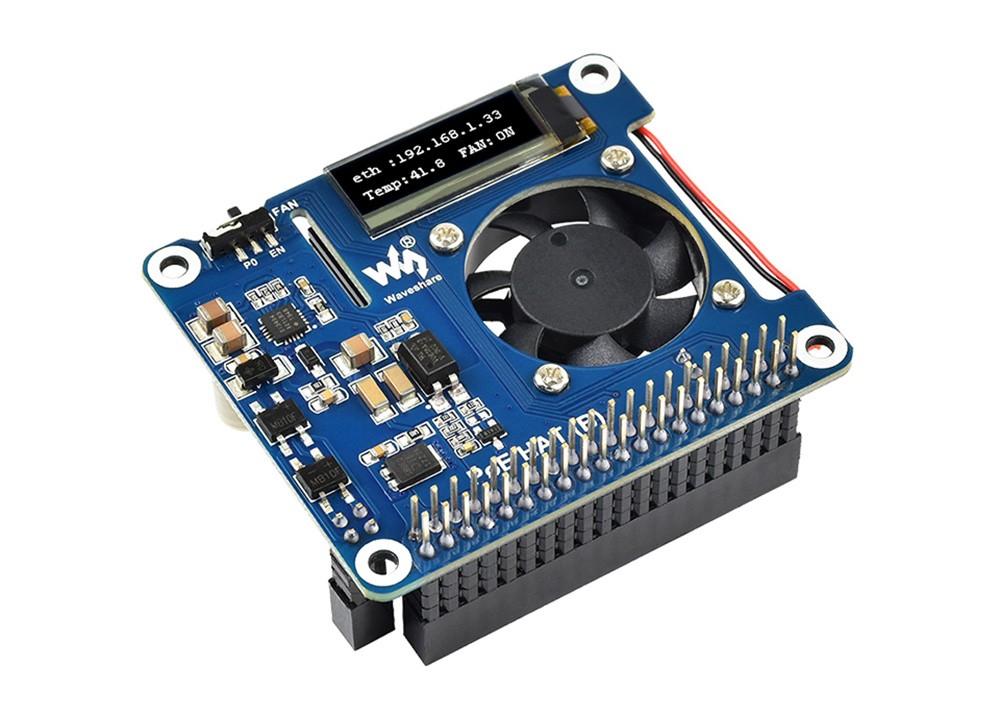

    Waveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE Network

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping

    Highlights

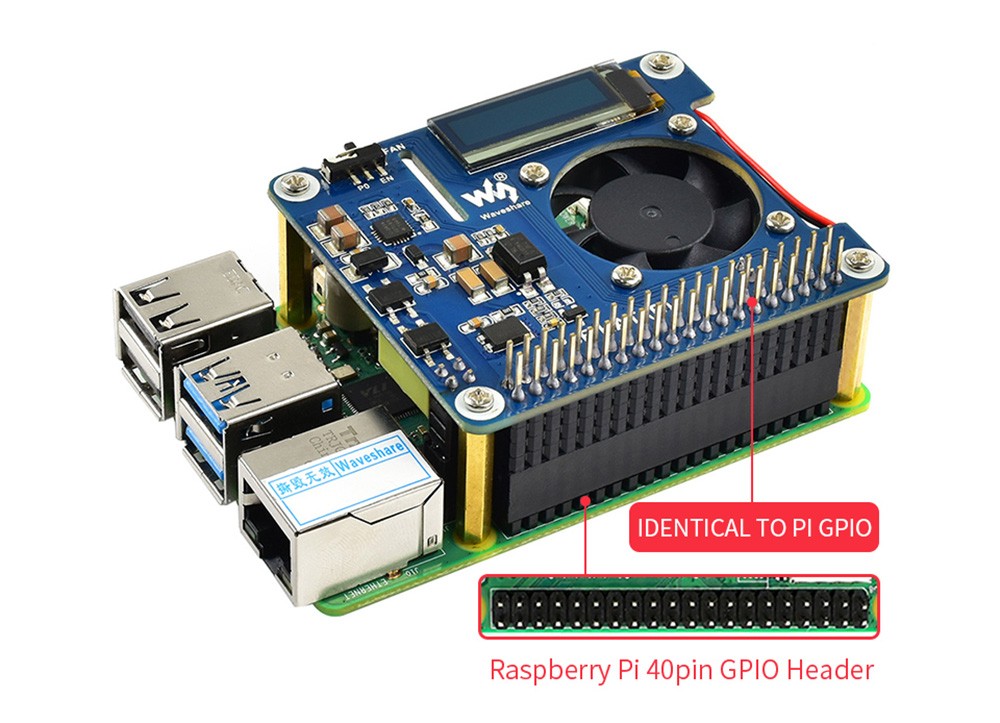

    Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B

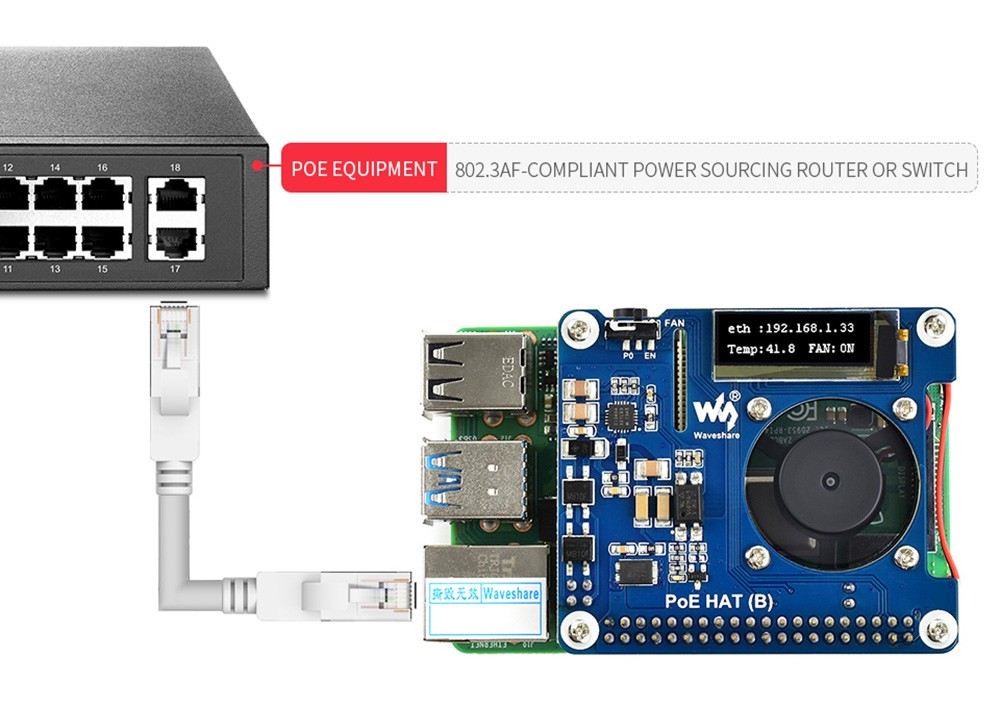

    PoE (Power Over Ethernet) capability, 802.3af-compliant
    Fully isolated switched-mode power supply (SMPS)

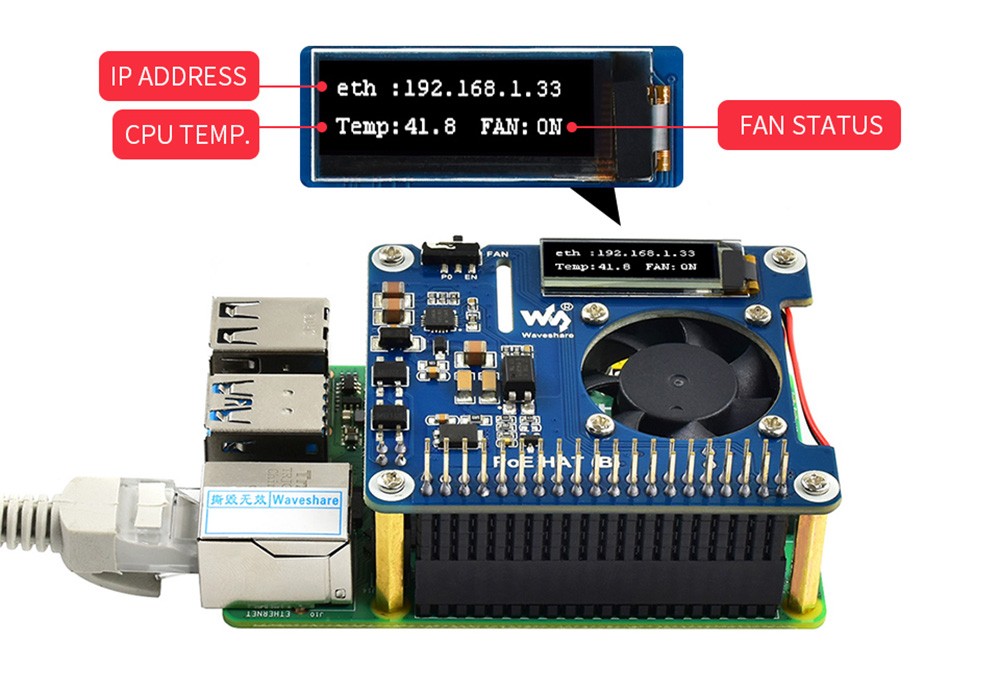

    0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time
    Onboard cooling fan, allows auto running on powerup OR programmable control, configured by the switch

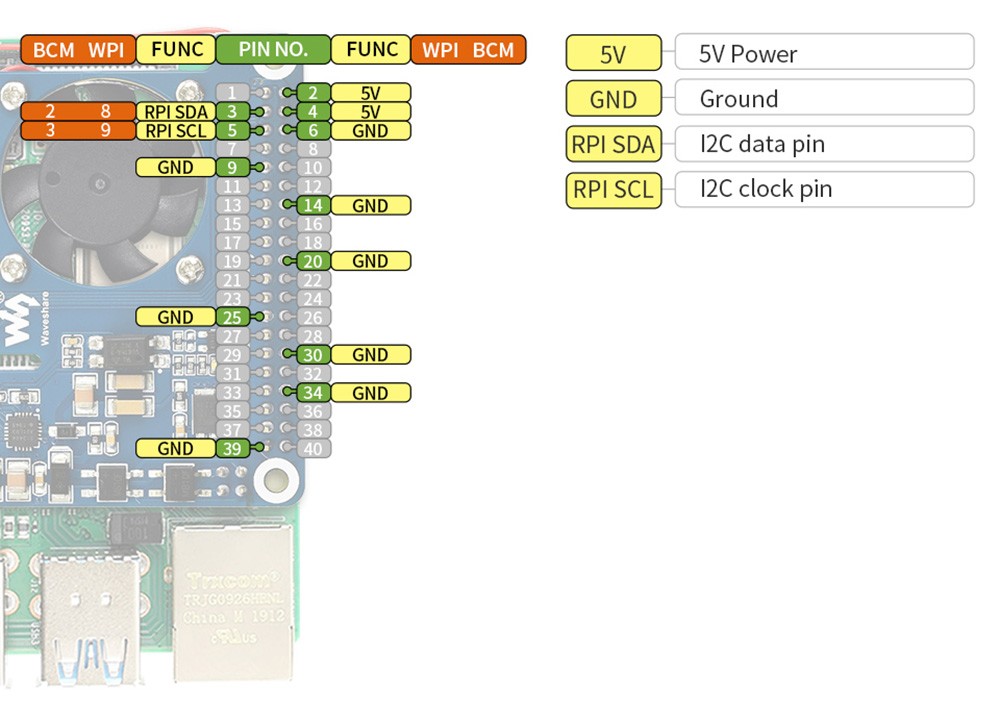

    Integrates PCF8574 IO expander for I2C bus, providing pin P0 for direct fan control, and more spare IO pins

    Waveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE NetworkWaveshare PoE HAT (B) for Raspberry Pi 3B+/4B, 49*65mm, 802.3af PoE Network

    Specification

    General

    Brand: Waveshare
    Type: Raspberry Pi
    Model: PoE HAT (B)
    Color: Blue
    Specification POW Power Input: 37-57V DC in
    POW Power Output: 5V 2.5A DC out
    Network Standard: 802.3af PoE
    OLED Size: 0.91 inch
    OLED Pixels: 128 x 32
    OLED Driver: 1306
    OLED Display Color: White
    Weight & Size Product Weight: 0.052kg
    Package Weight: 0.052kg

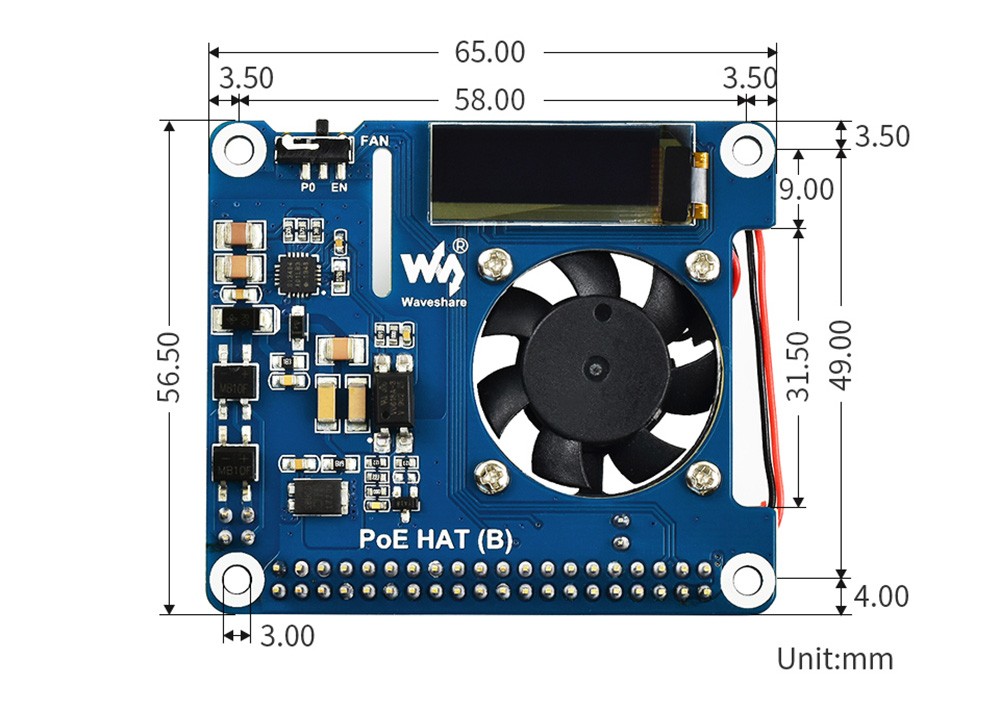

    Product Size(L x W x H): 6.5x5.65x2.3 cm
    Package Size(L x W x H): 11.5x6.5x3.3 cm
    Package Contents

    1 x PoE HAT (B)
    1 x Standoffs Pack
