Highlights

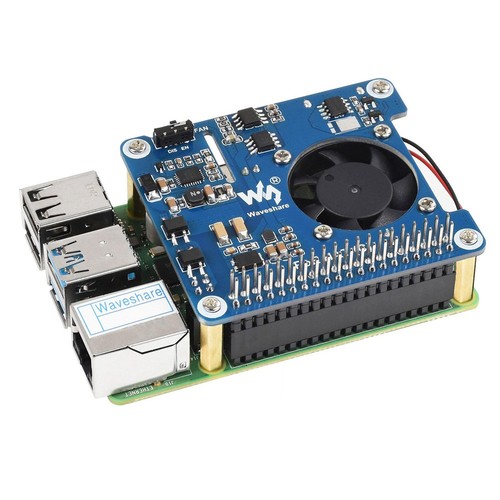

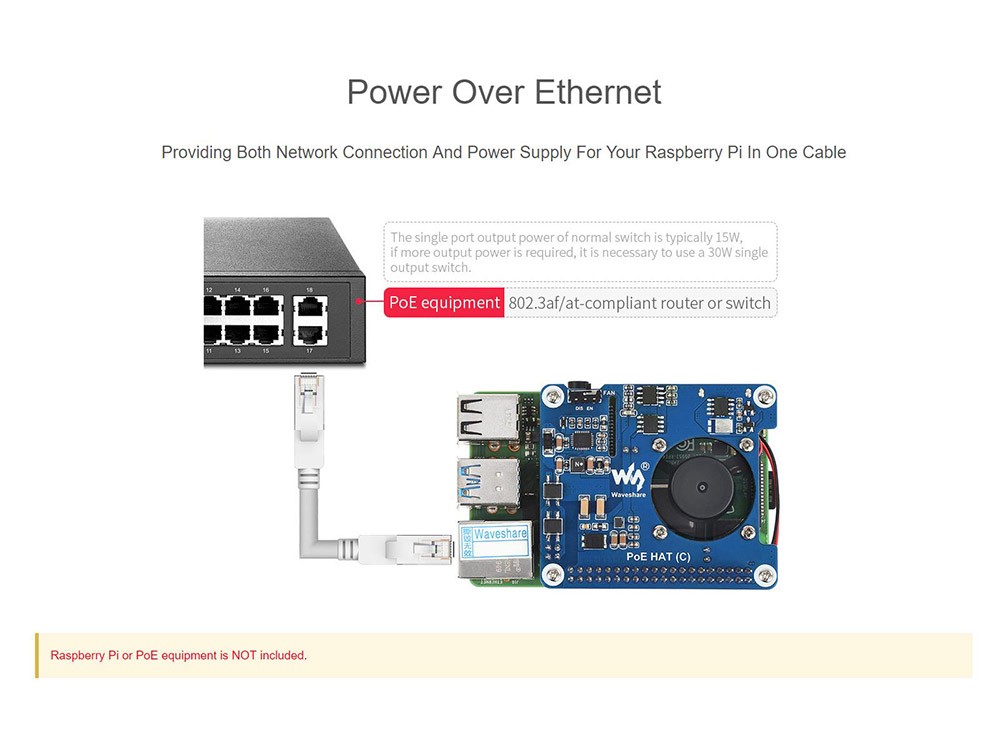

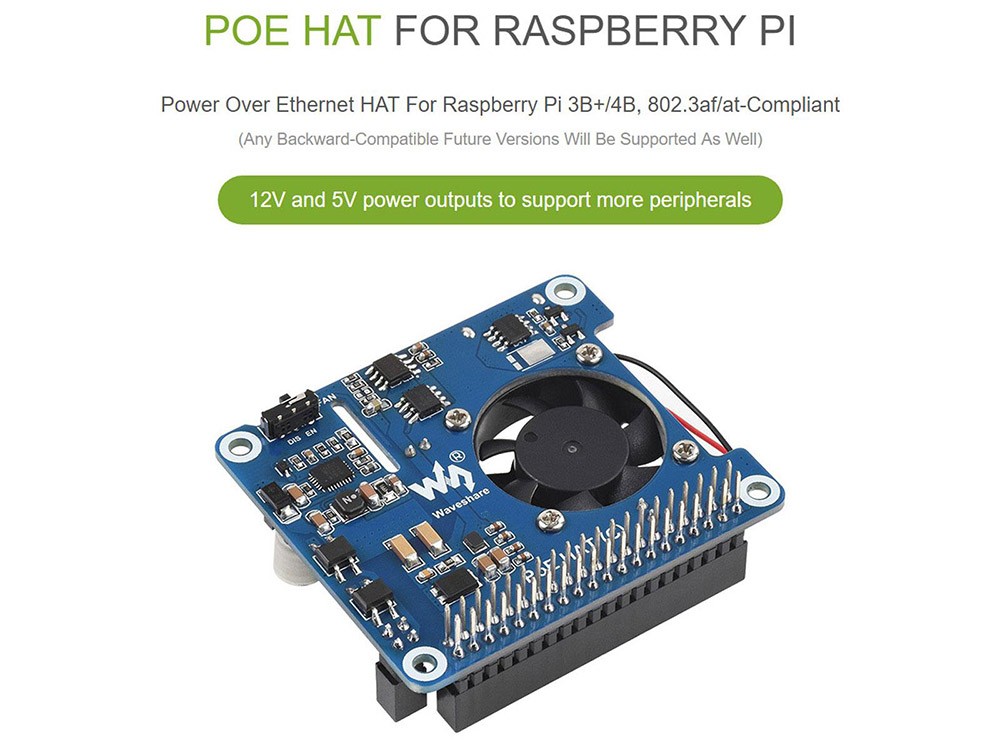

The PoE HAT (C) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

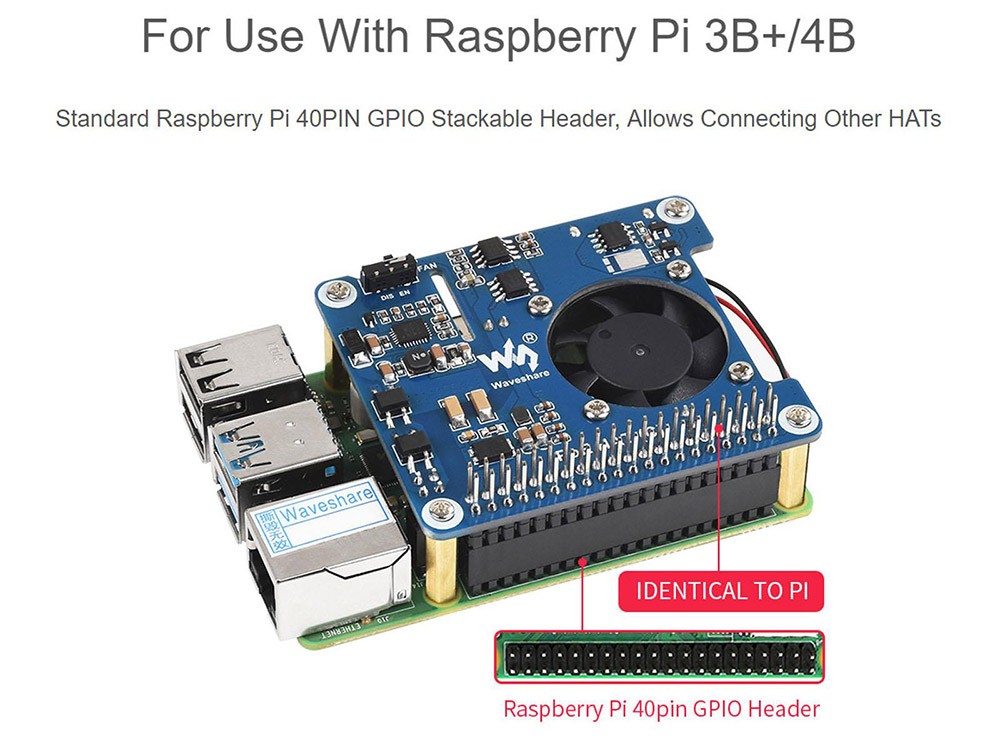

- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
- PoE (Power Over Ethernet) capability, IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)

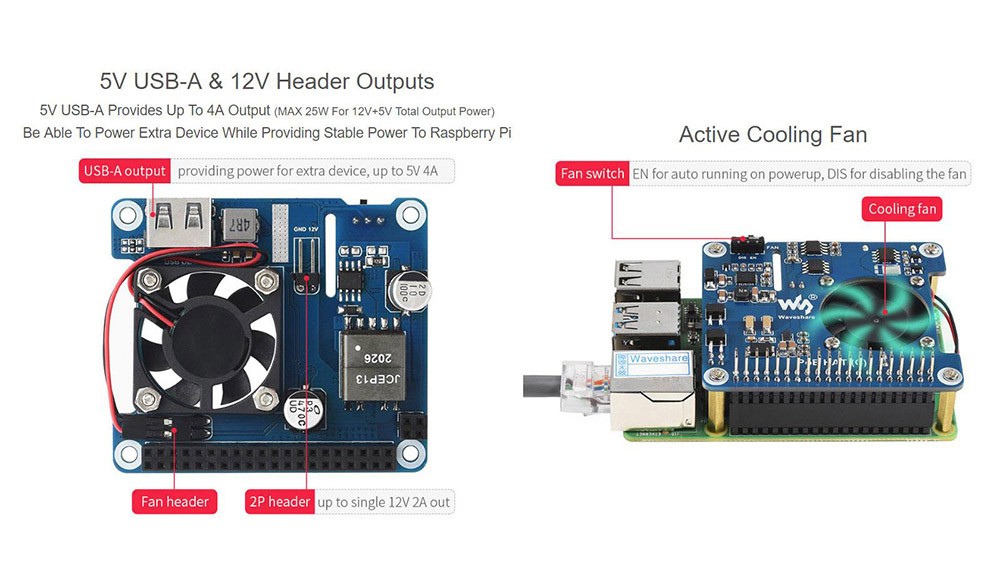

- While providing stable power for the Raspberry Pi, there's also a USB-A port for powering an extra external device
- Onboard high speed active cooling fan, better heat dissipation

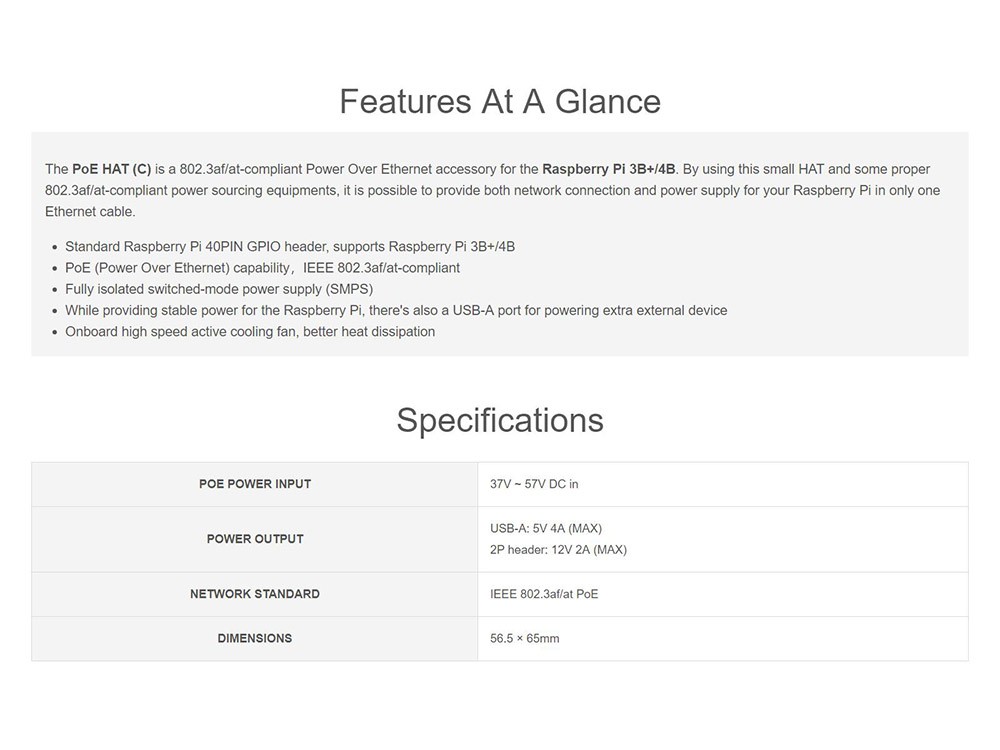

Specification
| General |
Brand: Waveshare |
| Specification | POE POWER INPUT: 37V - 57V DC in POWER OUTPUT: USB-A: 5V 4A (MAX) 2P header: 12V 2A (MAX) NETWORK STANDARD: IEEE 802.3af/at PoE |

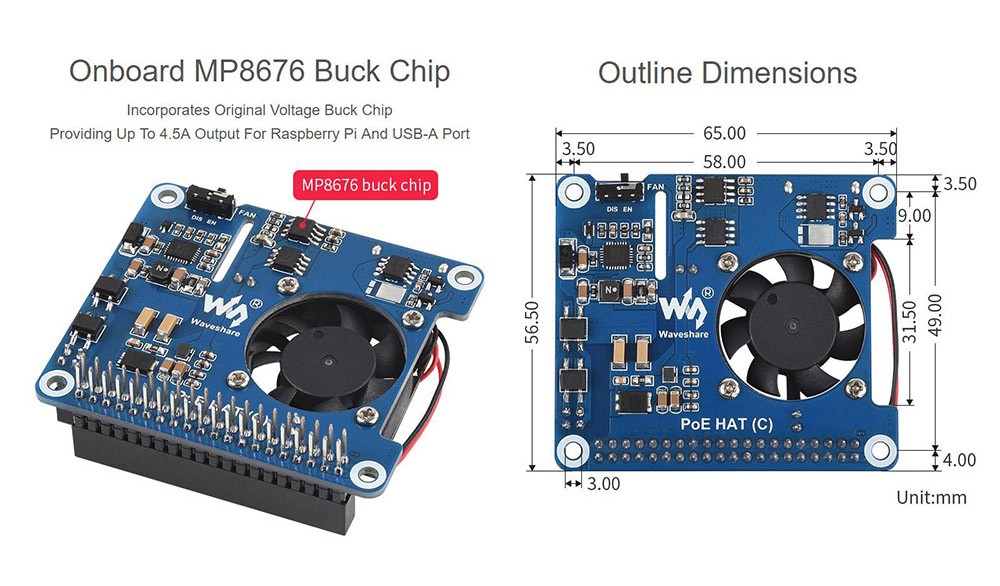

| Weight & Size | Product Weight: 0.054kg Package Weight: 0.055kg Product Size(L x W x H): 5.65x6.5x1.8cm Package Size(L x W x H): 8x7x3cm |
| Package Contents |
1 x PoE HAT (C) |
