Highlights
- Wireless Transceiver Integrated
- Fantastic with Three Controlling Groups
- Supports Wireless Master Function:

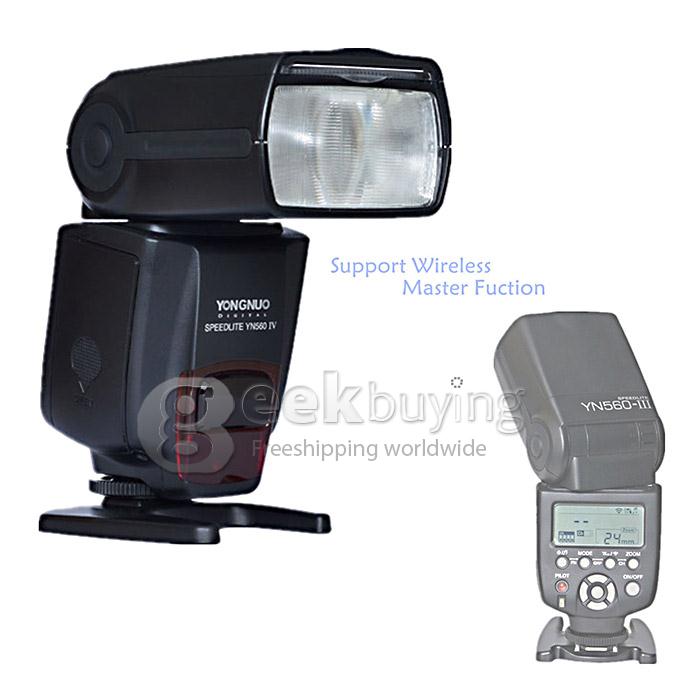

- The YN560 IV can be used as master unit, provides 3 independent groups with controlling ability, realizing remote control the flash mode, flash output and focal length of the YN560 IV and YN560 III.
- Supports Wireless Slave Function, fully supports YN560-TX / RF-603(I/II) / RF-602 Wireless transmitter:
- One YN560 IV can respectively receive the wireless signal from YN560 IV / YN560-TX / RF-603 (I/II) / RF-602,with optional 16 channels; when the YN560 IV and YN560-TX used as transmitter, it can realize remote control the parameter settings.
- Multiple Trigger Synchronous Mode Supported:
- The YN560 IV can triggered through the set top of the camera, 2.4G wireless triggering, S1 and S2 pre flash cancel mode.
- Settings Save Automatically, Supports Custom Settings (Fn):
- The parameters on the flash will automatically save when the flash turned off; the users can customize setting the flash function as needed.
- GN58 @ ISO100, 105mm:
- High Guide Number 2.4G wireless speedlite, supports M/Multi/-- mode.
- Sound Prompting System:
- When the sound prompting system is enabled, the different sound ways will prompt different operating state of the flash so as to allow you focus on shooting.
- Support Electric Zooming Function:
- The flash coverage can be altered between 24~105mm through the [ZOOM] button.
- Ultrafast Charging Recycle System, Supports External Power Supply
- Equipped with Big Size LCD Display Screen, Standard PC Synchronous Interface
Specification
| Model | Yongnuo YN560-IV |
| Circuit design | Insulated Gate Bipolar Transistor (IGBT) |
| Guide No. | 58 (ISO 100, 105mm) |
| Flash mode | M.MULTI |
| Triggering Mode | Camera Set-up,S1,S2,RX,TX |
| Zoom range | 24, 28, 35, 50, 70, 80, 105mm |
| Vertical rotation angle | -7~90 degrees |
| Horizontal rotation angle | 0~270 degrees |
| Power supply | 4×AAsize batteries (Alkaline or Ni-MH are usable) |
| Lighting times | 100~1500 times (AA alkaline cell used) |
| Recycle time | approx 3s (AA alkaline cell used) |
| Color temperature | 5600k |
| Flash time | 1/200s~1/20000s |
| Flash control | 8 levels of output control (1/128~1/1), 29 levels of fine tuning |
| External interface | hot shoe, PC port and eternal charging port |
| wireless trigger distance | 100m(2.4G wireless);20-25m indoor,10-15 outdoor(Optical control) |
| Additional features | the electronic flash head zooming,Sound prompt,PC syn,Power saving mode,Overheating protection and saving settings. |
| Dimensions | 60×190×78mm (Extended state) |
| Net weight | 380g |
What's in the box?
- 1 x Yongnuo YN560-IV Speedlight
- 1 x Protecting Bag
- 1 x Mini Stand
- 1 x Manual (English)
