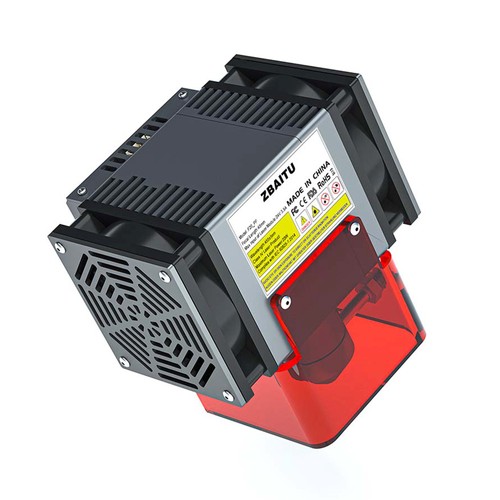

ZBAITU F20-VF 20W Laser Module, Air Assist, Fixed-focus, 0.08x0.08mm Spot, 0.01mm Accuracy, Dual Fans

Highlights

4-in-1 Diode High Energy and Faster Speed

With the latest generation of four 5W laser coupling technology, it is able to cut off 12-15mm thick plywood, the 8mm thick black acrylic board with only one pass, and even cut the 0.05mm thick stainless steel sheet.

Updated Air Assist

The air intake has been increased from the original 3.5mm to 7mm, which can make the air intake meet the needs of cutting and engraving, and bring thinner cutting lines and faster cutting speed.

Fixed-focus Laser

No need to adjust the focus before engraving. The laser power of the fixed-focus laser is more stable than the zoom laser, and the focusing spot area is only 1/3 of other ordinary lasers.

Dual Fans

The double-sided fan can effectively reduce the temperature when the laser is working, protect the driver of the laser, and prolong the service life of the laser.

Strong Compatibility

The F20-VF laser module can be installed on any engraving machine model of ZBAITU laser engraver M37, M81, or A40, and it can be used without any additional settings.

Comes with a 3 adapter cable in the box, this laser module is compatible with Ortur, NEJE, Two-Trees, Xtool, and Atomstack engraver as well.

Various Materials to Cut and Engrave

Engravable materials are including wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening utility knife. Cuttable materials are including cardboard, non-woven fabric, veneer, acrylic, and some thin plastic board.

Specification
