Highlights

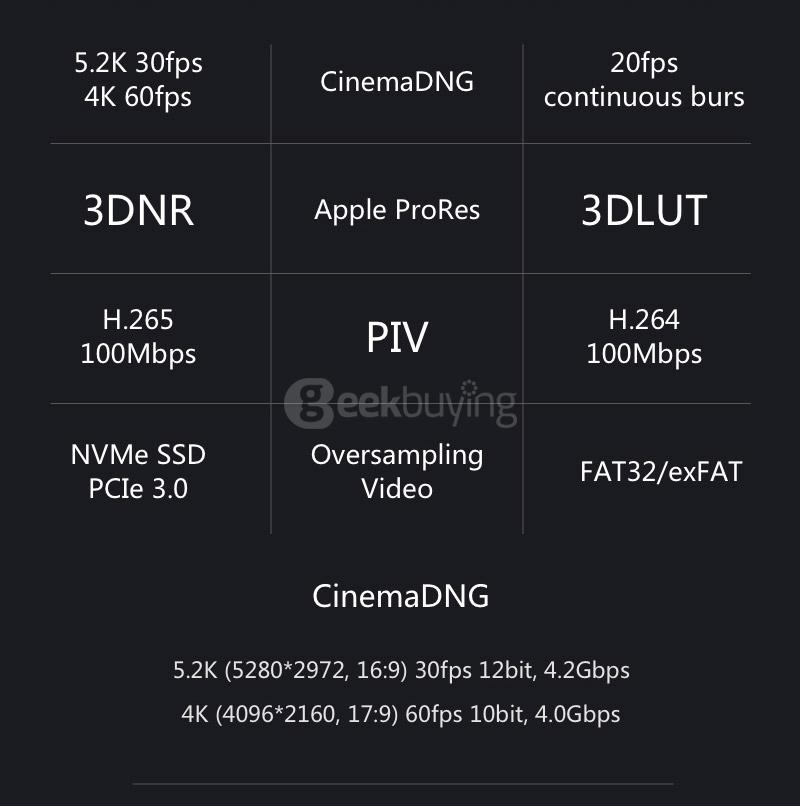

CineCore 2.0 Image Processing

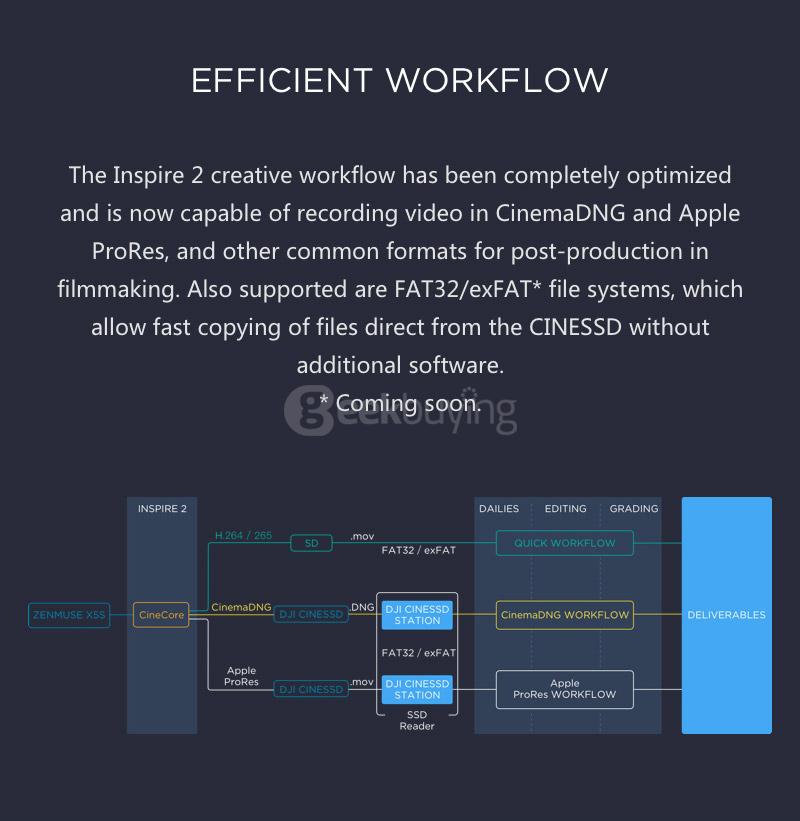

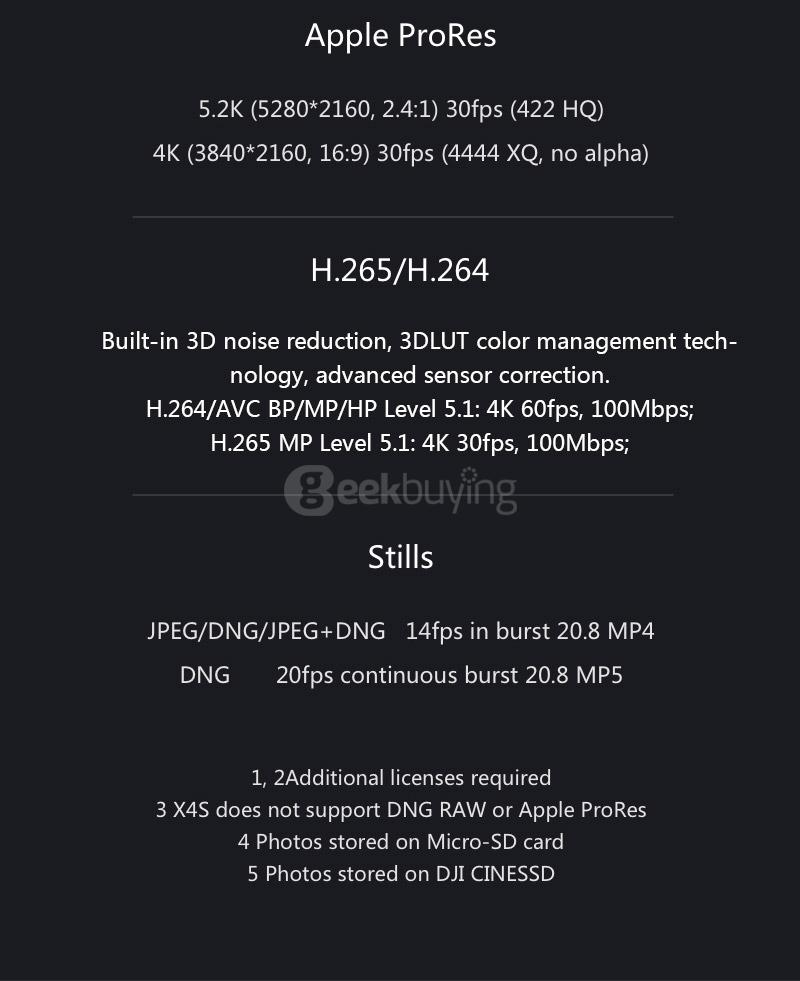

Integrated into the Inspire 2 is the brand new CineCore 2.0 image processing system, capable of recording 5.2K videos in CinemaDNG*1, Apple ProRes*2 and more. CineCore 2.0 is built into the aircraft nose and works with any camera connected through the dedicated gimbal port.(Currently compatible with X4S*3 and X5S).
2-Axis Stabilized FPV Camera
Added to the front of the Inspire 2 is a 2-axis gimbal stabilized global shutter FPV camera with a controllable pitch range of 0° to -60°. Combined with the stabilization of its brushless gimbal and use Lightbridge HD video transmission technology.
Advanced Obstacle Sensing
Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph at a controllable attitude angle of 25. Upward facing infrared sensors scan obstacles 16' above, adding protection when flying in enclosed spaces. Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.

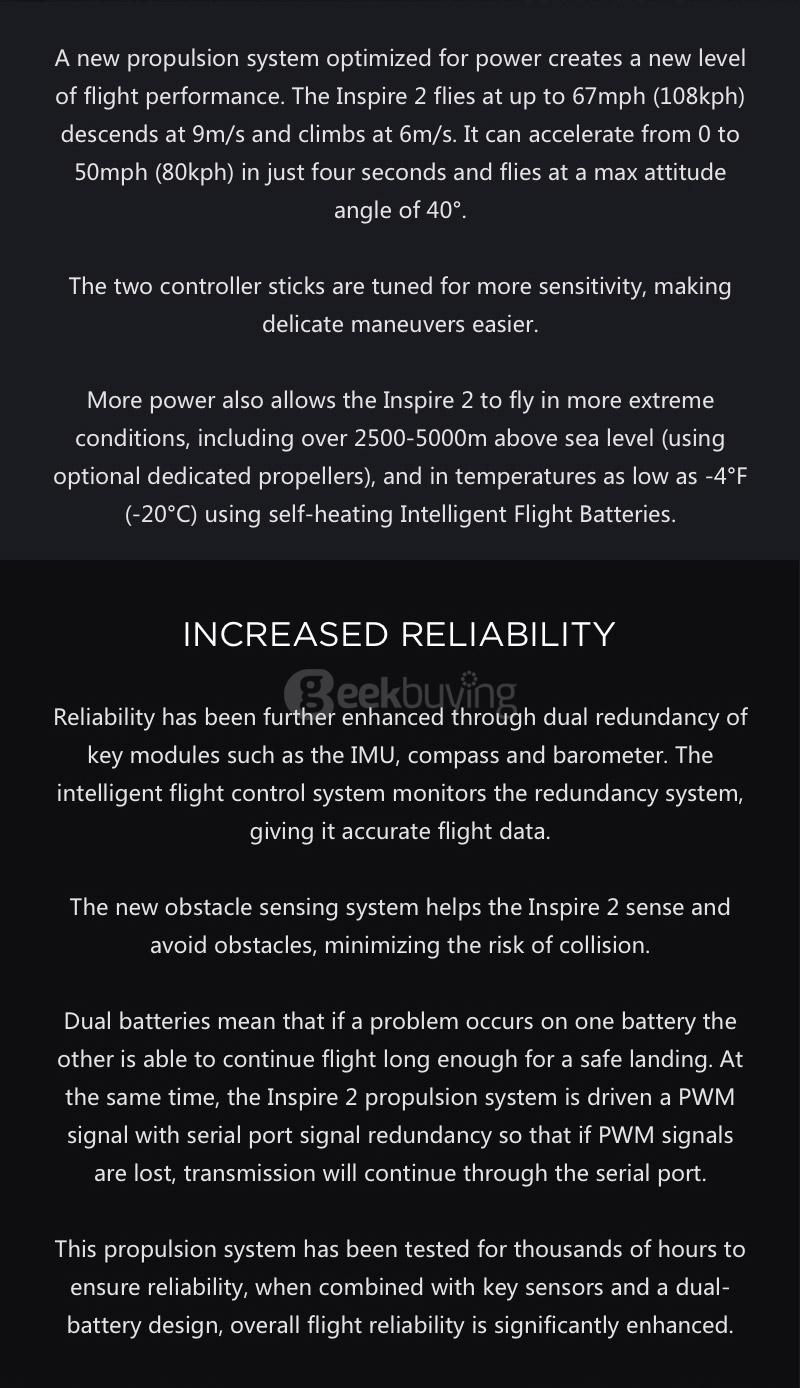

Powerful Flight Performance
The Inspire 2 flies at up to 67mph (108kph) descends at 9m/s and climbs at 6m/s. It can accelerate from 0 to 50mph (80kph) in just four seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for more sensitivity, making delicate maneuvers easier.
Dual Battery Design
A dual battery system prolongs the flight time to a maximum of 27 minutes, Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.
360° QuickSpin
The QuickSpin function can be activated manually or automatically. In manual, set a custom button as QuickSpin in DJI GO, then when the gimbal comes close to reaching its rotation limit, press the button to spin the Inspire 2 360° in the same direction to free up gimbal movement. Automatic QuickSpin is easier to use, and when enabled, the Inspire 2 will automatically spin when the gimbal rotates over 270°. The Inspire 2 flies normally during a spin.
Specification
| General | Brand: DJI Model: Inspire 2 Quantity: 1 Piece |
| Quadcopter | Weight: 7.25 lbs (3290 g, including two batteries, without gimbal and camera) Diagonal Distance(propeller excluded): 18 inch (605 mm, Landing Mode) Max Takeoff Weight: 8.82 lbs (4000 g) Max Takeoff Sea Level: 1.55 mi (2500 m); 3.1 mi (5000 m with specially-designed propeller) Max Flight Time: Approx. 27 min (with Zenmuse X4S) Max Tilt Angle: P-mode: 35°(Forward Vision System enabled: 25°);A-mode: 35;S-mode: 40° Max Ascent Speed: P-mode/A-mode: 16.4 ft/s (5 m/s); S-mode: 19.7 ft/s (6 m/s) Max Descent Speed:Vertical: 13.1 ft/s (4 m/s); Tilt: 13.1-29.5 ft/s (4-9 m/s) Default tilt is 13.1 ft/s (4 m/s), can be set in-app. Max Speed: 67 mph (108 kph) GPS Hovering Accuracy:Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) ; Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled) Operating Temperature:14° to 104° F (-10° to 40° C) |
| Downward Vision System | Velocity Range: <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) Altitude Range: <32.8 feet (10 m) Operating Range: <32.8 feet (10 m) Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux) Ultrasonic Sensor Operating Range: 0.33-16.4 feet (10-500 cm) Ultrasonic Sensor Operating Environment: Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
| Upward Infrared Sensor | Obstacle Sensing Range:0-16.4 feet (0-5 m) FOV:±5° Operating Environment:Large-size non-reflective obstacles |
| Forward Vision System | Obstacle Sensing Range: 2.3-98.4 feet (0.7-30 m) FOV: Horizontal: 60°; Vertical: 54° Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Intellgent Flight Battery (Mode: TB50-4280MAH-22.8V) & Charger | Capacity: 4280 mAh Voltage: 22.8 V Battery Type:LiPo 6S Energy:97.58 Wh Net Weight:515 g Charging Temperature:41°to 104° F (5° to 40° C) Operating Temperature:14° to 104° F (-10° to 40° C) Max Charging Power:180 W Charger (Mode: IN2C180): Voltage:26.1 V Rated Power:180 W |
| Remote Controller | Operating Frequency:2.400-2.483 GHz; 5.725-5.850 GHz Max Transmitting Distance:2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) (unobstructed, free of interference):5.8 GHz: 4.3 miles (7 km, FCC);1.2 miles (2 km, CE);3.1 miles (5 km, SRRC) EIRP:2.4 GHz: 26 dBm (FCC);17 dBm (CE);20 dBm (SRRC). 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) Battery: 6000mAh 2S LiPo Output Power: 9 W (Not supply power for mobile device) USB Supply Power: iOS: 1 A @ 5.2 V (Max) ; Android: 1.5 A @ 5.2 V (Max) Operating Temperature: 14° to 104° F (-10° to 40° C) |
| Gimbal | Angular Vibration Range: ±0.01° Controllable Range: Pitch: -130°to +40°; Roll: ±20; Pan: ±320° Max Controllable Speed: Pitch: 90°/s;Roll: 90°/s;Pan: 90°/s |
| Package Contents | 1 X Aircraft Body 1 X Remote Contraoller 2 X Intelligent Flight Battery 4 X Propellers 1 X Battery Charger 1 X Charging Hub 1 X Power Cable 1 X USB Cable(With Double A Ports) 1 X Micro SD Card(16GB) 1 X Vision System Calibration Plate 3 X Gimbal Damper 1 X Propeller Mounting Plates 1 X Carrying Case 4 X Battery Insulation Sticker 1 X Manuals |
