Highlights

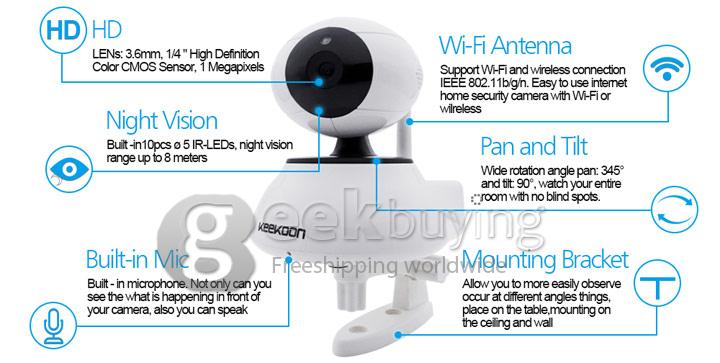

- Two Ways Audio (built-in microphone and speaker)

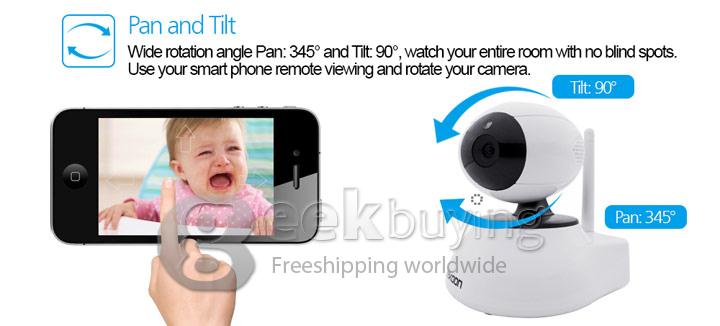

- Pan/Tilt Control (Pan: 345 degree / Tilt: 90 degree)
- IR Cut-off Filter for true color (no color cast)
- Night Vision (up to 8 meters) via auto IR-LED illumination
- Infrared Motion Detection (with email notification and image upload via FTP)
- SD Card Slot (support max storage 32G SD card for video and picture
- Supports IE 6 or above, Safari, Firefox, Google Chrome and any other standard browsers to view
- Support image full screen and image snapshot
- Multi-level users’ management and passwords definition
- Multi-Protocol support and Transportation (such as TCP, IP, SMTP, HTTP and etc)
- Support WEP/ WPA/ WPA2 Encryption
Specification
Model |
KK001 |
|
Image sensor |
Image sensor |
1/4 Color CMOS |
|
Lens |
3.6MM |
|
Image |
1 Mega pixels |
|
Night vision |
8M |
|
AWS/AGC/AES/ exposure |
Auto |
|
Mini. Illumination |
0.1Lux |
Audio |
Audio |
Two-way audio |
|
Input |
Built-in speaker |
|
Output |
Built-in Microphone |
Video |
Image Format |
PAL/NTSC |
|
Image Compression |
H.264 |
|
Image Frame Rate |
30fps |
|
Resolution |
1280x720(720P),640×480(VGA), 320×240(QVGA) |
PTZ |
Pan/tilt |
Horizontal 345; Vertical 90° |
Network |
Wi-Fi |
IEEE 802.11b/g/n |
|
Supported Protocol |
TCP/UDP/IP/ARP/ICMP/DHCP/DNS/HTTP/FTP /SMTP/NTP/PPPOE/UPNP/DDNS/RTSP |
Alarm |
Motion Detection |
Send image pictures to Email/FTP within the Provided time |
General |
SD Card |
32GB SD card slot |
|
Friendly use |
Plug and Play function |
|
Web browser |
IE 6.0 or above version, Mozilla Firefox, Safari, Opera, Chrome ,etc |
|
Mobile view |
Support Android, Iphone and other smart mobile phone, Iphone push |
|
Power |
DC 5V 2.0A |
|
Power consumption |
10W/6W (Infrared on/off) |
|
Operating temperature |
0 to+55 °C |
|
Storage temperature |
-10 to+60 °C |
|
Operating humidity |
20- 80%RH |
|
Storage humidity |
0- 95%RH |
|
Dimensions |
210mm x155mm x115mm(LxW xH) |
|
Net Weight |
540g(Main body) |
Certification |
CE; FCC; RoHS |

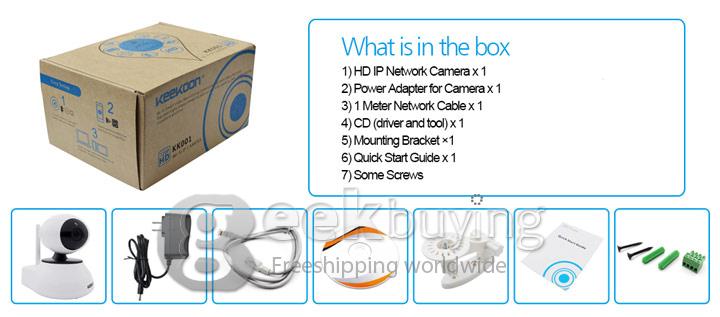

What's in the box?
- 1 x HD IP Camera
- 1 x Power Adapter for Camera(EU Plug)
- 1 x Network Cable
- 1 x CD (driver and tool)
- 1 x Mounting bracket
- 1 x The instructions
- 1 x Screws
