Highlights
- 7 inch TFT color LCD display screen, without radiation, low power consumption, high definition
- Compatible with all RFID ID card reader to gain access
- With a rain shield, waterproof, antioxidant and durable to use
- 16 kinds of different melodies for your choices
- Volume, brightness and contrast are adjustable
- Can be widely used in single-family houses, villas, offices, hotels and so on
Specification

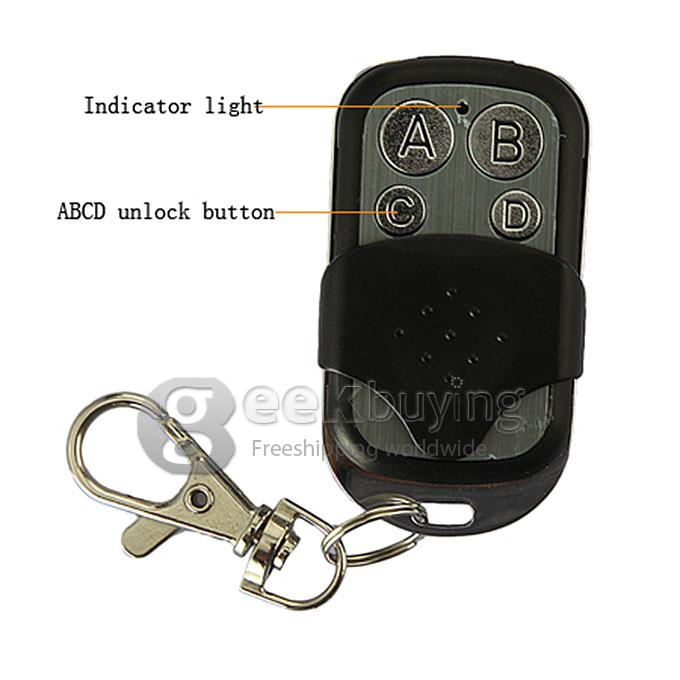

Remote Control:
This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 6-20 meters
125KHz RFID Cards :
These are 5pcs 125KHz RFID Proximity ID Card, they can work with the product which has 125Khz RFID card reader.
Each comes with Key ring included
Each token pre-programmed with unique ID which is printed on it

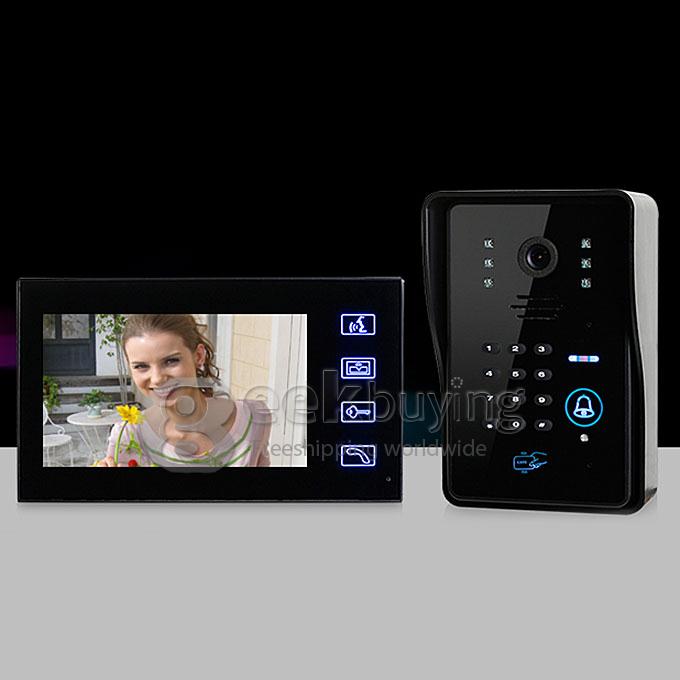

Video door phone:
Combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.

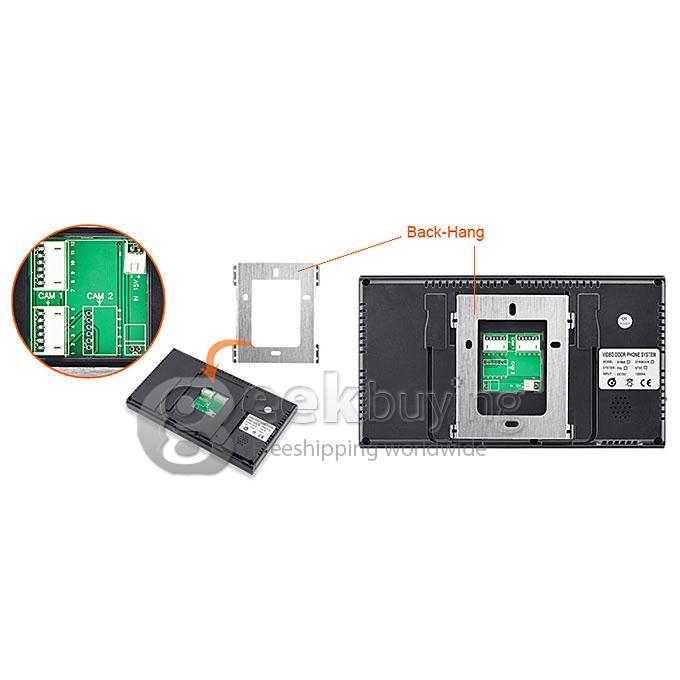

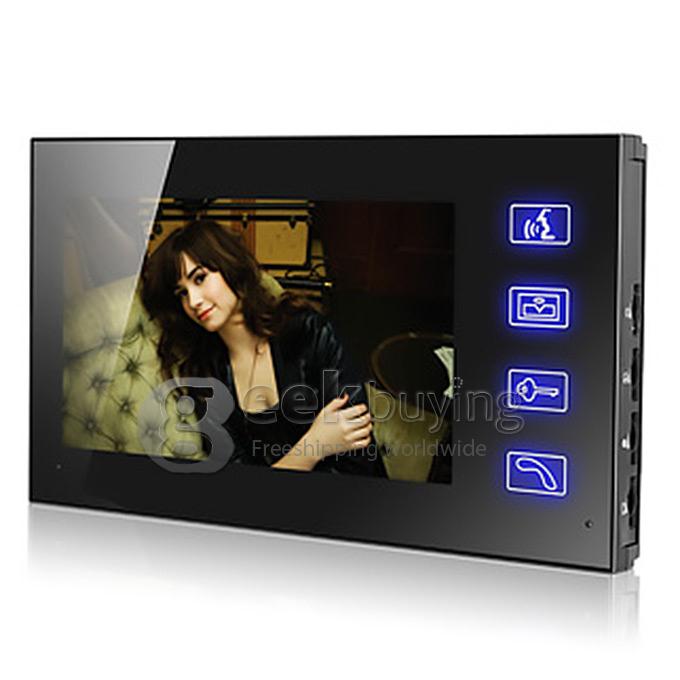

Indoor monitor: ultra-slim design, nice and luxurious, and with a mounting plate, it can be installed on walls easily.
Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.
Supplied with connection cable and adapter, users can install it according to operating instruction.

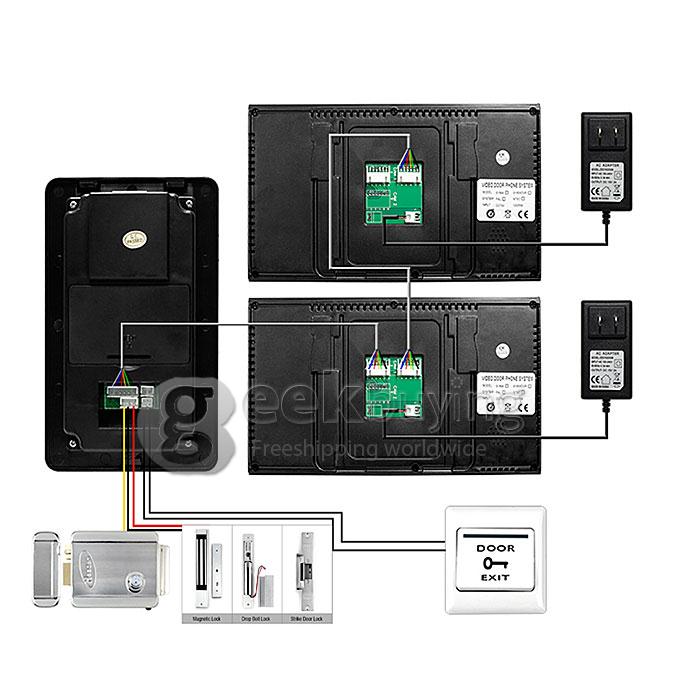

This product can meet different requirements: one outdoor camera can support up to four indoor monitors or two outdoor cameras can support up to four indoor monitors.
| General | |
| Intput Voltage | 12VDC |
| Input current | <60 mA |
| User Capacity | 500 User Card, 1 Password |
| Card Type | RFID compatible card |
| Frequency | 125Khz |
| Read range | 10-50mm |
| Wiring connections | Electric Lock, Exit Button |
| Detecting distance | 3-10cm |
| Operation frequency | 125Khz |
| Screen | 7" TFT LCD (16:9 display) |
| Resolution | 960 * 480 |
| Power supplied by | power adapter |
| Specifications of indoor monitor | |
| Power adapter | input: AC 100-240V 50/60Hz output: DC 15V 2000mA |
| Adapter type | US EU AU UK plug |
| Adapter cable length | 1.45m/ 4.75ft |
| Consumption | working state: 8W, standby state: 0.5W |
| Call duration time | approx. 120 seconds |
| Monitor duration time | approx. 60 seconds |
| Material | Plastic |

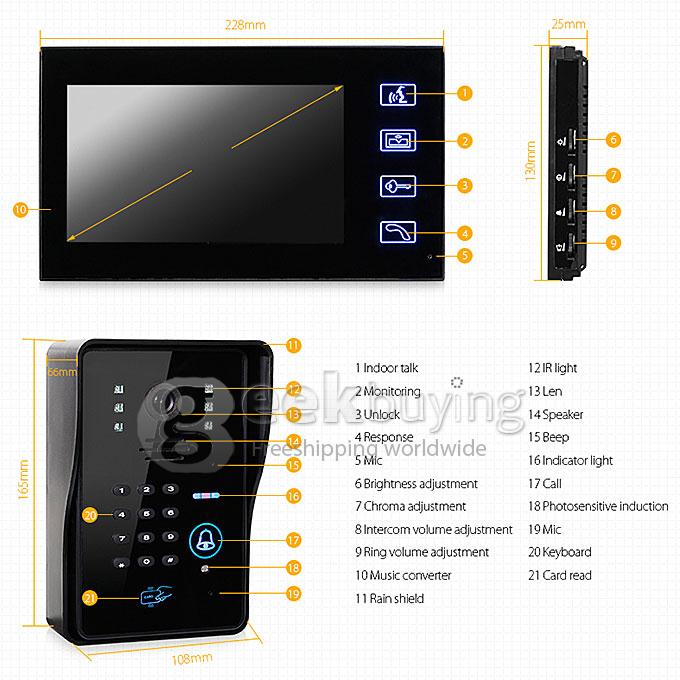

| Dimensions | 22.5 * 12.8 * 2.4cm |
| Specifications of outdoor unit | |
| Material | plastic & metal |
| LED | 6 * infrared LED lights |
| Camera | CMOS 30M pixels |
| Viewing angle | 92 degrees |
| Consumption | calling state: 12W, standby state: 0.1W |
| Valid distance (6 * 0.75mm² copper wires) | 80m/ 262.4ft |
| Dimensions | 16.8 *11.2 * 6.6cm |
| Working temperature | -10 degrees centigrade to +50 degrees centigrade |
| Working humidity | ≤85% |
What's in the box?

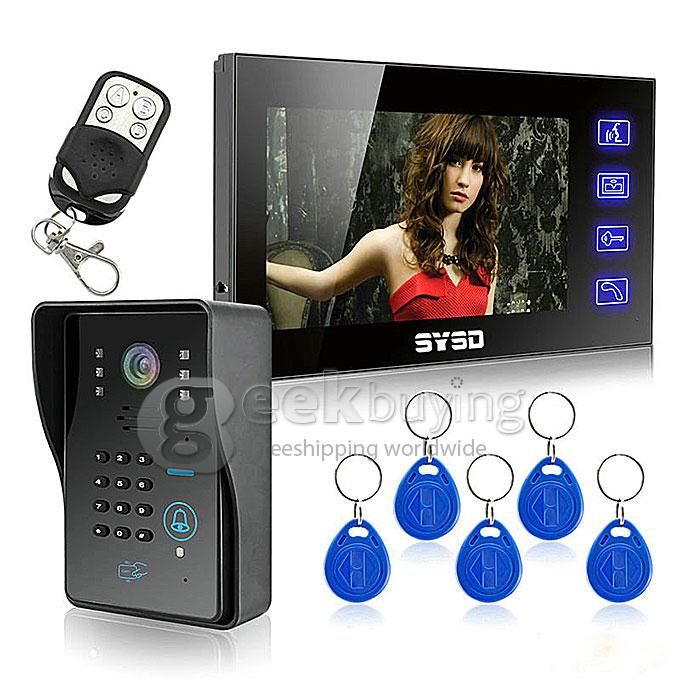

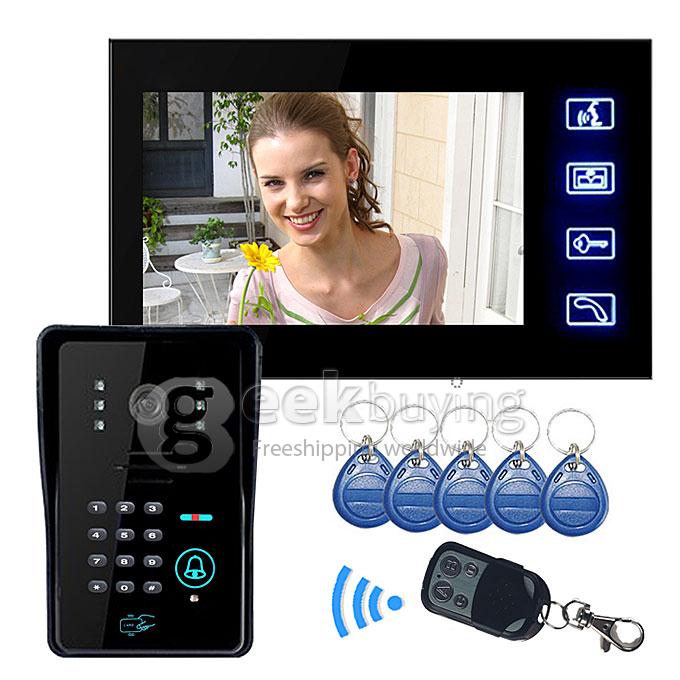

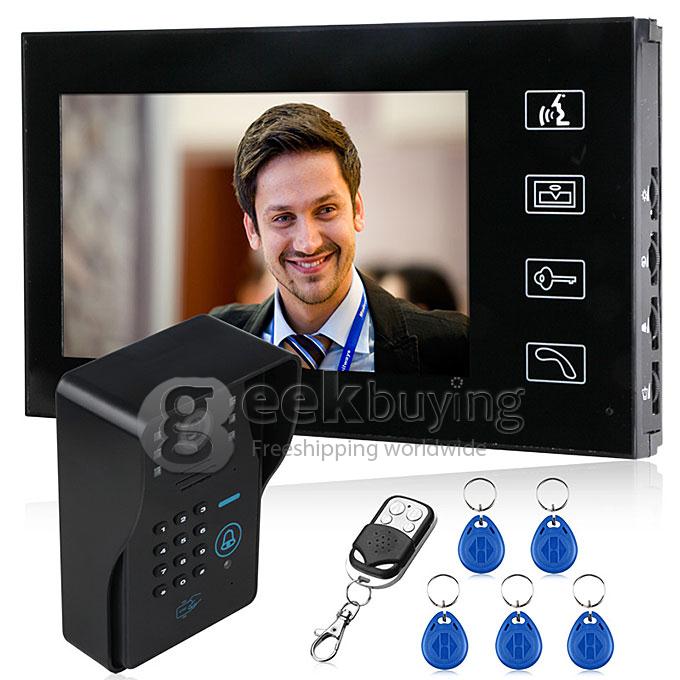

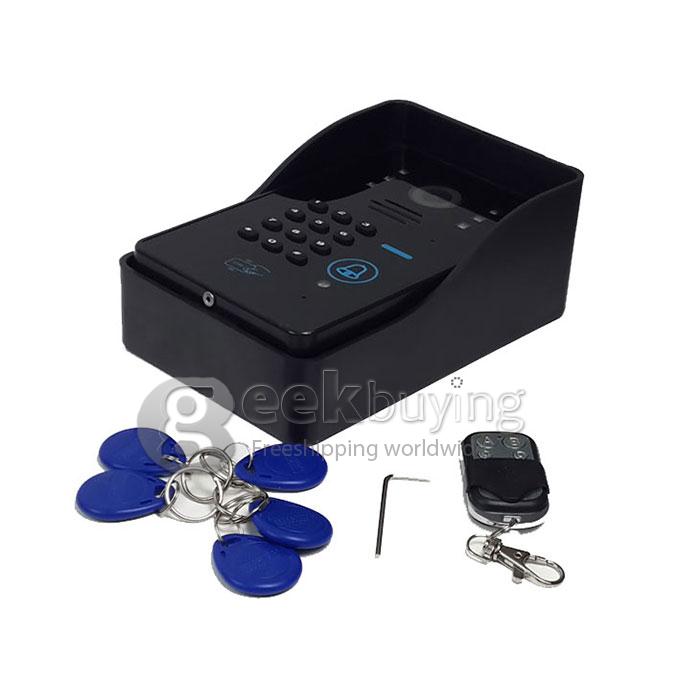

- 1 x Outdoor unit with rain shield with Access Control System
- 1 x Power adapter (us/au/eu/uk plug)
- 1 x 6 pin cable (5m)
- 1 x 2 pin cable
- 1 x 3 pin cable
- 1 x Mounting plate
- 1 x Bag of screws
- 1 x User manual
- 5 x 125KHz RFID Cards
- 1 x Remote Control
