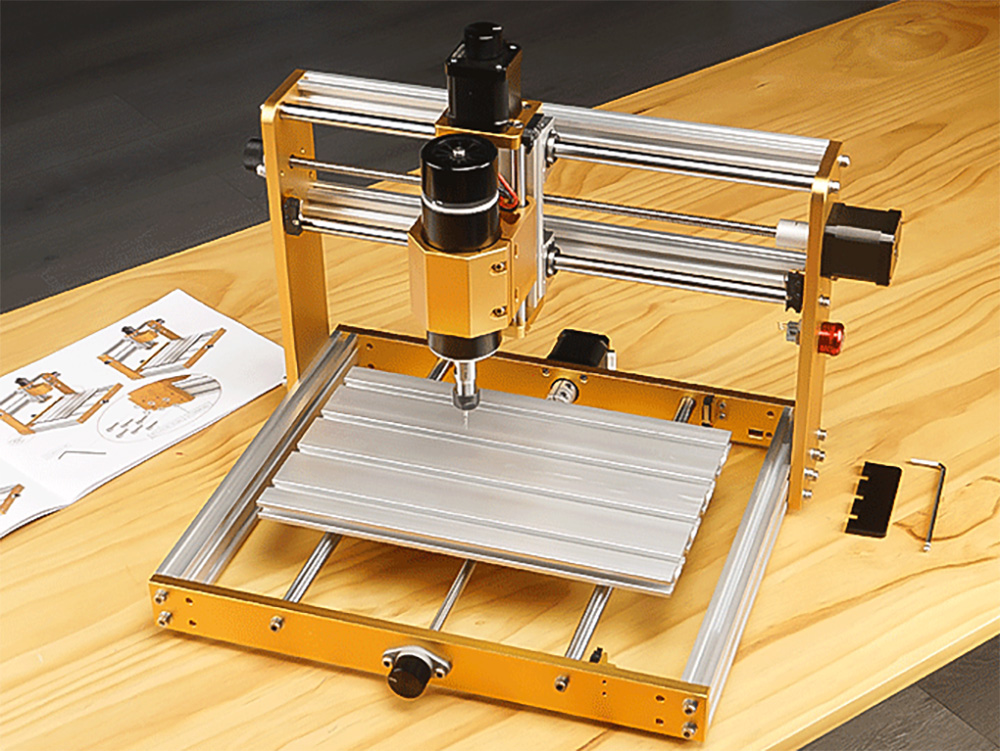

Highlights
Streamlined Installation & Setup
The control board now mounts directly without standoffs, while the semi-assembled kit design significantly reduces installation time—get your machine up and running faster and easier.

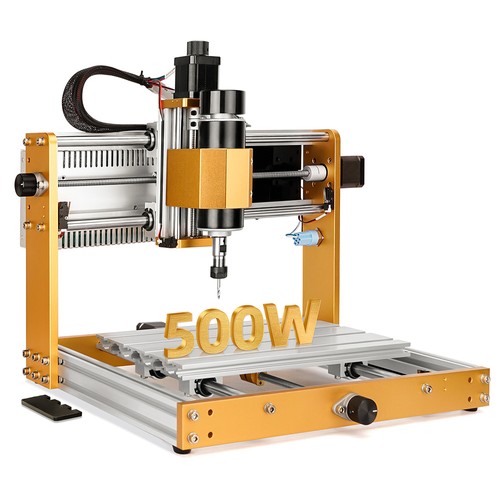

Upgraded Spindle & Power System
Next-generation spindle terminals provide secure, user-friendly wire clamping that prevents loosening. A dedicated rear PSU bracket allows neat, space-saving power supply installation.
Enhanced Z-Axis Performance

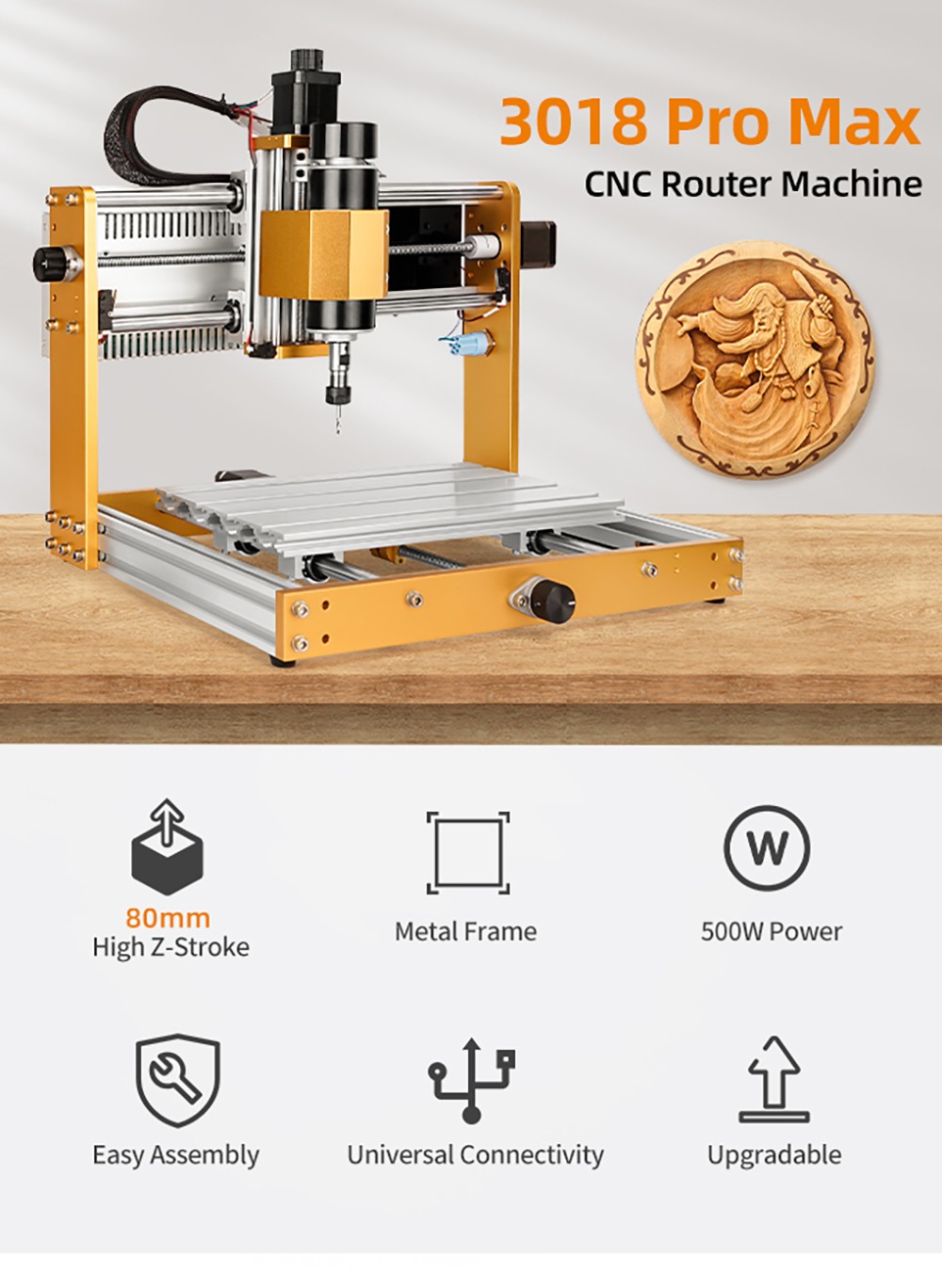

The Z-axis travel extends to 78–80mm (with limit switches installed) and features greatly improved rigidity for higher precision and stability when engraving or cutting thicker materials.
Precision & Accuracy Redefined
A redesigned lead screw nut backlash adjustment mechanism ensures finer motion control and improved engraving accuracy—ideal for detailed and complex projects.
Reliable Safety & Wiring Optimization

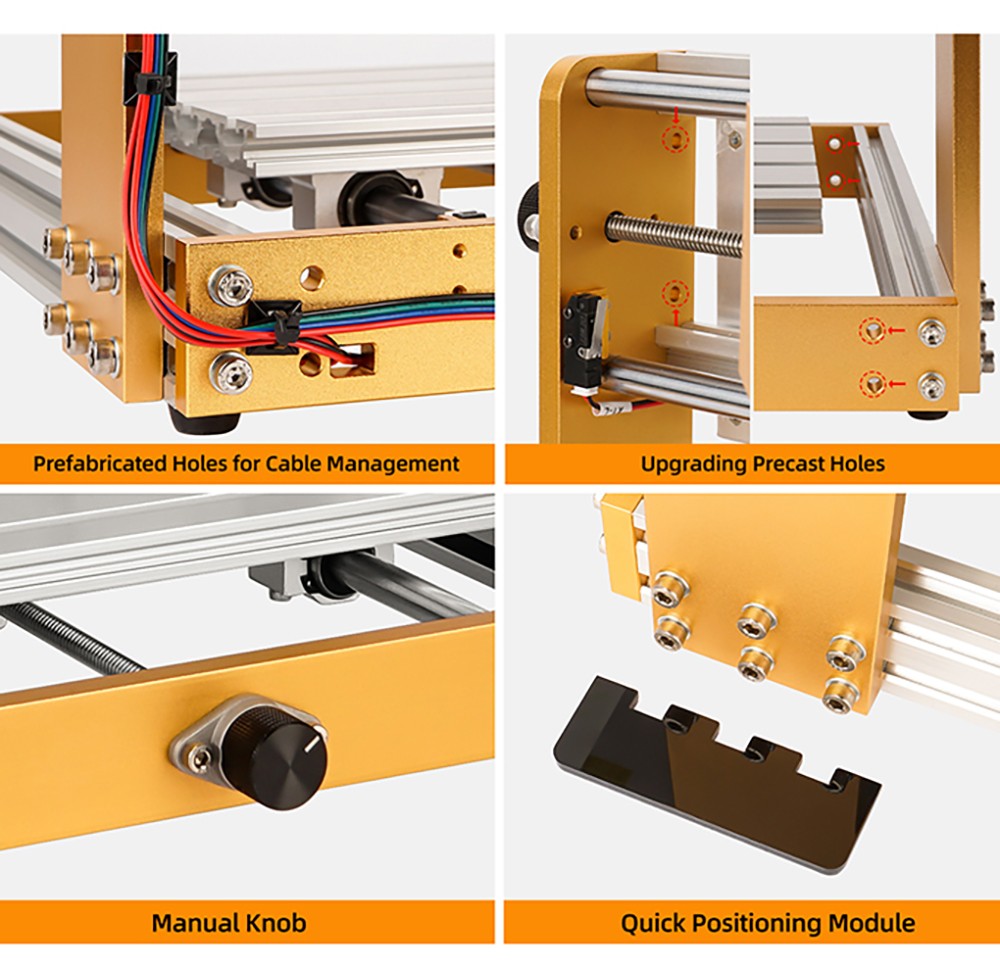

Integrated limit switches resist interference and false triggering from metal debris. Custom-length limit switch and motor cables, plus built-in tie mounts and wire ducts, keep your wiring clean and organized.
Smart Assembly Aids
An included T-nut spacing tool simplifies platform setup and improves assembly efficiency, ensuring a smoother building experience even for first-time users.
Specification
| General |
Brand: Annoytools |

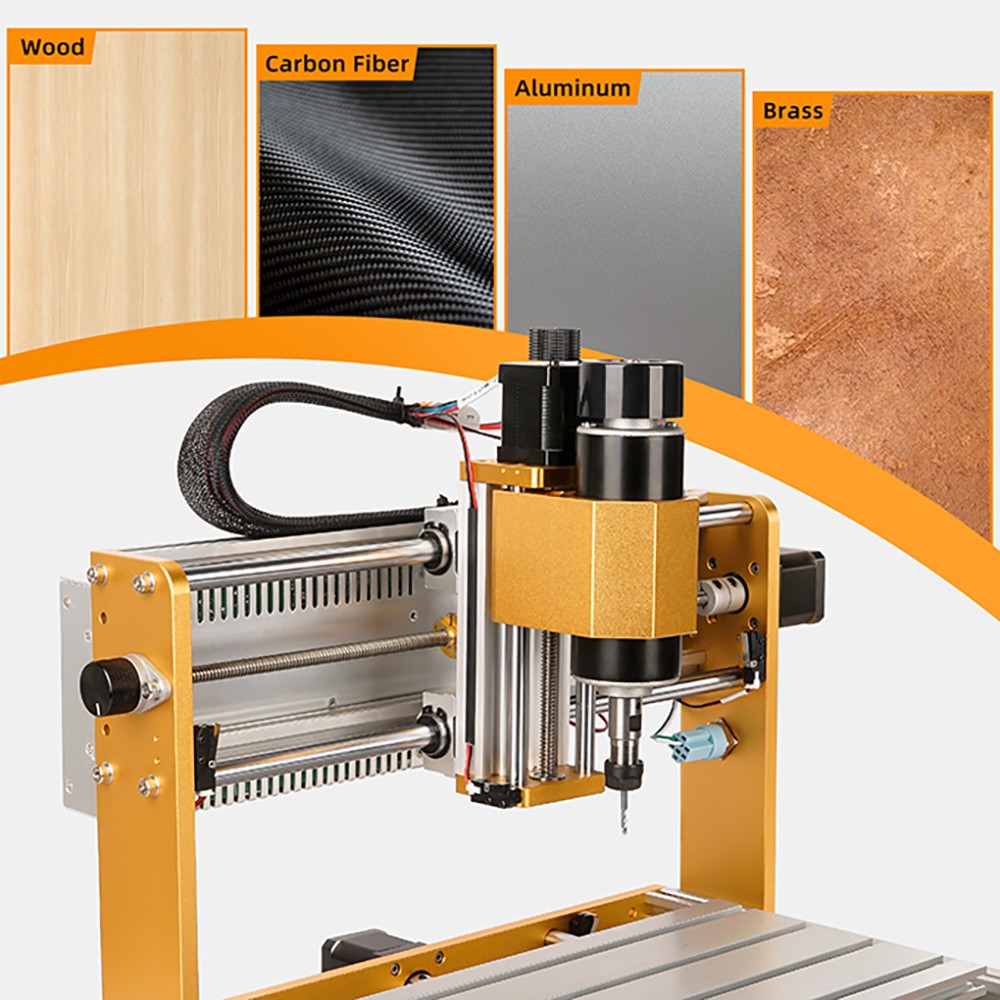

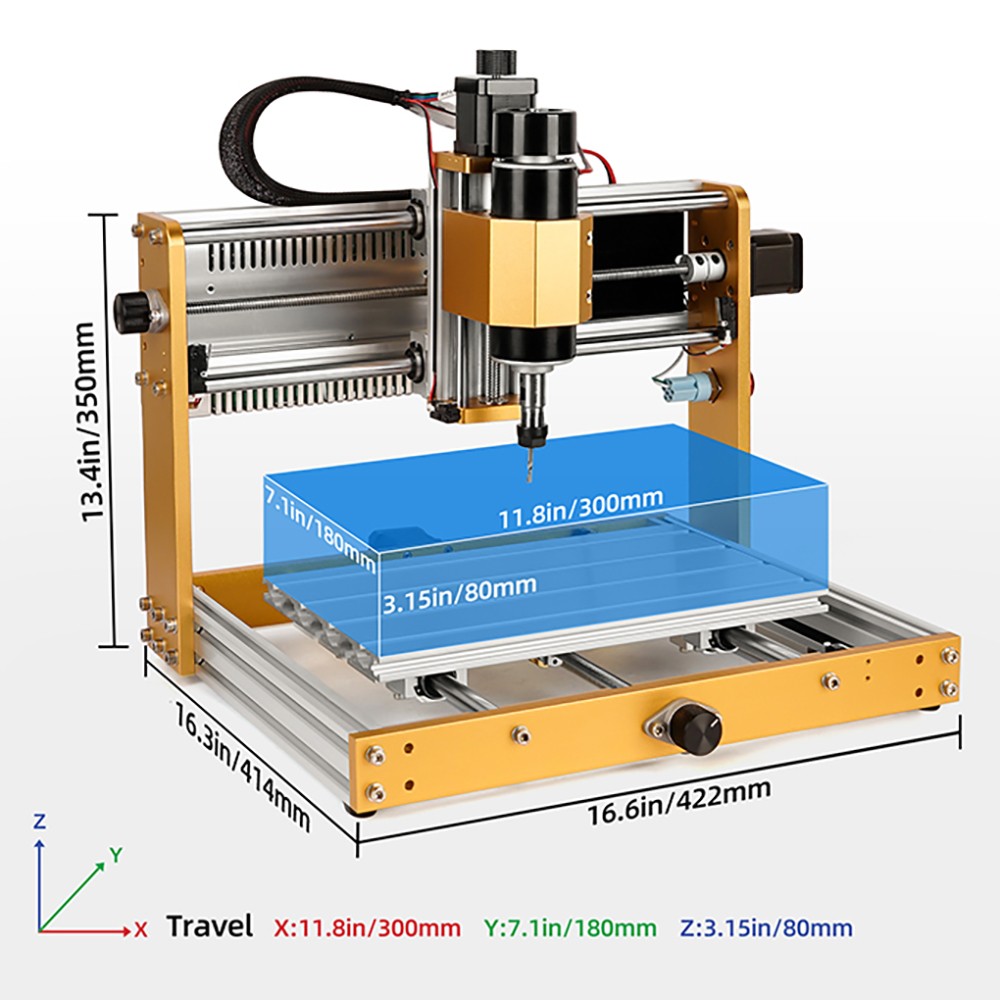

| Specification | Driver Chip: A4988 Control Board: 3-axis V5.2, GRBL 1.1f Motor: 42 stepper motor, body length 48mm X-Axis Drive System: Smooth rods + T8 lead screw Y-Axis Drive System: Smooth rods + T8 lead screw Z-Axis Drive System: Smooth rods + T8 lead screw Lead Screw Nut Type: Double nut with backlash adjustment Work Area: 300 x 180 x 80mm Repeat Positioning Accuracy: ±0.025mm Machining Accuracy: ±0.1mm Maximum Travel Speed: 5000mm/min Maximum Cutting Speed: 2000mm/min Maximum Acceleration: 200mm/s² Manual Adjustment Knob: Supported Frame: Reinforced aluminum profiles + aluminum alloy plates Spindle Support: 500W Power Supply: 48V 500W Emergency Stop: Supported Limit Switches: Supported, 6 switches (X+, X-, Y+, Y-, Z+, Z-) Z-Axis Tool Setting: Supports tool setting probe installation Laser: Compatible (12V 40mm laser module) Software: Candle Suitable Materials: Plastic, wood, stone, aluminum, copper |
| Weight & Size | Product Weight: 12kg Package Weight: 13.2kg Product Size(L x W x H): 485x415x374mm Package Size(L x W x H): 520x470x300mm |
| Package Contents |

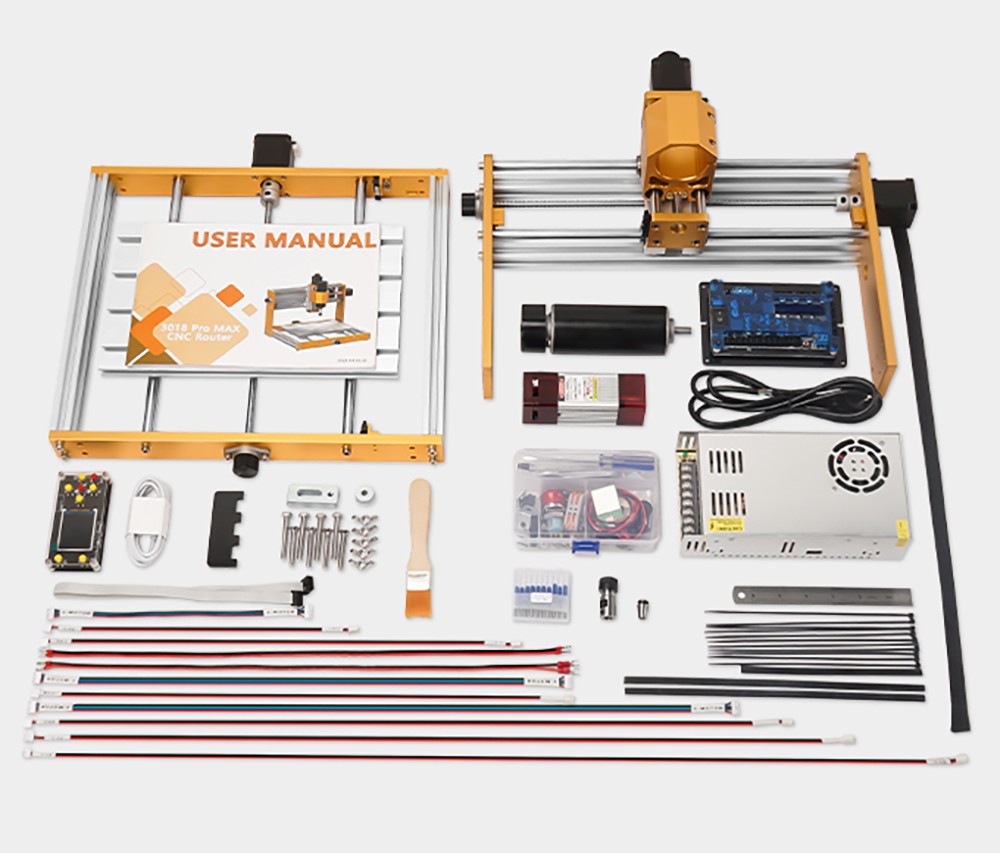

1 x 3018 Pro Max CNC Router Kit |
