Highlights

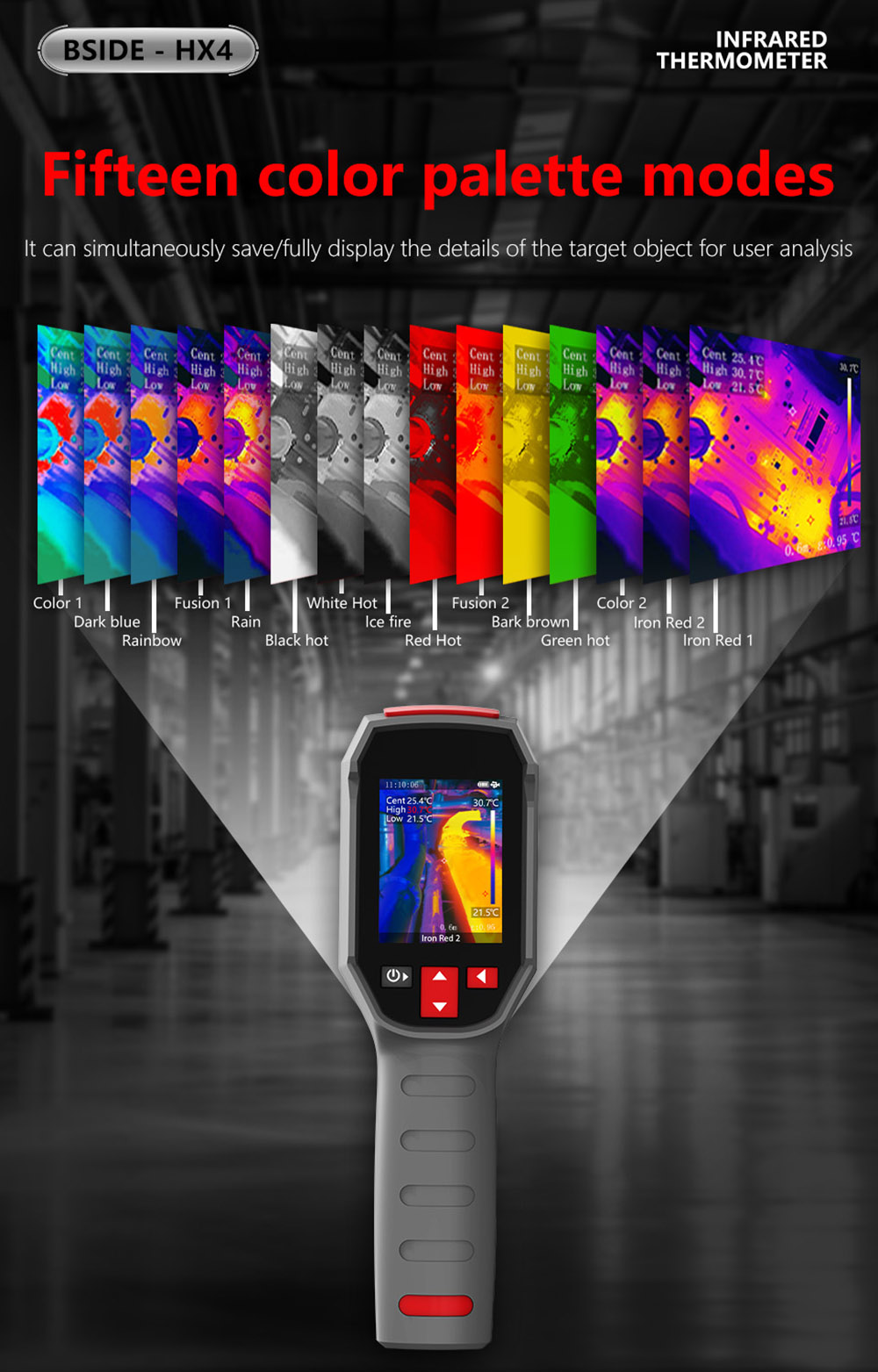

Multiple Pseudo-Color Modes & Clear Temperature Visualization
Real-time temperature visualization with distinct color ranges for effortless recognition. Seamlessly switch between 15 pseudo-color modes to match different viewing habits and meet diverse professional analysis needs.

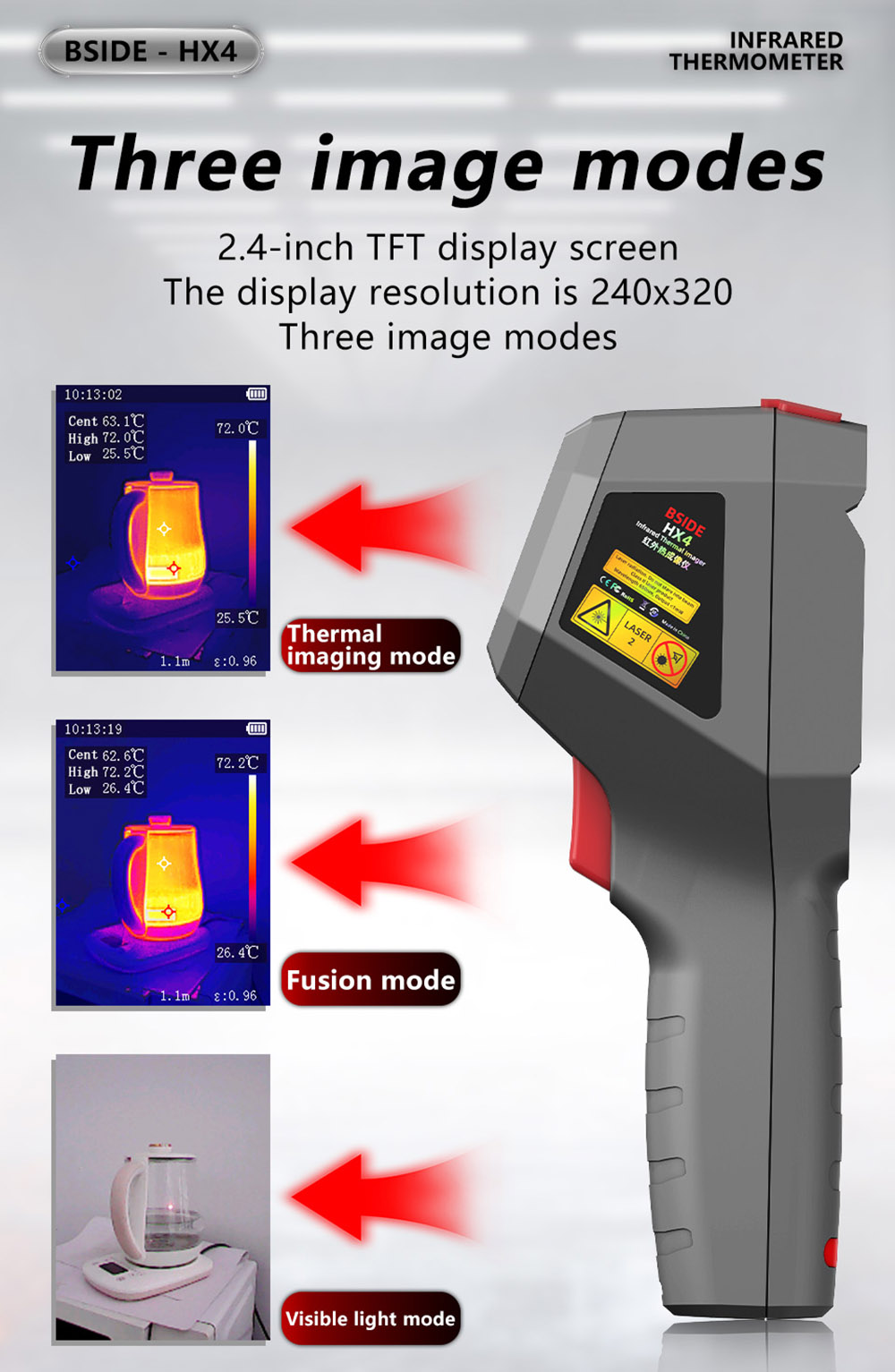

Tri-Mode Imaging (Thermal / Fusion / Visible) with High Resolution
Three imaging modes—thermal, fusion, and visible—combined with 240×320 high-definition thermal resolution. Clearly reveals hidden heat sources and on-site details, ideal for indoor maintenance, outdoor inspections, and versatile applications.

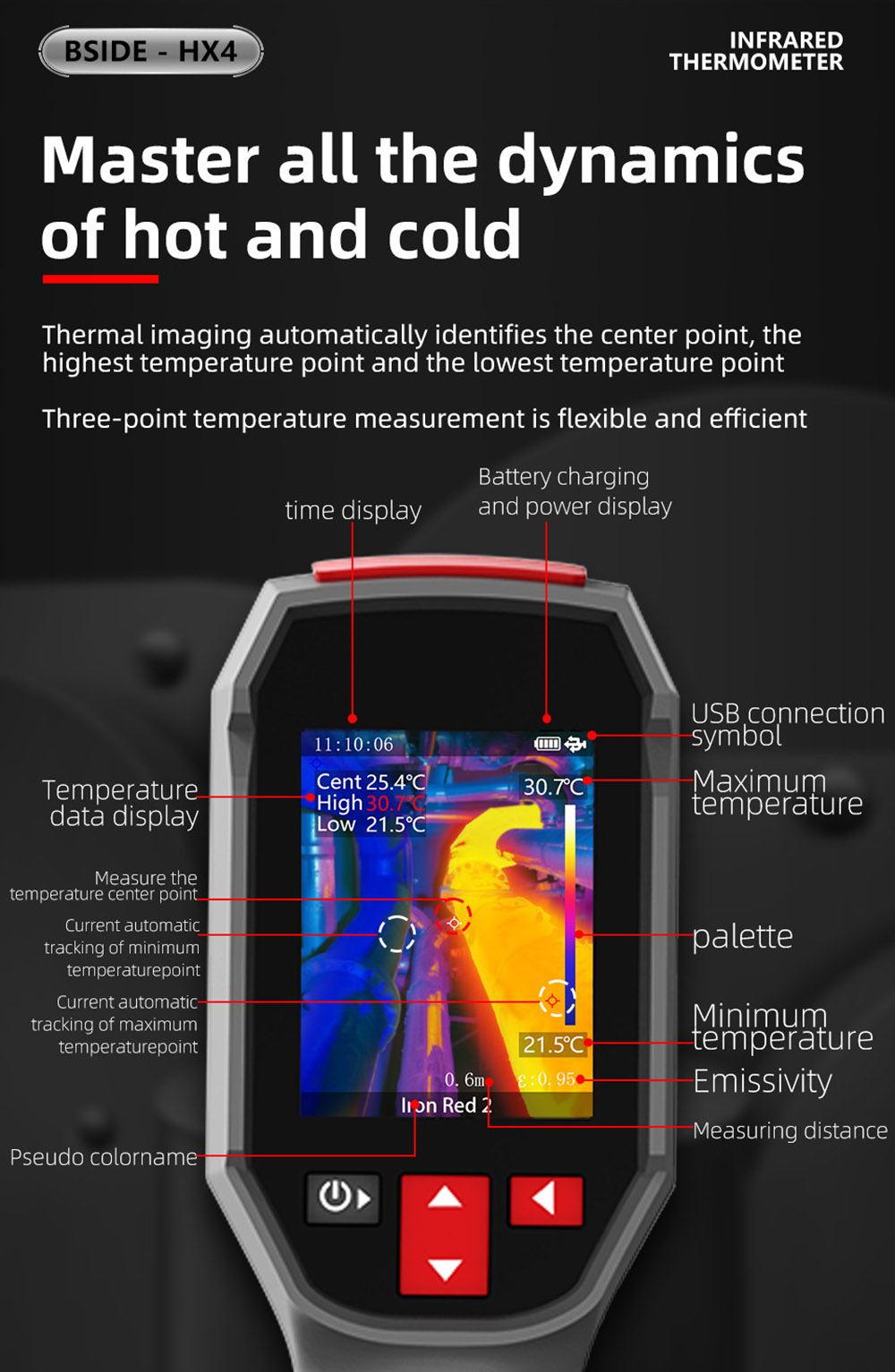

Flexible Temperature Measurement & Precise Tracking
Adjustable focal length and emissivity settings ensure accurate measurement across different materials. Real-time tracking of high, medium, and low temperature points with automatic capture and Celsius/Fahrenheit unit switching guarantees professional-level precision.
2.4-Inch LCD Display & Smart Functions

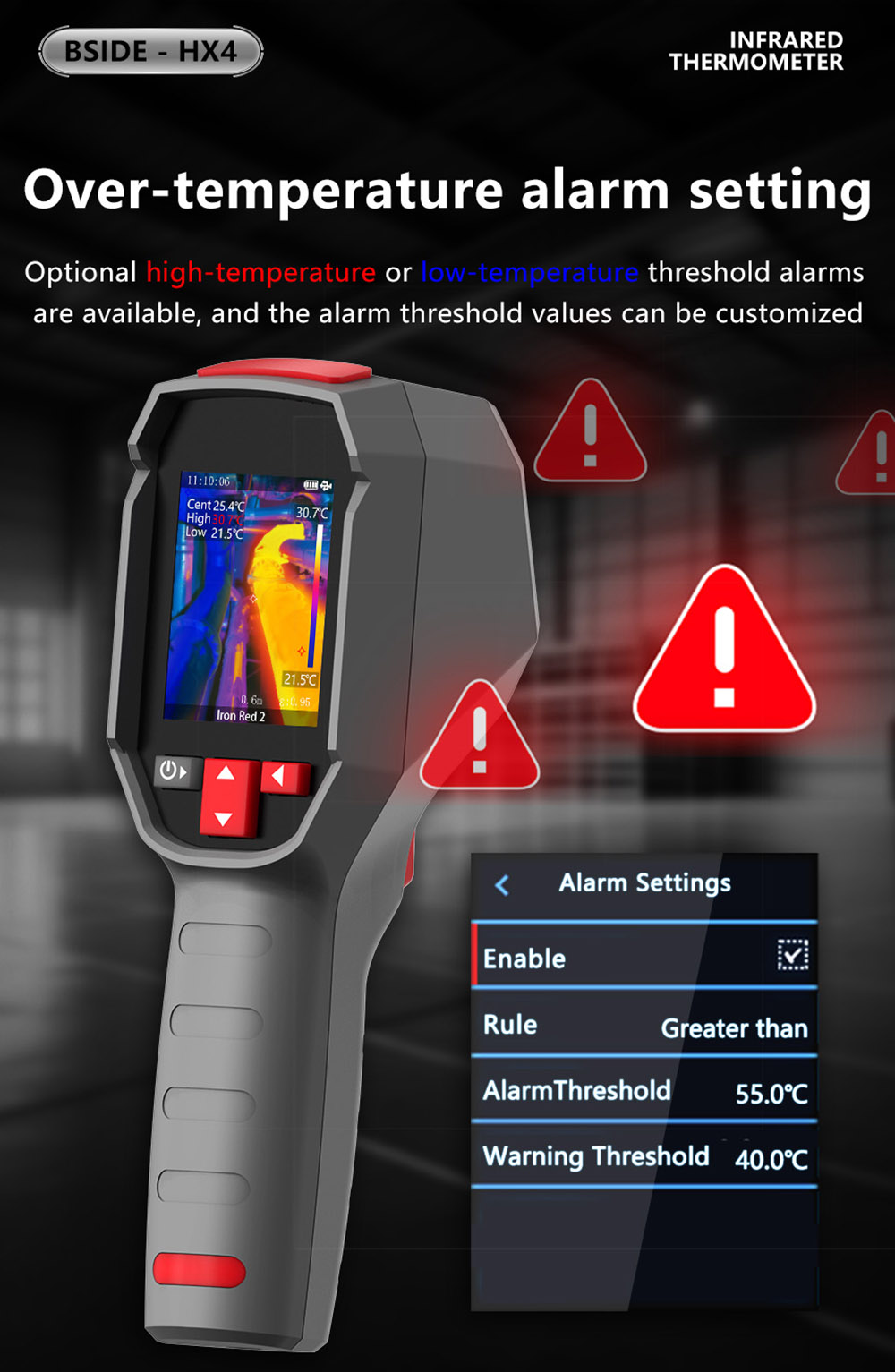

Bright 2.4-inch LCD screen delivers clear imaging. Built-in functions include temperature alarm, image storage, voice control, and auto power-off—simplifying operation, saving energy, and extending battery life.

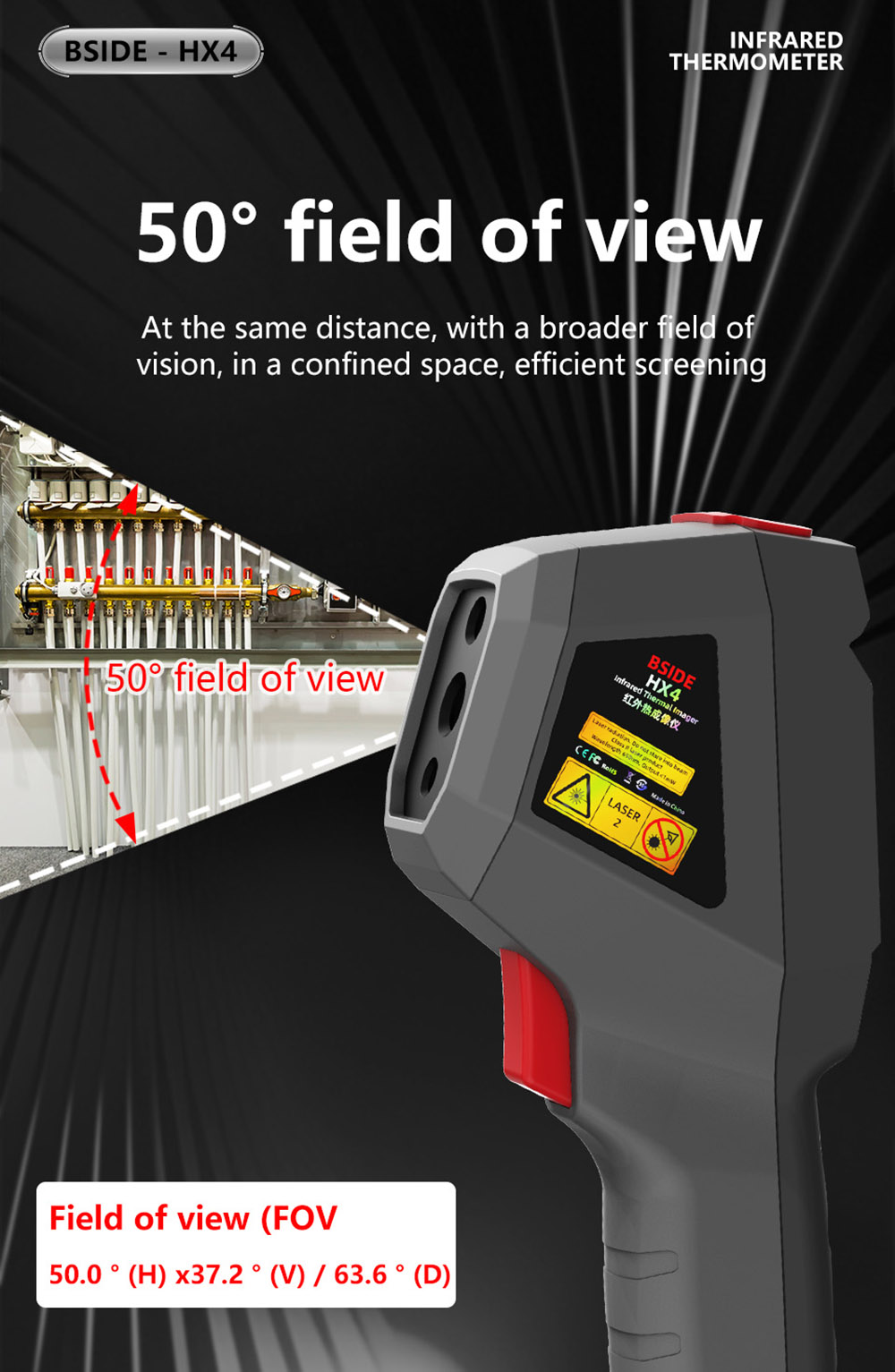

50° Wide-Angle Lens & Reliable Power Supply
A 50° wide-angle lens covers a larger detection area from greater distances. Direct lithium battery charging eliminates extra accessories, offering convenient, long-lasting use indoors and outdoors.
Specification
| General |
Brand: BSIDE |

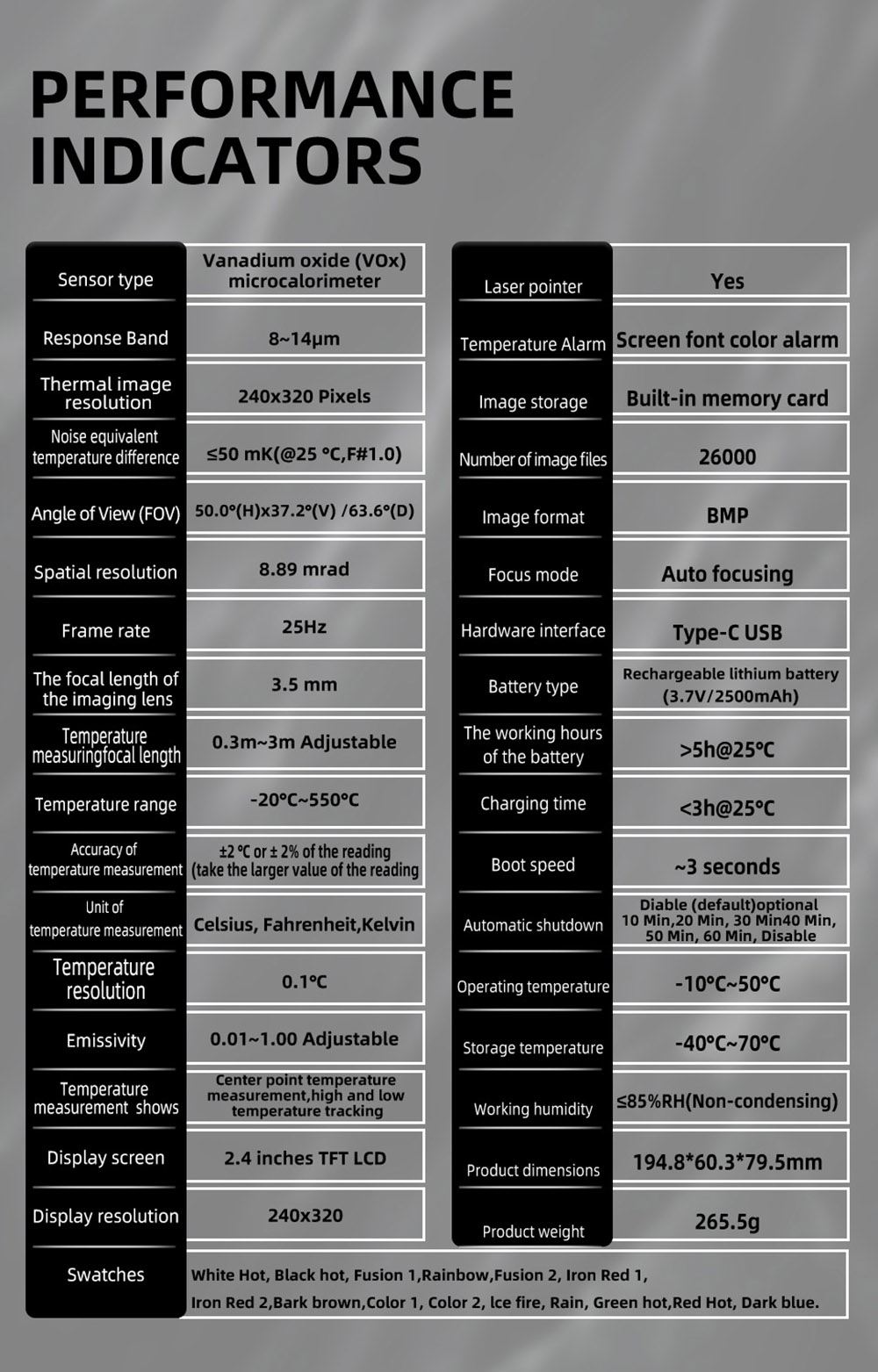

| Specification | Sensor Type: Vanadium oxide (VOx) microcalorimeter Response Band: 8–14 μm Thermal Image Resolution: 240 × 320 pixels Noise Equivalent Temperature Difference (NETD): ≤50 mK (@25℃, F#1.0) Field of View (FOV): 50.0°(H) × 37.2°(V) / 63.6°(D) Spatial Resolution: 8.89 mrad Lens Focal Length: 3.5 mm Focus Mode: Auto focusing Frame Rate: 25 Hz Swatches (Pseudo-color Palettes): White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Bark Brown, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue Measuring Distance: 0.3 m – 3 m (Adjustable) Temperature Range: -20℃ – 550℃ Accuracy: ±2℃ or ±2% of reading (whichever is greater) Resolution: 0.1℃ Emissivity: 0.01 – 1.00 (Adjustable) Units: Celsius / Fahrenheit / Kelvi Displayed Measurements: Center point, High/Low temperature tracking Alarm: Screen font color alarm Screen: 2.4" TFT LCD Screen Resolution: 240 × 320 Image Storage: Built-in memory card (up to 26,000 files) Image Format: BMP Laser Pointer: Yes Automatic Shutdown: Optional (10/20/30/40/50/60 min / Disable) Boot Speed: ~3 seconds Battery Type: Rechargeable Lithium Battery (3.7V / 2500mAh) Working Time: >5h@25℃ Charging Time: <3h@25℃ Charging Port: Type-C USB Operating Temperature: -10℃ ~ 50℃ Storage Temperature: -40℃ ~ 70℃ Working Humidity: ≤85% RH (non-condensing) |
| Weight & Size | Product Weight: 265.5g Package Weight: 496g Product Size(L x W x H): 194.8*60.3*79.5mm Package Size(L x W x H): 220*100*75mm |

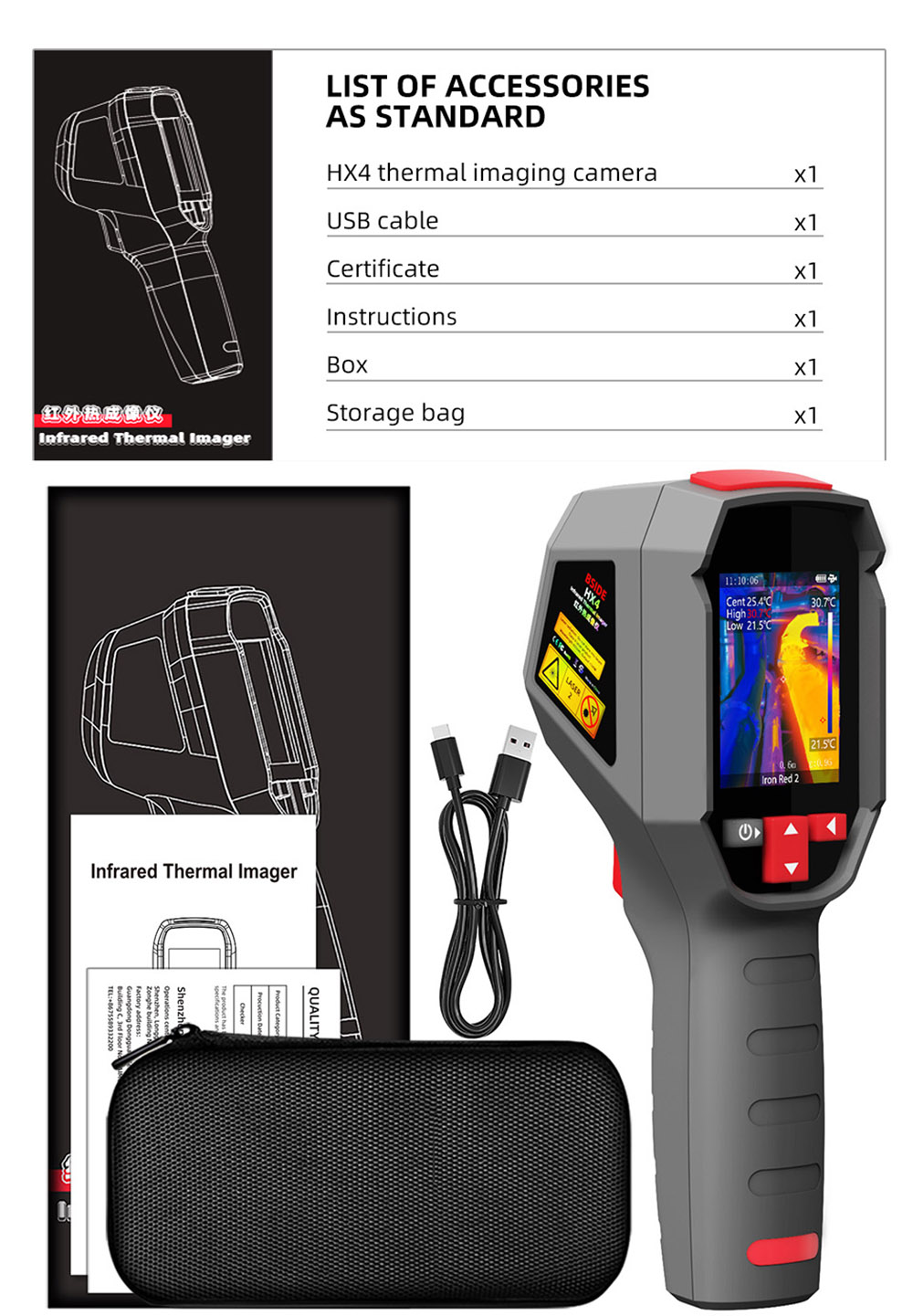

| Package Contents |
1 x HX4 thermal imaging camera |
