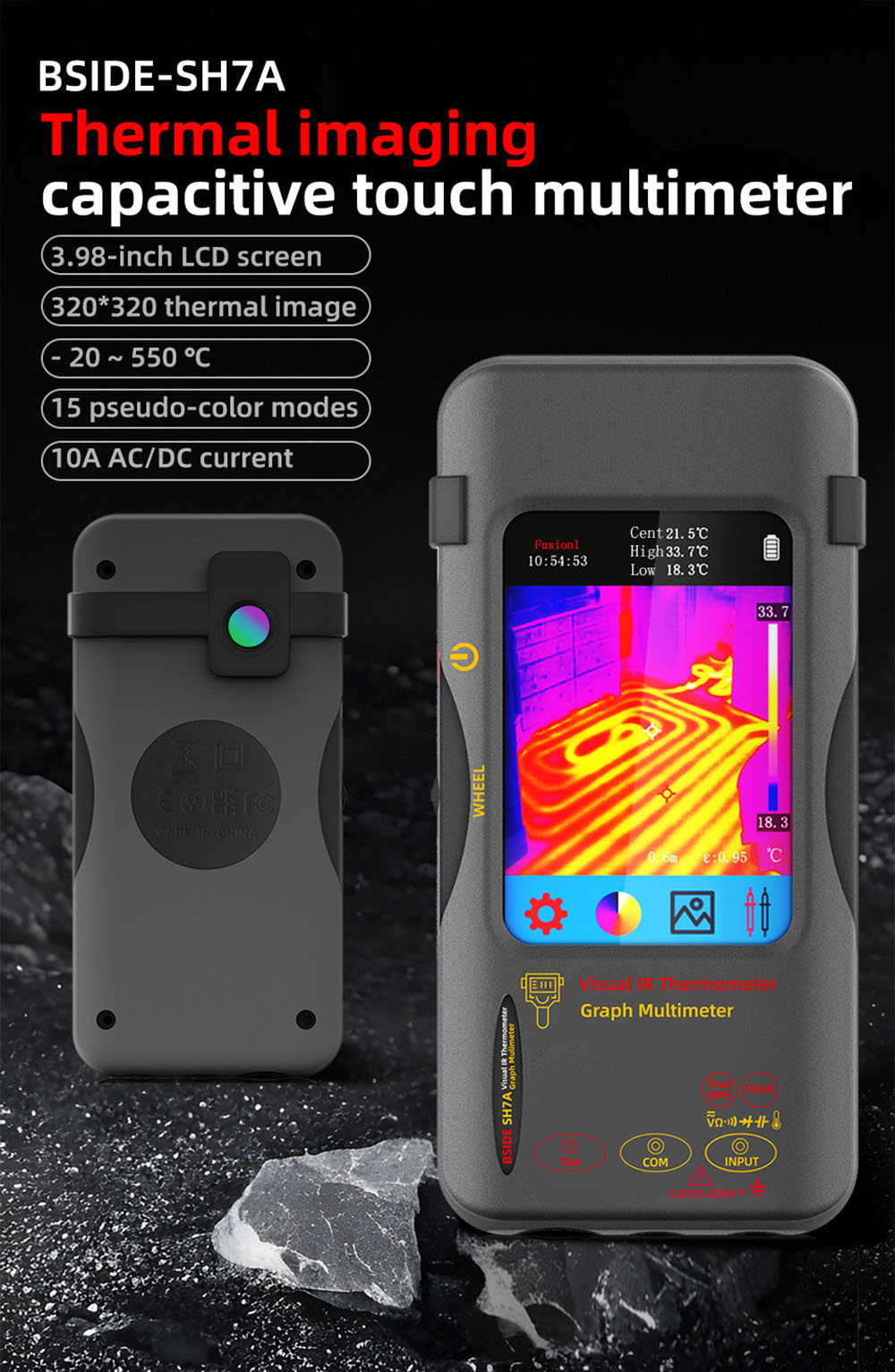

BSIDE SH7A Infrared Thermal Imager Multimeter, 240x240Pixel, 15 Color Modes, 3.98 inch Touchscreen, USB Rechargeable Battery

Brand: BSIDE
Type: Infrared Thermal Imager Multimeter
Model: SH7A
Color: Grey

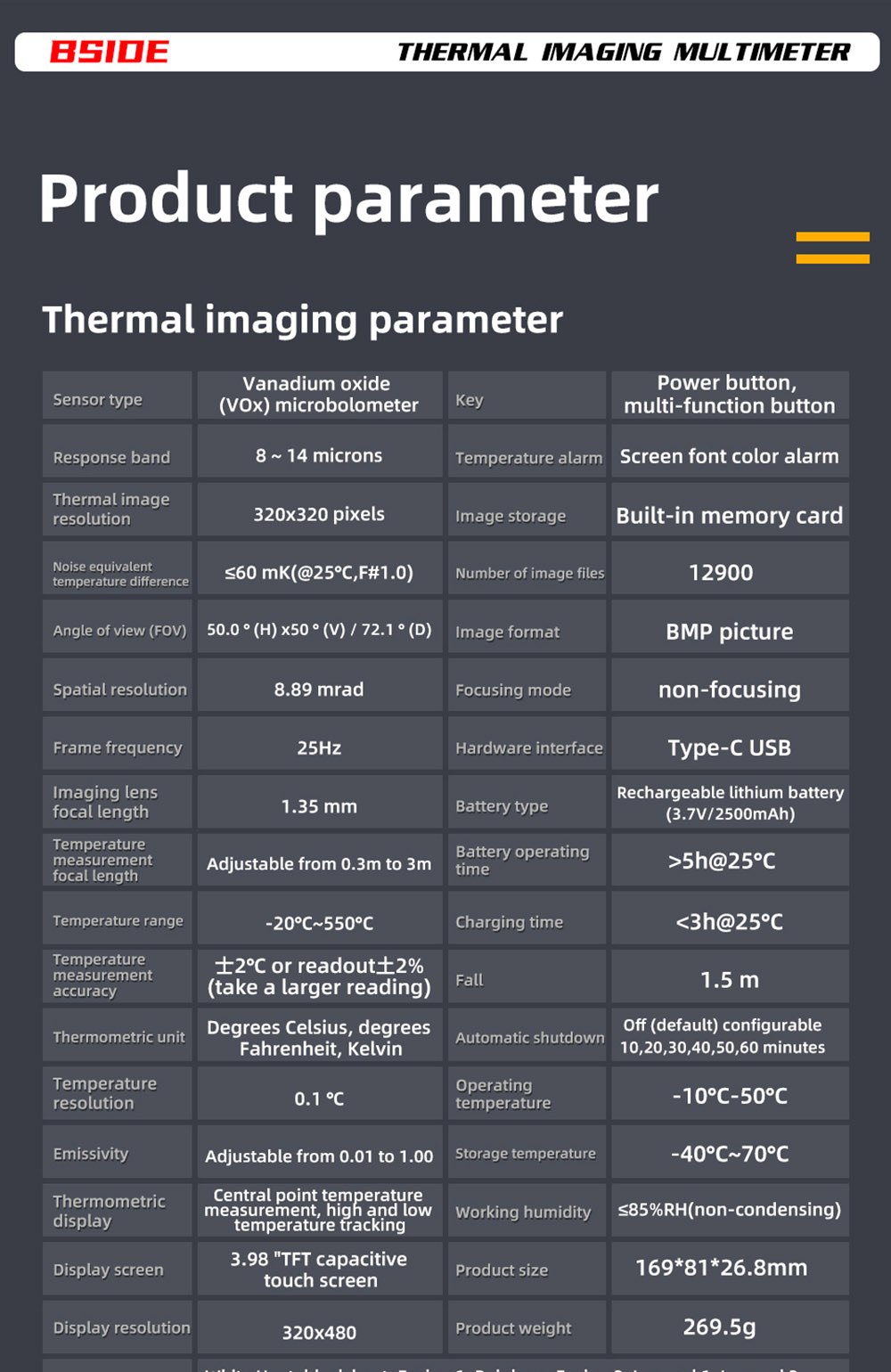

Thermal Imaging Parameters:
Sensor Type: Vanadium oxide (VOx) microbolometer
Response Band: 8 ~ 14 microns
Thermal Image Resolution: 240x240 pixels
Noise Equivalent Temperature Difference: ≤60 mK(@25°C,F#1.0)
Angle of View (FOV): 50.0° (H) x 50° (V) / 72.1° (D)
Spatial Resolution: 8.89 mrad
Frame Frequency: 25Hz
Imaging Lens Focal Length: 1.35 mm
Temperature Measurement Focal Length: Adjustable from 0.3m to 3m
Temperature Range: -20°C~550°C
Temperature Measurement Accuracy: ±2°C or readout±2% (take a larger reading)
Temperature Unit: Degrees Celsius, degrees Fahrenheit, Kelvin
Temperature Resolution: 0.1°C

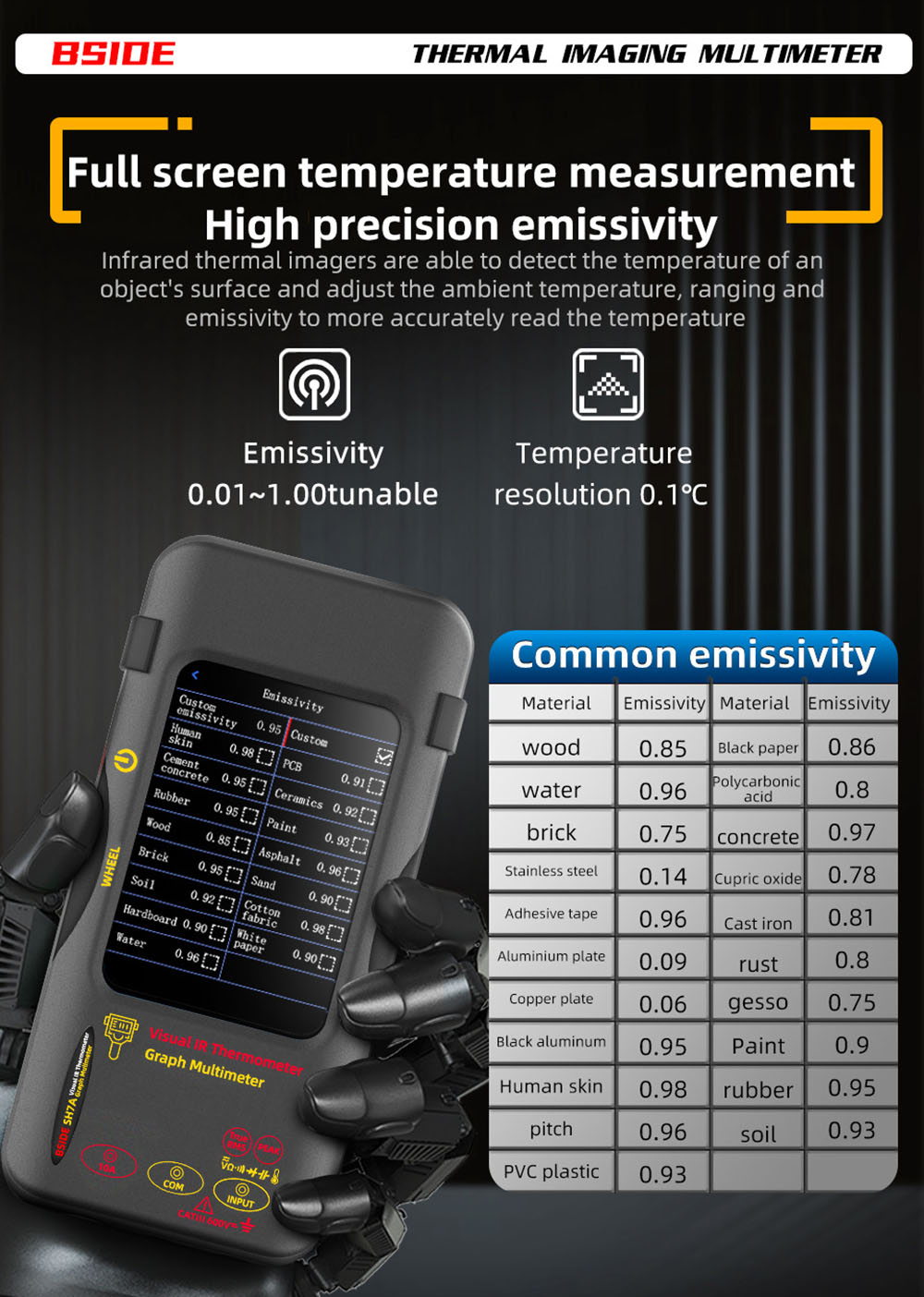

Emissivity: Adjustable from 0.01 to 1.00

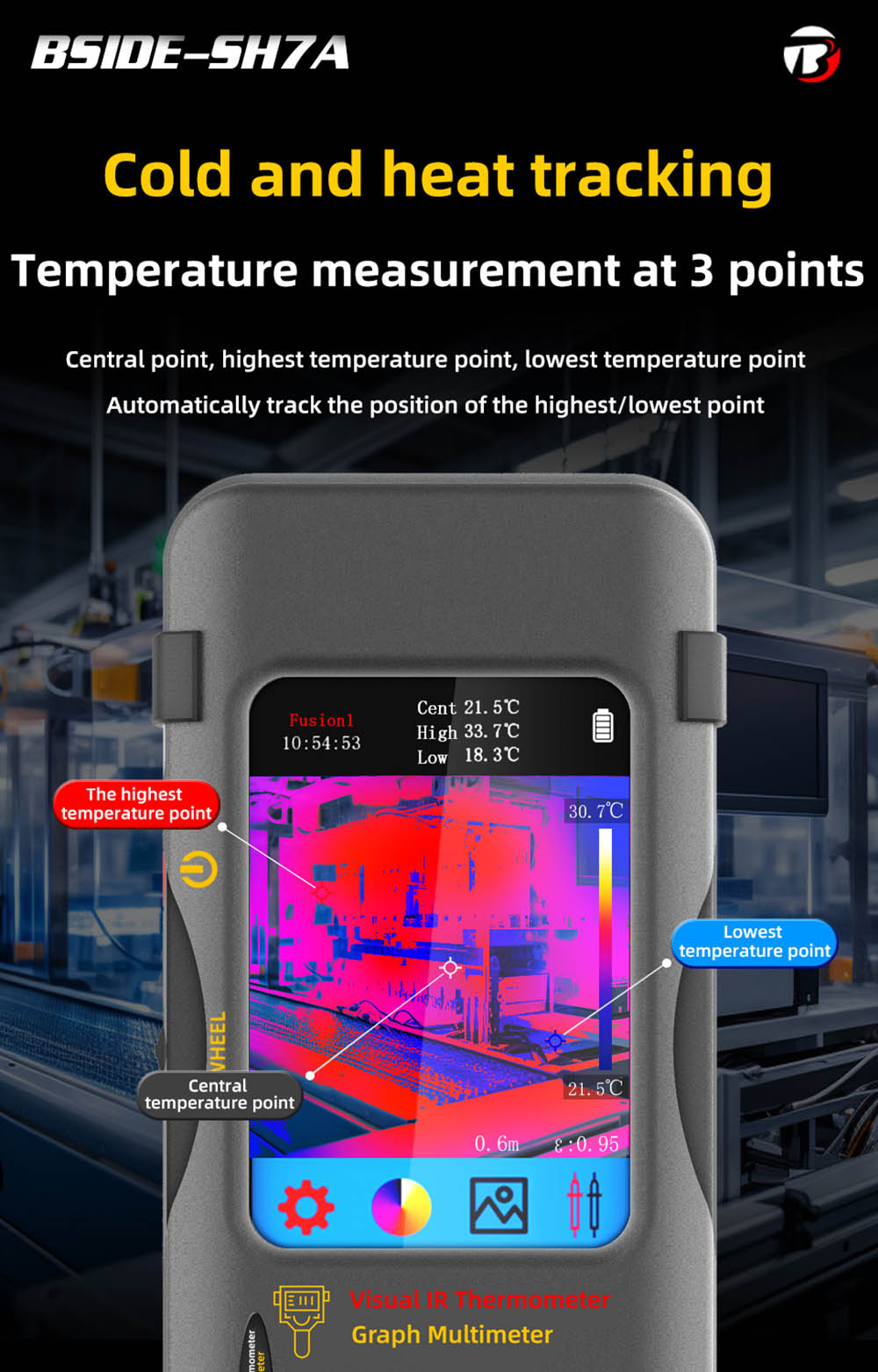

Thermometric Display: Central point temperature measurement, high and low-temperature tracking

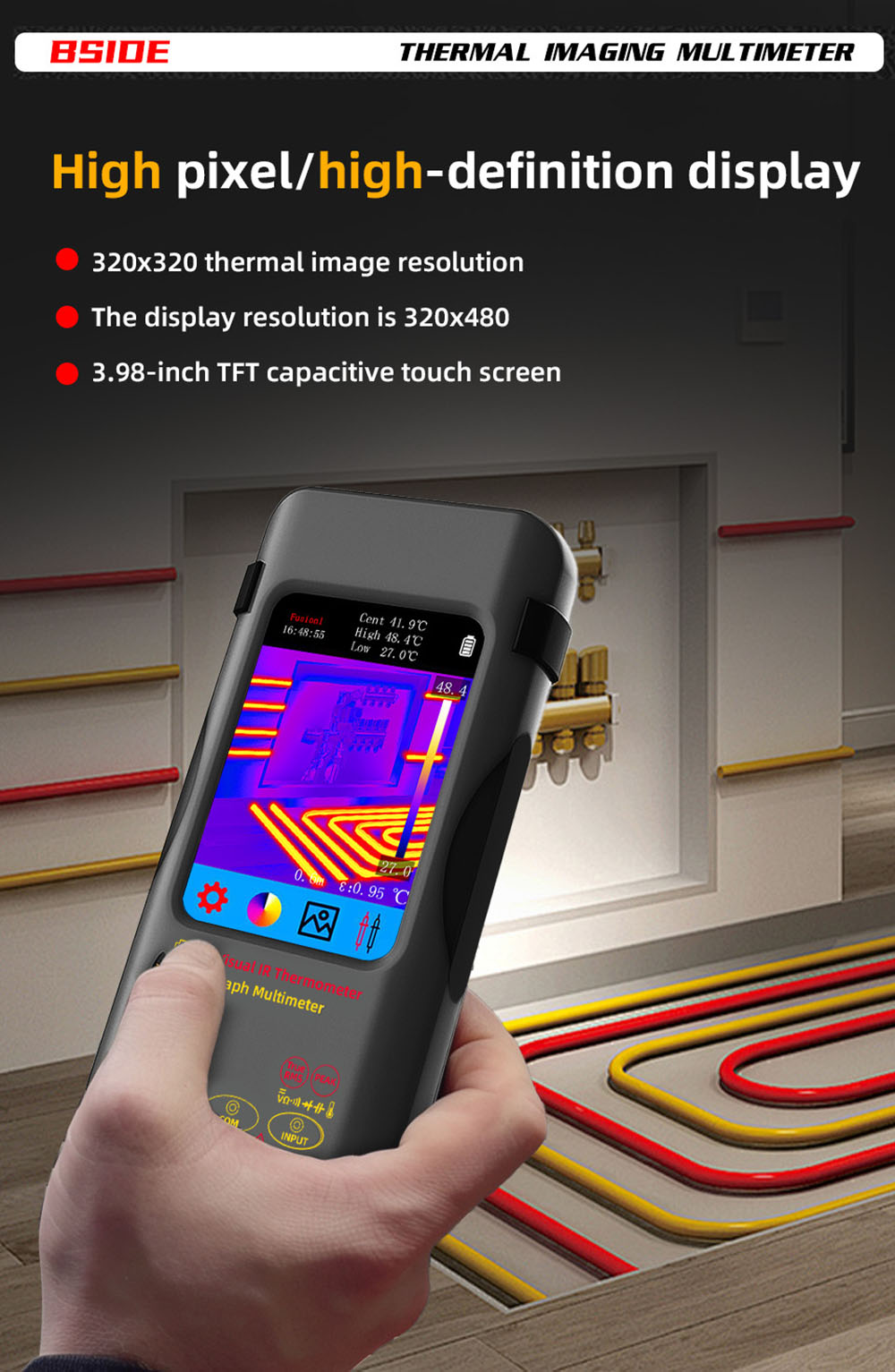

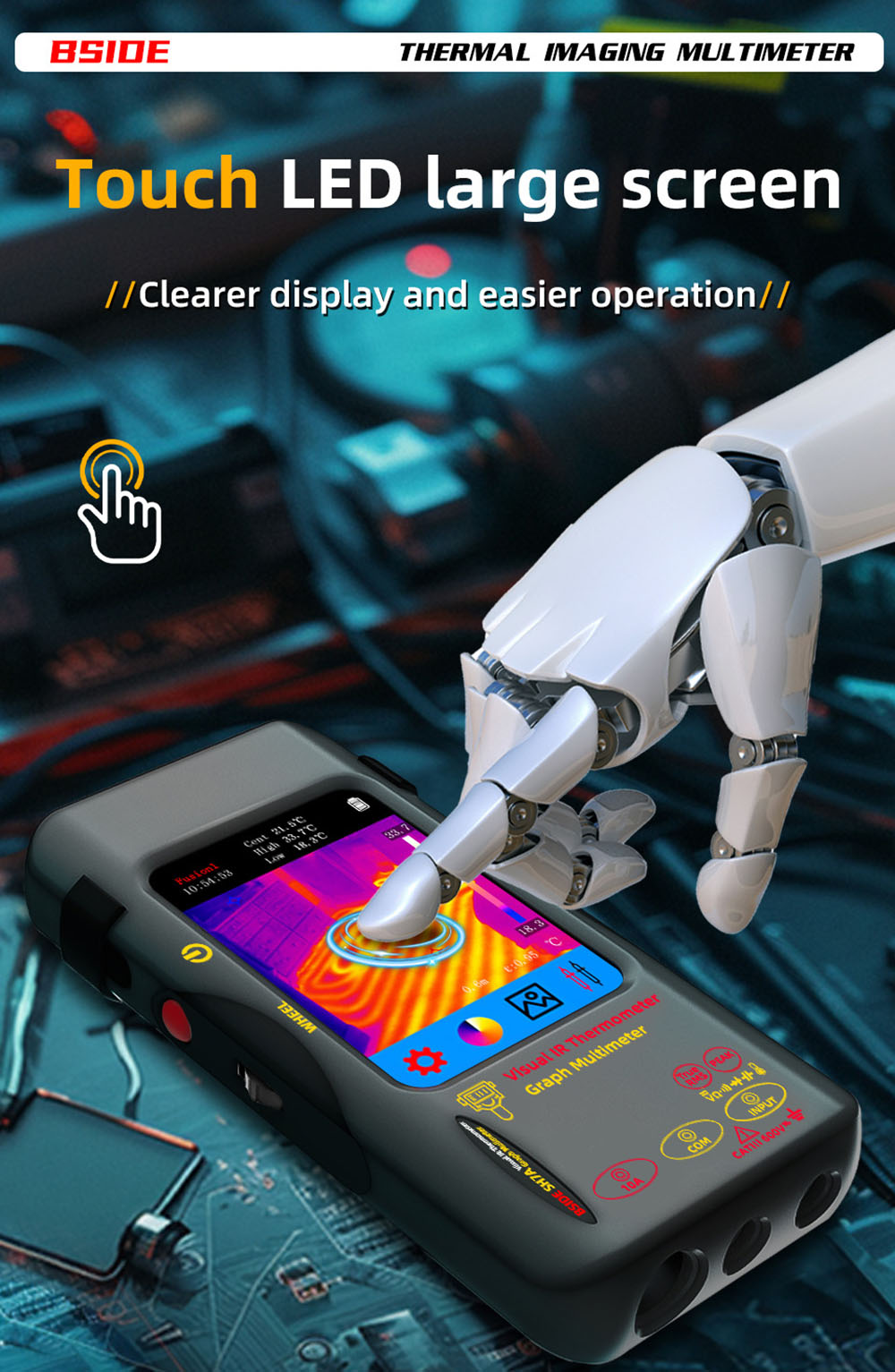

Display Screen: 3.98" TFT capacitive touch screen
Display Resolution: 320x480
Temperature Alarm: Screen font color alarm
Image Storage: Built-in memory card
Number of Image Files: 30,000
Image Format: BMP picture
Focusing Mode: Non-focusing
Hardware Interface: Type-C USB
Battery Type: Rechargeable lithium battery (3.7V/2500mAh)
Battery Operating Time: >7h@25°C
Charging Time: <3h@25°C

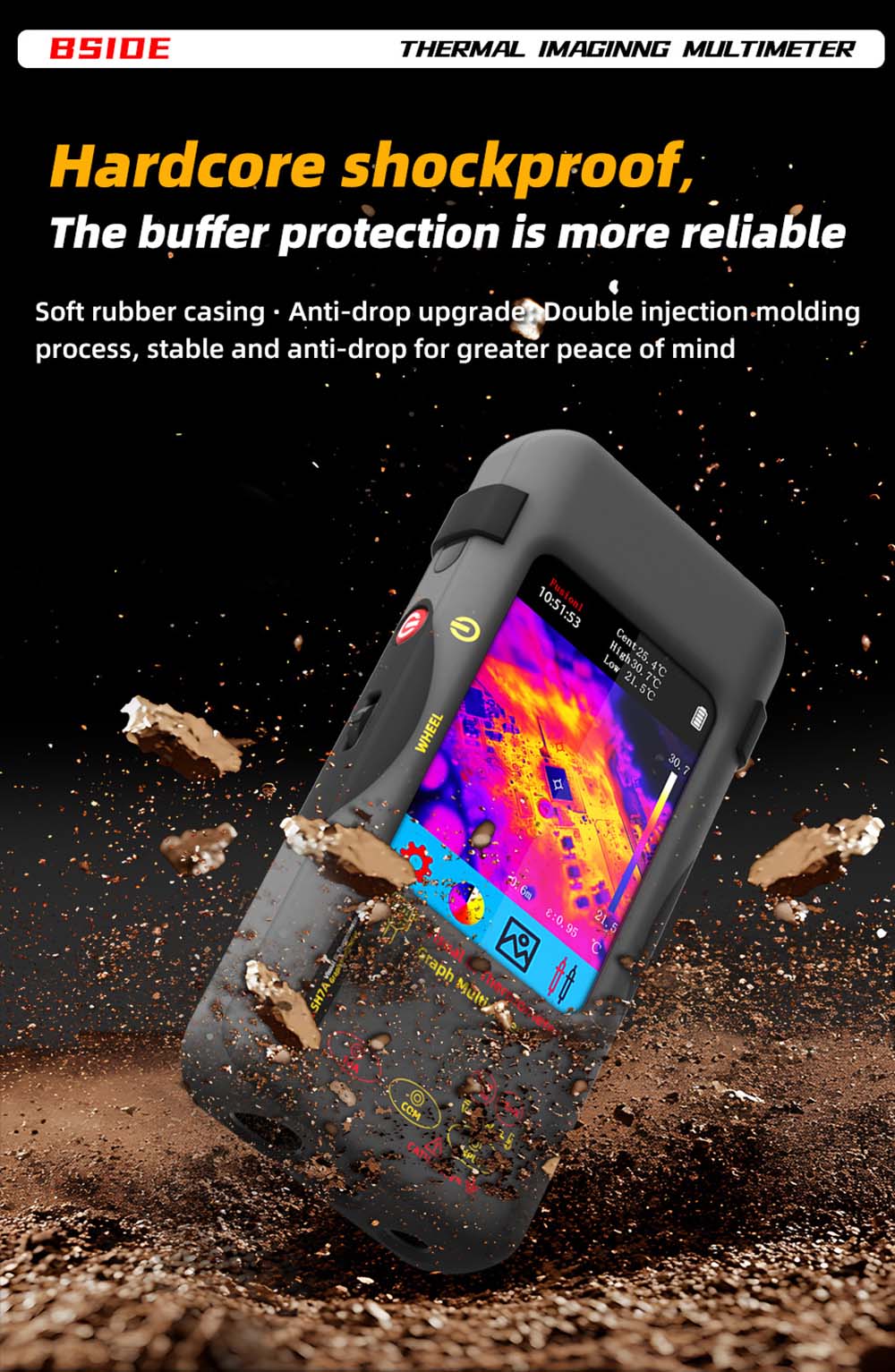

Fall: 1.5 m
Operating Temperature: -10°C~50°C
Storage Temperature: -40°C~70°C
Working Humidity: ≤85%RH (non-condensing)

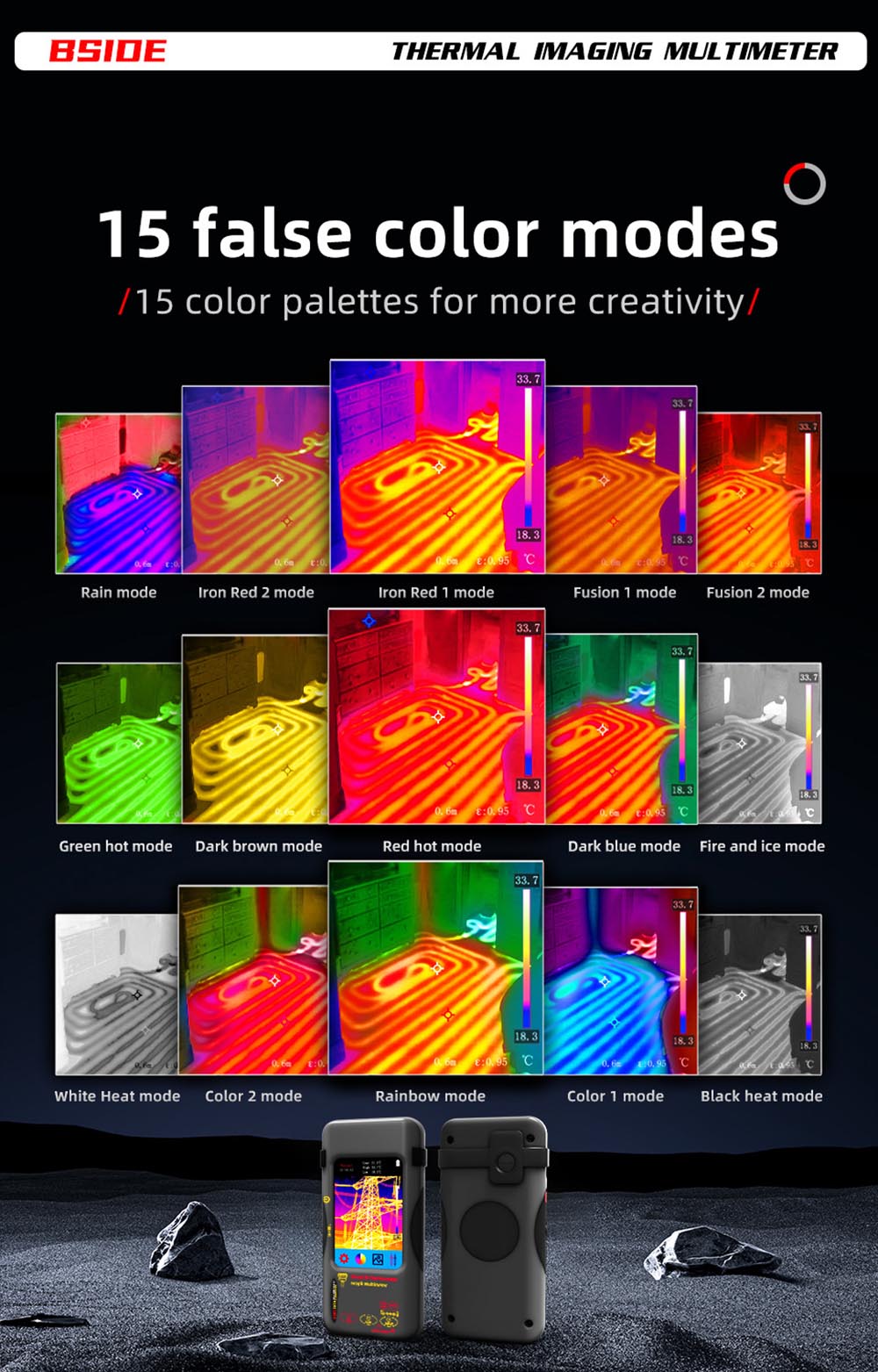

Color Palettes: 15 modes (e.g., White Heat, Black Heat, Rainbow, etc.)

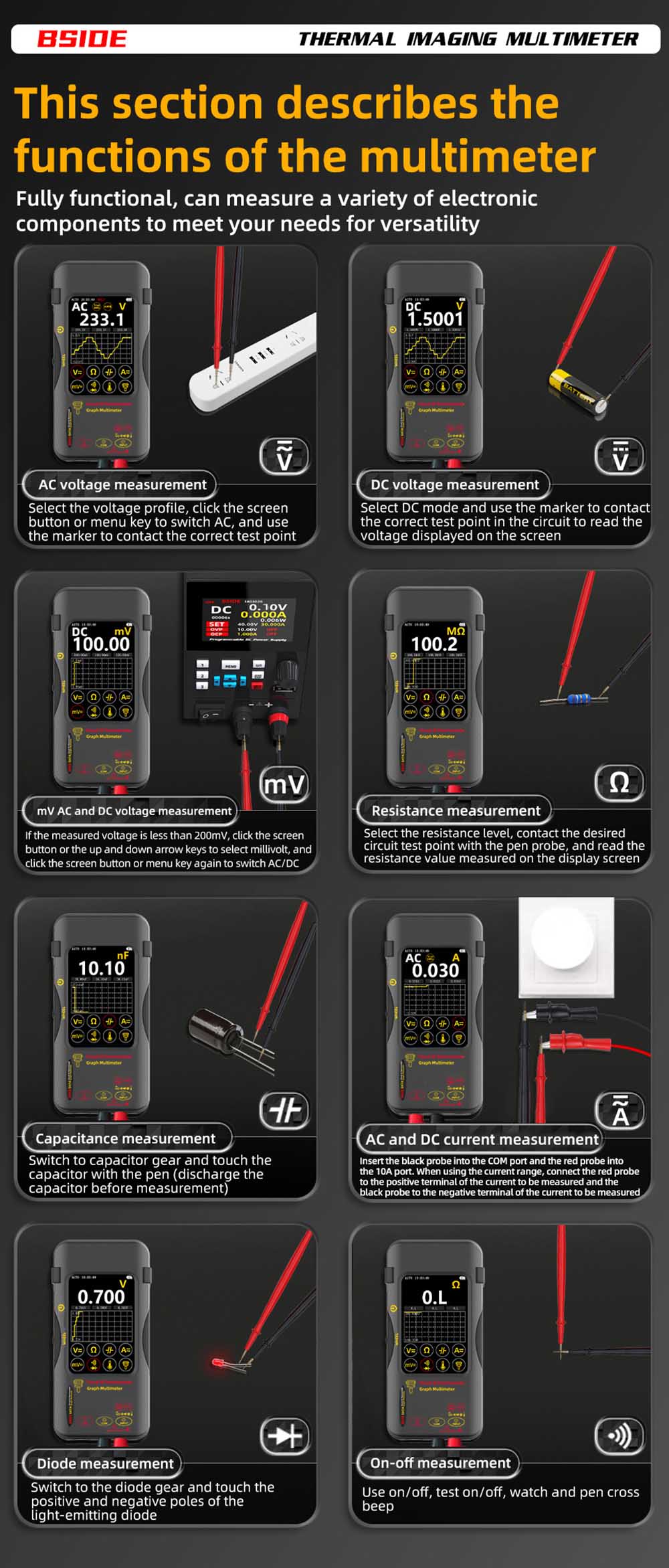

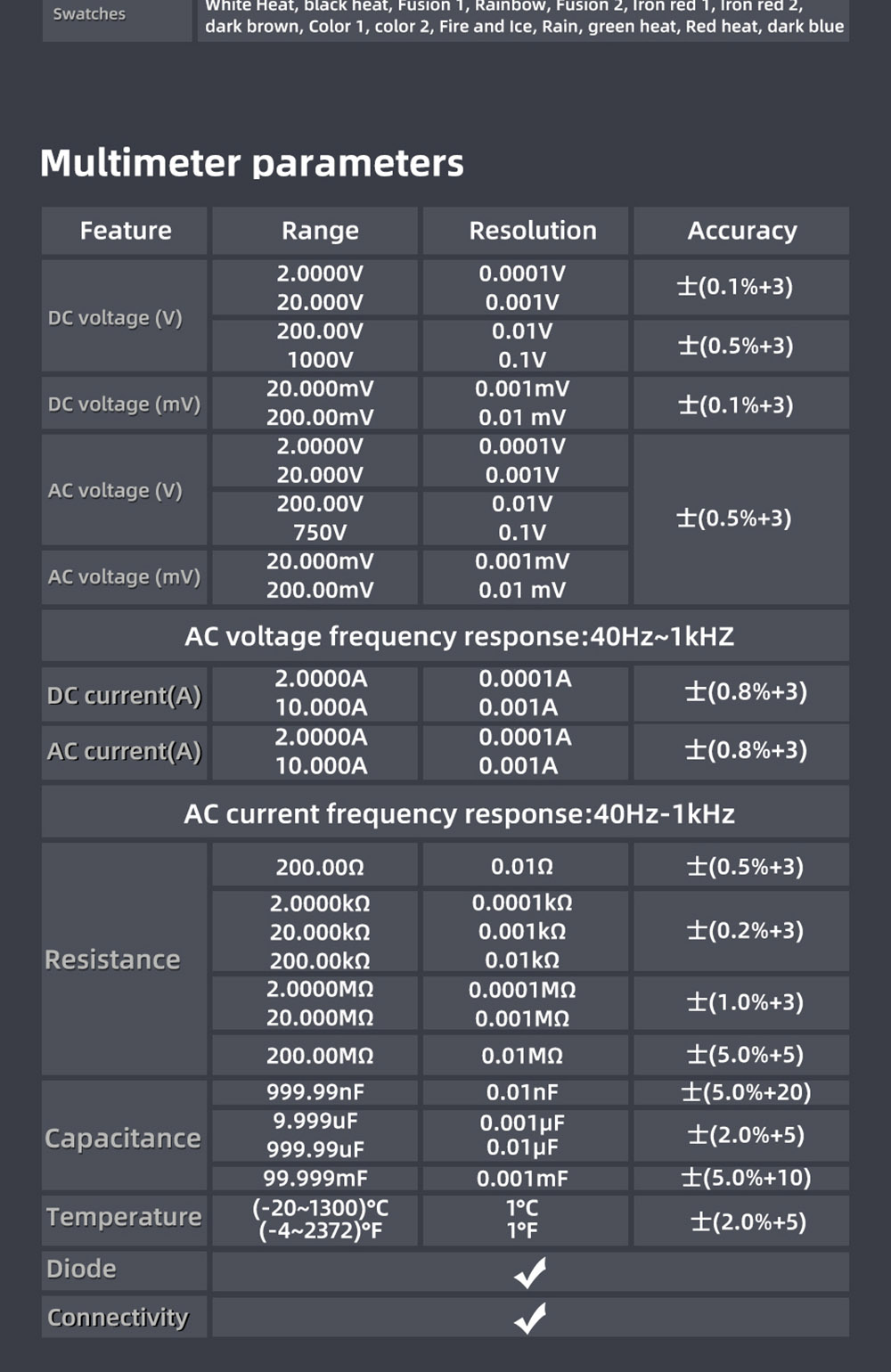

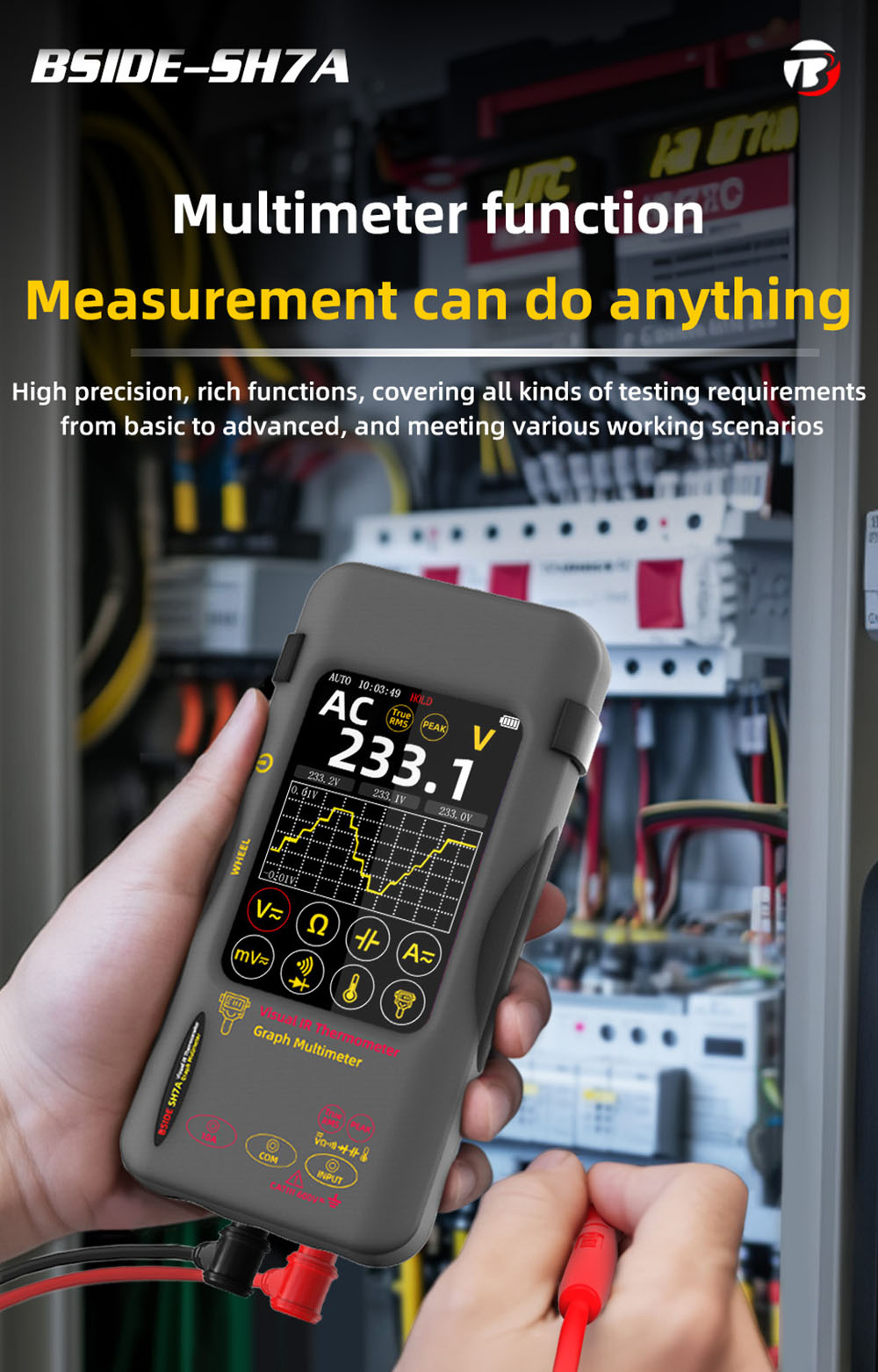

Multimeter Parameters:
Display Screen: 3.98 inch capacitive touch screen
Resolution: 320x240 pixels
Data Statistics: Yes
Backlight: Adjustable brightness
Low Battery Warning: Yes
Automatic Shutdown: Yes
Battery Type: (2500mAh) Lithium battery

Working Environment:
Temperature: 0~40°C
Humidity: <75%

Storage Environment:
Temperature: -20~60°C
Humidity: 80%

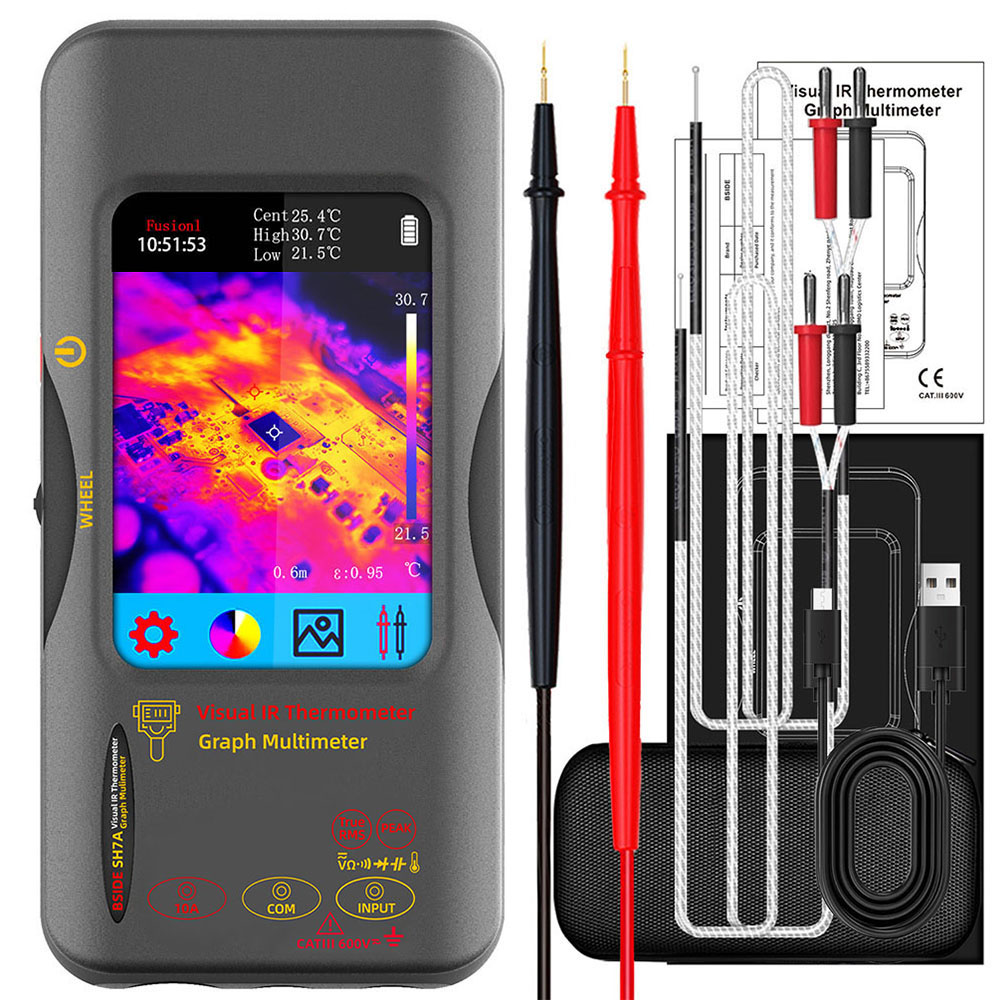

1 x Infrared Thermal Imager Multimeter
2 x Test Leads
1 x USB Cable
1 x Storage Bag
1 x User Manual
