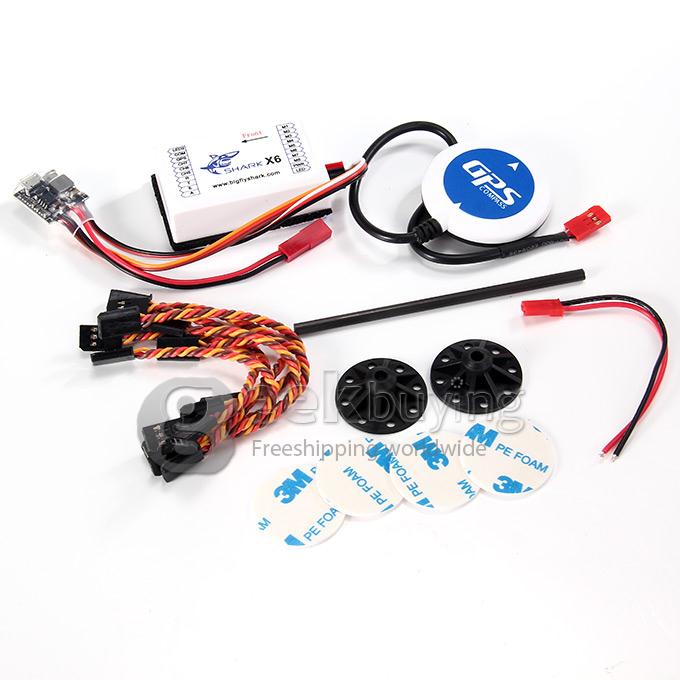

Big Fly Shark X6 Flight Controller Multicopter Control

Highlights

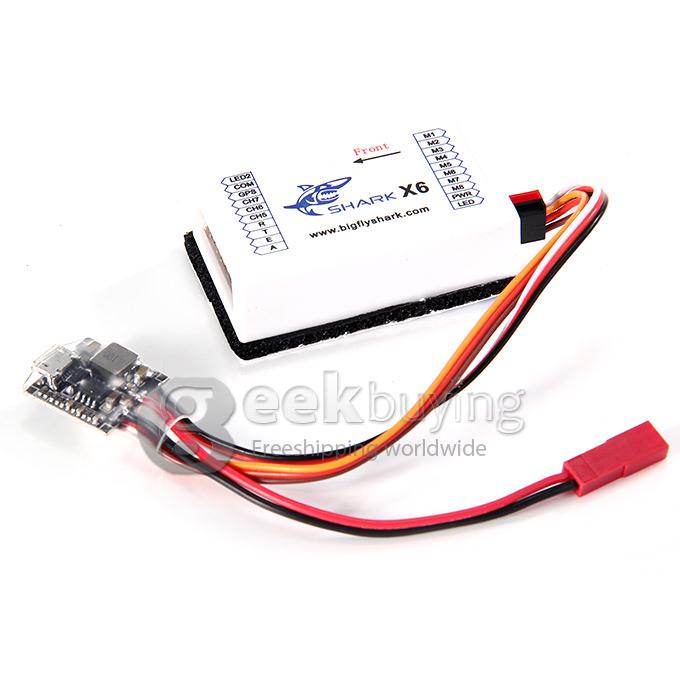

• Shark X6 the multicopter control and autopilot system is specially designed for all multi-rotor enthusiasts.
• It packed in a full metal casing, with highly integrated and compact design, which provides durability and good flight performance.
• Shark X6 autopilot system make your multicopter highly maneuverable and stable in the sky.

Specification

//www.rcgroups.com/forums/showthread.php?t=2288116#post29982537It packed in a full metal casing, with highly integrated and compact design, which provides durability and good flight performance. Shark X6 autopilot system make your multicopter highly maneuverable and stable in the sky.
SharkX6 equipped with 3-axis gyroscope,3-axis accelerometer, barometer and others. With additional of the GPS module that use advance attitude stabilization algorithm, It could provide better stability. The system provides complete failsafe protection for your multicopter which include return to home, low voltage protection and auto landing, etc SharkX8 flight limits feature will allow you to restrict the multicopter aircraft flying within the predefined flying zone.

Compact and Advanced Functionality
Shark X6 integrated 3-axis gyroscope, 3-axis accelerometer, barometer into one compact module, it effectively reduced the installation space and weight, with the addition of altitude hold mode, it maintains the proper altitude, attitude. Provide great support for aerial photography.

Attitude Stabilization
The Advance 12-axis guidance and control algorithms, provide excellent maneuverability and stability, and give a great flight experience to the multi-rotor aircraft enthusiast. The autopilot system attitude, altitude, GPS, AOC, Return to Home, Failsafe Return to Home, 6 intelligent flight functions.

One-key Return to Home
SharkX86 support one return to home, once it switch on, the multi-rotor aircraft will immediately execute return to home function, the aircraft will automatically ascend to certain height, and fly straight to the take off point, finally landing automatically.
By using this function, must ensure the GPS connected and GPS module has collected enough satellites signal. 3-position switch on CH6 must be set to GPS mode.

Automatic Orientation Control
During normal flight mode the flight direction towards the multi-rotor nose direction, during AOC mode, the aircraft direction has nothing to do with the nose direction. It provide a great function for inexperience user.

Low Voltage Protection
There are two levels of low voltage protection available to use, low voltage alarm and low voltage landing. Correctly uses the low voltage protection will effective extend the battery life. When battery level below the low voltage landing alarm, the multi-rotor will automatically landed from the its currently position.

Failsafe Protection
The auto pilot system provides complete failsafe protection functions, which effectively avoid the lost or crash of multi-rotor aircraft. User can choose auto-landing or position hold when the failsafe switch is turned on. The movement in failsafe mode can be chosen via the assistant software. Default value is defined as Return to Home.

Motor(s) Start with Safety Protection Features
For safety reason, push throttle stick before takeoff will not start the motors. In order to start the motor, the four combination stick command is provided.
Shark X8 support up to 8 motors combination, so user have a wide selection of multi-rotor aircraft.
Wide Transmitter Compatibility
Shark X8 support wide range of transmitters on the market, if you already own a transmitter, no addition cost is required. Most 6 channels PWM output R/C transmitters are support, like FUTABA/JR/WFLY.

Online Firmware Updating
Online firmware updating to keep your system up to date, and user friendly, by using a USB cable to connect the autopilot system to the computer to perform the updating.
No windows driver is required. Configuration is done via the USB connection with the assistant software,

Data Record with micro SD card
The on board flying data recording function designed to work with micro SD card, Shark X6 is able to record at least 50 hours of flying data on a single micro SD card. Its a great tool for quick flight diagnosis and flying path review.
Unique one key recovery function, help user to recovery lost data due to any error or damage.
