Highlights

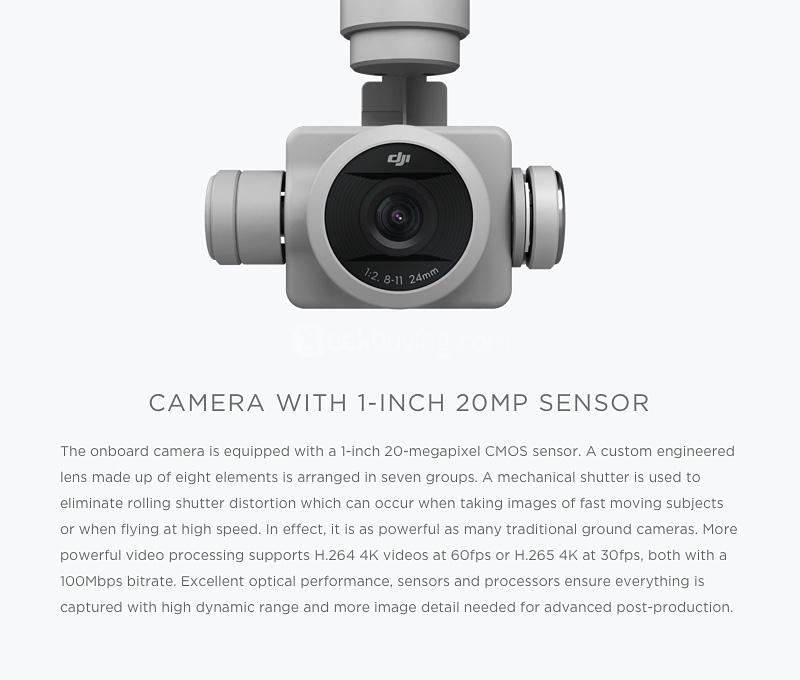

Camera with 1-inch 20MP Sensor
The onboard camera is equipped with a 1-inch 20-megapixel CMOS sensor. More powerful video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps,both with a 100Mbps bitrate.

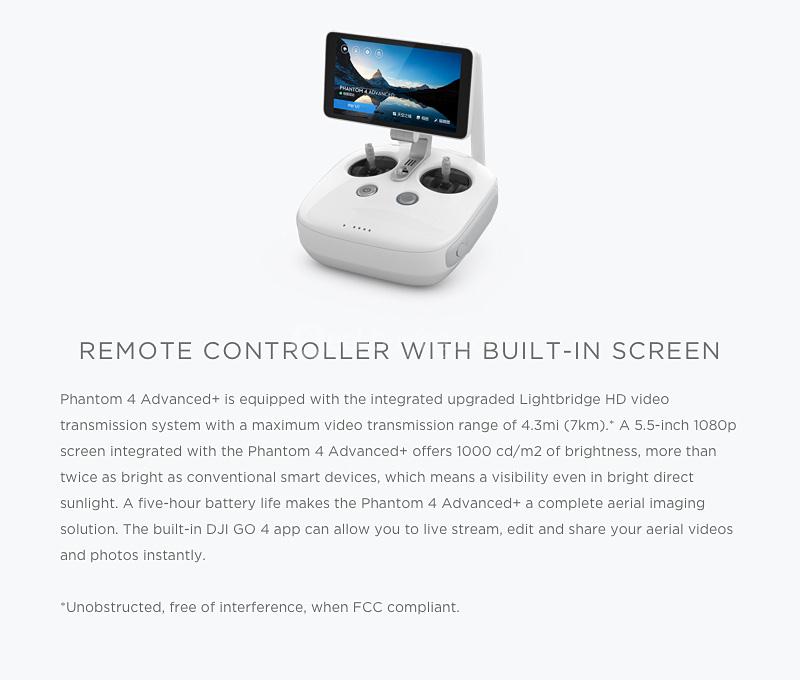

Remote Control
The Phantom 4 Advanced+ is euipped with the integrated upgraded Lightbridge HD video transmission system with a maxium video transmission range of 4.3ml(7km).
5 Vision Sensors
Euipped with the FlightAutonomy system made up of 5 vision sensors,dual-band satellite positioning (GPS and GLONASS),ultrasonic rangefinders and redundant sensors.
Multiple Flight Modes
Phantom 4 Advanced offers three modes for flight: P, A and S. In Position Mode, TapFly, ActiveTrack, obstacle sensing and positioning features are available.

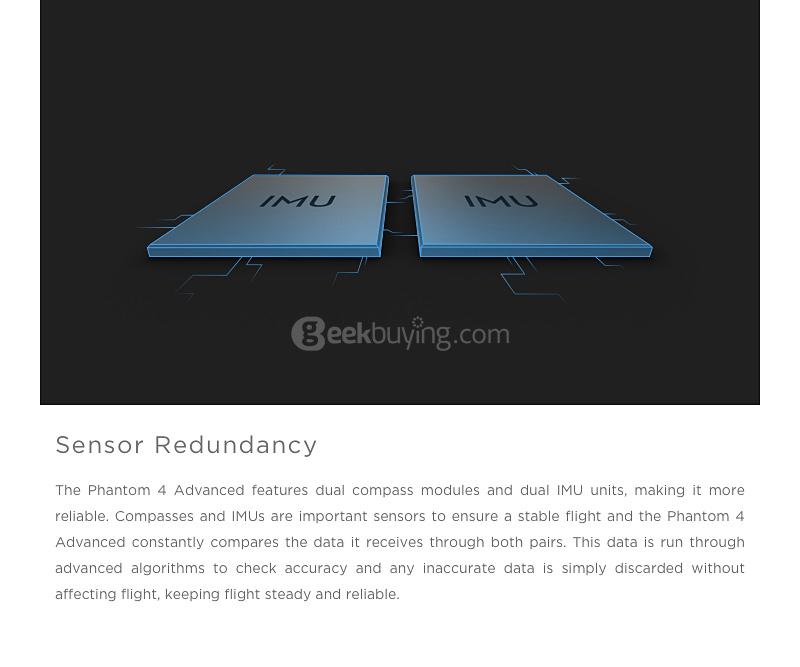

Sensor Redundancy
The Phantom 4 Advanced features dual compass modules and dual IMU units, making it more reliable. Compasses and IMUs are important sensors to ensure a stable flight and the Phantom 4 Advanced constantly compares the data it receives through both pairs.

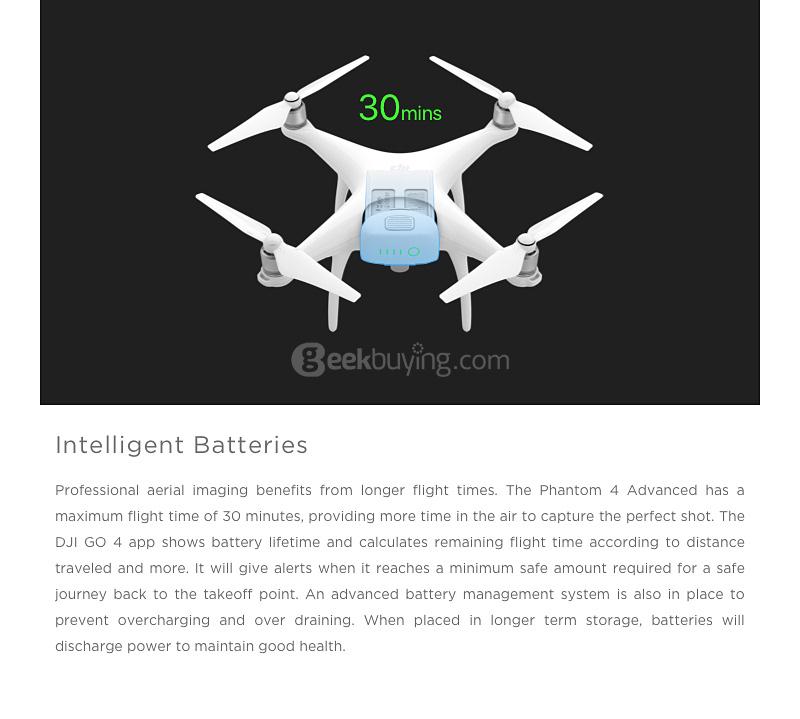

Longer Flight Time
Professional aerial imaging benefits from longer flight times. The Phantom 4 Advanced has a maximum flight time of 30 minutes, providing more time in the air to capture the perfect shot.
DJI GO APP
Using the DJI GO app, a large number of Intelligent Fight Modes are available. It also provides access to full manual camera controls, including ISO, aperture, shutter speed, image formats, and more. Any changes in DJI GO will appear almost instantly on-screen.
Specification
| Aircraft |
Weight: 1368g(Battery & Propellers Included) |
| Vision System | Vision System: Forward Vision System Downward Vision System Velocity Range: ≤31 mph (50 kph) at 6.6 ft (2 m) above ground Altitude Range: 0 - 33 feet (0 - 10 m) Operating Range: 0 - 33 feet (0 - 10 m) Obstacle Sensory Range: 2 - 98 feet (0.7 - 30 m) FOV: Forward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) Measuring Frequency: Forward: 10 Hz Downward: 20 Hz Operating Environment: Surface with clear pattern and adequate lighting (lux>15) |
| Remote Controller | Operating Frequency: 2.400 - 2.483 GHz Max Transmission Distance: 2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) Operating Temperature Range: 32° to 104°F (0° to 40°C) Battery: 6000 mAh LiPo 2S Transmitter Power (EIRP): 2.400 - 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm Operating Current/Voltage: 1.2 [email protected] V Video Output Port: GL300E: HDMI GL300C: USB Mobile Device Holder: GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM+16 GB ROM) GL300C: Tablets and smart phones |
| Intelligent Flight Battery | Capacity: 5870 mAh Voltage: 15.2 V Battery Type: LiPo 4S Energy: 89.2 Wh Net Weight: 468 g Charging Temperature Range: 41° to 104°F (5° to 40°C) Max Charging Power: 100 W |
| Gimbal | Stabilization: 3-axis (pitch, roll, yaw) Controllable Range: Pitch: -90°to +30° Max Controllable Angular Speed: Pitch: 90°/s Angular Control Accuracy: ±0.02° |
| Camera |
Sensor: 1"CMOS H.264 |
| Charger | Voltage: 17.5V Rated Power: 100 W |
| App / Live View | Mobile App: DJI GO 4 Live View Working Frequency: 2.4 GHz ISM Live View Quality: 720P @ 30fps Latency: Phantom 4 Adv: 220 ms (depending on conditions and mobile device) Phantom 4 Adv +:160 - 180 ms Required Operating Systems: iOS 9.0 or later Android 4.4.0 or later Recommended Devices: iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1. |
| Package Contents | 1 X Aircraft Body 1 X Remote Controller 1 X Propellers 1 X Intelligent Flight Battery 1 X Battery Charger 1 X Power Cable 1 X Accessories(Gimbal Clamp/USB OTG Cable Micro USB Cable/Micro SD Card(16GB)/Carrying Case |
